    SystemOperation systemEmbedded Linux OS
    Online visitorSupport 4 visitors at the same time
    Image CaptureImage sensor1/2.9 inch 1080p Progressive Scan CMOS
    Minimum Illumination0.3~0.5Lux(Color mode),0Lux(B&W Mode)
    Lens4.0mm@F2.0
    View Angle102°(Diagonal)
    Night visionAutomatic switching of dual filters, two 850nm infrared lamps and two high-power white lamps, with irradiation distance of 15-20 meters
    VideoEncode formatH.264+/H.264 main profile/Motion-JPEG/JPEG
    StreamsMain stream:1080p(1920×1080)@30fps/1296p(2304×1296)@30fps Substream:360p(640×360)@15fps
    Bit Rate/Max Fps128~4096kbps/30pfs
    Image adjustmentBrightness and contrast can be adjusted
    AudioInputBuilt in -28db microphone
    OutputBuilt-in 8Ω2w speakers
    Sampling frequency / width8KHz/16bit
    Compression standardADPCM/32kbps
    NetworkEthernet10Mbps/100Mbps adaptive /RJ45 interface

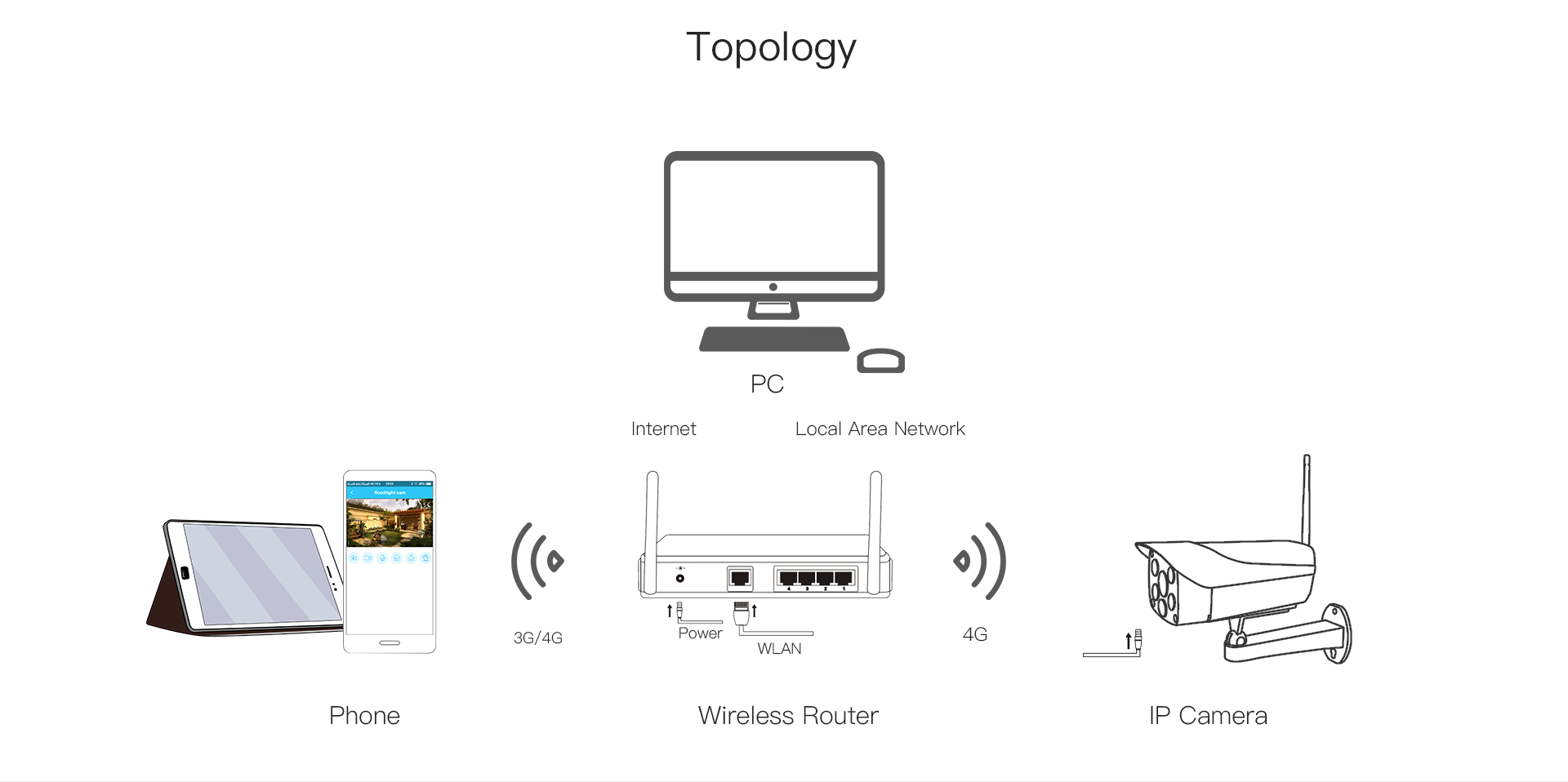

    ProtocolsTCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P etc.
    4G(EU) networkWCDMA:B1/B5/B8 FDD:B1/B3/B5/B7/B8/B20 TDD:B38/B40/B41

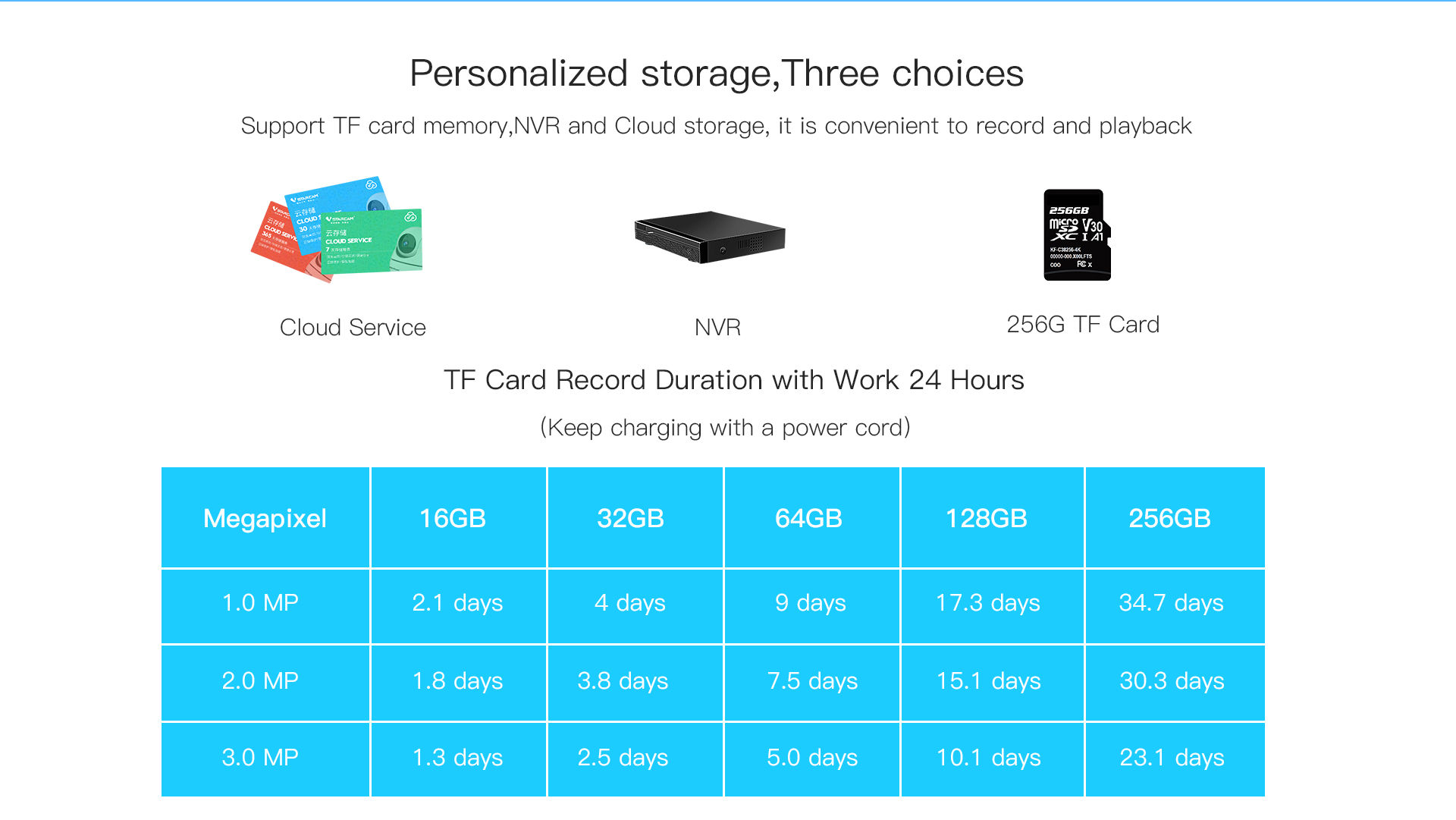

    MemorySocketTF Push-push socket,Maximum support 256GB; Cloud Storage
    AlarmAlarm TriggerSupport motion detection, humanoid detection, crying monitoring, smoke detector alarm detection, absence monitoring
    Physical EnvironmentalRated voltageDC12V±5%
    Power consumptionRelated power:6.5W(IR on)
    Operating conditionTemperature:-10~50℃,humidity:<90%
    WeightNet: TBD g  Gross:TBD g(Note: in kind prevail)
    Package size190x105x230mm(L*W*H)

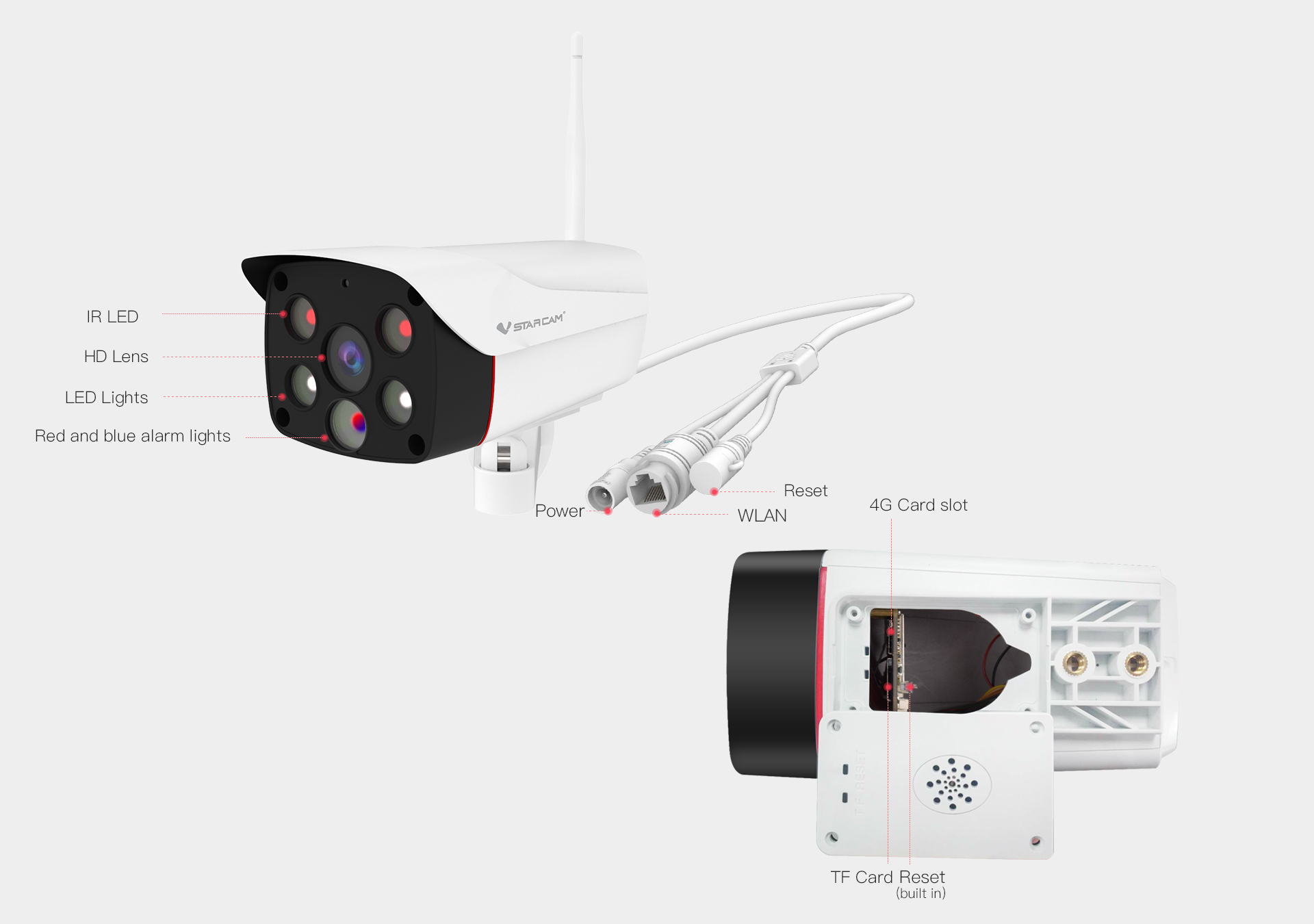

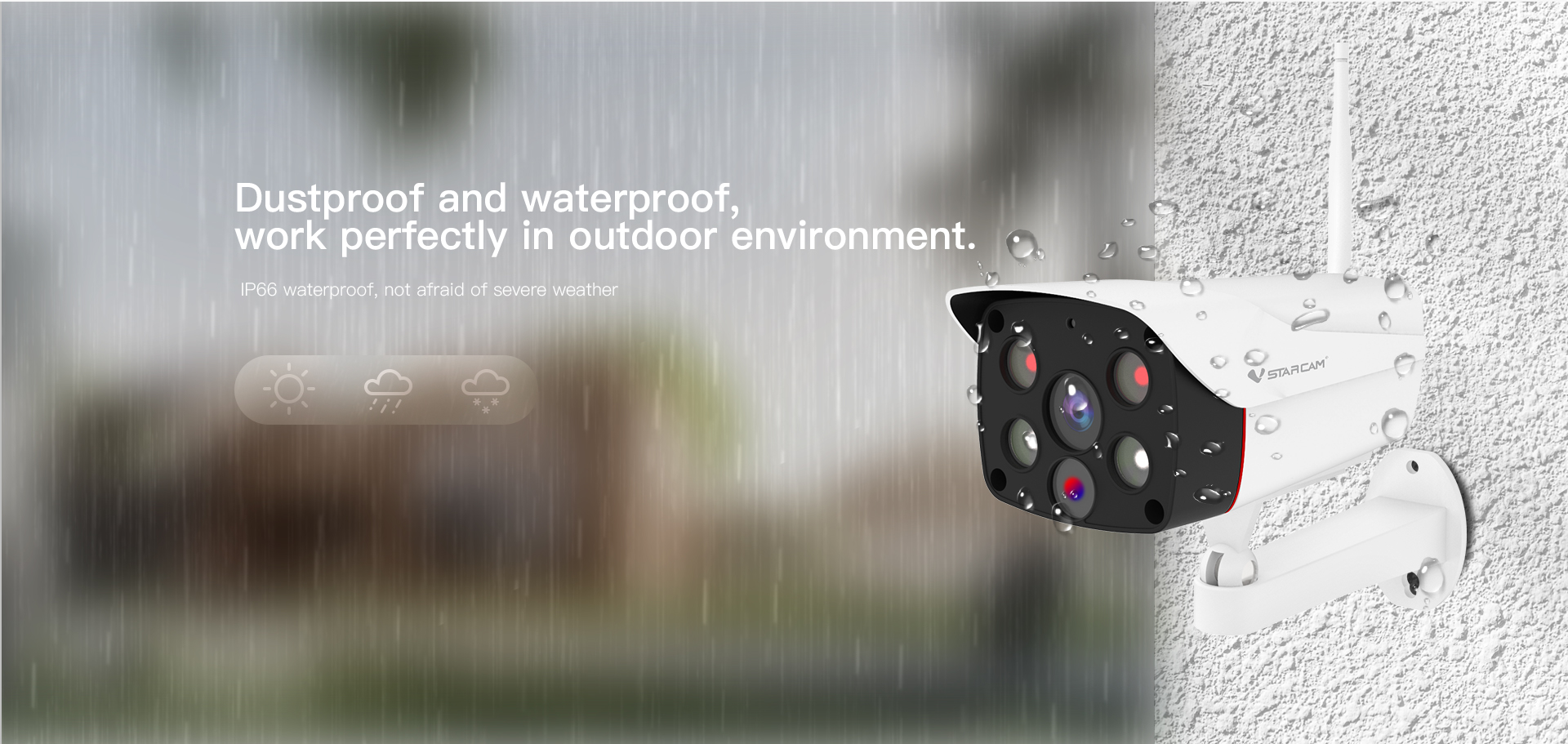

     CG52 4G Outdoor Security Camera
