| System | Operation system | Embedded Linux OS |
| Online visitor | Support 4 visitors at the same time |
| Image Capture | Image sensor | 1/2.9 inch 1080p Progressive Scan CMOS |
| Minimum Illumination | 0.3~0.5Lux（Color mode）,0Lux（B&W Mode） |
| Lens | 4.0mm@F2.0 |

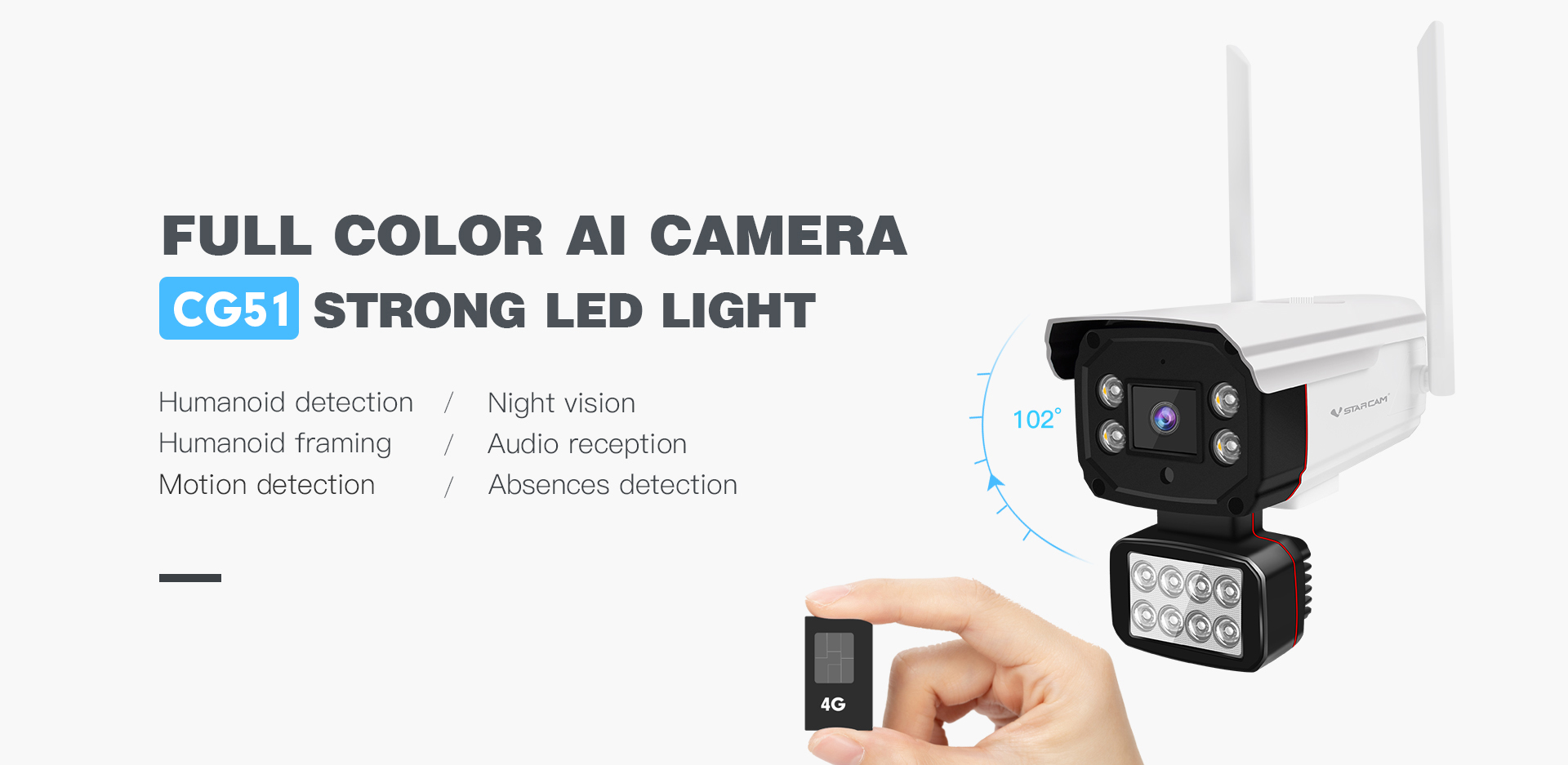

| View Angle | 102°（Diagonal） |
| Night vision | Automatic switching of dual filters, 6pcs 850nm infrared lamps and 4pcs high-power white lamps, with irradiation distance of 15-20 meters |

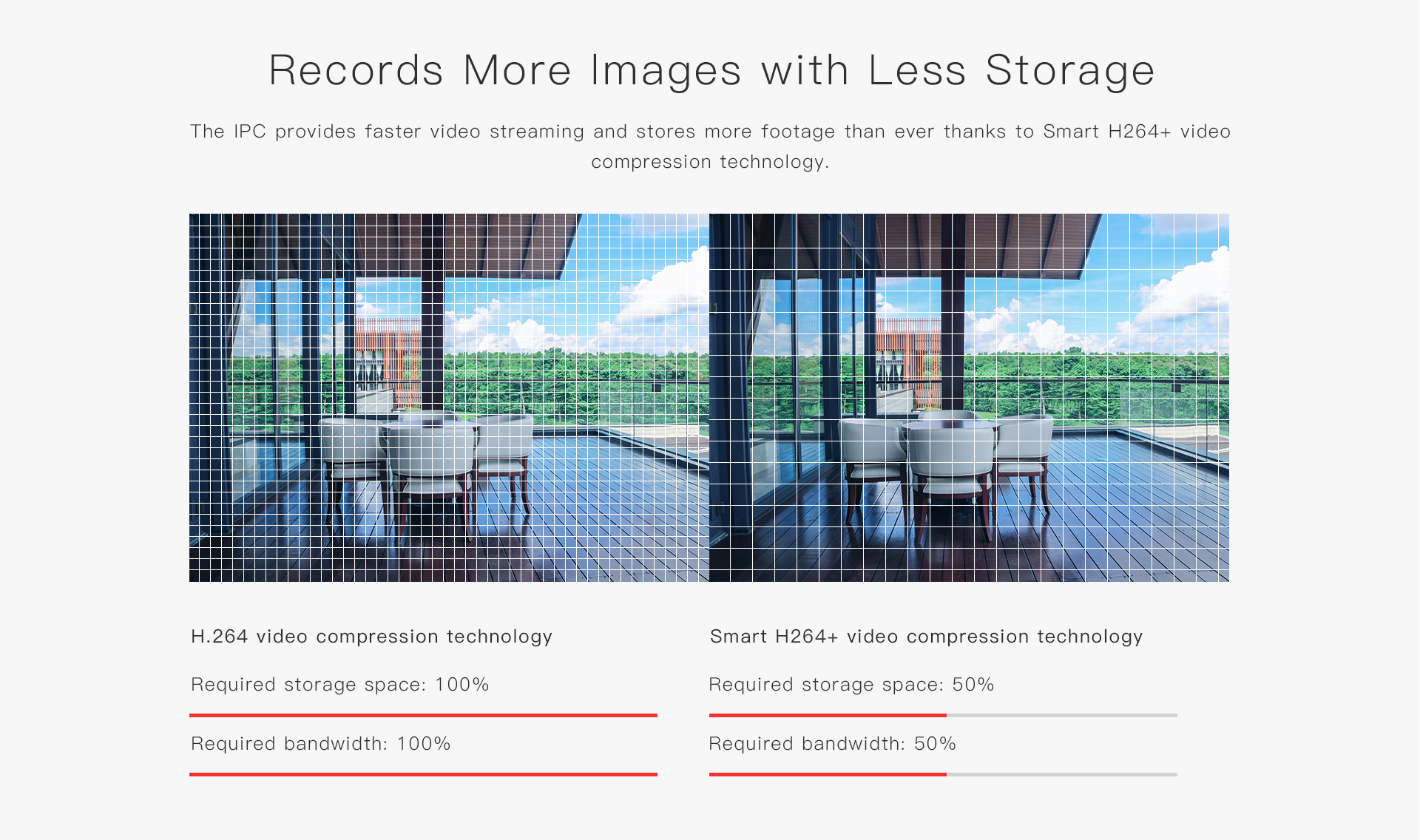

| Video | Encode format | H.264+/H.264 main profile/Motion-JPEG/JPEG |
| Streams | Main stream：1080p(1920×1080)@30fps/1296p(2304×1296)@30fps Substream：360p(640×360)@15fps |
| Bit Rate/Max Fps | 128～4096kbps/30pfs |
| Image adjustment | Brightness and contrast can be adjusted |
| Audio | Input | Built in -28db microphone |
| Output | Built-in 4Ω3W speakers |
| Sampling frequency / width | 8KHz/16bit |
| Compression standard | ADPCM/32kbps |

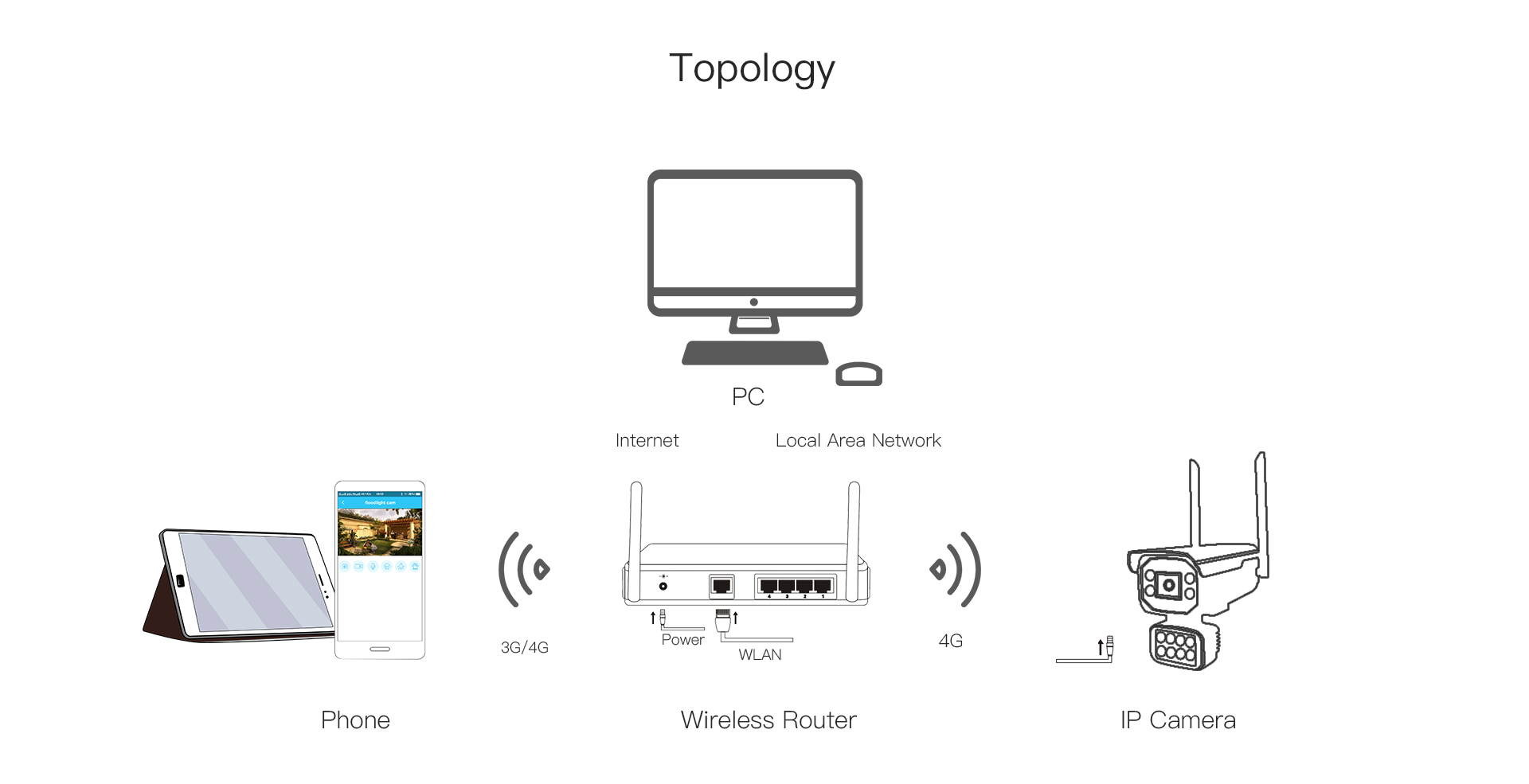

| Network | Ethernet | 10Mbps/100Mbps adaptive /RJ45 interface |
| Protocols | TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P等 |
| 4G(EU) network | WCDMA：B1/B5/B8 FDD：B1/B3/B5/B7/B8/B20 TDD:B38/B40/B41 |

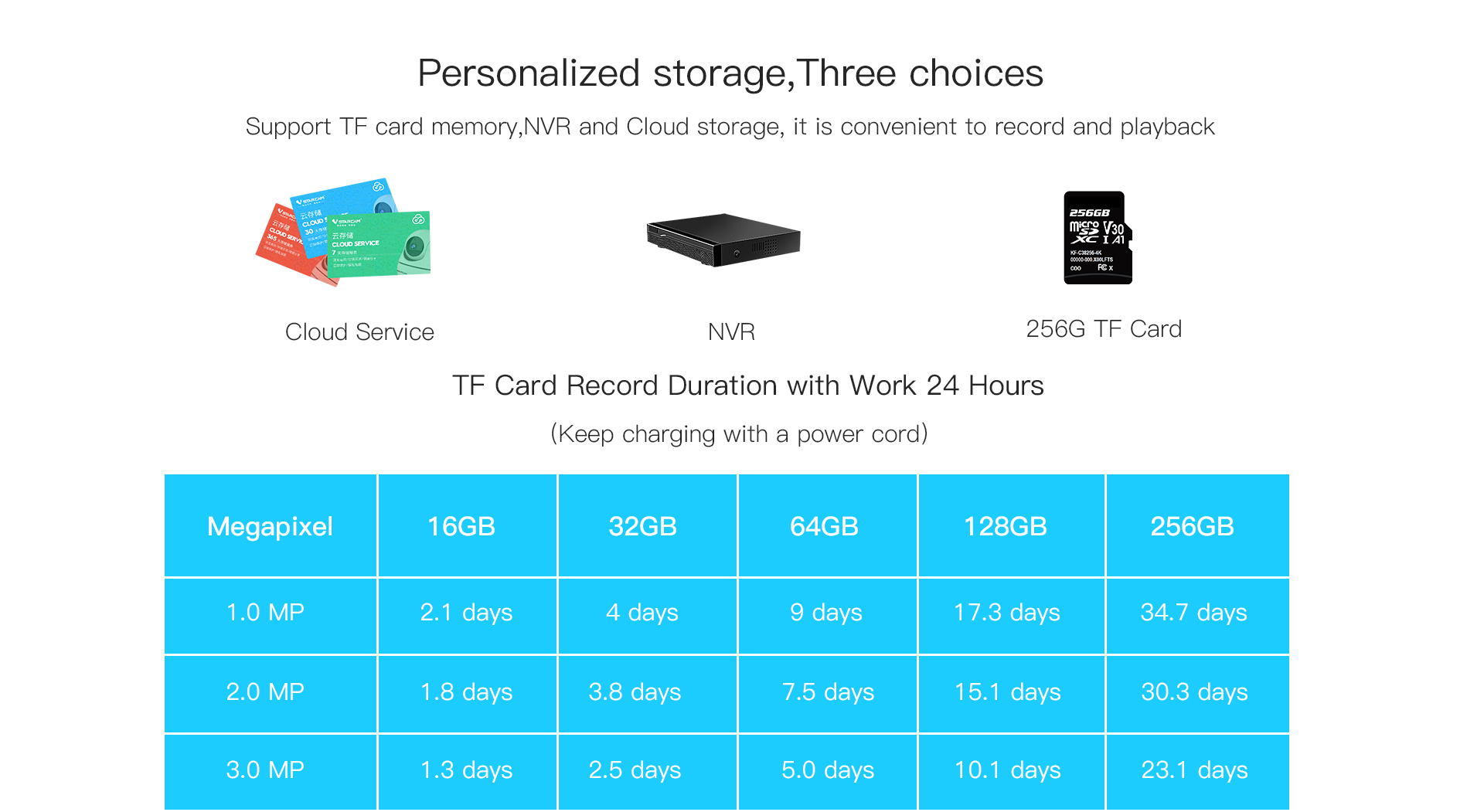

| Memory | Socket | TF Push-push socket,Maximum support 256GB; Cloud Storage |
| Alarm | Alarm Trigger | Support motion detection, humanoid detection, absence monitoring |
| Physical Environmental | Rated voltage | DC12V±5% |
| Power consumption | Related power:6.5W(IR on) |
| Operating condition | Temperature:-10～50℃,humidity:＜90% |
| Weight | Net: 678 g Gross：1013.5g(Note: in kind prevail) |
| Package size | TBD mm(L*W*H) |
