| ✮Four views, monitor with no blind spots | ||
| ✮Wireless connection (2.4G-5.8G) | ||
| ✮Dual-chip light board, full-color night vision supported | ||

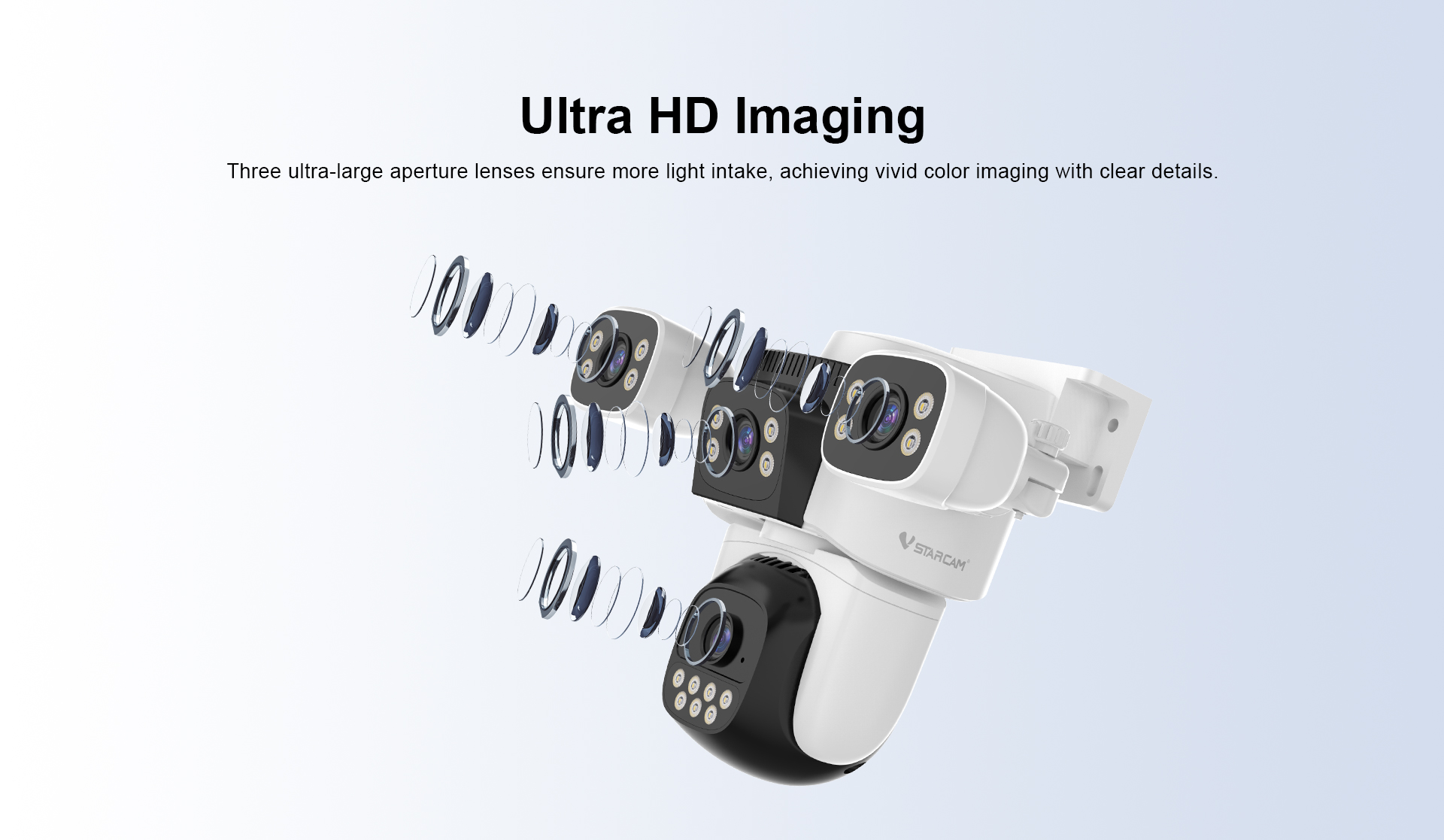

| ✮F2.0 large aperture, more light inputs, clearer night vision | ||
| ✮ISP image processing technology, preserving true colors | ||
| ✮Human detection, real time alerts | ||
| Sorts | Type | Parameters |
| System | Operating system | Linux |
| Online visitor | Supports 4 visitors at the same time | |
| APP | VStarcam Ultra | |
| Collection | Processor | Hisilicon Hi608 |
| Memory | 512Mb | |
| Lens | 3.6mm | |
| Image sensor | 1/3" 1080p GC20C3 progressive scan CMOS sensor | |
| Min. Illumination | 0.5Lux (Color), 0.1Lux (B/W) | |
| Sensor performance | Support automatic white balance, automatic gain control and automatic backlight compensation | |
| Night vision | Color night vision, Infrared night vision | |
| Field of View | 67° | |
| Video | Resolution | 1080P 1920x1080/12FPS |
| Night vision | 20-50m | |
| Compression standard | H.265 main profile/Motion-JPEG/JPEG | |
| IR control | IR-CUT, soft photosensitive control | |
| Bit rate | 128～4096kbps | |
| Image adjustment | Flip vertical, OSD display | |
| Audio | Input | Built-in -38dB microphone |
| Output | Built-in 8Ω1W speaker | |
| Sampling frequency/Bit depth | 8KHz/16bit | |
| Compression standard/Bit rate | G711A | |
| PTZ | Movement range | Pan：270° Tilt：90° |
| Network | Network interface | 10Mbps/100Mbps |
| Network protocol | TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P | |
| Wireless network | IEEE802.11b/g/n | |
| Wireless frequency | 2.4G-5.8G | |
| Wireless security | 64/128-bit WEP/WPA-PSK/WPA2-PSK | |
| Storage | External TF card | Support TF card (up to 256GB) |
| Cloud storage | Cloud storage supported (subscription required) | |
| Alarm | Alarm detection | Motion detection, human detection, human framing, human tracking, siren alarm, and area detection |
| Physical Indicators | Rated voltage | DC12V±5% |
| Power consumption | Power: 8.64W (0.72A) Maximum power: 11.16W (0.93A) | |
| Operating condition | Temperature: -10～55℃; Humidity: ＜90% | |
| Weight | Net weight: 620g Gross weight: 1200g | |
| Product Dimension | 154x235x185mm | |
| Package Dimension | 255x210x132mm | |
| Carton Dimension | 525x435x425mm | |
| QTY/CTN | 12PCS | |
| Package Contents | Camera ×1, screw kit ×1, bracket ×1, charger ×1, user manual ×1 | |
