  • SortsTypeParameter

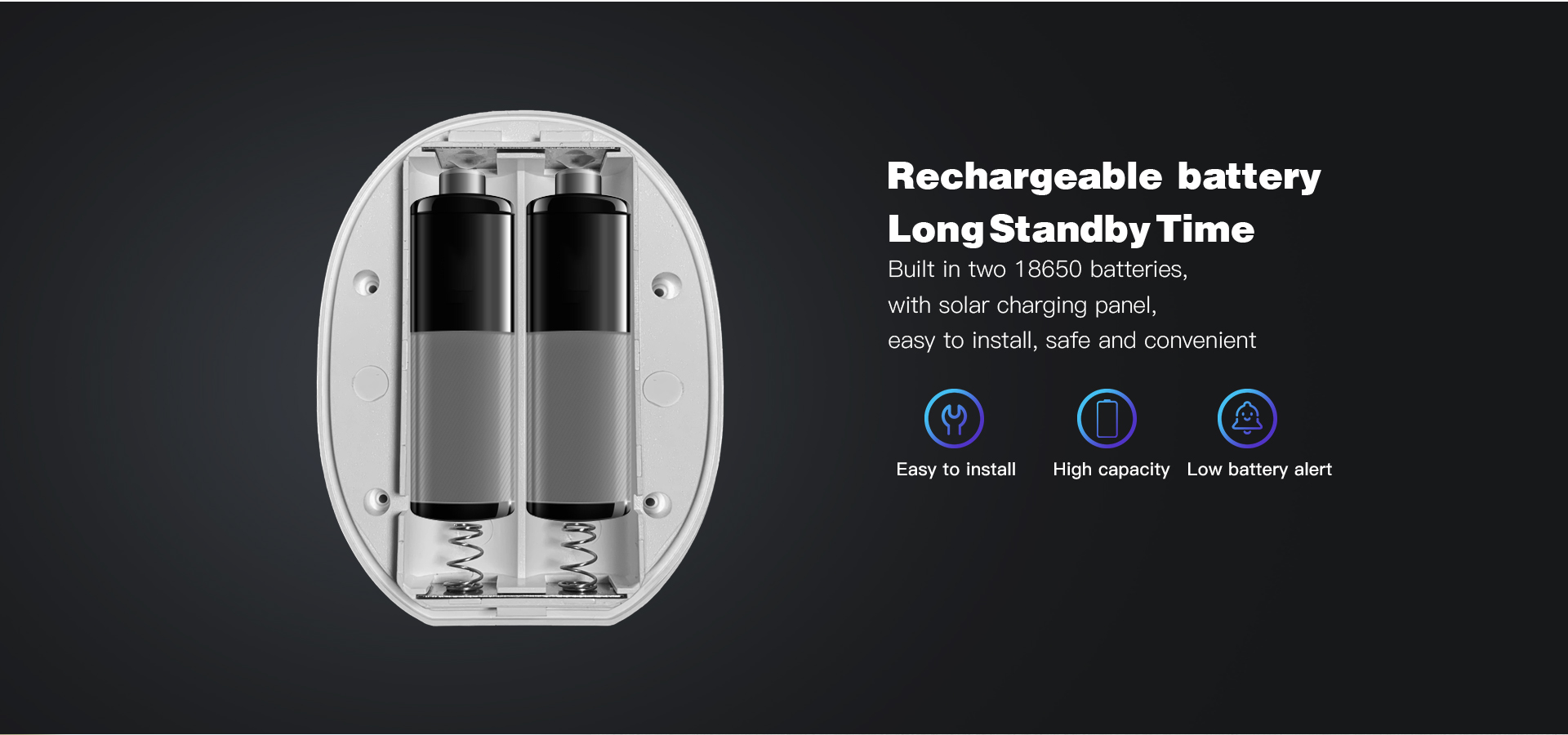

      Feature        Selling points  Wireless connection Remote active wake up,quick start,two-way speaking Pir+ radar dual sensor alarm recording, begain to recording in one second Intelligence human motion detection Intelligent alarm push 5000mAh battery power supply, low battery remind Ultra-low-power system optimization Free cloud storage alarm recording
      SystemOperating systemlinux
    Online visitorSupport 4 visitors at the same time
    CPUT31 ZL
      CollectionImage sensorGC2053,1/2.9 inch 1080p progressive scan CMOS sensor (200W/400W optional,PCB compatibility)
    Minimum Illumination0.3~0.5Lux(color mode),0Lux((B&W mode)
    LensStandard M12lens
    Viewing angle110˚(Diagonal)
    Night visionPhotosensitive filter with auto-switching,6pcs 850nm SMD IR LED, IR irradiation distance:5~10 m
      VideoCompression standardH.265 main Profile/H.264 Baseline Profile/MJPEF/JPEG Baseline
    Multistream1080P@30fps+VGA@30fps+360P@4fps JPEG
    Compression standard/Bit RateCBR/VBR Two code rate control modes,the output code rate range is 128~4096kbps
    Image adjustmentBrightness, contrast, saturation, and chroma are adjustable
      AudioInputBuilt-in 38db microphone
    OutputBuilt-in 8Ω1 w speakers
    Sampling frequency/bit width8KHz/16bit
    Compression standard/Bit RateADPCM/32kbps
      NetworkNetwork protocolTCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,P2P,etc.
    Wireless networkIEEE802.11b/g/n
    Wireless frequency2.4~2.4835GHz
    Wireless security encryption64/128-bit WEP/WPA-PSK/WPA2-PSK data encryption

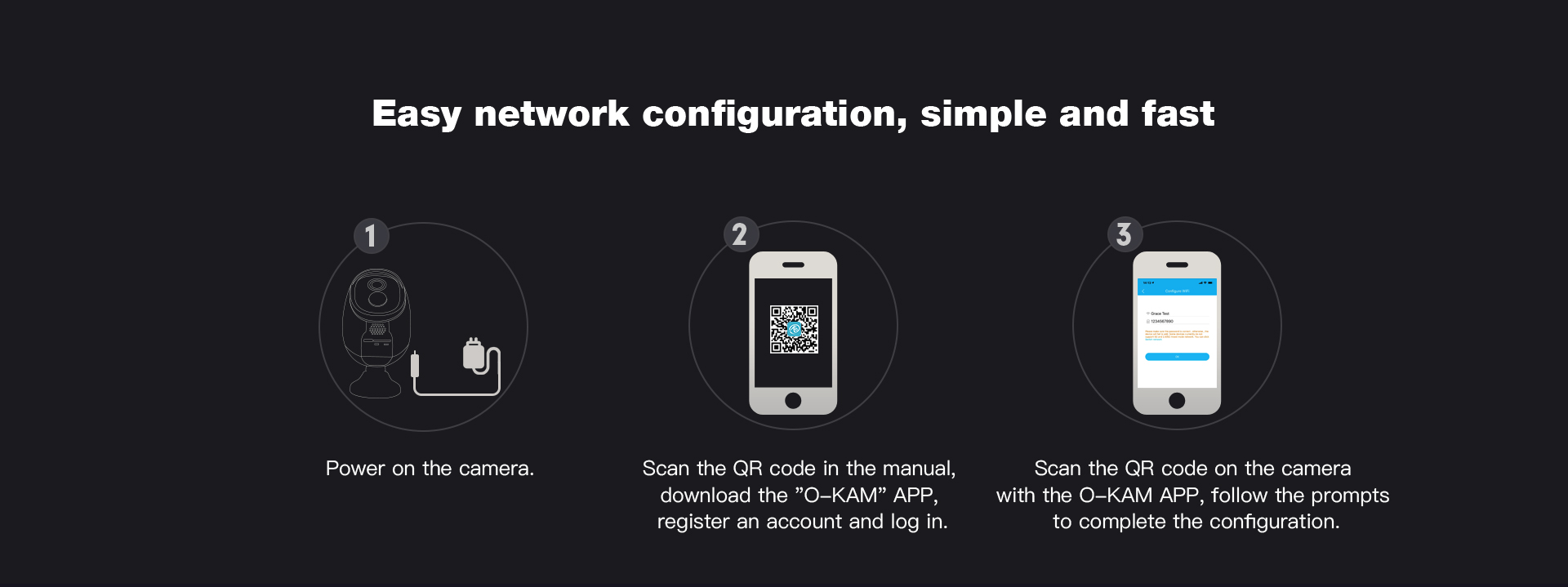

    Wireless connectionAP mode connection,Scan  QR code to network
      ButtonPress buttion 1Switch on/off button
    Press buttion 2N/A
    Reset buttonHold on to restore the factory default settings


    CB53 Scenario shows

    CB53 Wiring instructions
