| System | Operation system | Embedded Linux |
| Online visitor | Support 4 visitors at the same time | |
| Image Capture |
Image sensor | 1/2.9inch 1080p Progressive Scan CMOS |
| Minimum Illumination | 0.5Lux（Color mode）,0Lux（B&W Mode） | |
| Lens | 2.8-8mm@F1.6-2.4 | |
| View Angle | 139°~43.4° （diagonal） | |
| Night vision | IR-Cut with automatic switching，6pcs 850nm IR LED lights,Irradiation distance:5～10m | |
| Video | Encode format | H.264 main profile@level:4.0/Motion-JPEG/JPEG |
| Three Stream | Main Stream:1296p@15fps(2304×1296)/1080p@25fps(1920×1080)，Sub Stream:360p@15fps(640×360) | |
| Bit Rate | 128～4096kbps | |
| Maximum frame rate | 15fps | |
| Image adjustment | Brightness, contrast, saturation, chroma are adjustable | |
| Audio | Input | Built-in -38 dB microphone |
| Output | Built-in speaker(8Ω1W) | |
| Sampling frequency / width | 8KHz/16bit | |
| Compression standard | G.711/32kbps | |
| Network | Ethernet | 10Mbps/100Mbps Adaptive/RJ45 interface |
| Protocols | TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P etc | |
| Wireless LAN | IEEE802.11b/g/n | |
| Wireless LAN Frequency | 2.4GHz | |
| Wireless LAN security | 64/128-bit WEP/WPA-PSK /WPA2-PSK data encryption | |

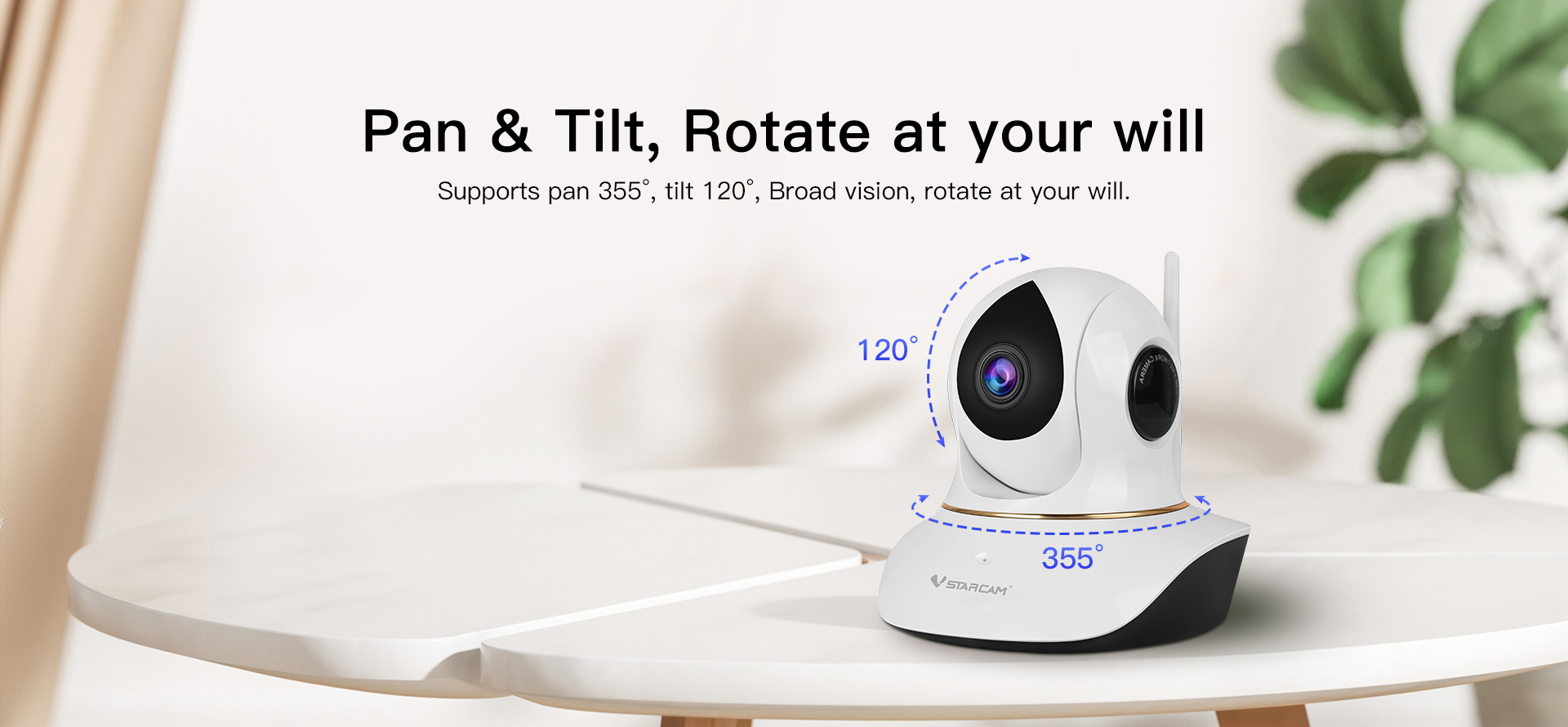

| Pan-tilt | Pan-tilt | Pan：355°,Tilt：120° |
| Preset position | Support 16 preset positions (only 5 preset positions for mobile App) | |
| Memory | Storage function | TF card, Maximum support 128GB |
| Alarm | Alarm Trigger | Support Motion detection; Humanoid detection, Humanoid framing, Absence monitoring, Delimitation detection |
| Physical Environment |
Rated voltage | DC 5V±5% |
| Power consumption | Related power:3.2W( IR LED on), Maximum Power: 6.8W（PTZ on） | |
| Operating condition | Temperature:-10～50℃,Humidity:＜90% | |
| Weight | Net：325 g(Note: in kind prevail) | |

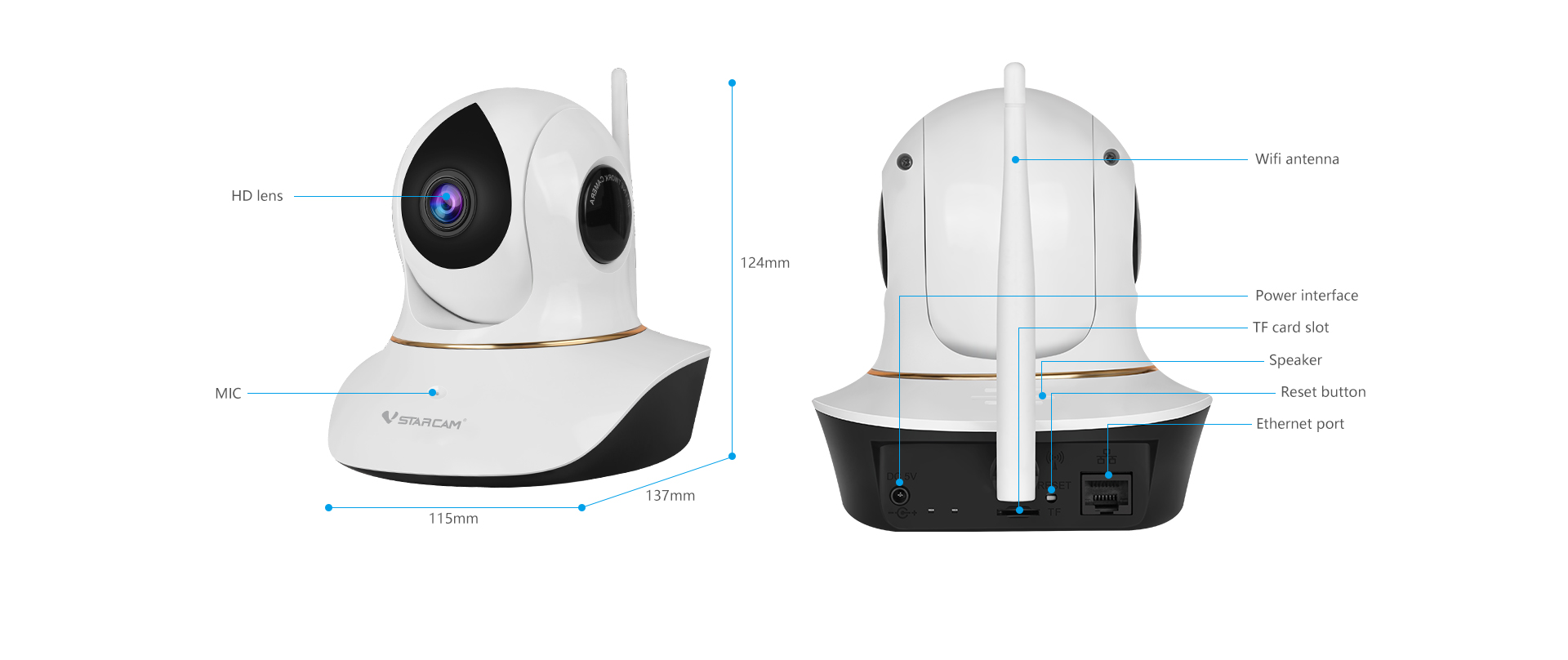

| Package size | 208x154x137mm(L×W×H) |
