| NVR | ||
| System | Main processor | MC6810E |
| Operating system | Embedded LINUX operating system | |
| System resource | Simultaneous multi-channel real-time recording, real-time playback, multi-channel multi-person network operation, USB backup | |
| Interface | Operation interface | 24-bit true color graphical menu interface, support mouse operation |
| Screen display | 1/4/6/8 screen | |
| Image coding | BaseLine Profile / Main Profile / High Profile | |
| Playback quality | 3 channels of 5 MP playback simultaneously; support 8MP/5MP/4MP/3MP/1080P/960P/720P/D1/VGA | |
| Video access | 8 channels 8MP 4M bit rate access storage | |
| Motion Detection | Support | |
| Audio | Audio compression | G711.A, G711.U |
| Audio Video other | Video recording | Manual, Timing, Motion detection, Blocking alarm, AI smart recording |

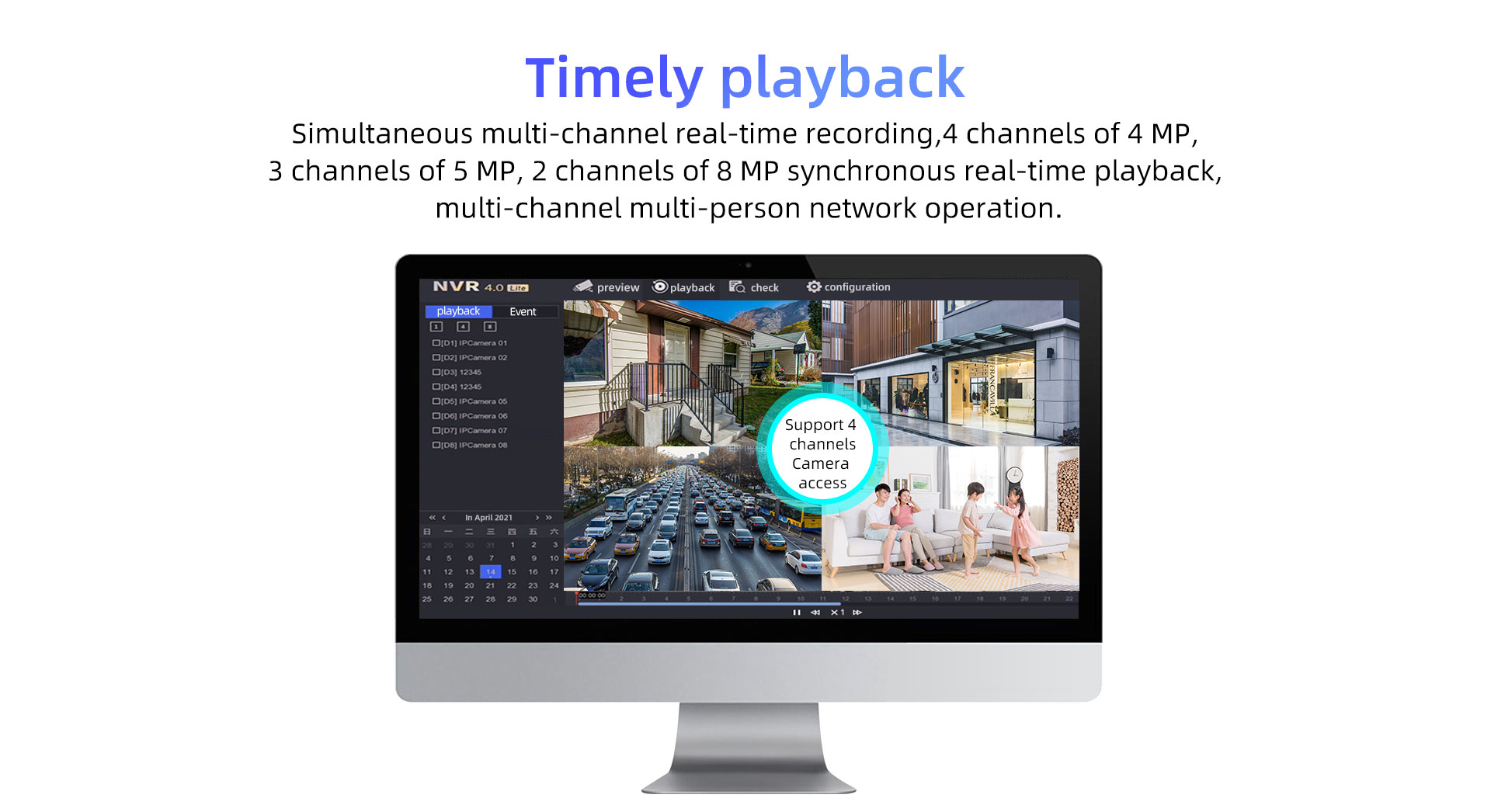

| Local playback | 4 channels playback (maximum support 3 channels 5 MP playback simultaneously/1 channel 8 MP playback) | |
| Video query | Time search, Calendar search, Event search, Channel search | |
| Backup method | U disk or USB mobile hard disk | |

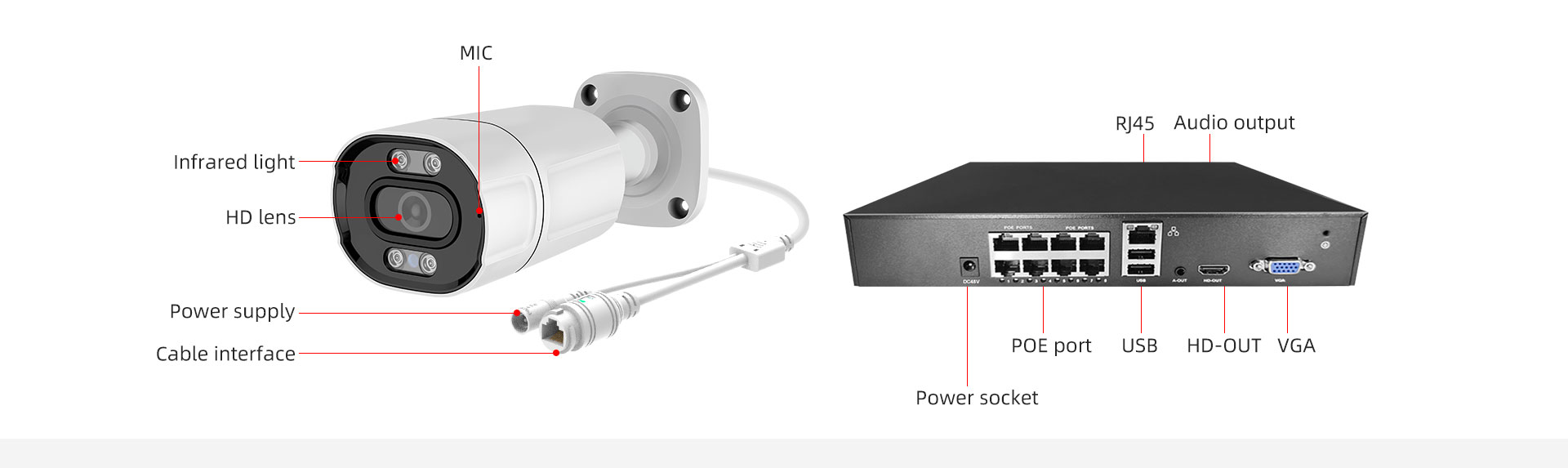

| Video output | 1 VGA, 1 HD-OUT | |
| Audio output | 3.5mm headphone jack and HDMI HD monitor headphone jack | |
| Network Interface | 1*RJ45 10M/100M adaptive Ethernet port | |
| USB interface | 2 USB ports | |

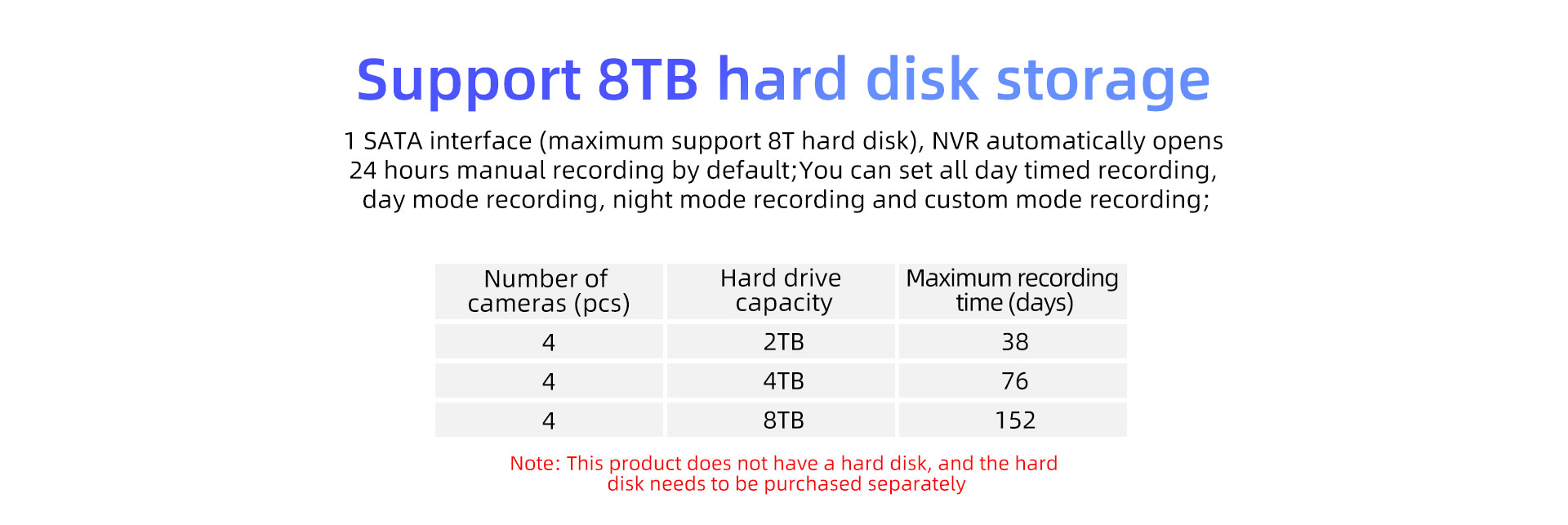

| Hard disk interface | 1 SATA interface (support up to 8T hard disk) | |
| Power supply | 48V 2A | |
| Working humidity | 10%－90% | |
| Operating temperature | 0℃-＋50℃ | |
| Size | 88.2*204*32.5 | |
| Camera | ||
| Pixels | 5MP | |
| Sensor | 1/2.7-inch. | |
| Electronic shutter | 1/25---1/10000 seconds | |
| Day and night switching mode | ICR infrared filter type and manual mode | |
| DNR | Support 3D DNR | |
| Monitor | support | |
| Compression | ||
| Video compression standard | H.264+（PROFILE-MAIN） | |
| Video compression bit rate | 32 Kbps~ 8Mbps | |
| Image output | ||
| Maximum image size | 2880x1660 | |
| Supported image formats | 2880x1660(5M)、2560x1440（4M）、2304*1296(3M)、1920*1080（1080P）、1280*960 （960P）、1280*720（720P）、704*576(D1) 640*480(VGA)、352*288（CIF） 、176*144(QVGA) | |
| Pixel size | 2.2um(H)*2.2um(V) | |
| Main stream resolution and frame rate | 5MP;20 frames | |
| AD sampling accuracy | 10bit | |
| Area of interest | Support to set 8 ROI areas | |
| Blocking settings | Supports 4 sets of blocking settings | |
| Image settings | Brightness, contrast, saturation, shutter, etc. are adjustable | |
| Mirror | Support Pan, Tilt & Diagonal mirroring | |
| Color mode to Black mode | support | |
| Network features | ||
| Smart alarm | Motion detection, Blocking alarm, Video loss, Network cable disconnection, IP address conflict alarm | |
| Supporting protocols | TCP/IP, DHCP, HTTP, HTTPS NTP, DNS, RTP RTSP,Private network protocols etc. | |

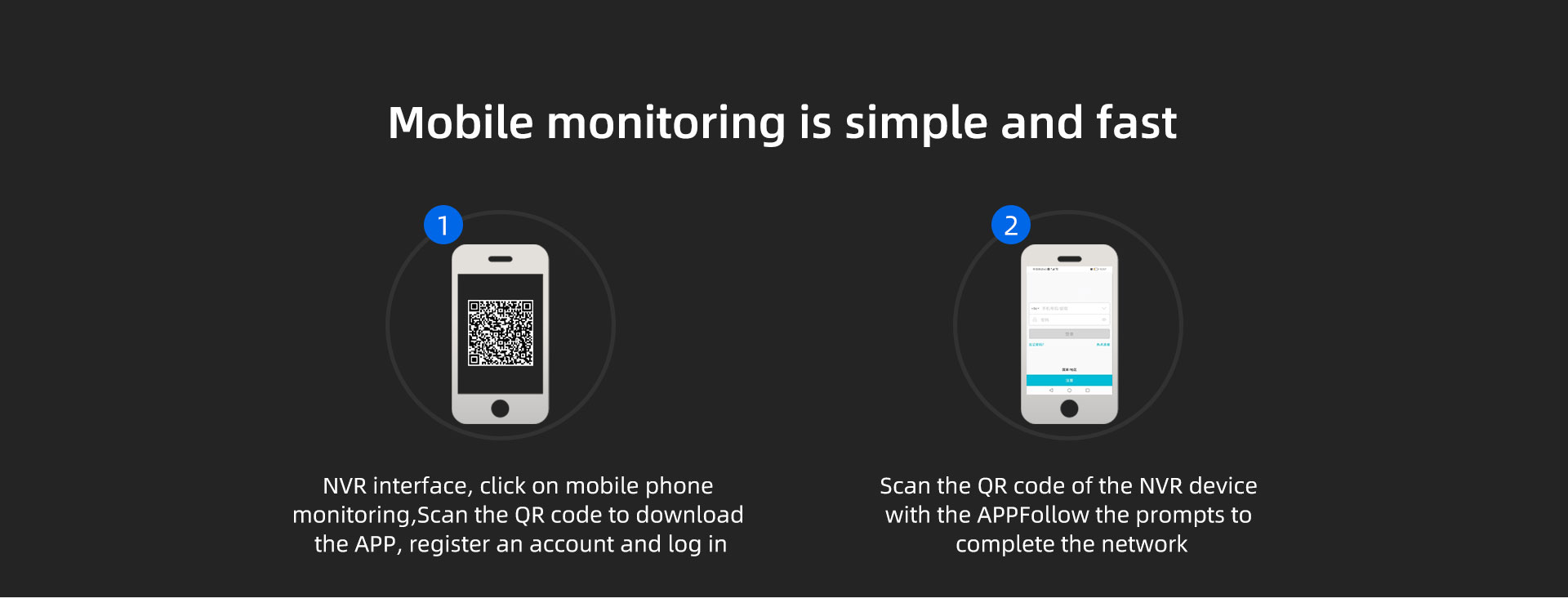

| Platform docking | Built-in powerful P2P function for flexible remote monitoring | |
| General function | One-key recovery, Dual stream, Heartbeat, Mirroring, Video Blocking, Anonymous access, etc. | |
| Communication Interface | 1 RJ45 10M / 100M auto-adaptive Ethernet port | |
| General Specifications | ||
| Power supply | POE（48V） | |
