Detail Specs
  • Support
    • [ Three working modes optional ]
    1. Work 9pcs 2MP cameras at the same time, and support 4pcs 2MP cameras playbacking .
    2. Work 9pcs 3MP cameras at the same time and support 4pcs 3MP cameras playbacking.
    3. Work 9pcs 5MP cameras at the same time and support 1pc 5MP camera playbacking.

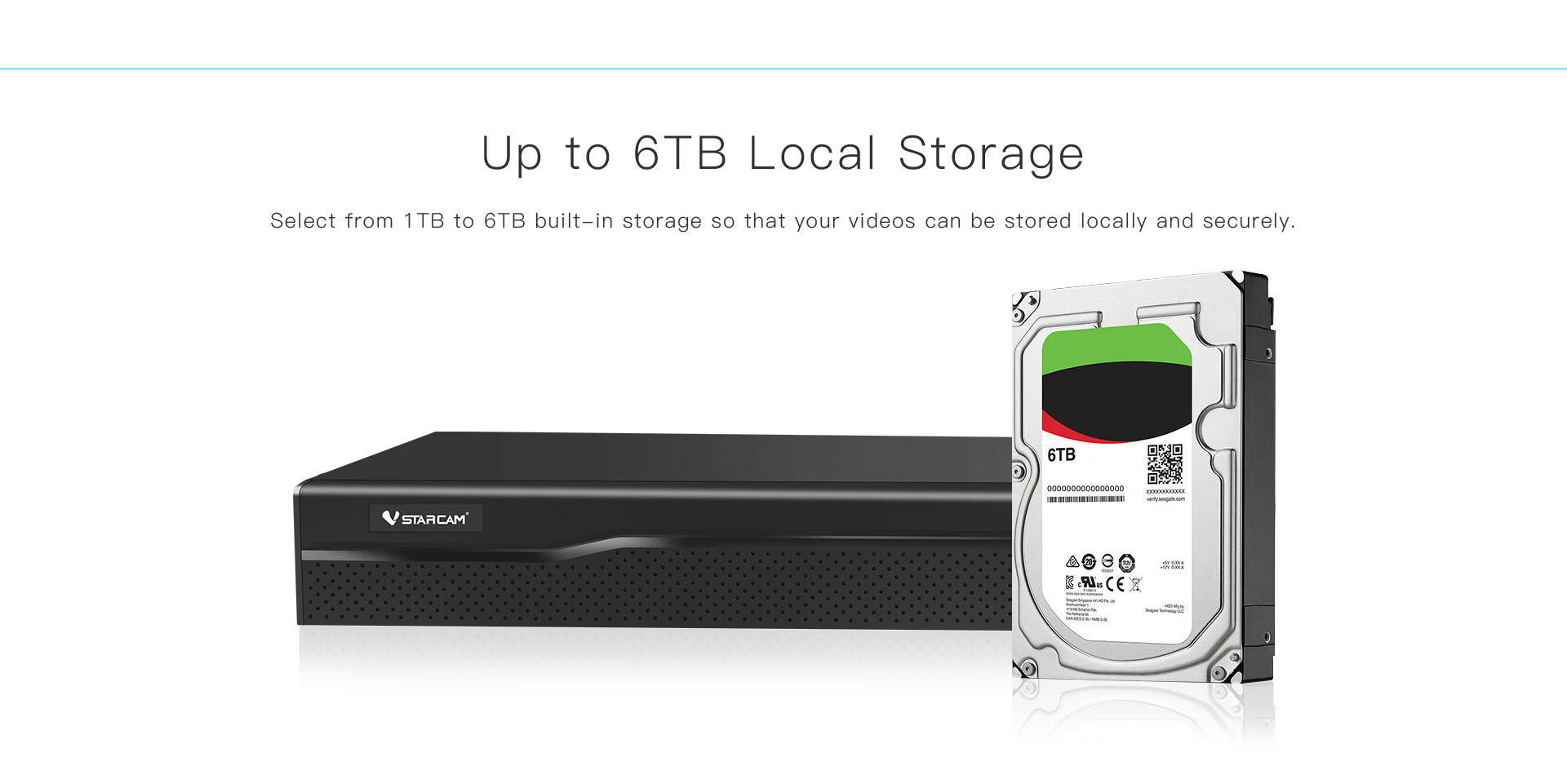

    • [ One hardisk mode ] - Support one hardisk , one SATA interface , support up to 6TB hardisk .
    • [ Smooth high-definition image ] - Support HDMI and VGA output. The output resolution is up to 1080p(HDMI&VGA). And support the maximum HD video streaming of 5MP camera view and playback.
    • [ Backup Video ] - Support backup by USB or Network. It can be easy to backup to USB disk or Hardisk.
    MODEL N8209
    Video Input IP Video Input 9 CH 720P/960P/1080P,RJ45 interface
    Switch NO
    Video Encoding HDMI Output 1  CH ,HDMI output ;Resolution:1920x1080P/60Hz;
    VGA  Output 1  CH ,VGA   output ;Resolution:1920x1080P/60Hz
    Audio Output  HDMI Audio output, optional for 3.5mm audio port output
    Video Encoding Video Compression stander  H.264+, H.264
    Recording /Playback 9CH 1080P record,  2 CH 1080P playback
    Video Resolution 720P,960P,1080P record
    Frame Rate PAL: 25 F/S;NTSC :30  F/S
    Video Bitrate 256 Kbps -- 4.0Mbps(@1080P)
    Stream Type Audio/Video,Variable Rate(VBR) , Constant Bit Rate(CBR)
    Dul-Stream supprt
    Audio Compression G.711
    Stream 70Mbps
    HDD Storage Type 1 *  SATA
    Storage Capacity 6TB In Max
    Backup USB Backup,remote backup

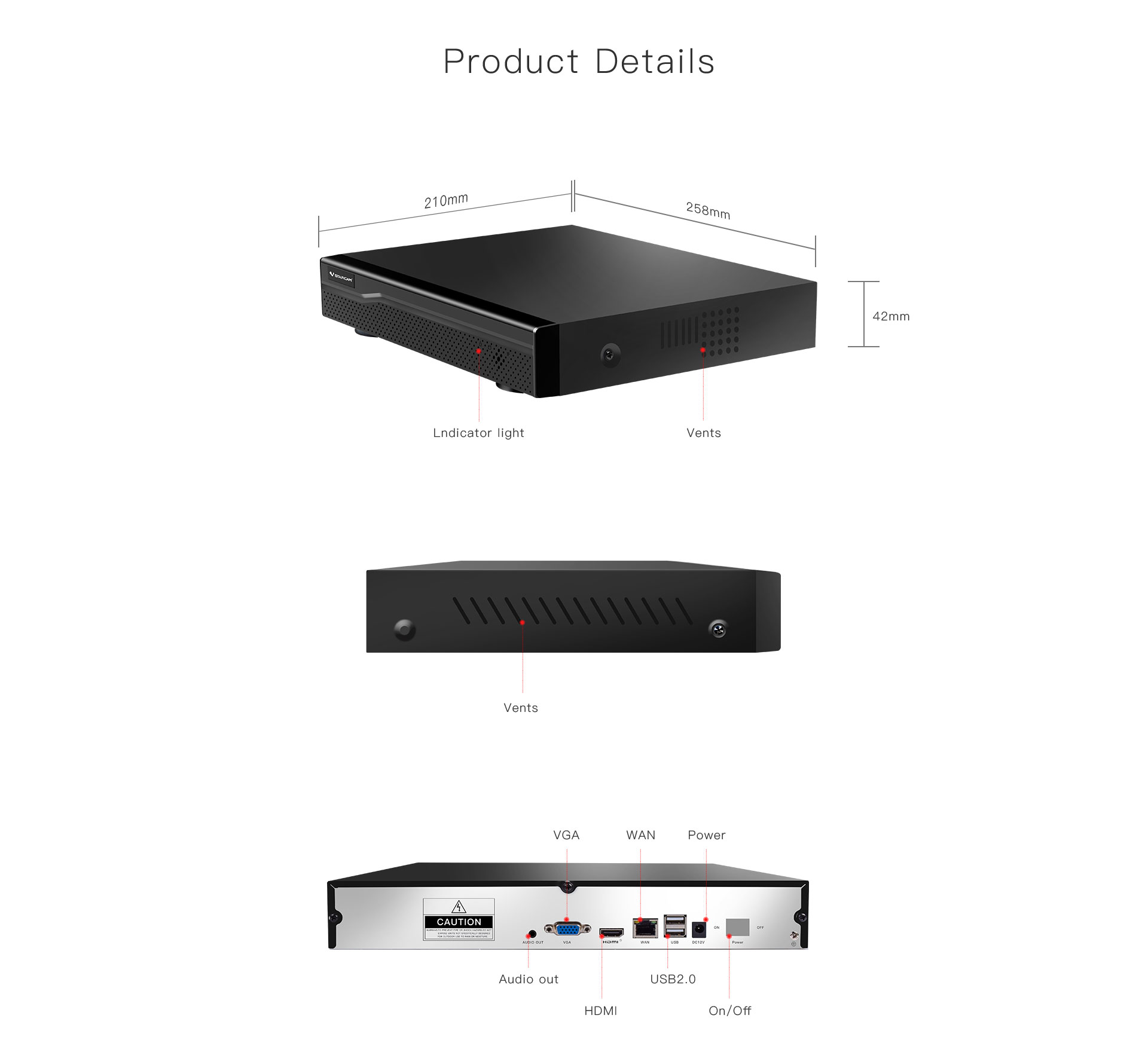

    External Interface Network Interface RJ45 10M / 100M Internet Interface
    USB Interface 2 * USB2.0 Interface(Support Upgrade,Backup,Mouse)
    Serial Interface 1 * RS485 Interface
    Others Temperature -10°---- 55°
    Size TBD
    Weight TBD
    Operation System Embedded Linux Operation System
    Soft Power-Off Not Support
    Device Control  IR remote control,Mouse
    Power Input DC +12 V / 2A
