  • SortsTypeParameters
    SystemOperating systemEmbedded Linux
    Online visitorSupports 4 visitors at the same time
    CollectionImage sensor1/3 inch progressive scan CMOS sensor
    Minimum illumination0.1 Lux(B&W mode),0.5 Lux(Color mode)

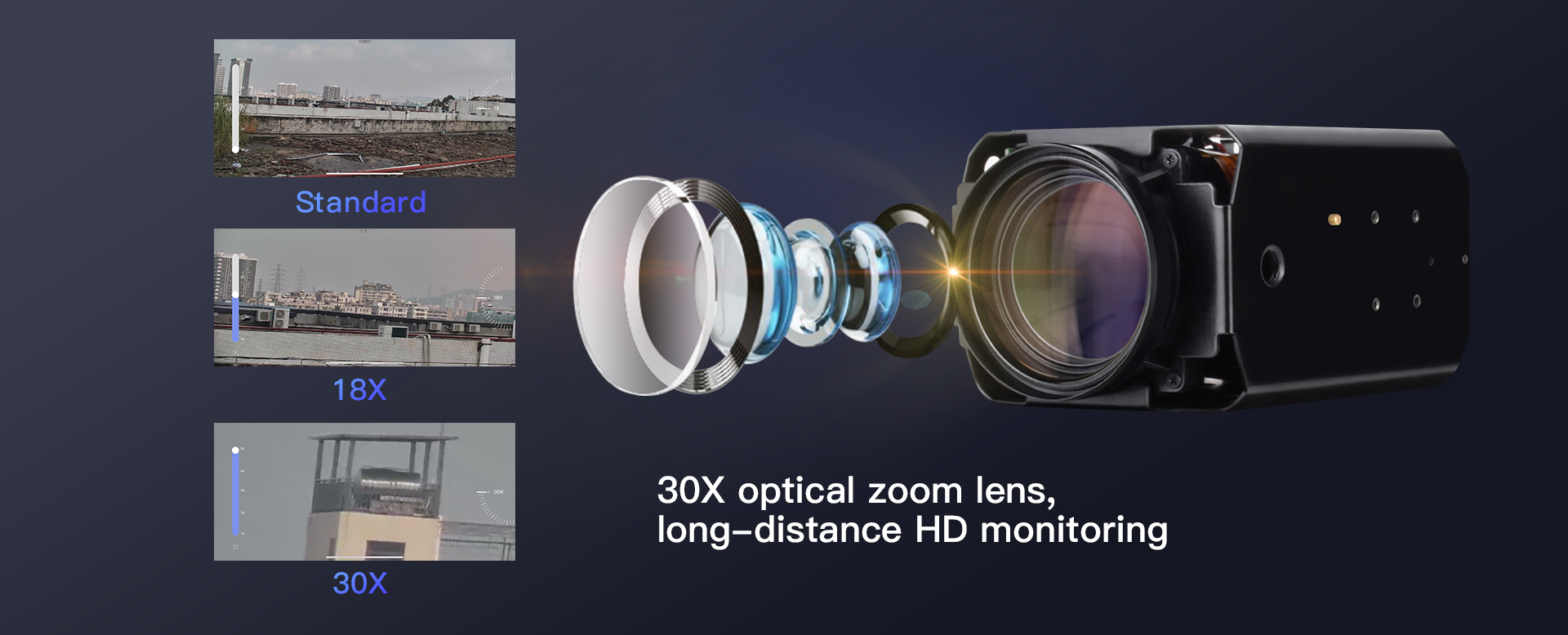

    Lens/Viewing angle4.1-141mm zoom lens/Diagonal Viewing angle: 40.5°~99.3°
    Night visionIR-CUT with auto-switching,6 pcs 850nm IR LED lights+3 pcs laser lights; Irradiation distance: 50~70 m
    VideoCompression standardH.264 main profile/H.264+ main profile/Motion-JPEG/JPEG
    Multi-streamMain stream: 1520P(2688*1520)@15fps/1440p(2560×1440)@25fps Substream: 360p(640×360)@15fps
    Bit rate128~4096kbps
    Maximum frame rate30fps
    Image adjustmentBrightness and contrast are adjustable
    AudioInputBuilt-in -28dB microphone
    OutputBuilt-in 8Ω2 W speaker
    Sampling frequency/bit width8KHz/16bit
    Compression standard/Bit RateG.711/32kbps
    NetworkNetwork interface10Mbps/100Mbps adaptive /RJ45
    Wireless networkIEEE802.11b/g/n
    Wireless frequency2.4GHz
    Wireless security encryption64/128-bit WEP/WPA-PSK/WPA2-PSK data encryption

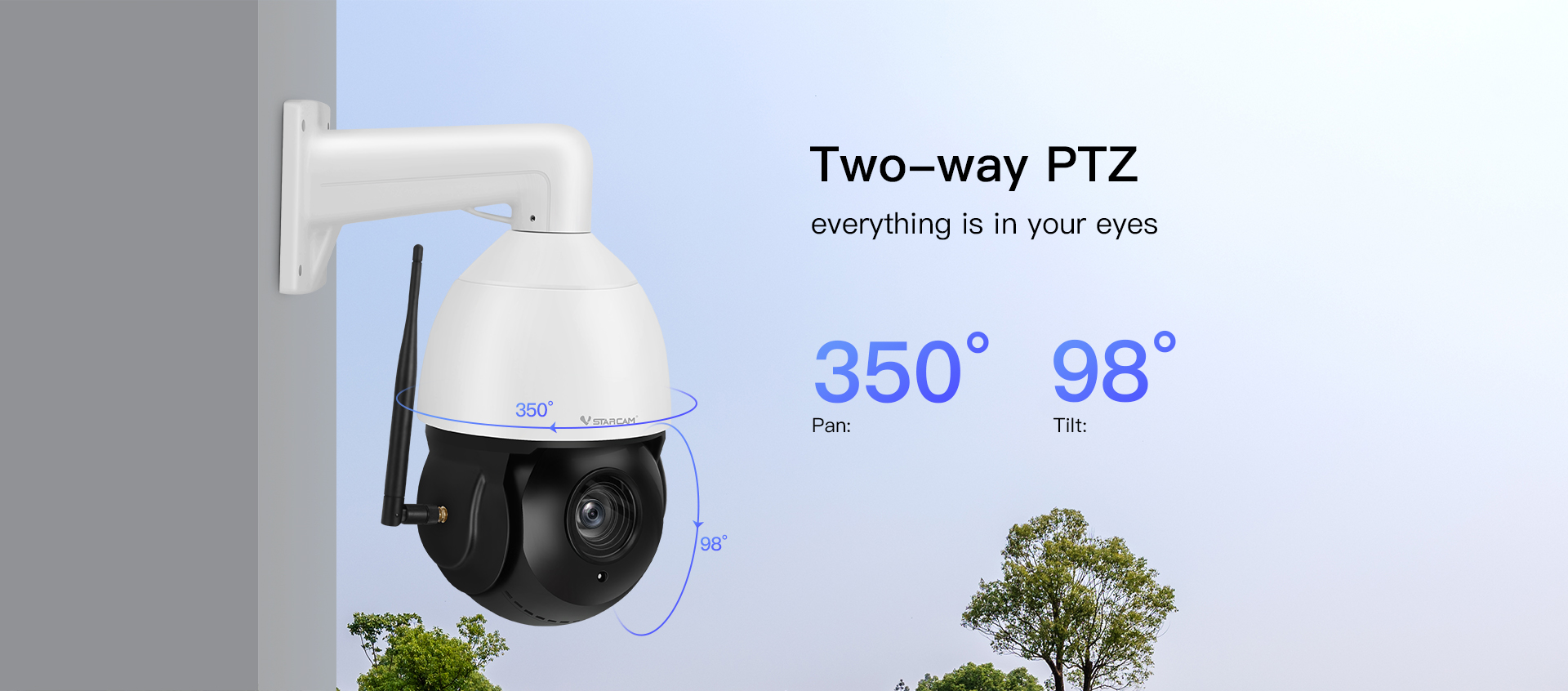

    Pan & TiltPan & TiltPan 350°/Tilt 98°
    Preset positionSupports 16(Mobile phone App supports 5) preset positions
    StorageStorage functionsSupports T-Flash card(max supports 256GB); Cloud storage; NVR;NAS
      Alarm  Alarm detectionSupports Motion detection; Humanoid detection; Humanoid framing; Siren alarm; Absence detection; Delimitation detection
    Physical IndicatorsRated voltageDC12V  3A
    Power consumptionRated power:17.0 W(with IR LED lights ON)/Max power:26.5 W
    Operating conditionTemperature: -10~50℃; Humidity: <90%
    WeightNet:2380g (Note: in kind prevail)
    SizeTBD (L×W×H)
