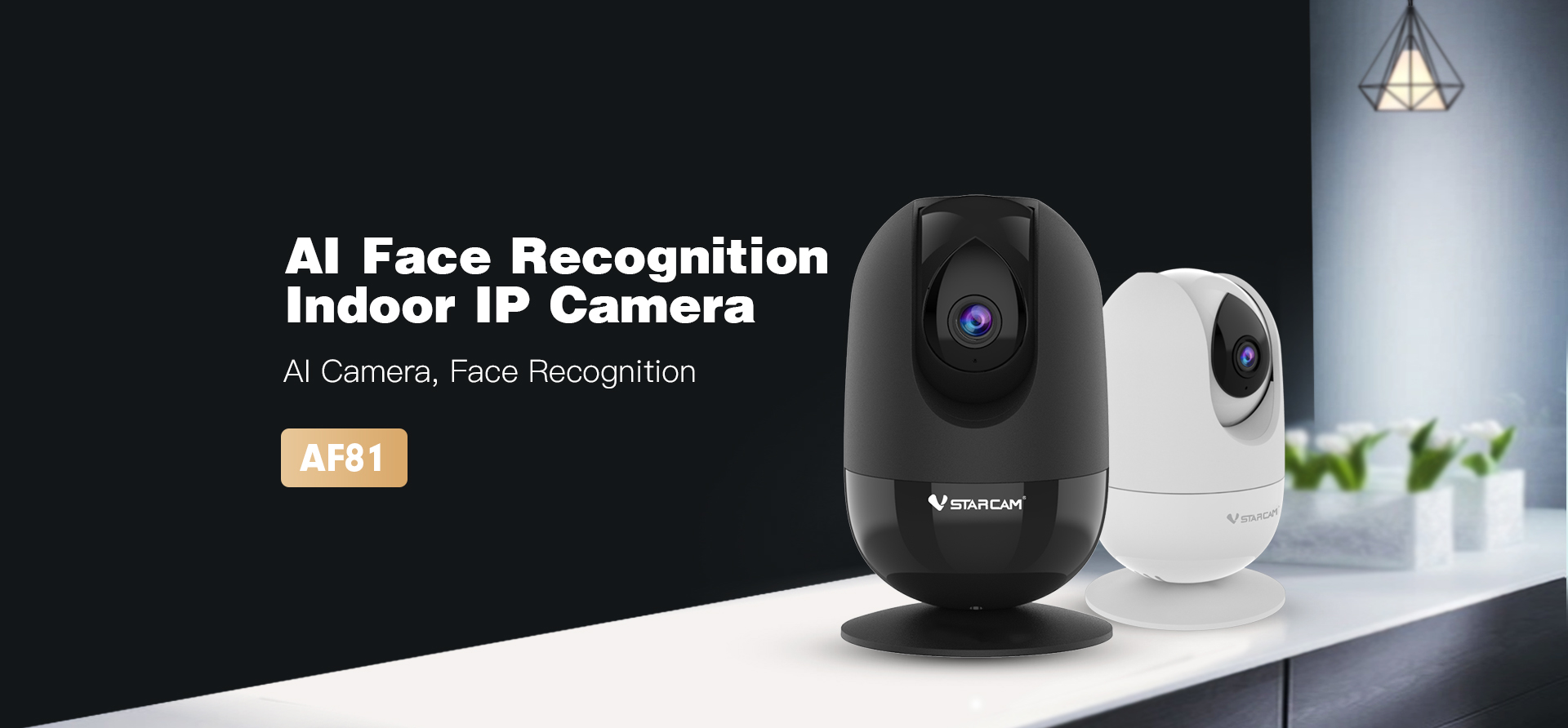

AF81

Detail Specs VR 360°
  • Support
  • Smart Face Identification IP CameraSmart Face Identification IP CameraSmart Face Identification IP CameraSmart Face Identification IP CameraSmart Face Identification IP CameraSmart Face Identification IP CameraSmart Face Identification IP CameraSmart Face Identification IP CameraSmart Face Identification IP CameraSmart Face Identification IP CameraSmart Face Identification IP CameraSmart Face Identification IP CameraSmart Face Identification IP CameraSmart Face Identification IP CameraSmart Face Identification IP CameraSmart Face Identification IP CameraSmart Face Identification IP Camera

    SystemOperation systemEmbedded Linux OS
    Online visitorSupport 4 visitors at the same time
    Image CaptureImage sensor1/2.9inch 1080p Progressive Scan CMOS
    Minimum Illumination0.3~0.5Lux(Color mode),0.1Lux(B&W Mode)
    Lens6.0mm@F2.7
    View Angle58°(diagonal)
    Night visionDual Filter,IR-Cut,2pcs 850nm SMD IR LED IR irradiation distance:5~10m
    VideoEncode formatH.264+/H.264 main profile/Motion-JPEG/JPEG
    StreamsMain stream:1080p(1920×1080)@30fps/1296p(2304×1296)@30fps Substream:360p(640×360)@15fps
    Bit Rate/Max Fps128~4096kbps/30pfs
    Image adjustmentBrightness and contrast can be adjusted
    AudioInputBuilt-in -38 dB microphone

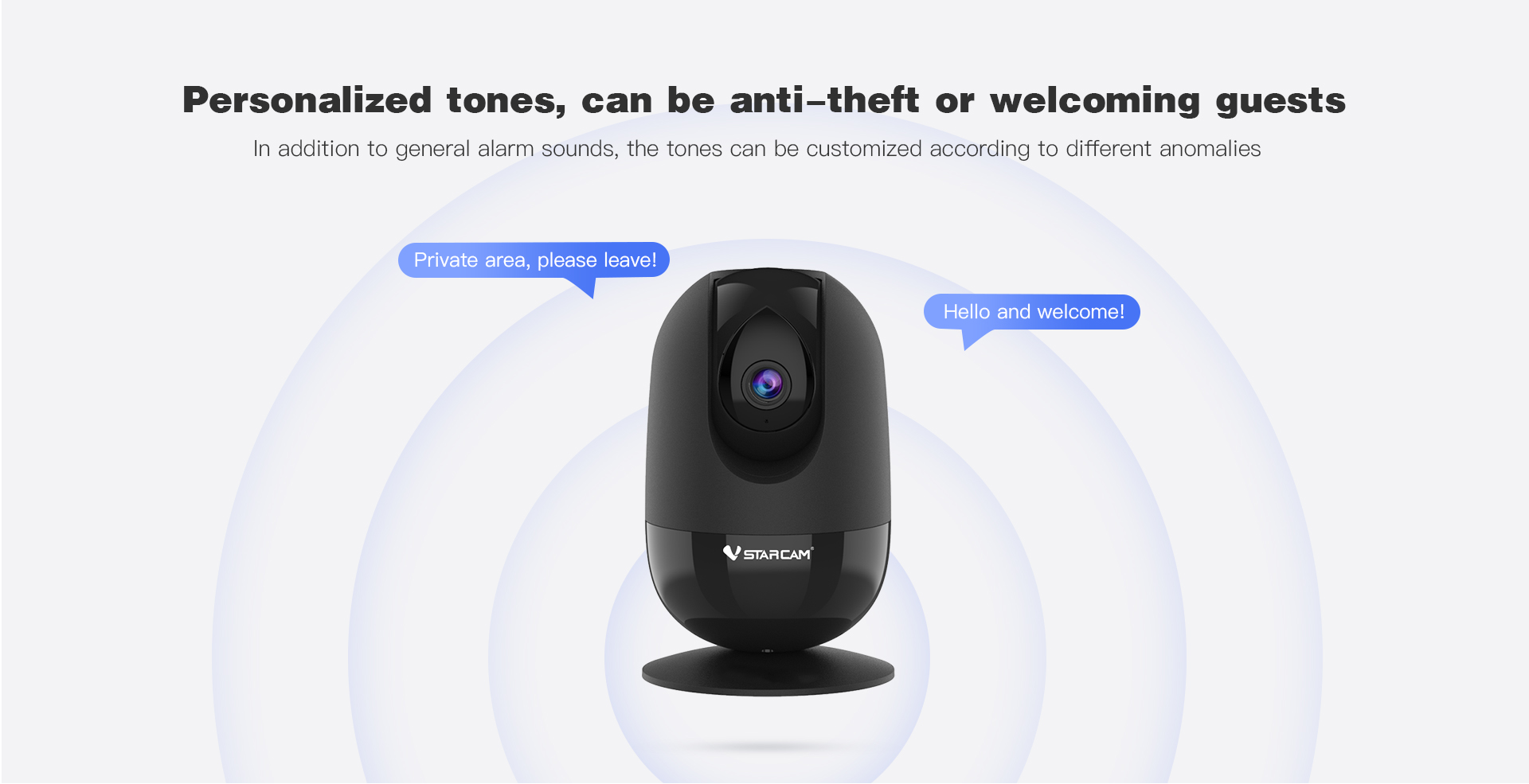

    OutputBuilt-in speaker(8Ω1W)
    Sampling frequency / width8KHz/16bit
    Compression standardADPCM/32kbps
    NetworkEthernet10Base-T / 100Base-TX, RJ45 connector
    ProtocolsTCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P etc
    Wireless LANIEEE802.11b/g/n
    Wireless LAN Frequency2.4~ 2.4835GHz
    Wireless LAN security64/128-bit WEP/WPA-PSK /WPA2-PSK data encryption
    Pan-tiltPan-tiltPan:350°,Tilt:88°
    Preset positionPC APP:support 16 positions,  phone APP:support 5 positions
    MemorySocketTF Push-push socket,Maximum support 256GB; cloud storage;NVR;NAS

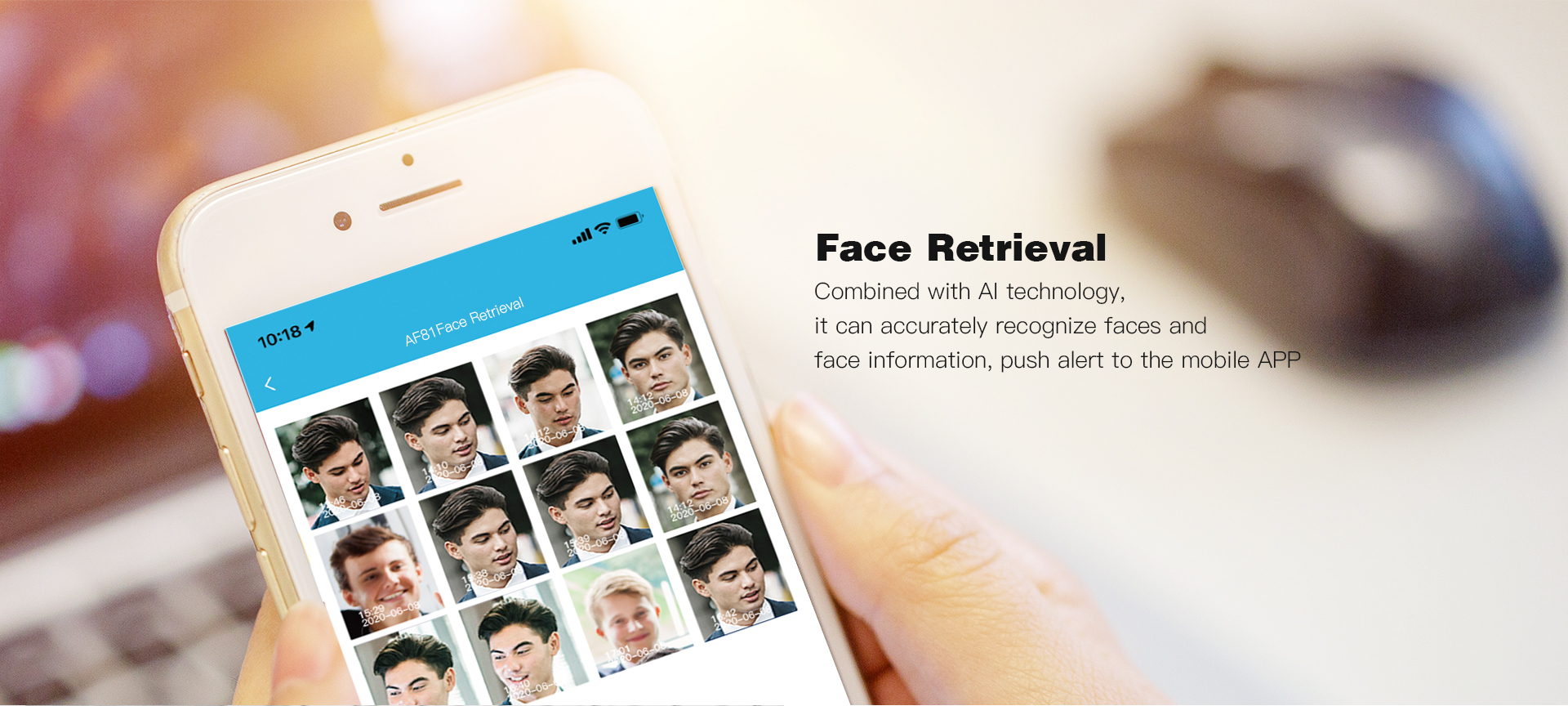

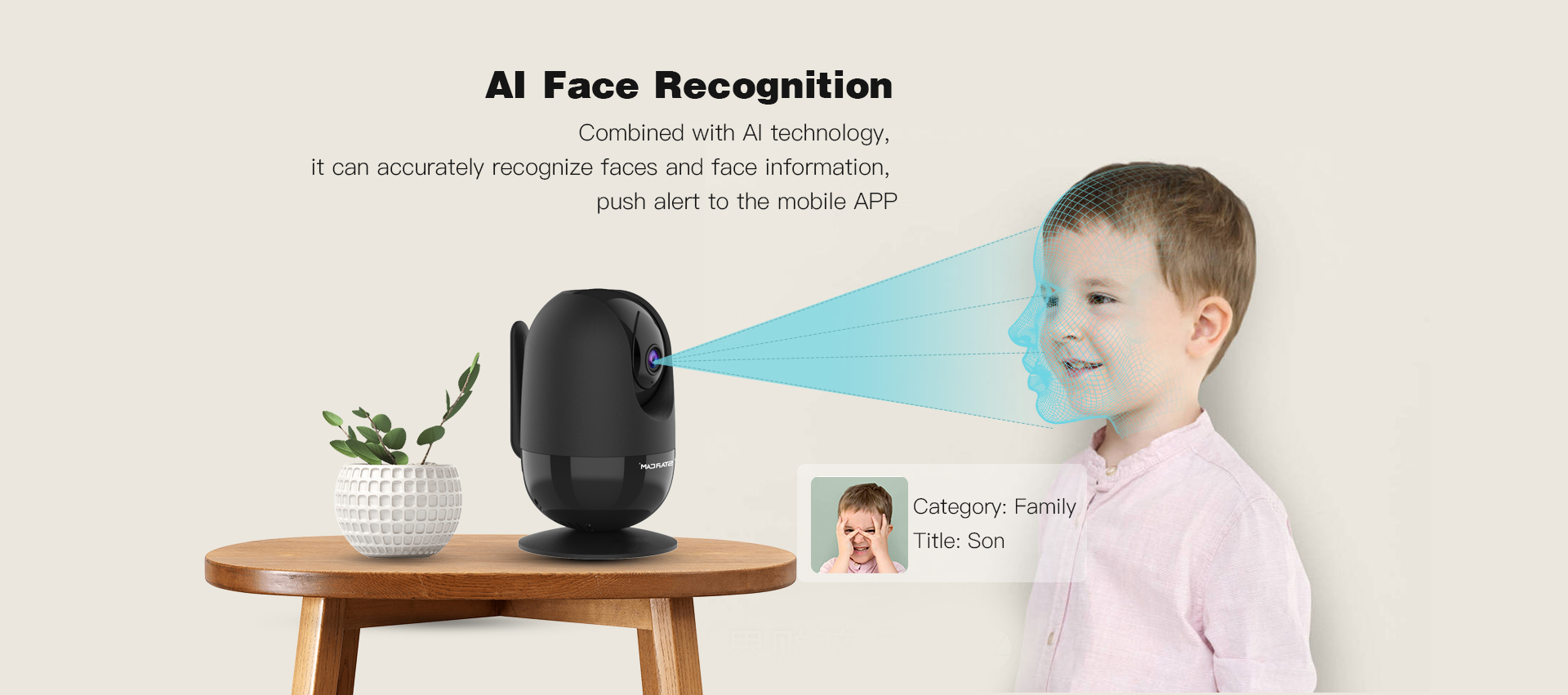

    AlarmAlarm TriggerMotion detection, Humanoid detection, Humanoid tracking,  Face recognition, Smoke detector alarm detection, absence monitoring
    Physical EnvironmentalRated voltageDC 5V±5%
    Power consumptionRelated power:2.5W(IR LED on), Maximum Power: 4.45W(Pan&Tilt on)
    Operating conditionTemperature:-10~50℃,humidity:<90%
    WeightGross:TBD g(Note: in kind prevail)
    Package sizeTBD mm(L×W×H)



    Certificate


    REDRoHS
