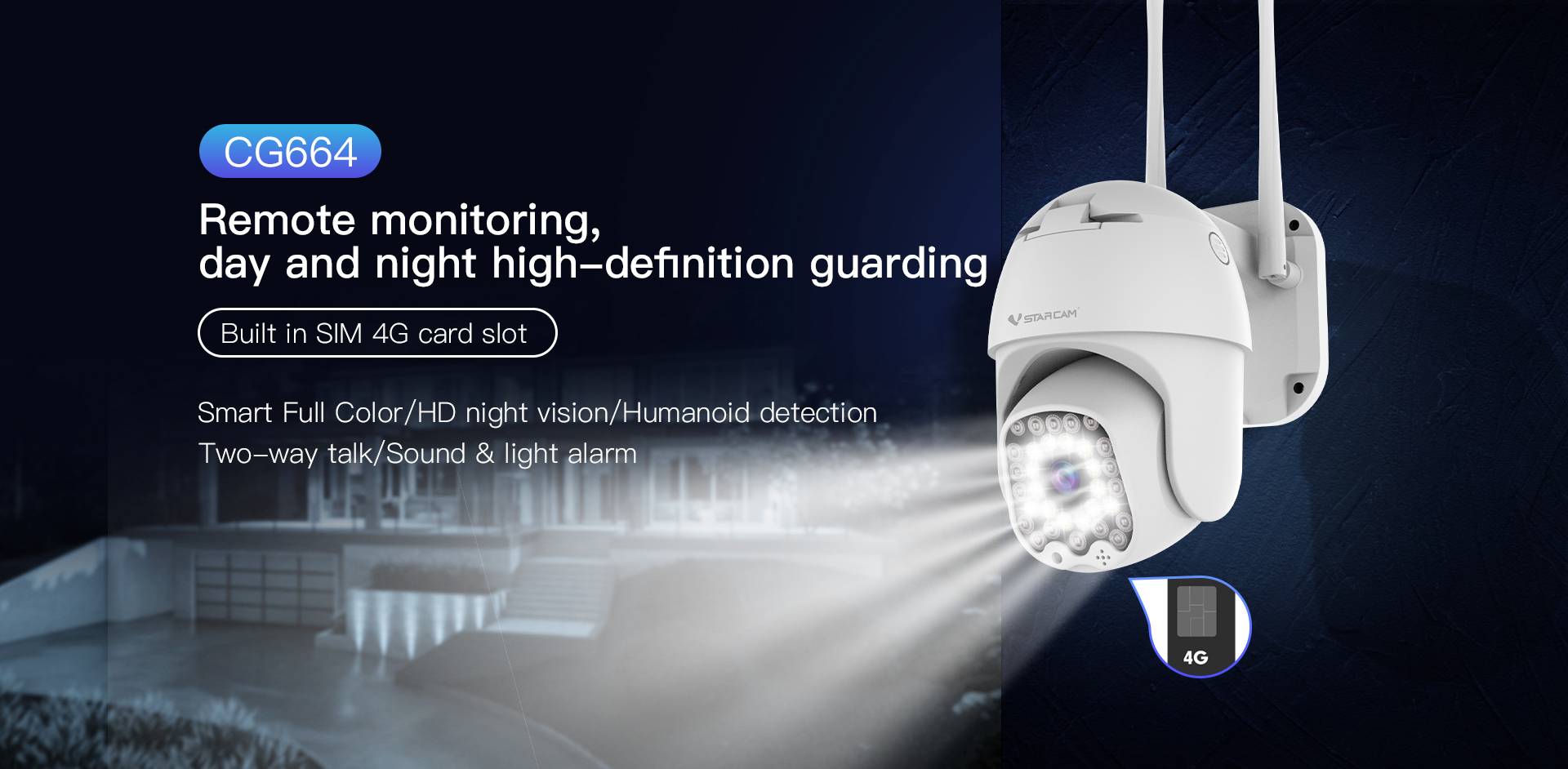

CG664

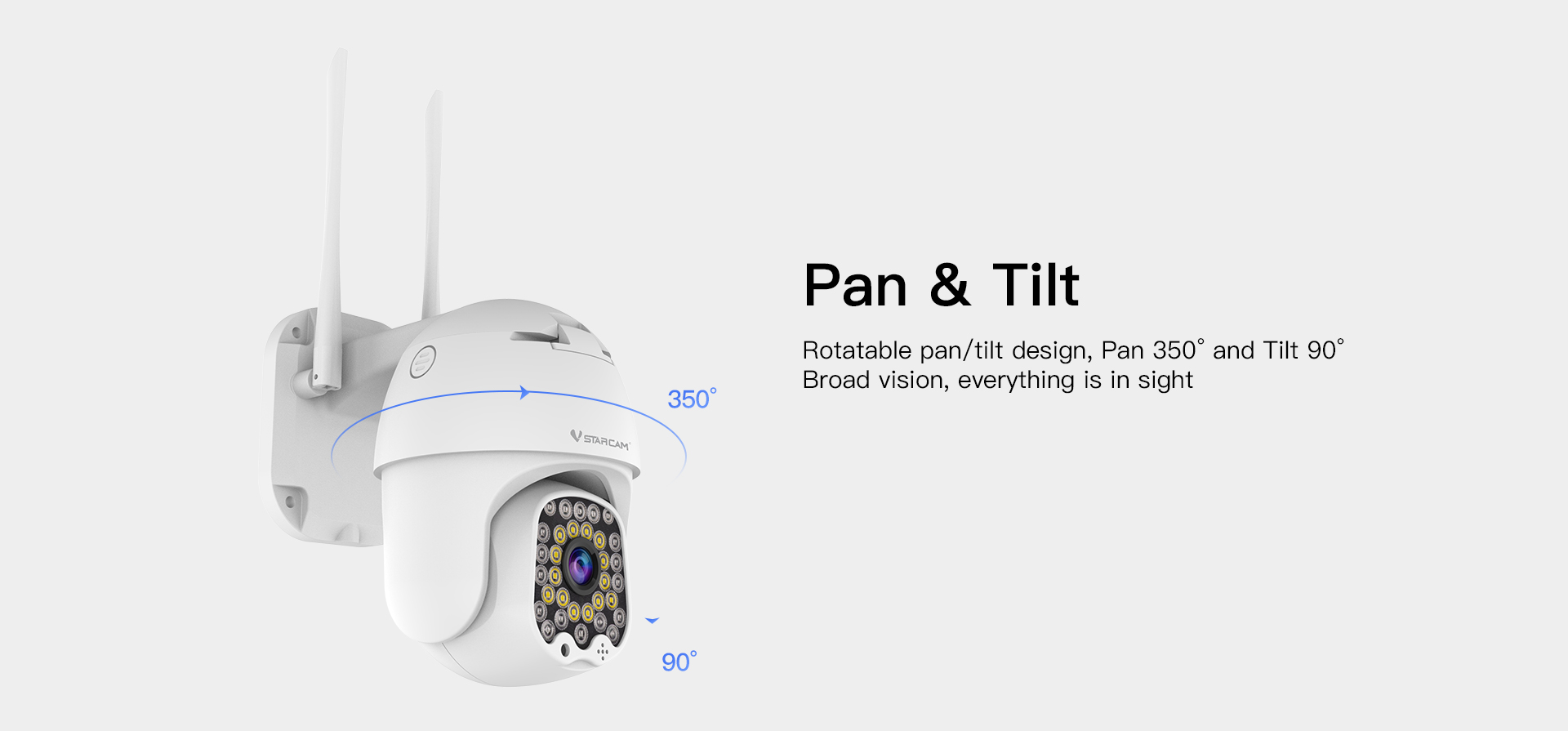

✮Pan & tilt

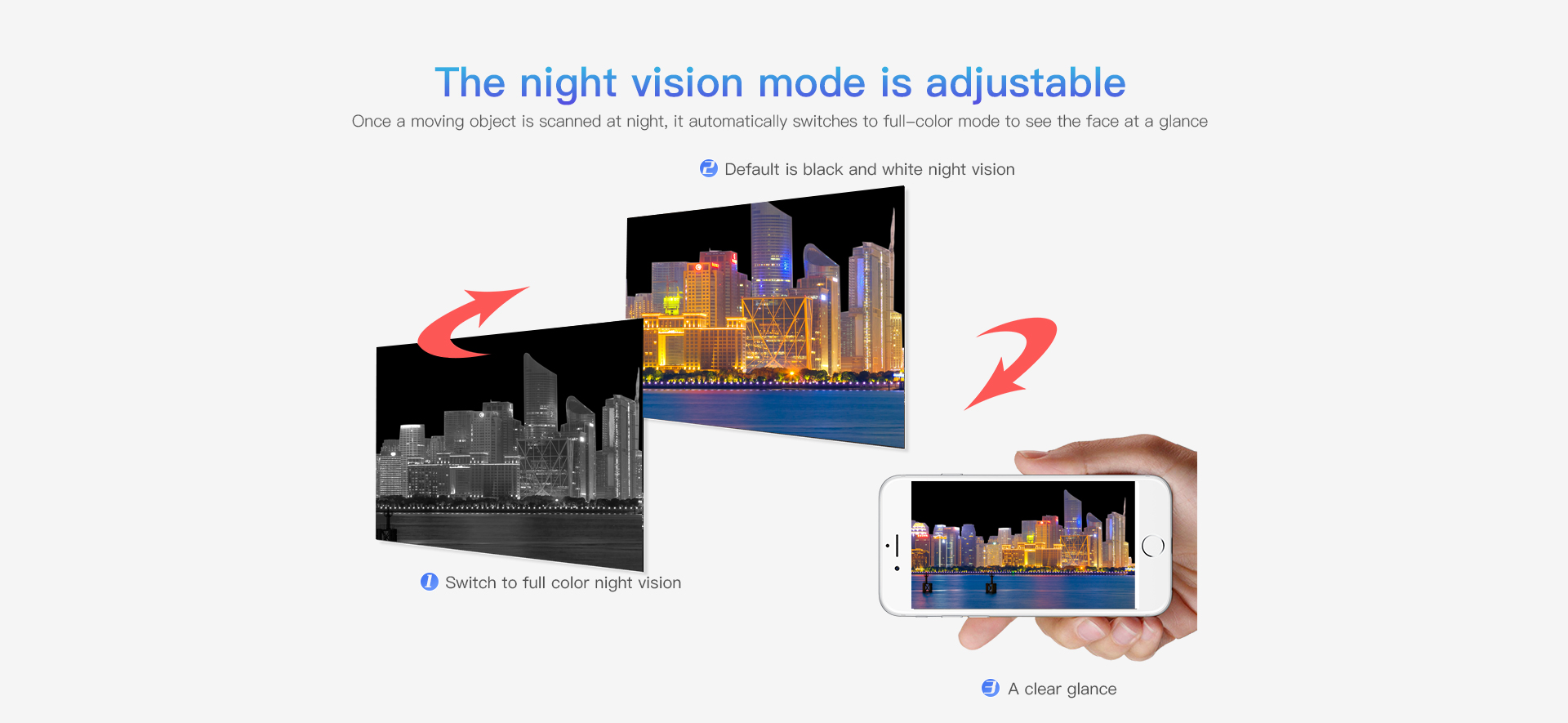

✮Black and white night vision, full color night vision
✮ISP image processing technology, preserving true colors
✮Human detection, real time alerts
Sorts	Type	Parameters
System	Operating system	Linux
	Online visitor	Supports 4 visitors at the same time
	APP	O-KAM Pro
Collection	CPU	Ingenic T23
	Memory	512Mb
	Lens	4mm F2.0
	Image sensor	1/2.7" 1080p progressive scan CMOS sensor
	Minimum illumination	0.5Lux (color mode), 0.1Lux (b&w mode)
	Sensor performance	Support automatic white balance, automatic gain control and automatic backlight compensation
	Night vision	Black and white night vision, full color night vision
	Viewing angle	91°
Video	Resolution	1920x1080/15FPS/2 MP,1080P；2304x1296/15FPS/3 MP,1296P
	Night vision	Black and white night vision, full color night vision
	Compression standard	H.264 main profile/Motion-JPEG/JPEG
	IR control	IR-CUT, soft photosensitive control
	Bit rate	128～4096kbps
	Image adjustment	Brightness, contrast, OSD display
Audio	Input	Built-in -38dB microphone
	Output	Built-in 8Ω1W speaker
	Sampling frequency/bit width	8KHz/16bit
	Compression standard/Bit Rate	G711A
Pan/Tilt	Rotation angle	Horizontal: 345° Vertical: 90°
Network	Network interface	10Mbps/100Mbps
	Network protocol	TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P
	4G（China）	FDD:B1/B3/B5/B8 TDD:B34/B38/B39/B40/B41 WCDMA:B1/B5/B8
Alarm	Alarm detection	Motion detection, human detection, human framing, human tracking, siren alarm and area detection
Physical Indicators	Rated voltage	DC12V±5%
	Power consumption	Power: 4.32W (0.37A) Maximum power: 9.84W (0.82A)
	Operating condition	Working temperature: -10~55 ℃, working humidity<90%
	Weight	Net weight: 465g; Gross weight: 765g
	Camera size	171x112x179mm
	Packaging box size	195x205x130mm
	Carton size	545x425x415mm, 16PCS/CARTON
