CG621SR

Detail Specs Videos
  • Support
  •



    ✮Three views, monitor with no blind spots
    ✮F2.0 large aperture, more light inputs, clearer night vision
    ✮ISP image processing technology, preserving true colors
    ✮Human detection, real time alerts
    Sorts Type Parameters
    System Operating system Linux
    Online visitor Supports 4 visitors at the same time
    APP O-KAM Pro
    Collection CPU Ingenic
    Memory 512Mb
    Lens 4mm
    Image sensor 1/2.7" 1080p progressive scan CMOS sensor
    Min. Illumination 0.5Lux (color mode), 0.1Lux (b&w mode)
    Sensor performance Support automatic white balance, automatic gain control and automatic backlight compensation
    Night vision Black and white night vision, full-color night vision
    Viewing angle 91°
    Video Resolution 1080P/1920x1080/15FPS
    Night vision Black and white night vision, full-color night vision
    Compression standard H.264 main profile/Motion-JPEG/JPEG
    IR control IR-CUT, soft photosensitive control
    Bit rate 128~4096kbps
    Image adjustment Brightness, contrast, OSD display
    Audio Input Built-in -38dB microphone
    Output Built-in 8Ω1W speaker
    Sampling frequency/bit width 8KHz/16bit
    Compression standard/Bit Rate G711A
    Pan/Tilt Rotation angle Pan:270° Tilt:90°
    Network Network interface 10Mbps/100Mbps
    Network protocol TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P

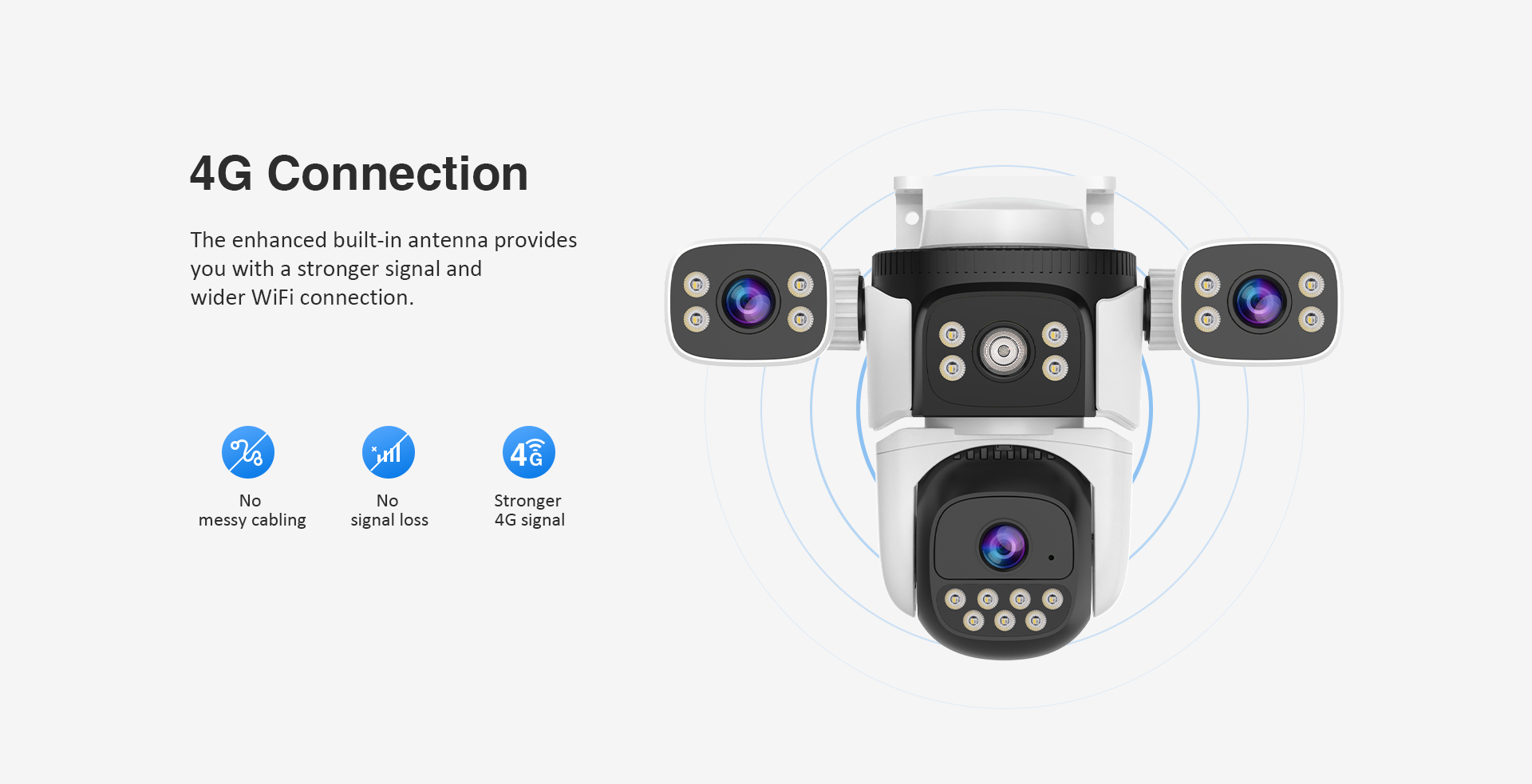

    4G network(China) FDD:B1/B3/B8 TDD:B34/B38/B40
    Storage External TF card Supports T-Flash cards (up to 256GB)
    Cloud storage Support cloud storage, users can purchase according to their needs.
    Alarm Alarm detection Motion detection, human detection, human framing, siren alarm, and area detection
    Physical Indicators Rated voltage DC12V±5%
    Power consumption Power: 7.44W (0.62A) Maximum power: 10.92W (0.91A)
    Operating condition Working temperature: -10~55 ℃, working humidity<90%
    Weight N.W.:600g, G.W.:1180g
    Camera size 154x235x185mm
    Packaging box size 255x210x165mm
    Carton size 525x435x525mm,12PCS/CARTON
