| ✮Dual band WiFi 2.4/5G |
| ✮Remote active wake-up, two-way voice intercom |
| ✮Quick start, start recording within 400ms |
| ✮Intelligent detection of human movement, intelligent alarm push |
| ✮8000mAh battery powered(20000mAh battery optional), low battery reminder |
| ✮Low power system optimization |
| ✮Cloud storage |
| ✮Three recording channels, guarding multiple directions |
| ✮Dual light source, day and night full-color |
| Sorts |
Type |
Parameters |
| System |
Operating system |
Linux |
| Online visitor |
Supports 4 visitors at the same time |
| APP |
O-KAM Pro |
| Collection |
CPU |
T23 |
| Internal storage |
1Gbit |
| Image sensor |
OV 02N10 1/3CMOS |
| Minimum illumination |
0.8Lux/F1.4(color mode), 0.3Lux/F1.4(B&W mode) |
| Lens |
Panorama camera: focal length 4mm, 1G3P Tracking camera: focal length 4mm, 1G3P |
| Sensor performance |
Support automatic white balance, automatic gain control and automatic backlight compensation |
| PTZ |

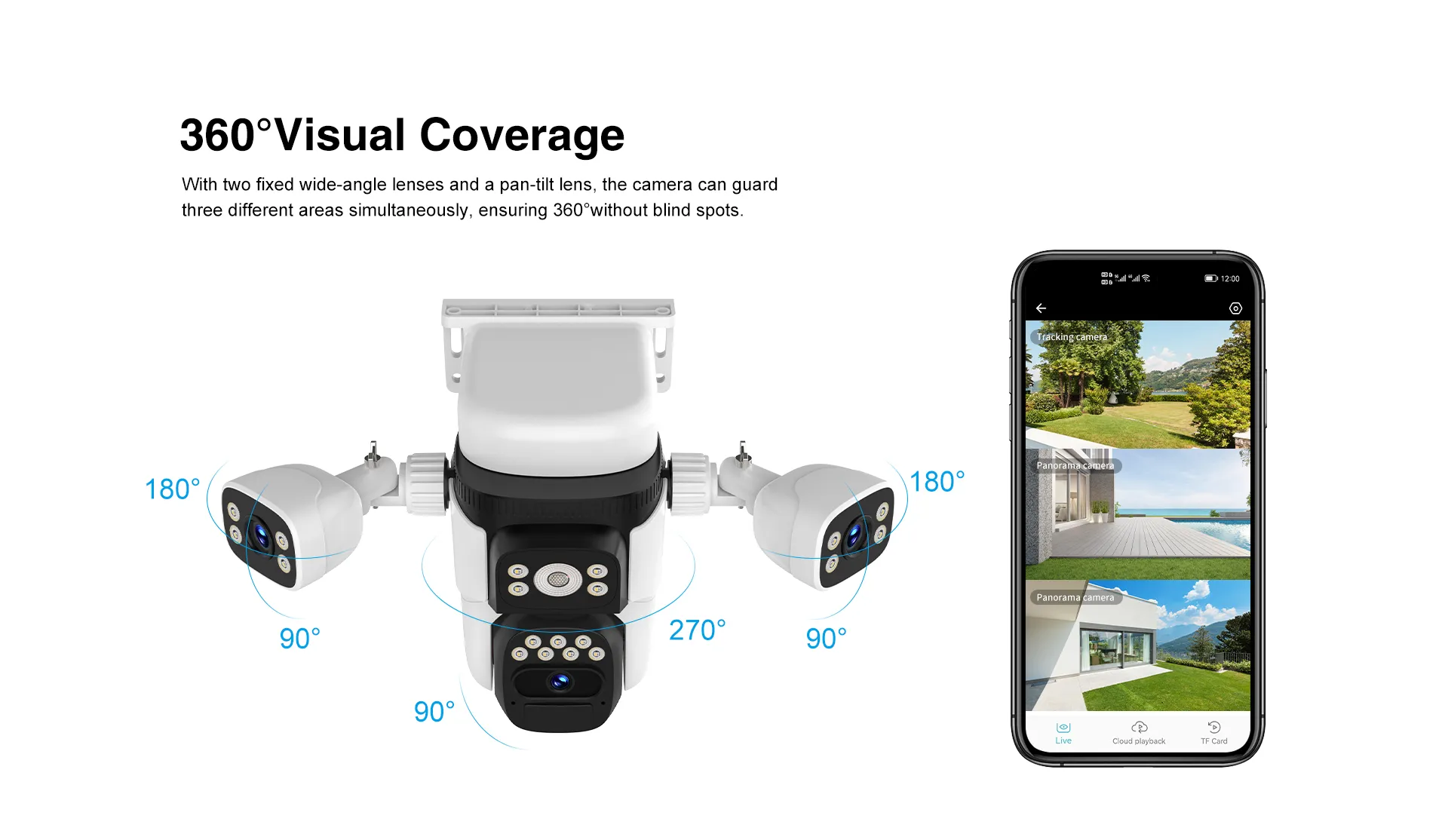

Adjust the angle of the tracking camera via App, horizontal 270 °, vertical 90 °; Manually adjust the angle of the panorama camera, horizontal 180 °, vertical 90 °. |
| Viewing angle |
D100° |
| Video |

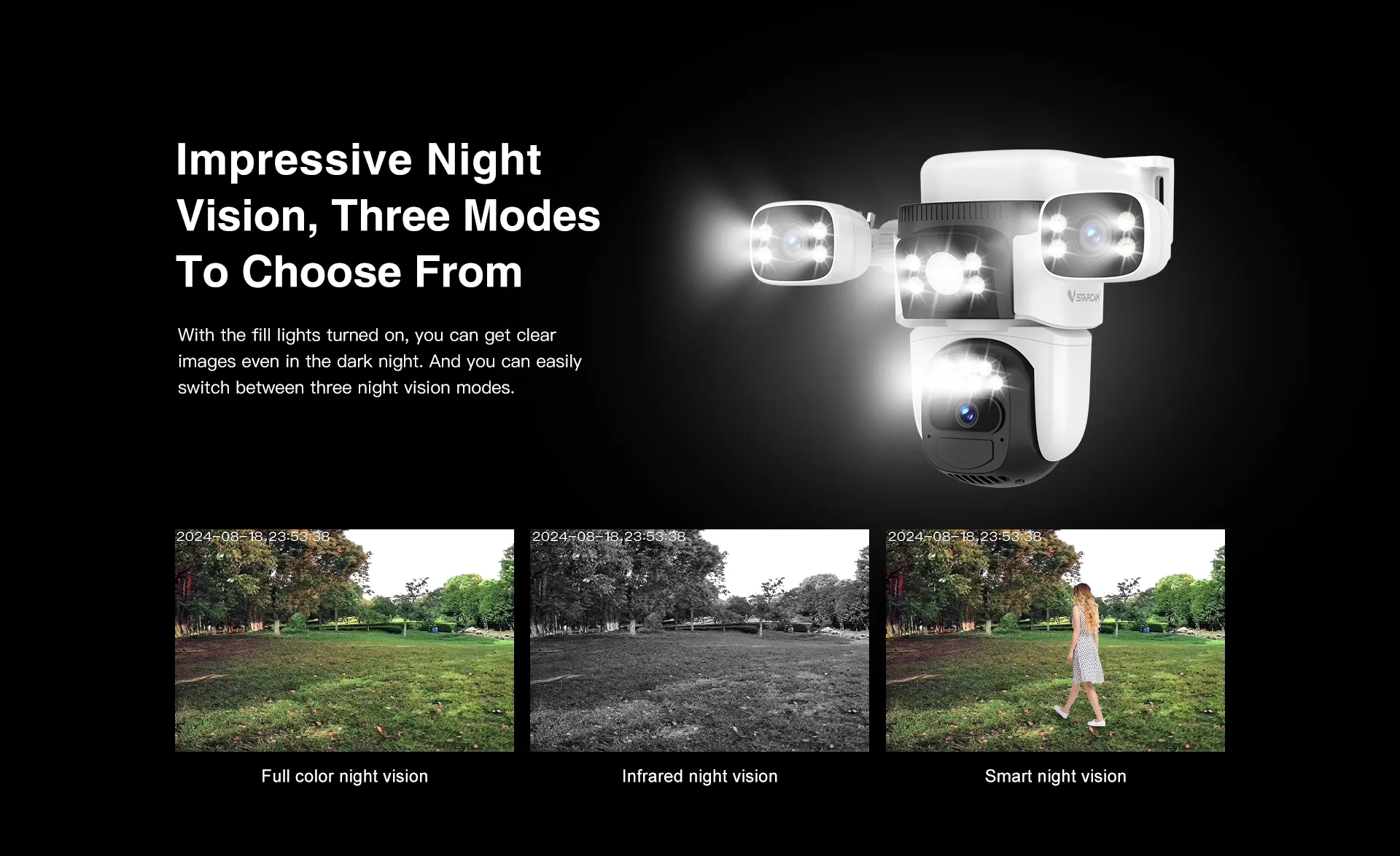

Night vision |
Full color night vision, dual light source |
| Compression standard |
H.264 /MJPEF/JPEG |
| Multi stream |
Main stream: 1080P/12fps Sub stream: 360P/10fps |
| IR control |
When the IR night vision function is enabled, IR and ICR are automatically detected; when the IR night vision function is disabled, IR is off and ICR is fixed in the day vision mode. |
| Bit rate |
CBR/VBR two rate control modes, and the output rate range is 128~4096kbps |
| Image adjustment |
Vertical, horizontal adjustable, OSD display |
| Audio |
Input |
Built-in-38dB microphone |
| Output |
Built-in 8Ω1W speaker |
| Sampling frequency/bit width |
8KHz/16bit |
| Compression standard/Bit Rate |
G711A |
| AI |
Human detection |
Human detection, filtering invalid video contents |
| Area detection |
Free daub, only monitoring the areas concerned by users |
| Smart notification sound |
Different devices push different sounds, so that you can know exactly which device is triggered |
| Intelligent alarm sound |
Set different equipment alarm sounds according to different scenarios |
| More AI functions (testing) |
Pets, vehicles, parcels, etc |
| Network |
Network protocol |
TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P,IPV4 |
| Wireless network |
IEEE802.11b/g/n/ax |
| Wireless frequency |
2.4, 5.2, 5.4 or 5.8G
|
| Wireless security encryption |
64/128-bit WEP/WPA-PSK/WPA2-PSK/WPA3 |
| Connection |

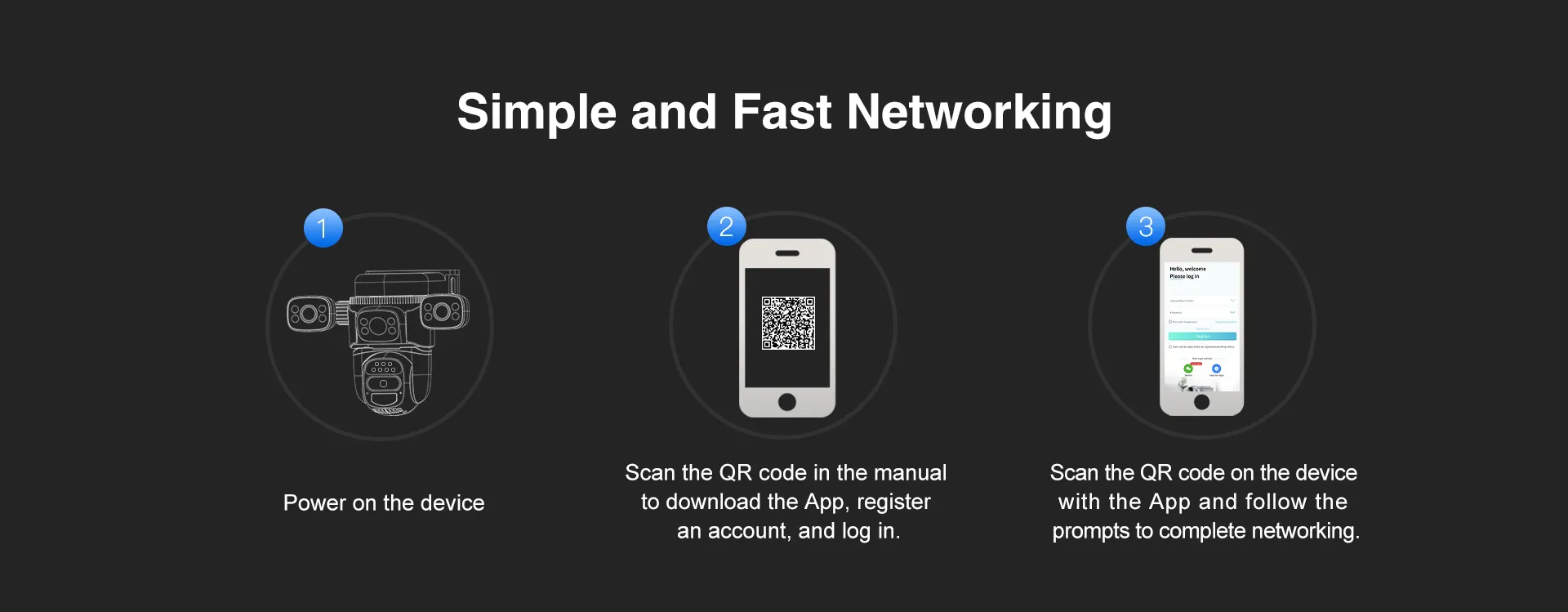

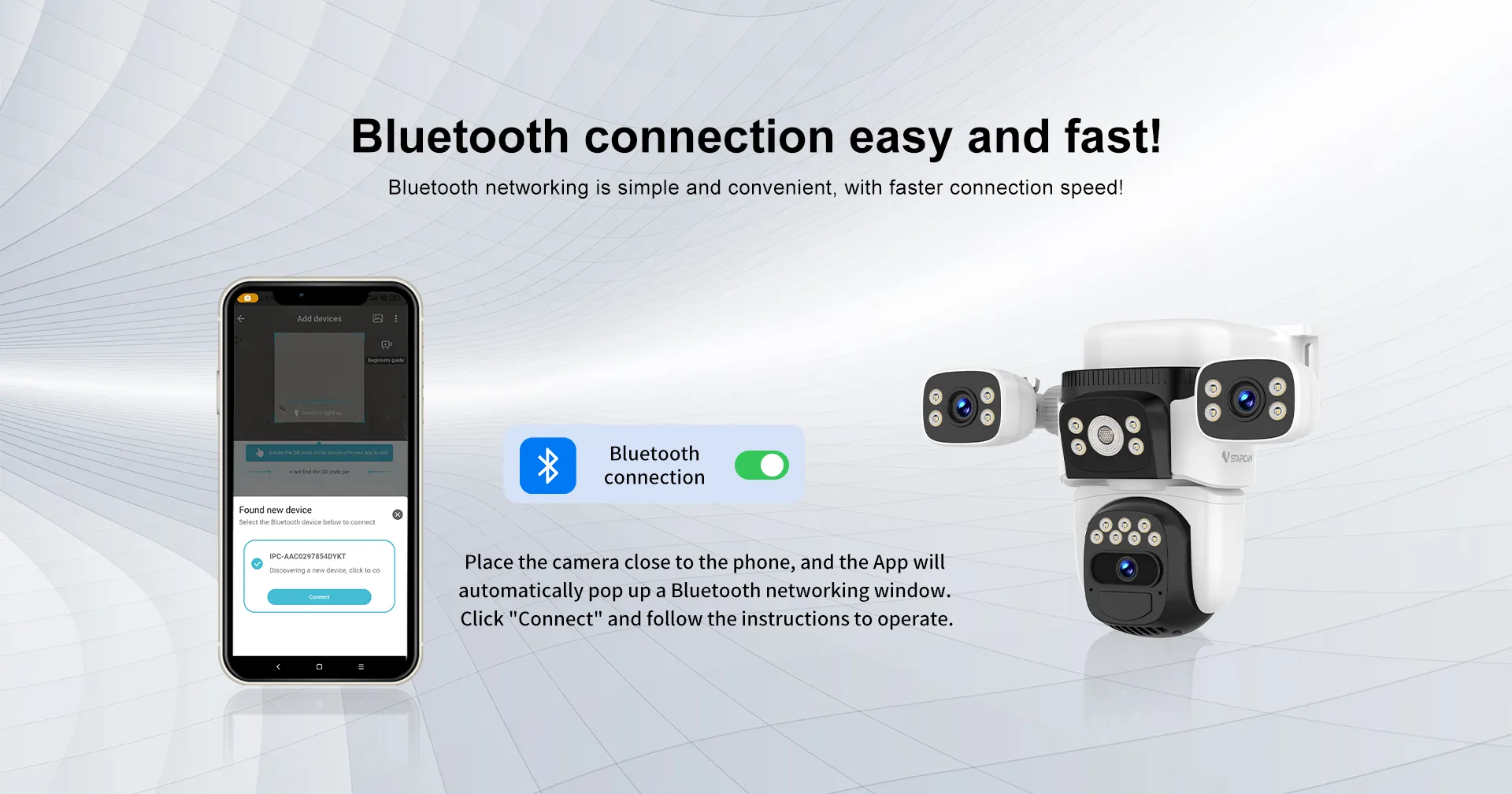

AP hotspot network configuration, QR code network configuration, Bluetooth network configuration |
| Key/interface |
Key 1 |
On/Off key |
| Reset key |
Long press to restore factory settings |
| Storage |
External TF card |
Support TF card (up to 256GB) |
| Cloud storage |
Free cloud storage |
| Alarm |
Sound light alarm |
Sound light alarm |
| Alarm detection |
Support for human detection, PIR infrared human detection for 10 meters |
| Physical Indicators |
Rated voltage |
DC5V/2.5A±5% |
| Power supply |
8000mAh battery powered, optional 20000mAh |
| Consumption |
Sleep standby 300uA, working: 350mA-1.8A max |
| Operating condition |
Temperature: -10～55℃; Humidity: ＜90% |
| Weight |
Net weight: 818g |

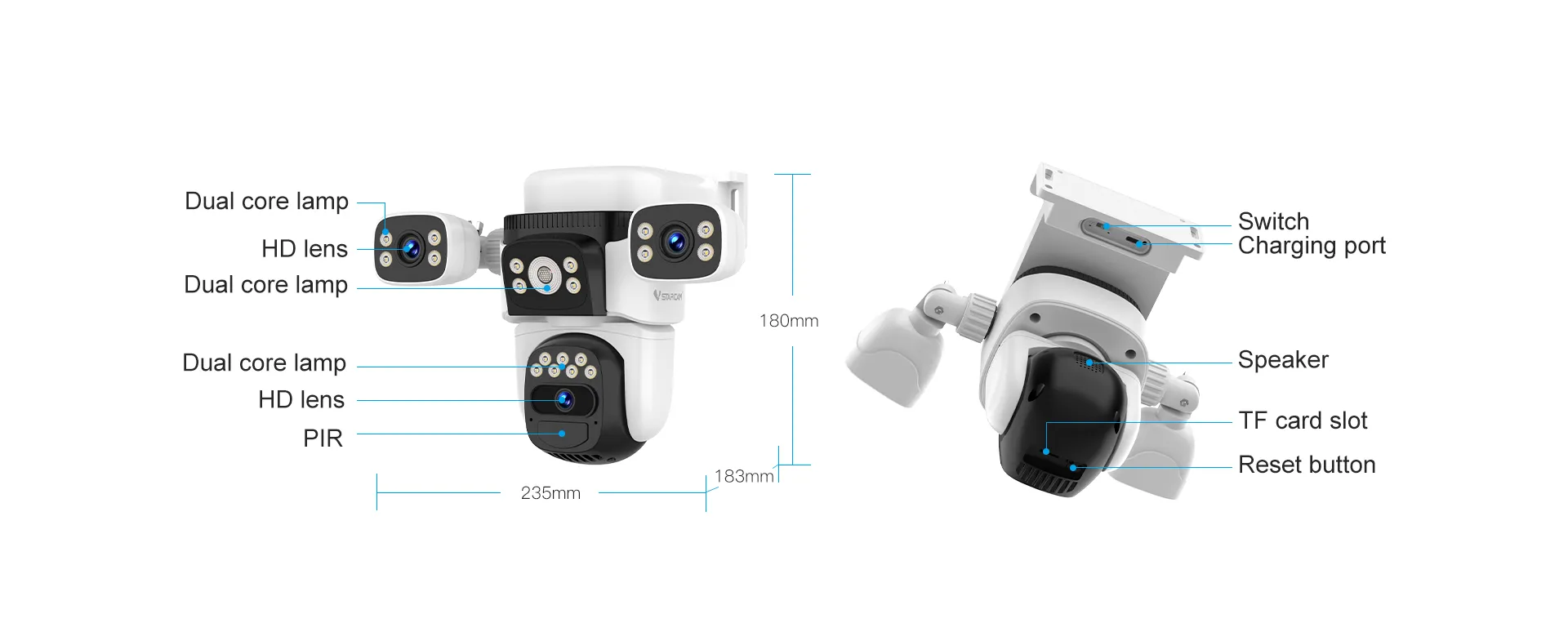

| Product size |
183*235*180mm |

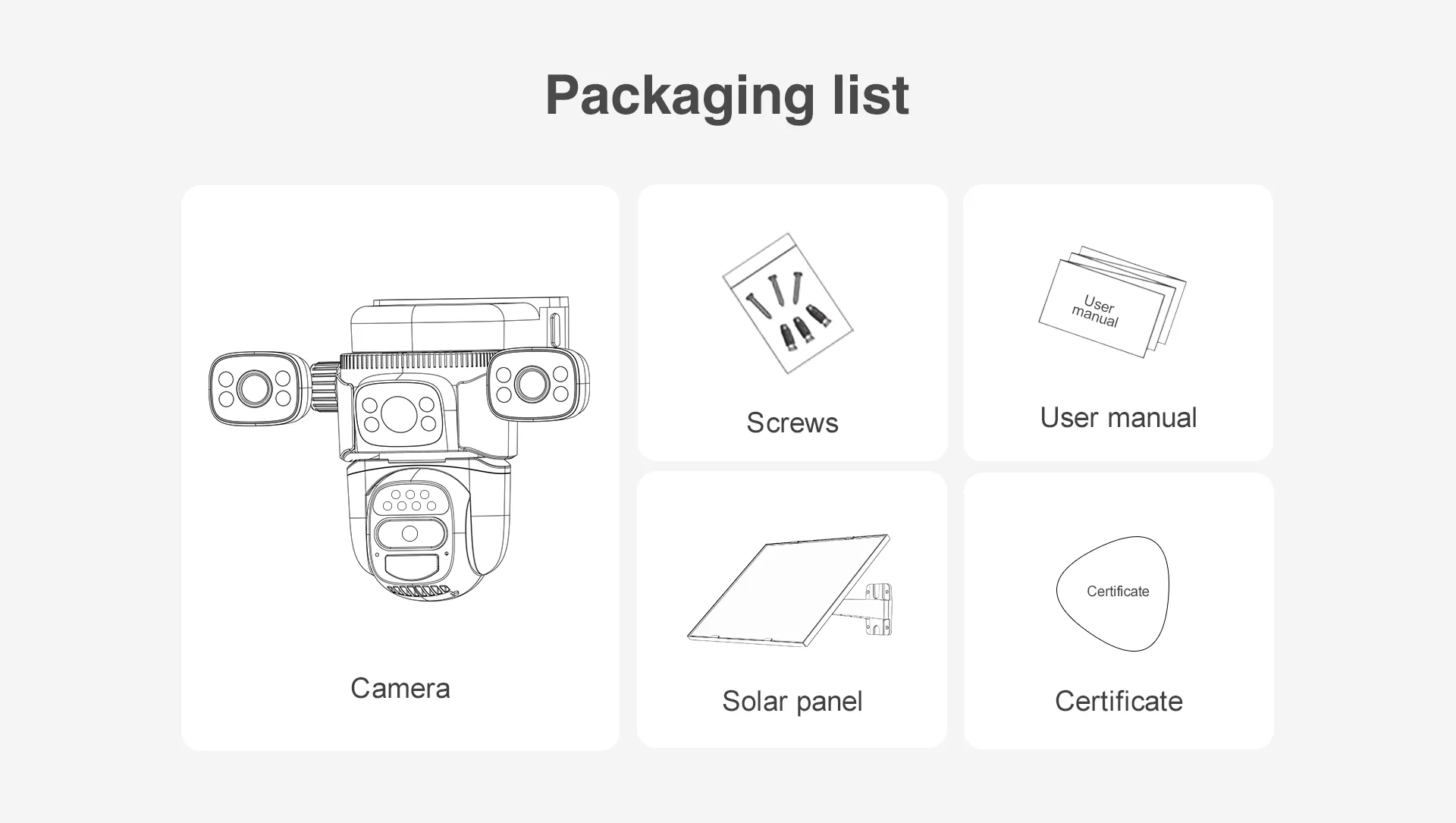

| Packing list |

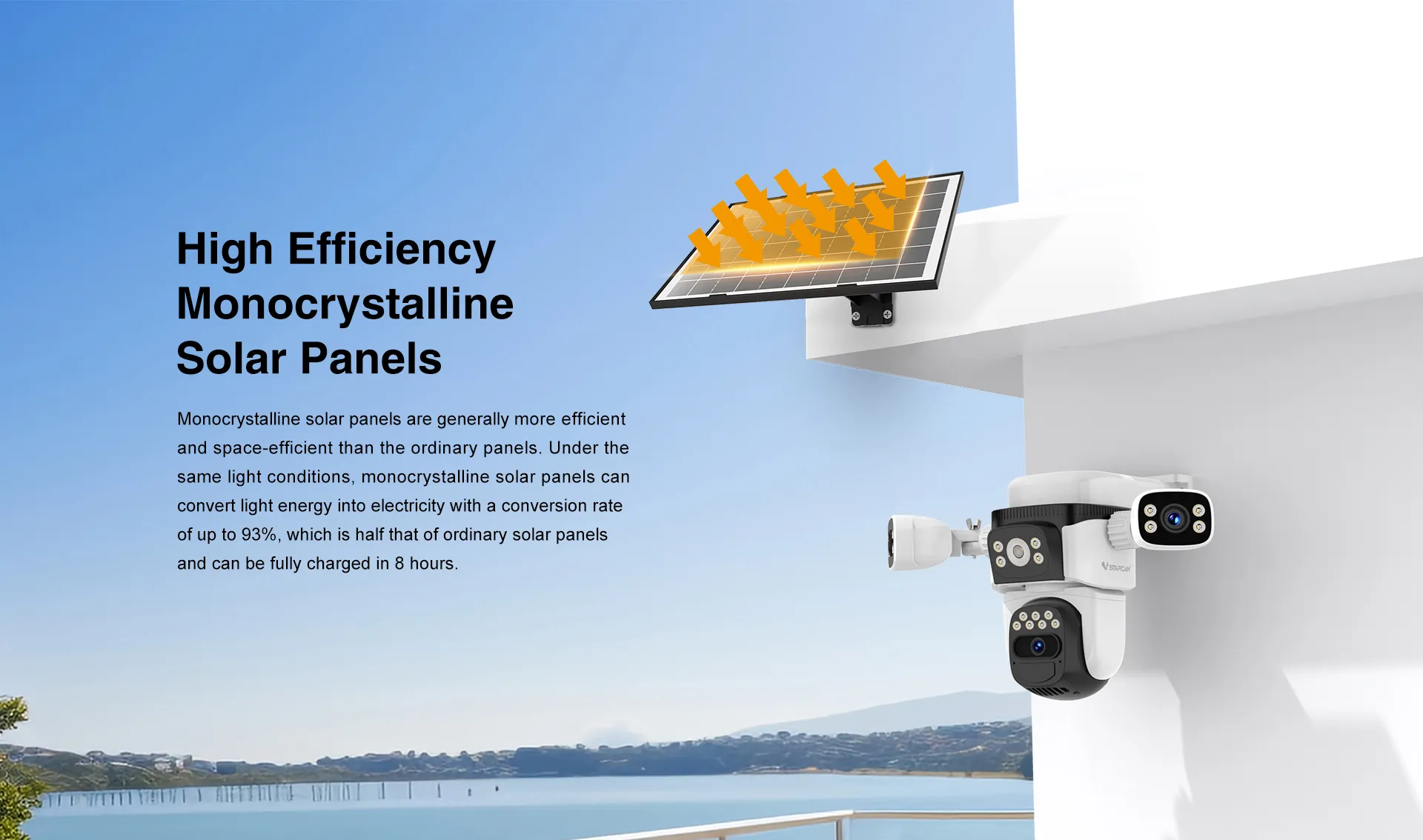

Camera*1, manual*1, type-c cable*1, solar panel*1, solar panel bracket*1 |
