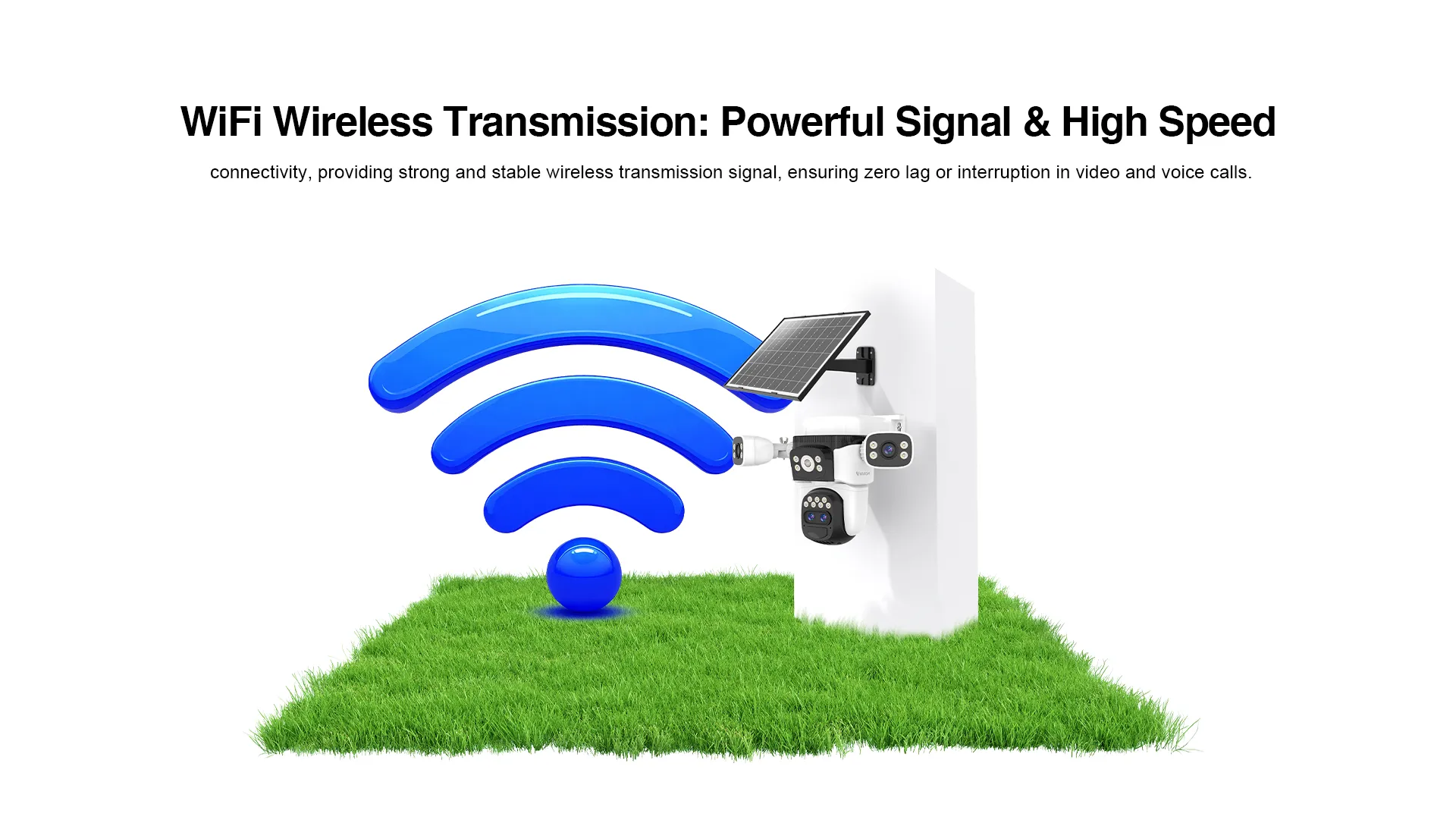

✮Dual band WiFi 2.4/5G | ||

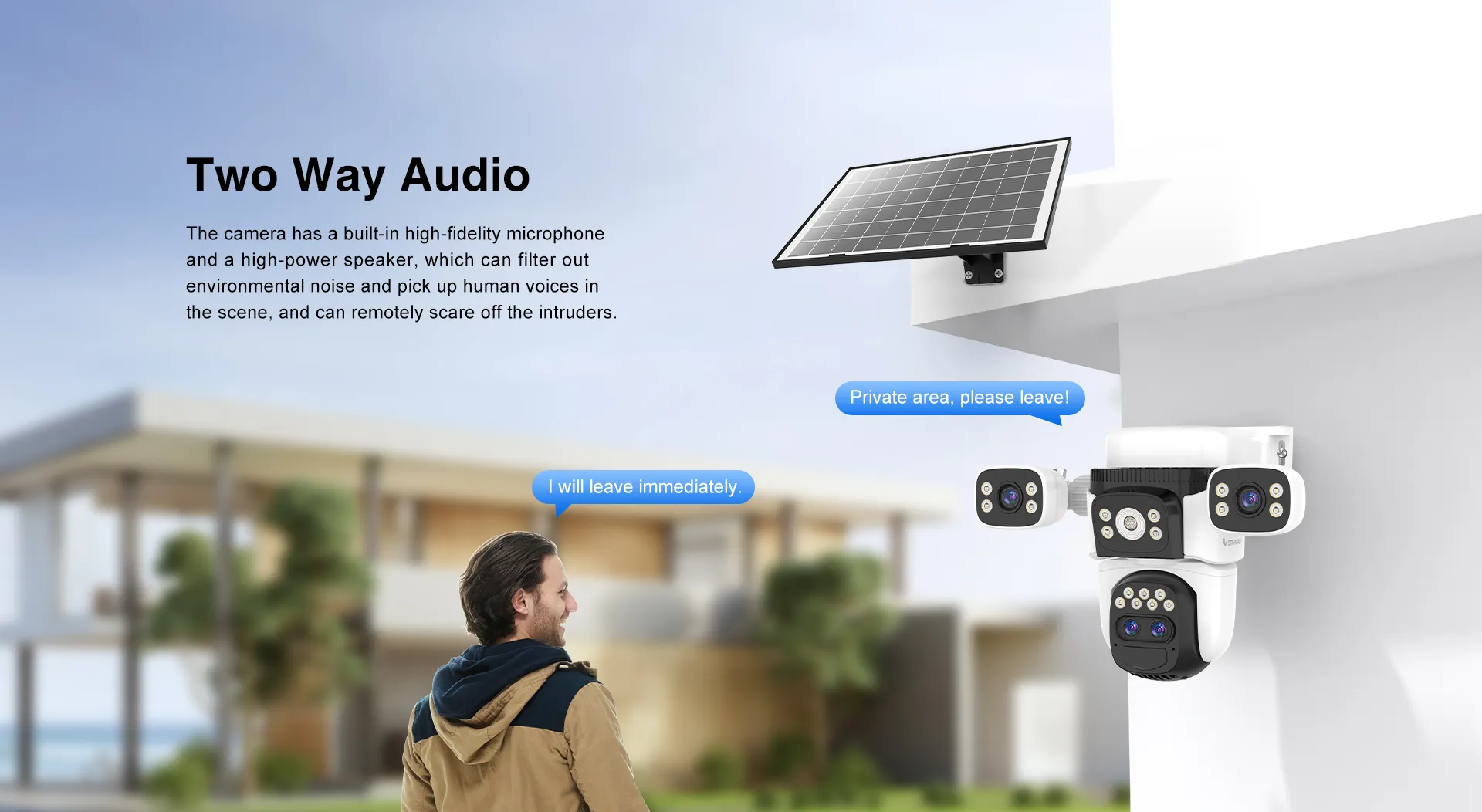

✮Remote active wake-up, two-way voice intercom | ||
✮Quick start, start recording within 400ms | ||
✮Intelligent detection of human movement, intelligent alarm push | ||
✮8000mAh battery powered(20000mAh battery optional), low battery reminder | ||
✮Low power system optimization | ||
✮Cloud storage | ||

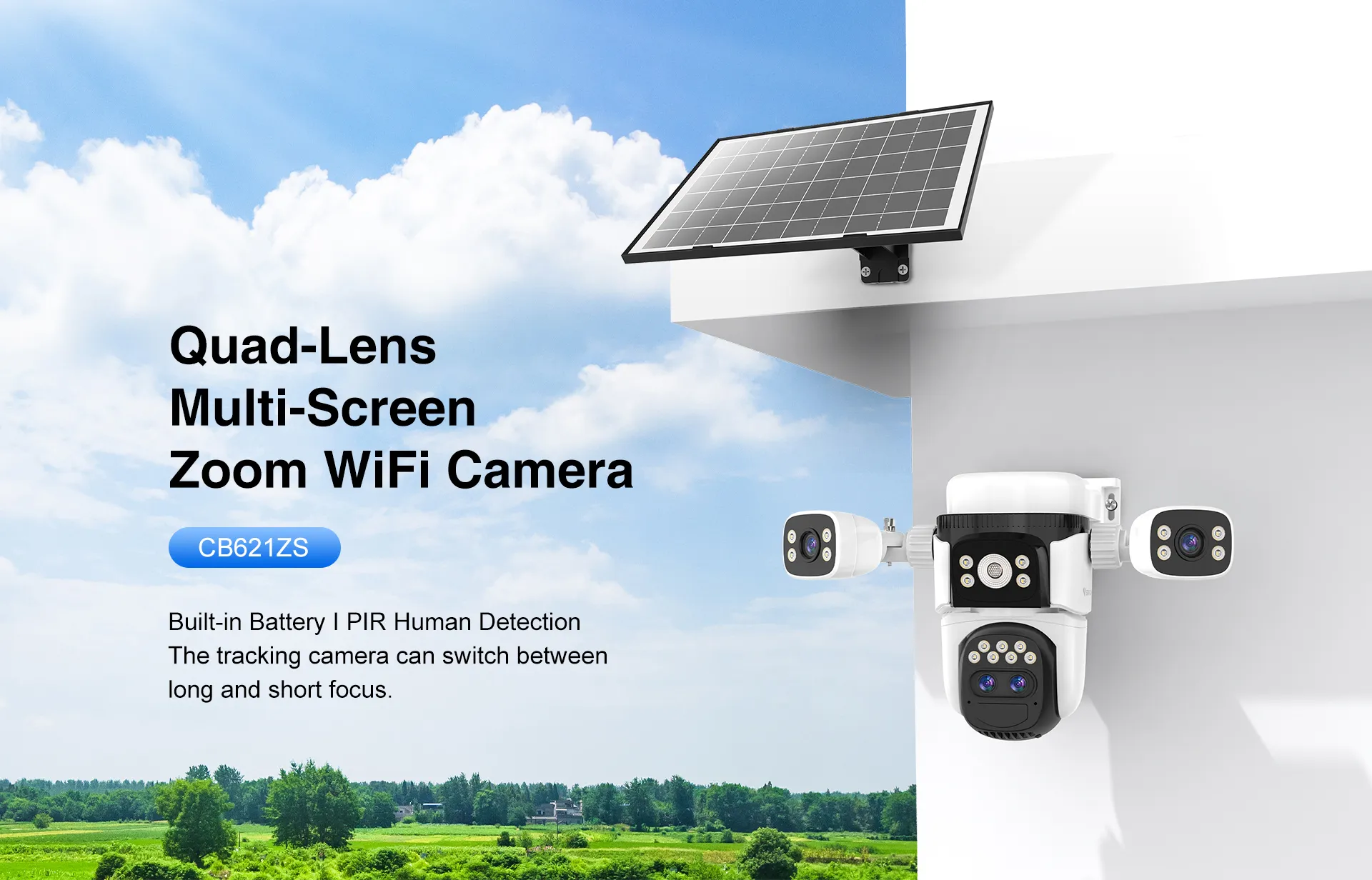

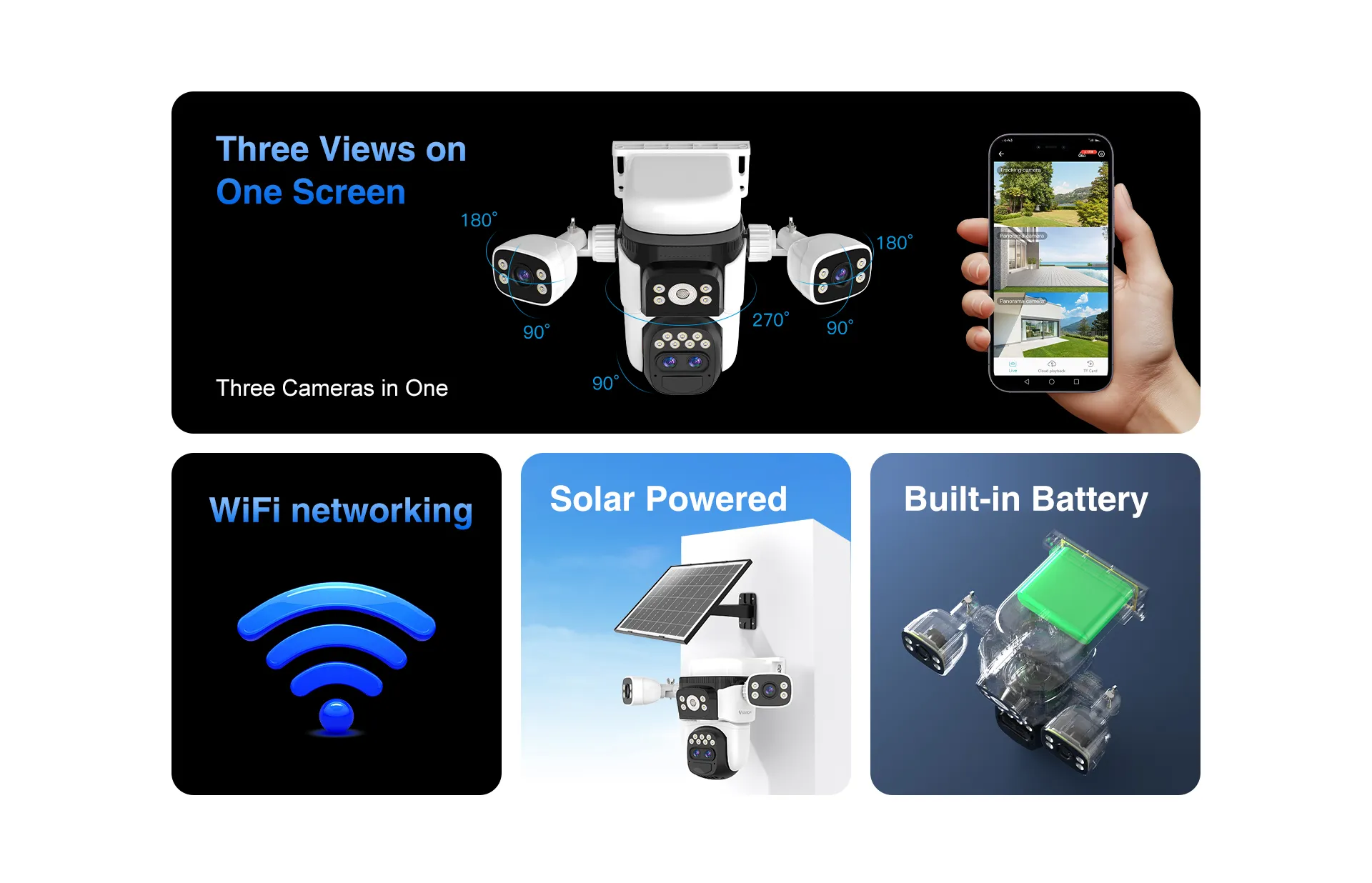

✮Three recording channels, guarding multiple directions | ||

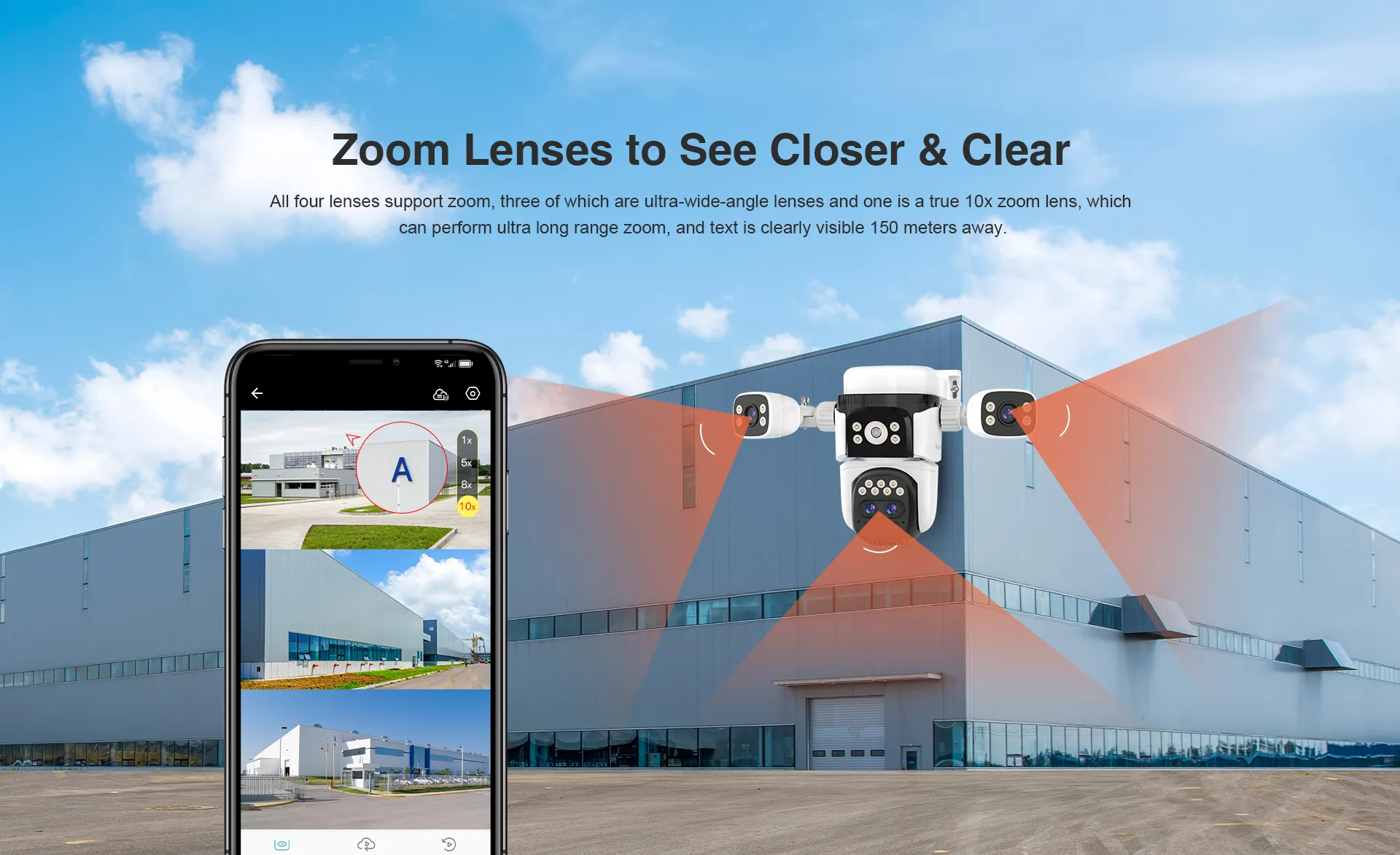

✮Simultaneous three channel recording, the tracking camera can switch between near and far focus | ||
Sorts | Type | Parameters |
System | Operating system | Linux |
Online visitor | Supports 4 visitors at the same time | |
APP | O-KAM Pro | |
Collection | CPU | T23 |
Internal storage | 1Gbit | |
Image sensor | OV 02N10 1/3CMOS | |
Minimum illumination | 0.8Lux/F1.4(color mode), 0.3Lux/F1.4(B&W mode) | |
Lens | Panorama camera: focal length 4mm+4mm,1G3P Tracking camera: focal length 4mm(1G3P )+12mm(1G2P) | |
Sensor performance | Support automatic white balance, automatic gain control and automatic backlight compensation | |

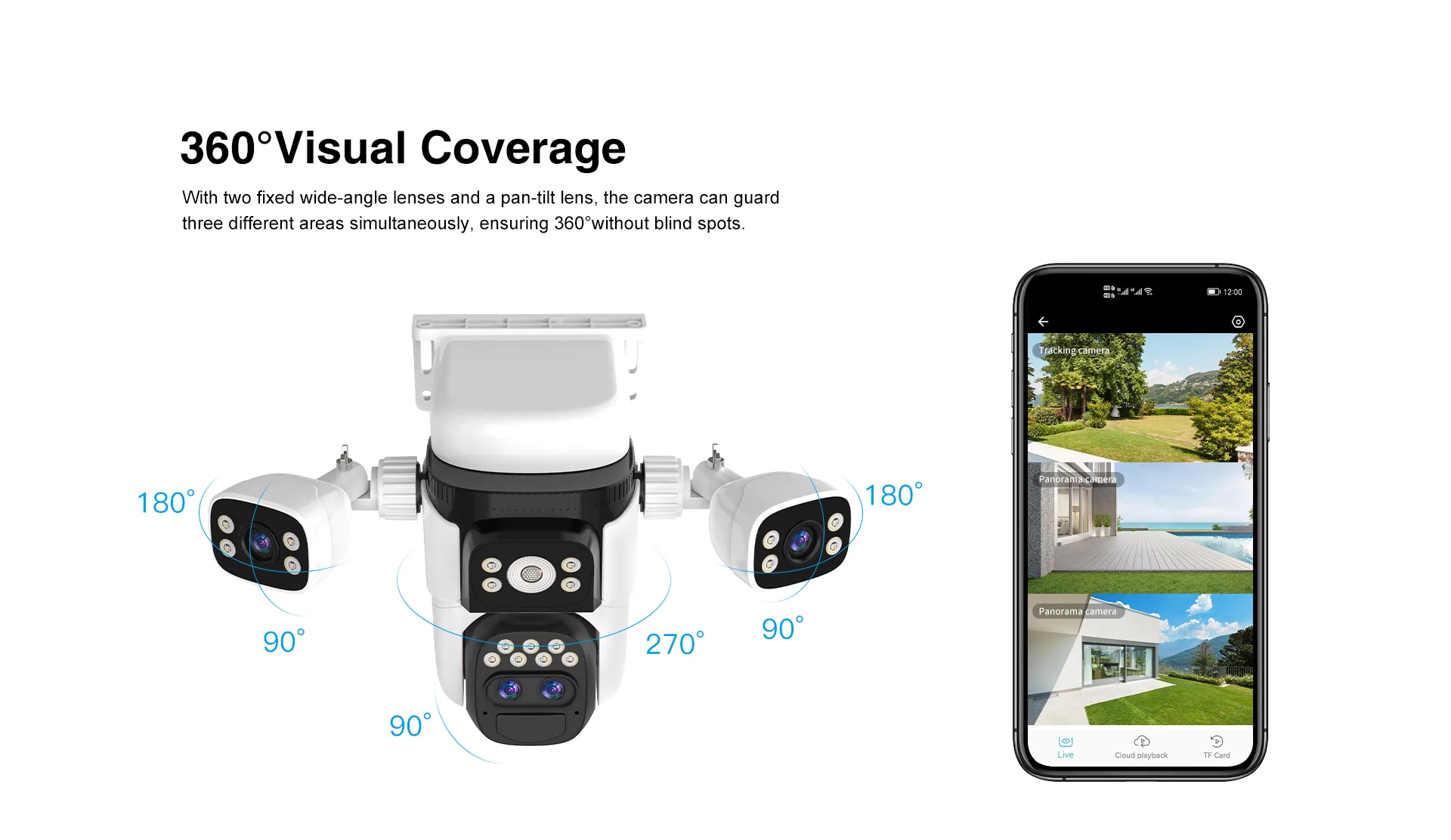

PTZ | Adjust the angle of the tracking camera via App, horizontal 270 °, vertical 90 °; Manually adjust the angle of the panorama camera, horizontal 180 °, vertical 90 °. | |
Viewing angle | D100° | |

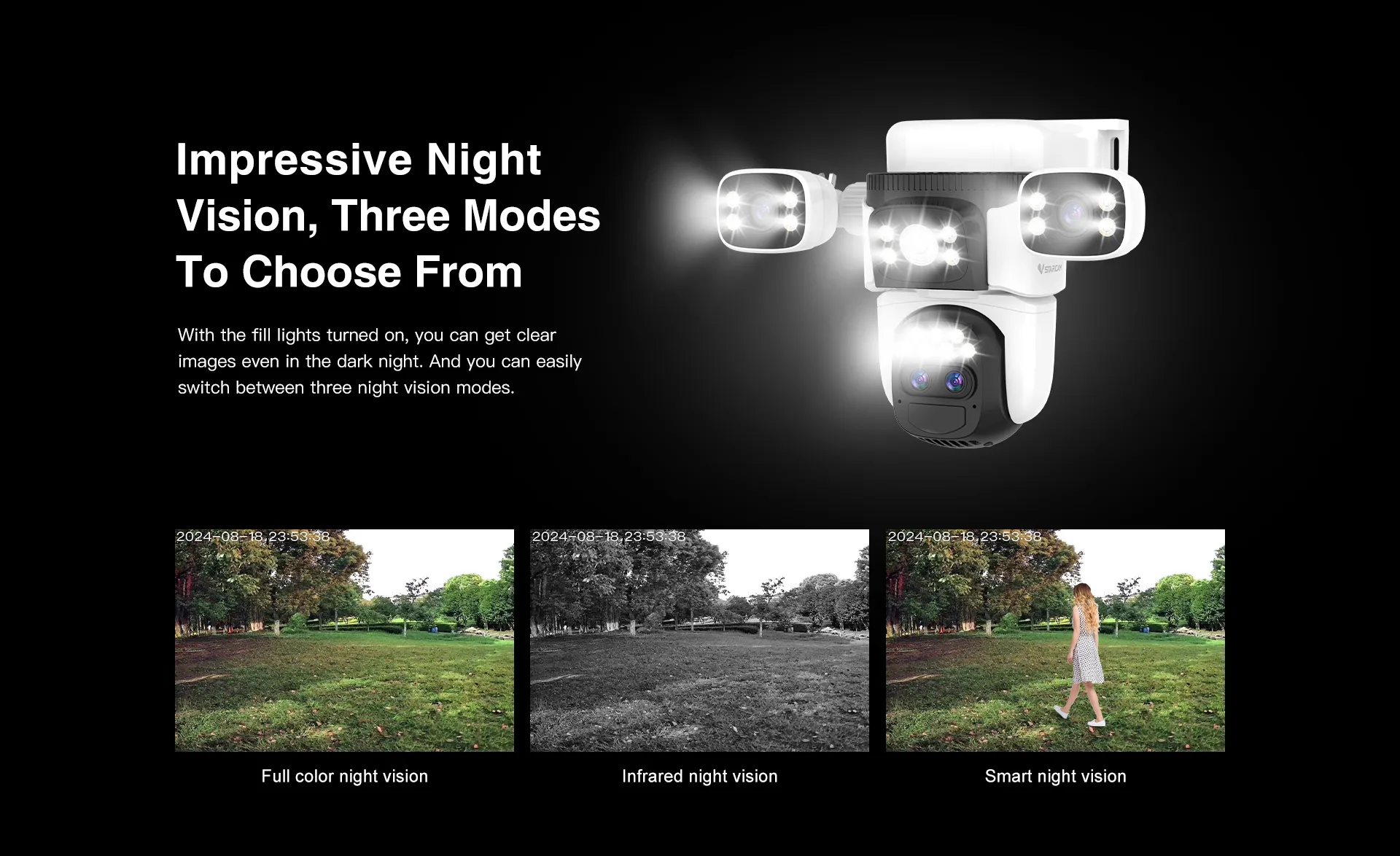

Video | Night vision | Full color night vision, dual light source |
Compression standard | H.264 /MJPEF/JPEG | |
Multi stream | Main stream: 1080P/12fps Sub stream: 360P/10fps | |
IR control | When the IR night vision function is enabled, IR and ICR are automatically detected; when the IR night vision function is disabled, IR is off and ICR is fixed in the day vision mode. | |
Bit rate | CBR/VBR two rate control modes, and the output rate range is 128~4096kbps | |
Image adjustment | Vertical, horizontal adjustable, OSD display | |
Audio | Input | Built-in-38dB microphone |
Output | Built-in 8Ω1W speaker | |
Sampling frequency/bit width | 8KHz/16bit | |
Compression standard/Bit Rate | G711A | |
AI | Human detection | Human detection, filtering invalid video contents |
Area detection | Free daub, only monitoring the areas concerned by users | |
Smart notification sound | Different devices push different sounds, so that you can know exactly which device is triggered | |
Intelligent alarm sound | Set different equipment alarm sounds according to different scenarios | |
More AI functions (testing) | Pets, vehicles, parcels, etc | |
Network | Network protocol | TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P,IPV4 |
Wireless network | IEEE802.11b/g/n/ax | |
Wireless frequency | 2.4/5GHz | |
Wireless security encryption | 64/128-bit WEP/WPA-PSK/WPA2-PSK/WPA3 | |

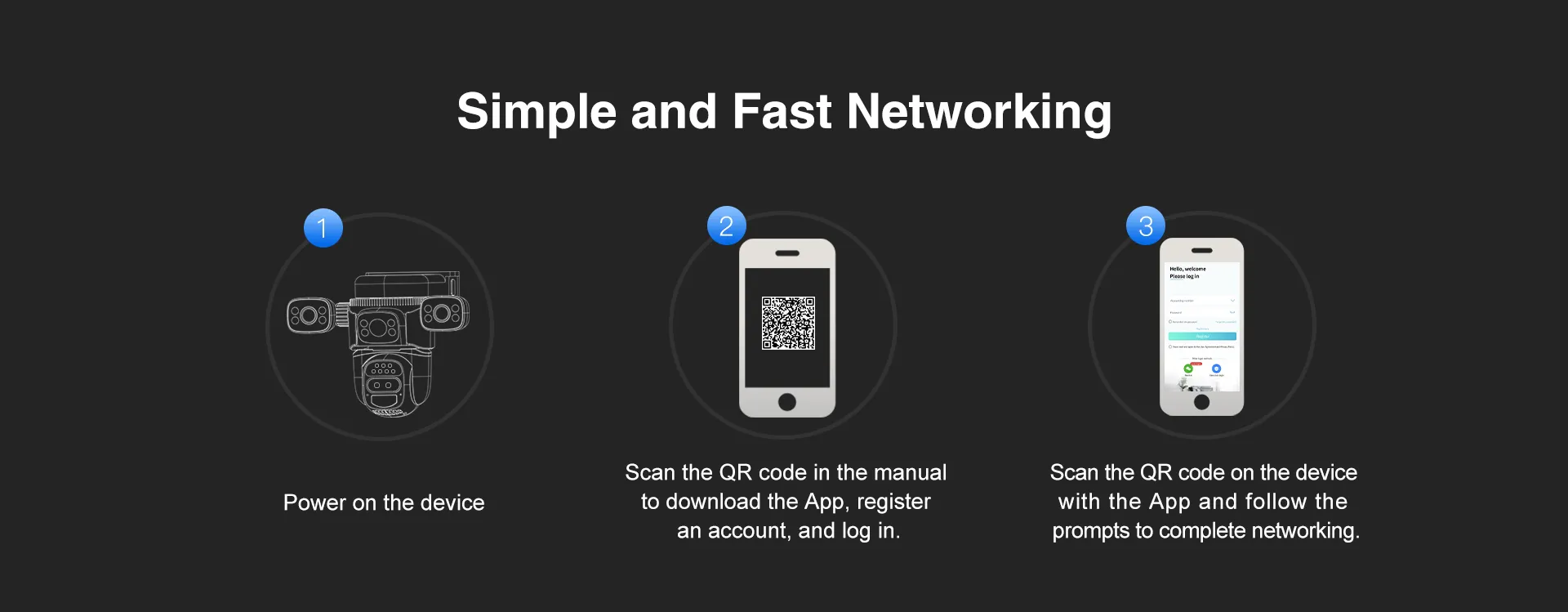

Connection | AP hotspot network configuration, QR code network configuration, Bluetooth network configuration | |
Key/interface | Key 1 | On/Off key |
Reset key | Long press to restore factory settings | |
Storage | External TF card | Support TF card (up to 256GB) |
Cloud storage | Free cloud storage | |
Alarm | Sound light alarm | Sound light alarm |
Alarm detection | Support for human detection, PIR infrared human detection for 10 meters | |
Physical Indicators | Rated voltage | DC5V/2.5A±5% |
Power supply | 8000mAh battery powered, optional 20000mAh | |
Consumption | Sleep standby 300uA, working: 350mA-1.8A max | |
Operating condition | Temperature: -10~55℃; Humidity: <90% | |
Weight | Net weight: 818g | |

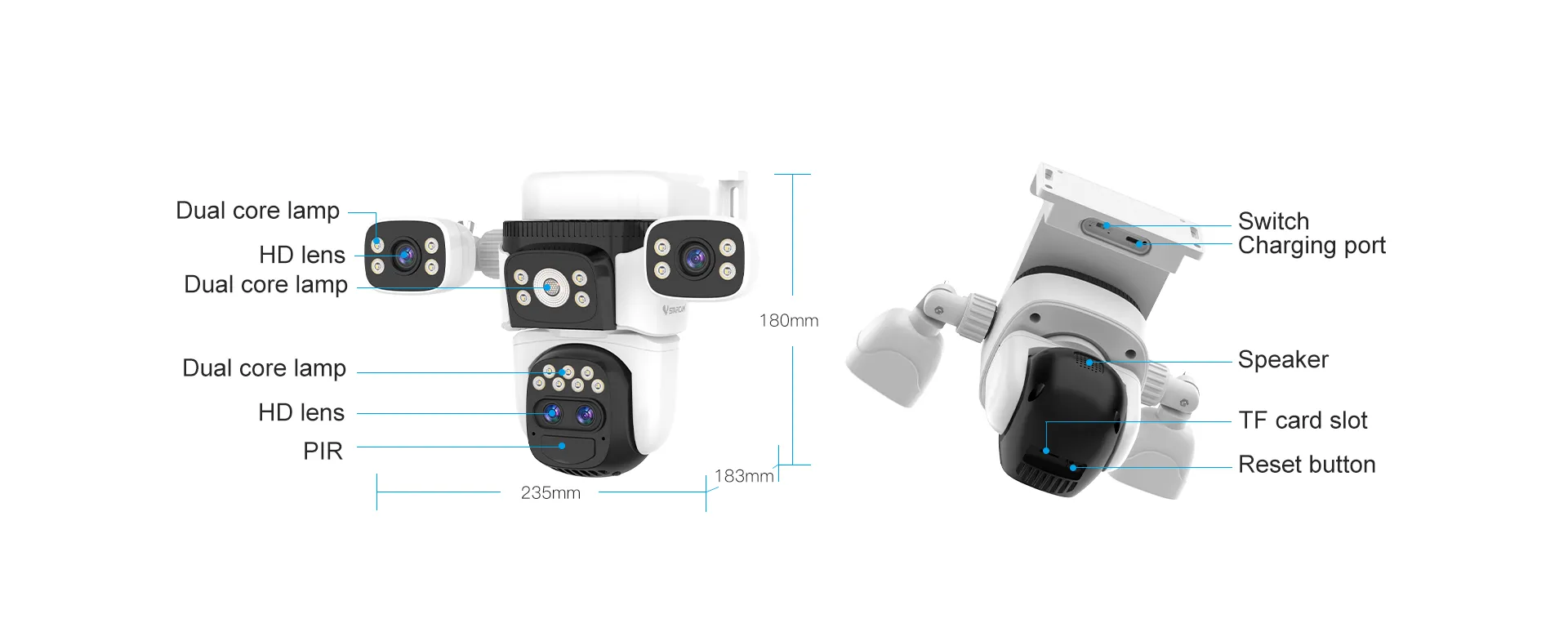

Product size | 183*235*180mm | |

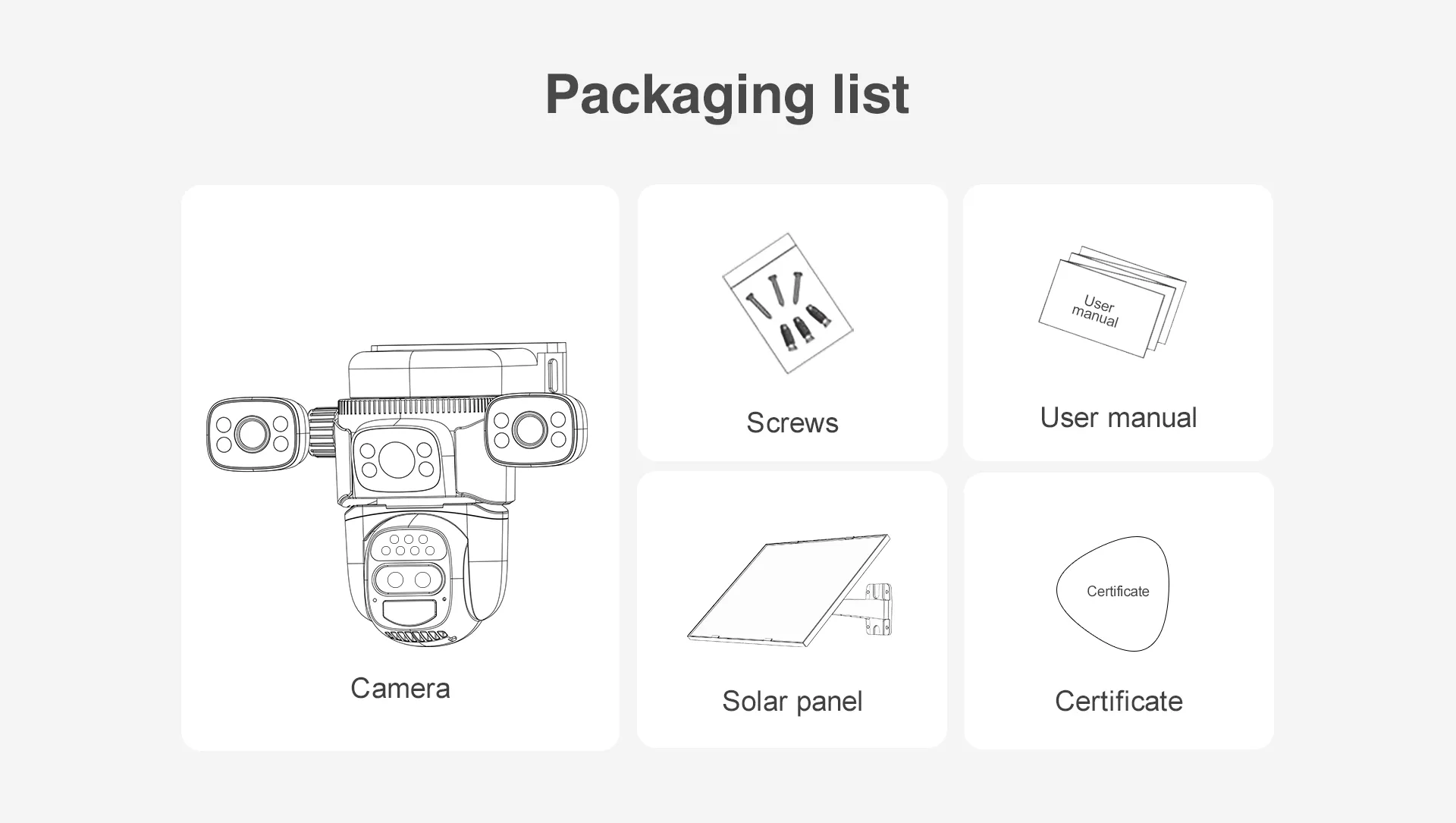

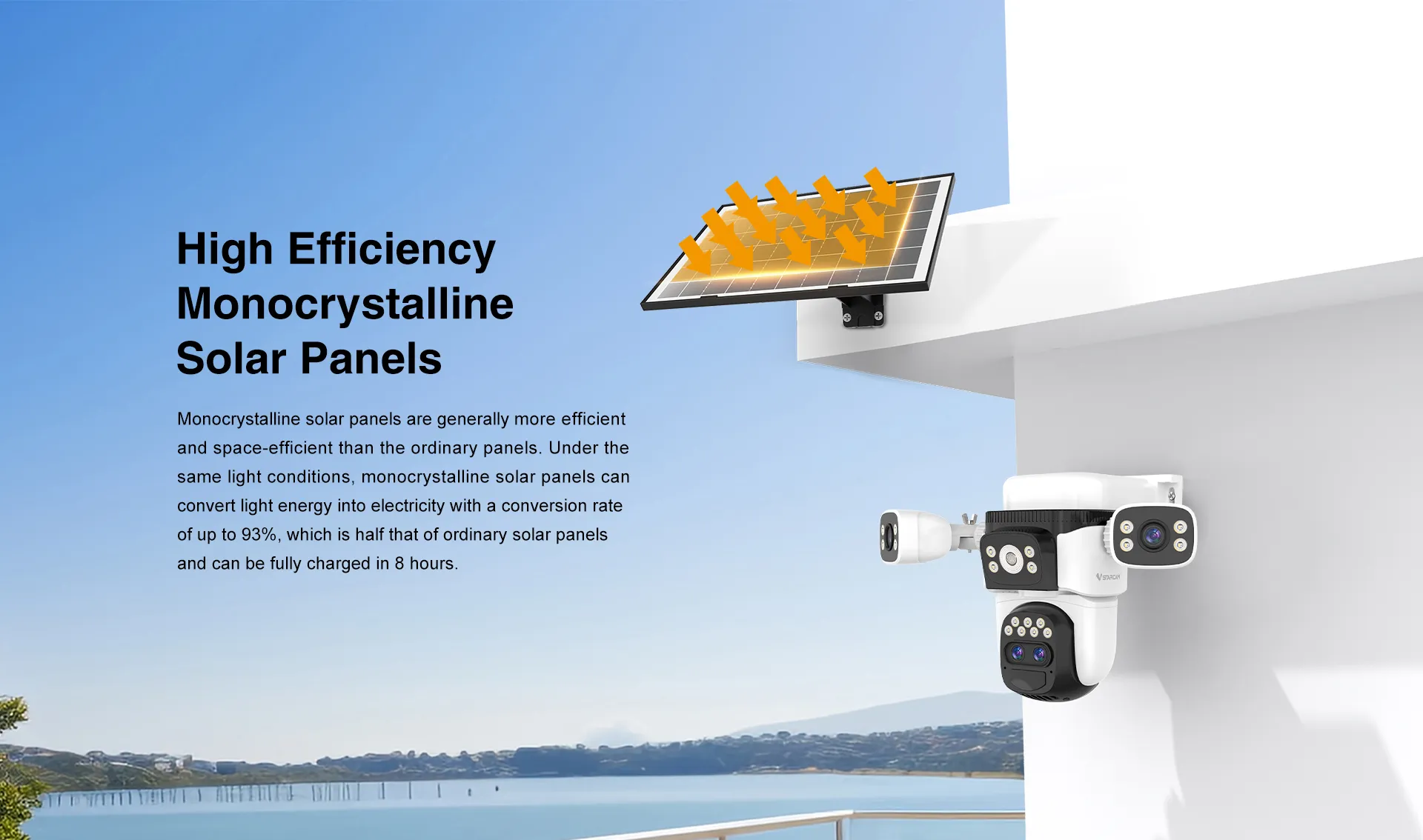

Packing list | Camera*1, manual*1, type-c cable*1, solar panel*1, solar panel bracket*1 |
