Three
Camera
in One
Three Lenses
Three Views on One Screen
360° All Around Protection
Zero Blind Spots
For ordinary surveillance cameras, the areas outside the field of view are blind spots.
360°Visual Coverage
The pan & tilt lens supports horizontal rotation of 0°-270° and vertical rotation of 0°-90°, while the two lenses support horizontal rotation of 0°-180° and vertical rotation of 0°-180° providing 360°protection for your home.
Application Scenarios
Three Lenses Three Views
Two fixed lenses and one pan & three lens ensure the simultaneous monitoring of three different areas, meeting the surveillance needs of large outdoor scenes such as courtyards, ponds and farms.
One lens
monitoring with
large blind spot
Three lenses
simuitaneous
monitoring
6MP HD lmage Quality
Three 2Mp F2.0 ultra-large aperture lenses ensure more light intake,
achieving vivid color imaging with clear details.
6MP
2MP+2MP+2MP
F2.0
Ultra-large aperture
5X
Digital zoom
Crisp Color Night Vision
With high-power dual core lights on this camera, you can see everything clearly in full color even at dark night.
The lights can also be used as street lightning, Fearless of darkness!
IP66 Weatherproof
With a robust housing and an lP66 rating. the camera can withstand rainy,sunny, stormy, and even snowy days, giving you year-round peace of mind
Cold Resistance
The camera never fears harsh weather
conditions such as heavy rain or snow.
Intelligent Al Algorithms
With the intelligent Al algorithms, when a human figure appears in the detection area, the camera automatically tracks and records its movement trajectory and immediately pushes an alarm message to the phone, notifying users to handle unexpected situations in time.
Customize Detection Zone
Customize motion detection zones so you are only alerted to the movement that matters to you.
Real-Time Sound Light Alarm
When the camera detects a motion, its powerful lights and siren will be activated to deter the intruders
and push a real time message to the phone.
WiFi Connection
The enhanced built-in antenna provides
you with a stronger signal and
wider WiFi connection.
Two-Way communication
with the built-in mic and speaker,
you can hear and talk to the person
on the camera side in real time,
wherever you are.
Device Sharing
After setting up the camera in the
main account, it can be shared with
many family members.
Custom Voice Alarm
The alarm sound can be customized
according to different scene
requirements.
Flexible Storage Options
The videos can be saved to the cloud, Tf card,or NVR. Choose a way you like and enjoy customized security.
1.Secure cloud storage
Save videos to the cloud, Fully encrypted.
2.TF card storage never misses a moment.
Insert a TF card to the camera and it will automatically record and save the wideos, When the storage space is full, the old videos will be overwritten.
| Resolution | Capacity | Days |
| 64G | 5 days | |
| 2MP | 128G | 10 days |
| 256G | 20 days |
Data comes from VStarcam lab’s test under standerd conditions. May wary due to emionmental foctors and the treguency of comes activities
3.NVR
Supports Onvif protocol, compatible with most of the NVRs in the market.
Parameters
| Resolution 200W+200W+200W | Aperture size F2.0 | Digital zoom 5X |
| Focal length 4mm | Siren alarm Supports | Smart tracking Supports |
| Alarm mode Sound light alarm | Night vision range 30M | Network connection WIFI |
Installation Instruction
Wall Mount

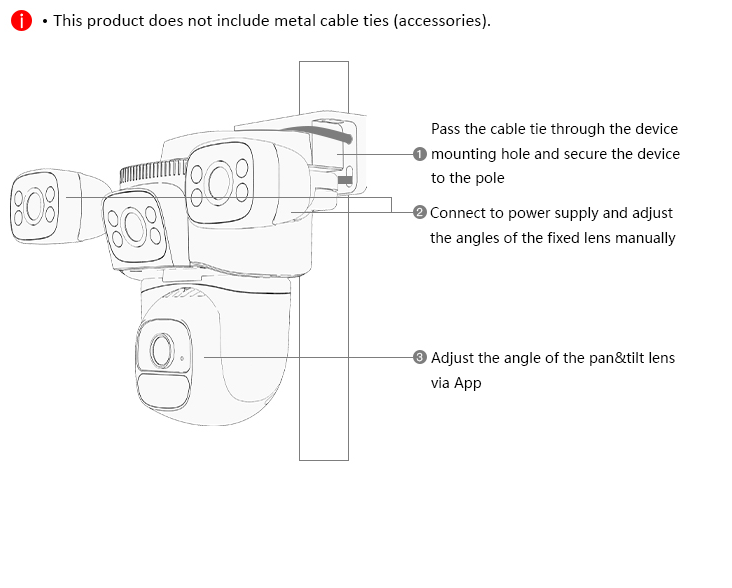

Pole Mount
Simple and Fast Networking
Packaging list
Leave Your Message:
Qualification Certificate
ISO 9001/PSE Certification/CQC Product Certification/CE/ROSH/FCC
UN38.3 Certification/Integrity Enterprise Certification
| ✮Three views, monitor with no blind spots | ||
| ✮F2.0 large aperture, more light inputs, clearer night vision | ||
| ✮ISP image processing technology, preserving true colors | ||
| ✮Human detection, real time alerts | ||
| Sorts | Type | Parameters |
| System | Operating system | Linux |
| Online visitor | Supports 4 visitors at the same time | |
| APP | O-KAM Pro | |
| Collection | CPU | Ingenic |
| Memory | 512Mb | |
| Lens | 4mm | |
| Image sensor | 1/2.7 inch 1080p progressive scan CMOS sensor | |
| Min. Illumination | 0.5Lux (color mode), 0.1Lux (b&w mode) | |
| Sensor performance | Support automatic white balance, automatic gain control and automatic backlight compensation | |
| Night vision | Black and white night vision, full-color night vision | |
| Viewing angle | D 91° | |
| Video | Resolution | 1080P/1920x1080/15FPS |
| Night vision | Black and white night vision, full-color night vision | |
| Compression standard | H.264 main profile/Motion-JPEG/JPEG | |
| IR control | IR-CUT, soft photosensitive control | |
| Bit rate | 128～4096kbps | |
| Image adjustment | Brightness, contrast, OSD display | |
| Audio | Input | Built-in -38dB microphone |
| Output | Built-in 8Ω1W speaker | |
| Sampling frequency/bit width | 8KHz/16bit | |
| Compression standard/Bit Rate | G711A | |
| Pan/Tilt | Rotation angle | Pan：270° Tilt：90° |
| Network | Network interface | 10Mbps/100Mbps |
| Network protocol | TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P | |
| Wireless network | IEEE802.11b/g/n | |
| Wireless frequency | 2.4G | |
| Wireless security encryption | 64/128-bit WEP/WPA-PSK/WPA2-PSK data encryption | |
| Storage | External TF card | Supports T-Flash cards (up to 256GB) |
| Cloud storage | Support cloud storage, users can purchase according to their needs. | |
| Alarm | Alarm detection | Motion detection, human detection, human framing, siren alarm, and area detection |
| Physical Indicators | Rated voltage | DC12V±5% |
| Power consumption | Power: 7.32W (0.61A) Maximum power: 10.2W (0.85A) | |
| Operating condition | Working temperature: -10~55 ℃, working humidity<90% | |
| Weight | N.W.：600g, G.W.：1180g | |
| Camera size | 154x235x185mm | |
| Packaging box size | 166x209x255mm | |
| Carton size | 525x433x525mm,12PCS/CARTON | |
