| Model | 8040 Solar panel Specifications |
| Overall Side | Solar power generation power: 80W MAX |
| Solar power generation voltage: 16V MAX | |
| Solar power generation current: 5A MAX | |
| Battery capacity: 40AH/444WH | |
| Remaining power display: 25% per grid | |
| Charging status display: gradually light up the grid that is not full | |
| Charging voltage: 9～12.6V (follow the change of power percentage) | |
| Overall Front | Charging current: 0～5A (follow the change of sunlight intensity) |
| Discharge voltage: 12.6～9V (follow the change of the percentage of power) | |
| Discharge current: 0～5A (follow the change of equipment electric power) | |
| Charge and discharge protection current: 10A | |
| Short circuit protection current: 15A | |
| Anti-overcharge protection voltage: 12.6V | |
| Over-discharge protection voltage: 9V | |
| Bottom of the bracket | Charging with external power supply: 12.6V |

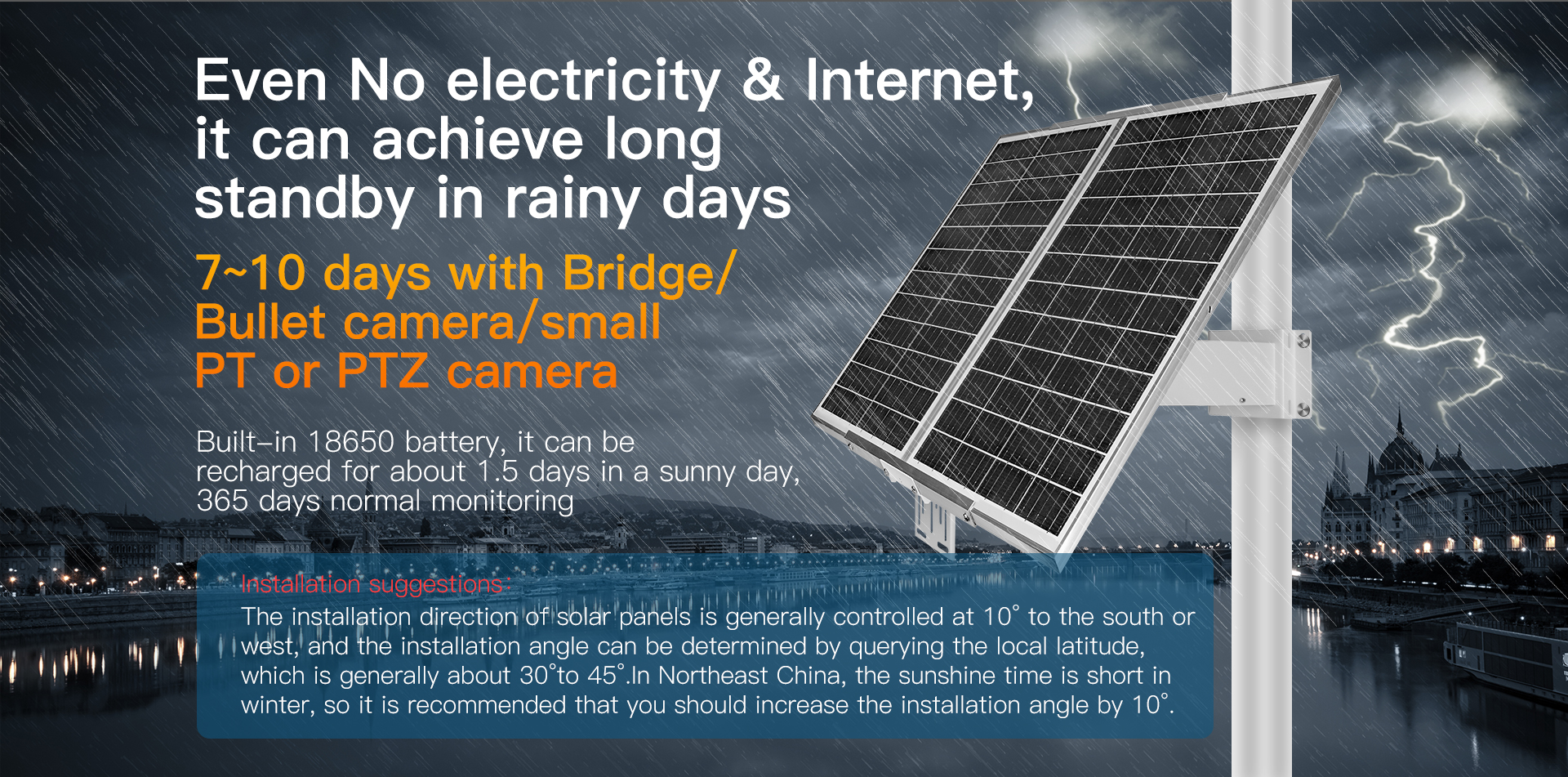

| Standby time in cloudy and rainy days: 4-6 days with big PT/PTZ camera (excessive power of supplementary light or continuous rotation will shorten standby time accordingly) | |
| Recharge time in sunny days: about 1.5 days (battery from Empty to Full) | |
| Main body bracket size: 572 × 244 × 130mm | |
| Solar panel size: 530 × 350 ×17MM ×2 | |
| Packing method: EPE + Carton | |
| Can be put into the camera box size: 280×280×150MM | |
| Outer packing size: 580 × 220 × 405MM | |
| Gross: 10kg (including Packaging) |
