✮F2.0 large aperture, more light intake, clearer night vision | ||
✮Infrared night vision, indoor night vision distance 8-10 meters | ||

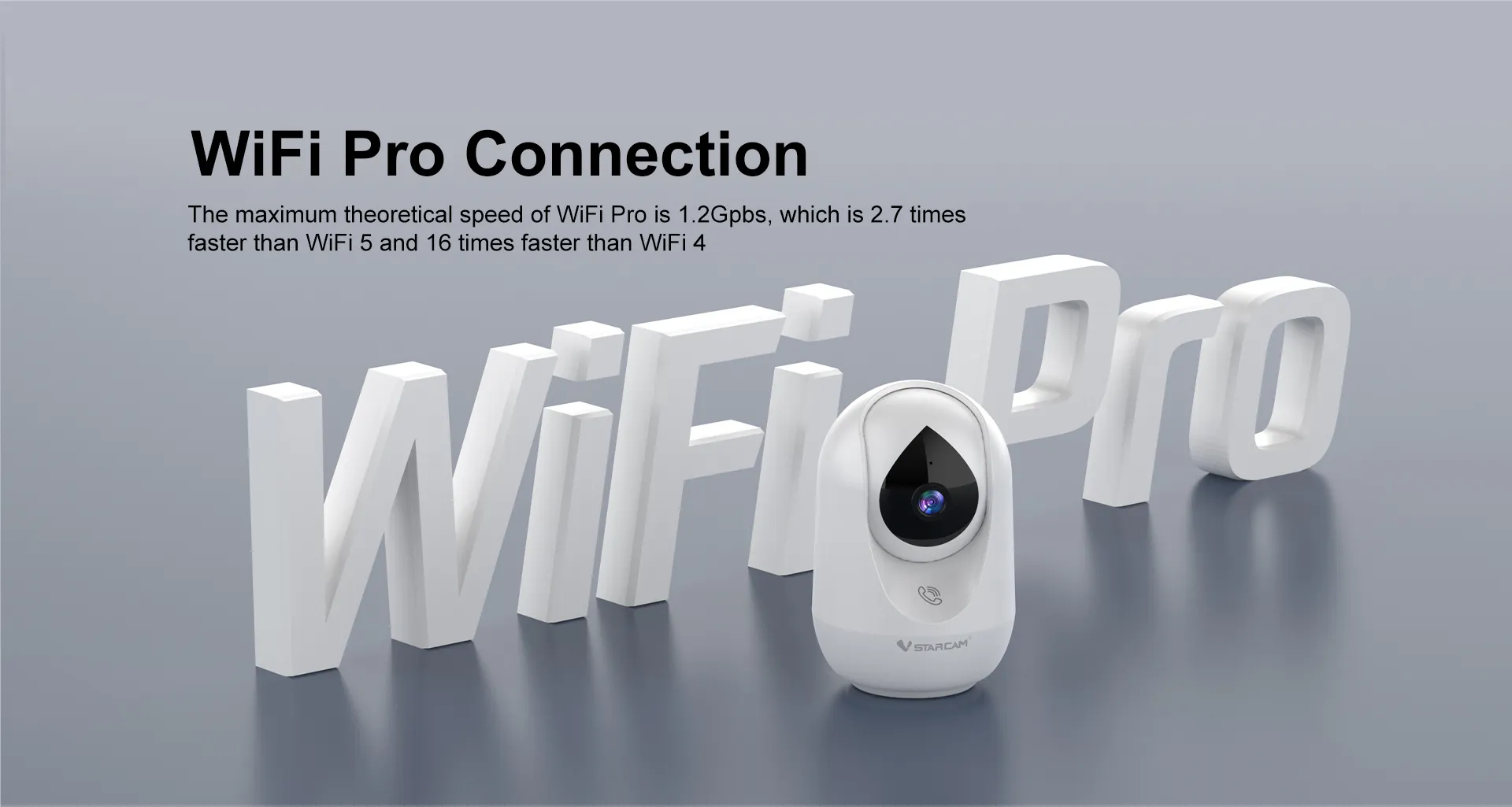

✮WiFi connection, remote access | ||
✮ISP image processing technology, preserving true colors | ||
✮Human detection, real time alerts | ||

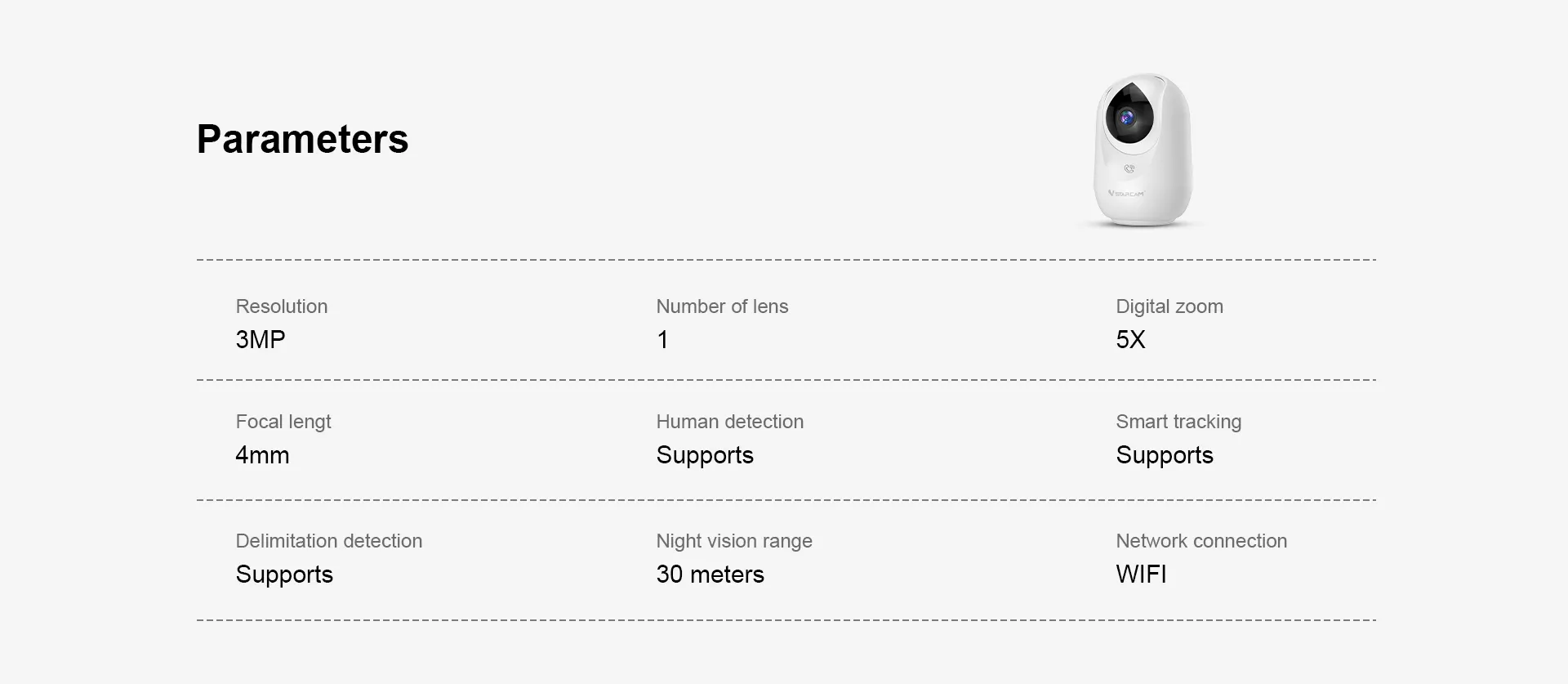

Sorts | Type | Parameters |
System | Operating system | Linux |
Online visitor | Supports 4 visitors at the same time | |
APP | O-KAM Pro | |
Collection | CPU | Ingenic |
Memory | 512Mb | |
Lens | 4mm | |
Image sensor | 1/3.27 2MP progressive scanning CMOS sensor | |
Minimum illumination | 0.5Lux (color mode), 0.1Lux (b&w mode) | |
Sensor performance | Support automatic white balance, automatic gain control and automatic backlight compensation | |
Night vision | Black and white night vision | |
Viewing angle | Diagonal 81° | |
Video | Resolution | 1080P 1920x1080/15FPS/2MP;1296P 2304x1296/15FPS/3MP(Interpolation) |
Night vision | Black and white night vision | |
Compression standard | H.264 main profile/Motion-JPEG/JPEG | |
IR control | IR-CUT, soft photosensitive control | |
Bit rate | 128~4096kbps | |
Image adjustment | Brightness, contrast, OSD display | |
Audio | Input | Built-in -38dB microphone |
Output | Built-in 8Ω1W speaker | |
Sampling frequency/bit width | 8KHz/16bit | |
Compression standard/Bit Rate | G711A | |

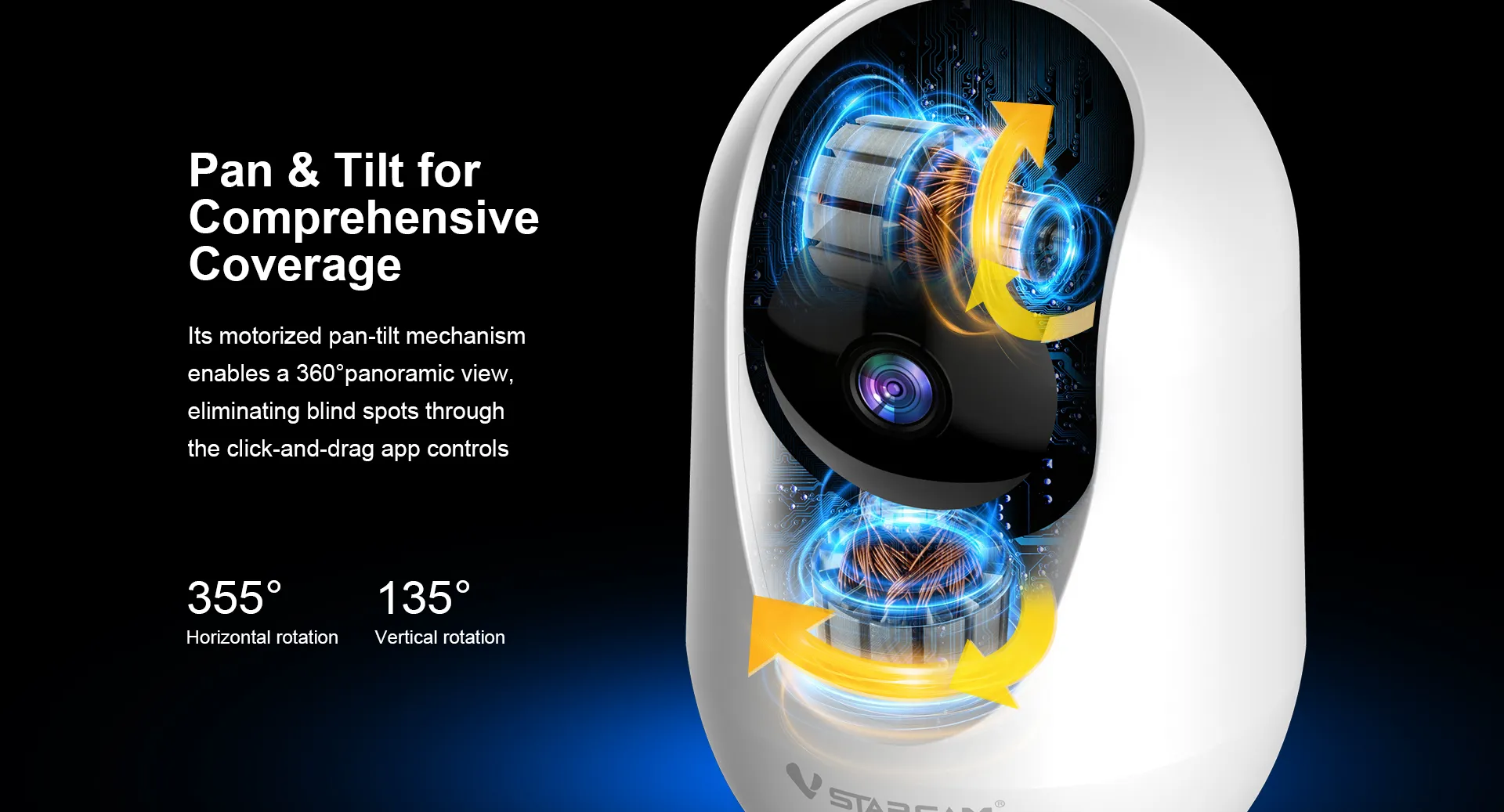

Pan/Tilt | Rotation angle | Pan:355° Tilt:135° |
Network | Network interface | N/A |
Network protocol | TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P | |
Wireless network | IEEE802.11b/g/n | |
Wireless frequency | 2.4G | |
Wireless security encryption | 64/128-bit WEP/WPA-PSK/WPA2-PSK | |

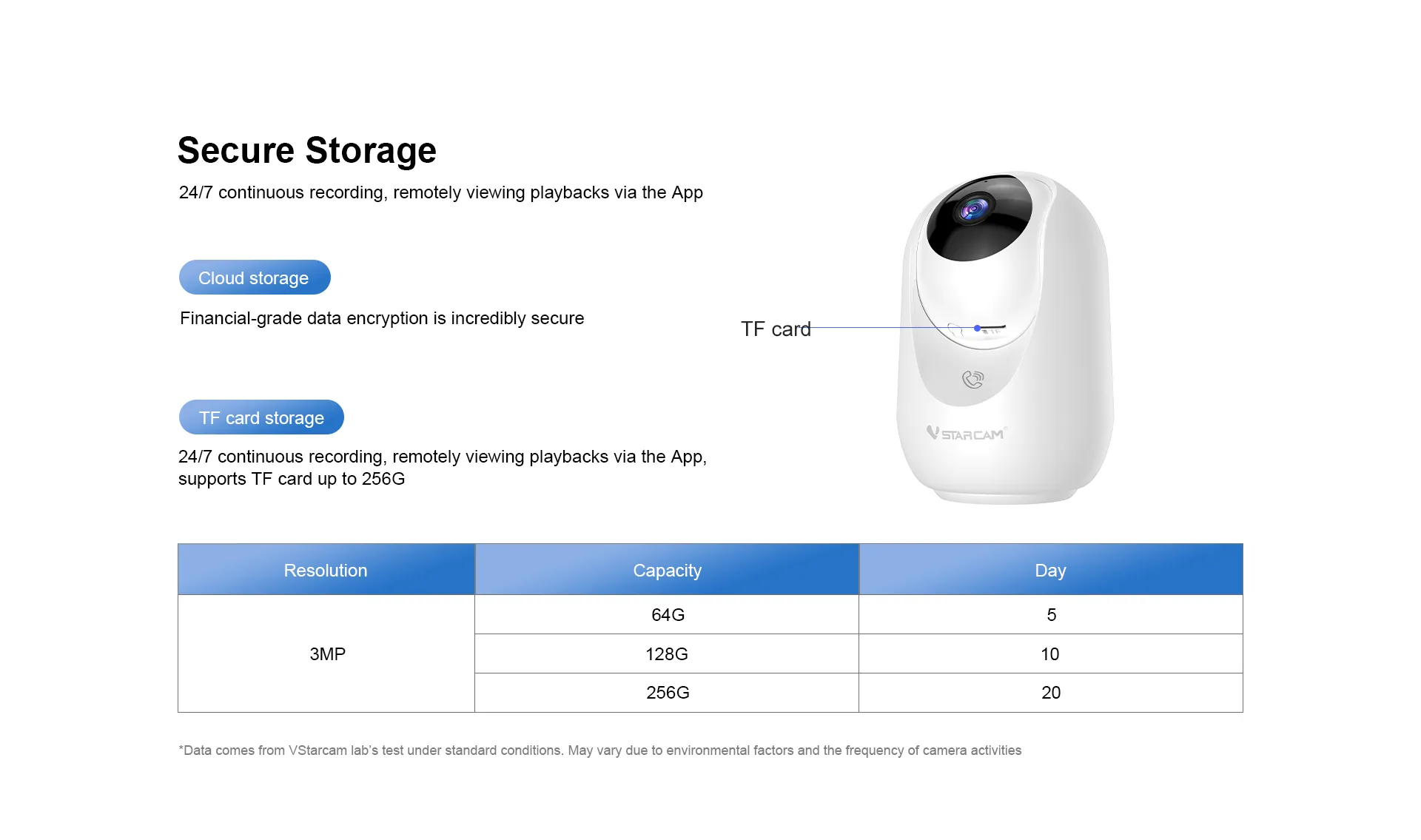

Storage | External TF card | Supports T-Flash cards (up to 256GB) |
Cloud storage | Support cloud storage, users can purchase according to their needs. | |
Calling Function | Touch Call | Touch the call button on the camera. When the App receives a call alert, the user can press the answer icon in the App to start a two-way intercom. |
Alarm | Alarm detection | Motion detection, human detection, human framing, human tracking and area detection |
Physical Indicators | Rated voltage | DC5V±5% |
Power consumption | Rated: 2.9W (0.58A); Full function on: 6W (1.2A) | |
Operating condition | Working temperature: -10~45℃, working humidity <90% | |
Weight | Net weight: 235g Gross weight: 435g | |

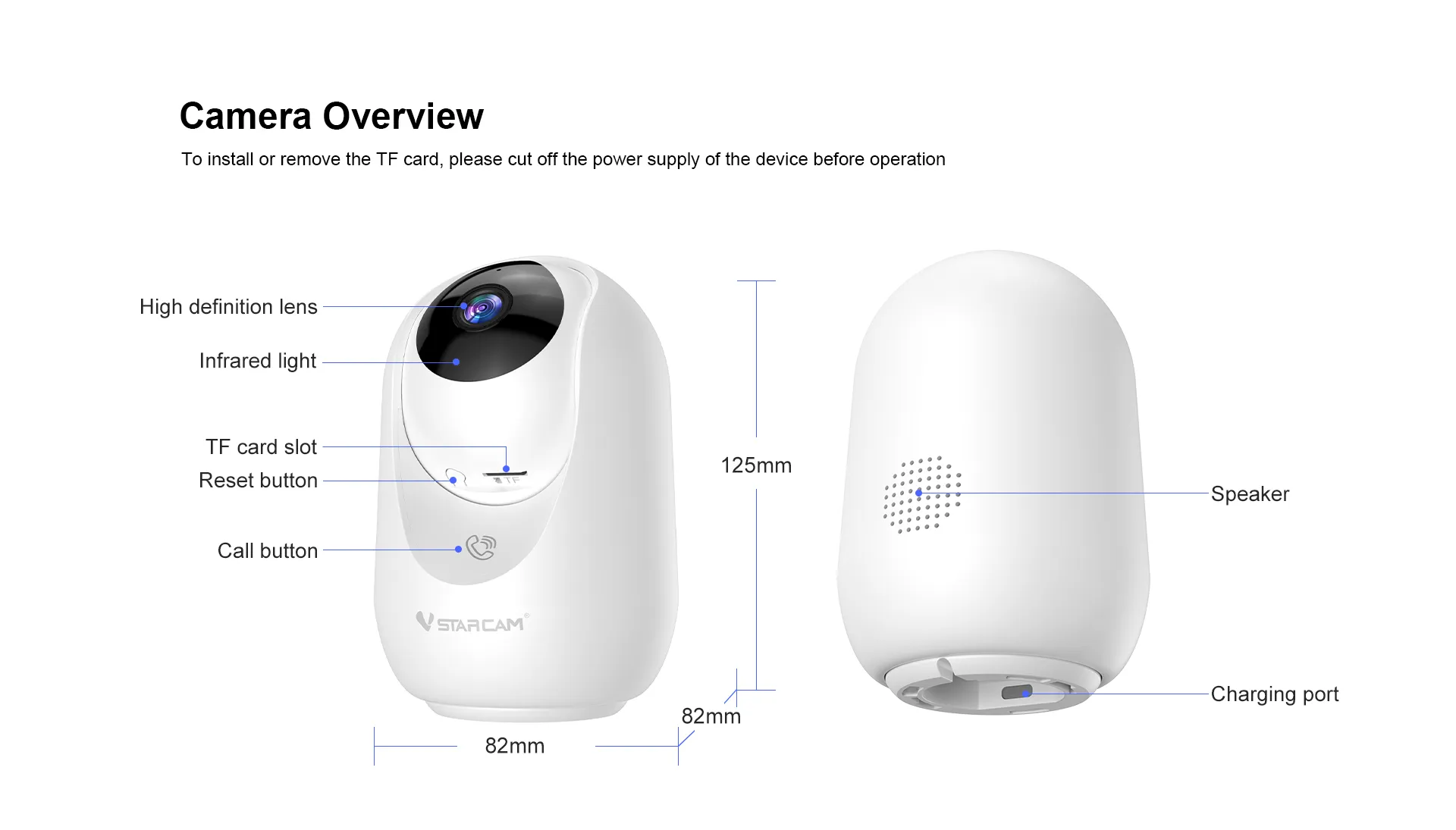

Camera size | 82x82x125mm | |
Packaging box size | 90x90x185mm | |
Carton size | 470x470x395mm, 50PCS/carton |
