| ✮Dual lens dual view leaves no blind spots | ||
| ✮F2.0 large aperture, more light inputs, clearer night vision | ||
| ✮Dual core light board, supporting day and night full-color mode | ||
| ✮ISP image processing technology, preserving true colors | ||
| ✮Wireless connection (2.4-5.8GHz) | ||
| ✮Human detection, real time alerts | ||
| Sorts | Type | Parameters |
| System | Operating system | Linux |
| Online visitor | Supports 4 visitors at the same time | |
| APP | VStarcam Ultra | |
| Collection | CPU | Ingenic T23N |
| Memory | 512Mb | |
| Lens | 2.8mm | |
| Image sensor | 1/2.7" 1080p progressive scanning CMOS sensor | |
| Minimum illumination | 0.5Lux (color mode), 0.1Lux (b&w mode) | |
| Sensor performance | Support automatic white balance, automatic gain control and automatic backlight compensation | |
| Night vision | Black and white night vision, full-color night vision | |
| Viewing angle | Diagonal: 100 ° | |
| Video | Resolution | 1080P 1920x1080/15FPS/2MP；1296P 2304x1296/15FPS/3MP (Interpolation) |
| Night vision | 5-10 meters | |
| Compression standard | H.264 main profile/Motion-JPEG/JPEG | |
| IR control | IR-CUT, soft photosensitive control | |
| Bit rate | 128～4096kbps | |
| Image adjustment | Brightness, contrast, OSD display | |
| Audio | Input | Built-in -38dB microphone |
| Output | Built-in 8Ω1W speaker | |
| Sampling frequency/bit width | 8KHz/16bit | |
| Compression standard/Bit Rate | G711A | |

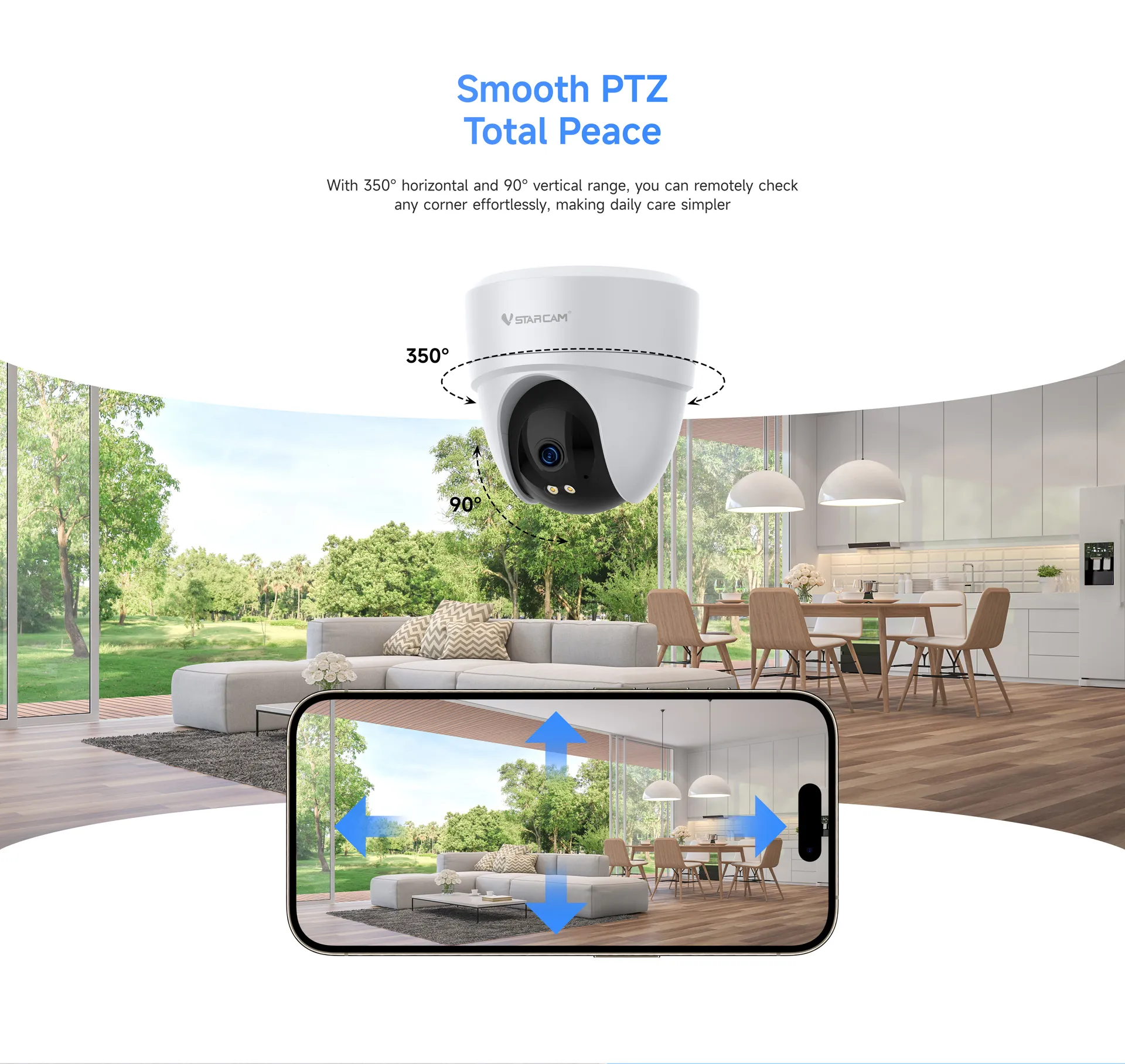

| Pan&Tilt | Angle | Horizontal: 350 ° Vertical: 90 ° |
| Network | Network interface | / |
| Network protocol | TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P | |
| Wireless network | IEEE802.11b/g/n | |
| Wireless frequency | 2.4G-5.8GHz | |
| Wireless security encryption | 64/128-bit WEP/WPA-PSK/WPA2-PSK data encryption | |
| Storage | TF card | TF card (up to 256GB) |
| Cloud storage | Supports cloud storage functionality, available for purchase based on needs. | |
| Alarm | Alarm detection | Motion detection, human detection, human framing, area detection, human tracking |
| Physical Indicators | Rated voltage | DC5V±5% |
| Power consumption | Power: 2.1W (0.42A) Maximum power: 3.25W (0.65A) | |
| Operating condition | Working temperature: -10~45 ℃, working humidity<90% | |
| Weight | 270g | |
| Camera size | 116x114x114mm | |
| Packaging box size | 124x120x178mm | |
| Carton size | 620x515x380mm， 40PCS/CTN | |
