| Sorts | Type | Parameters |
| System | Operating system | Embedded Linux |
| Online visitor | Supports 4 visitors at the same time | |
| Image sensor | 1/3 inch CMOS sensor | |
| Minimum illumination | 0.5 Lux(Color mode), 0.1 Lux(B&W mode) | |

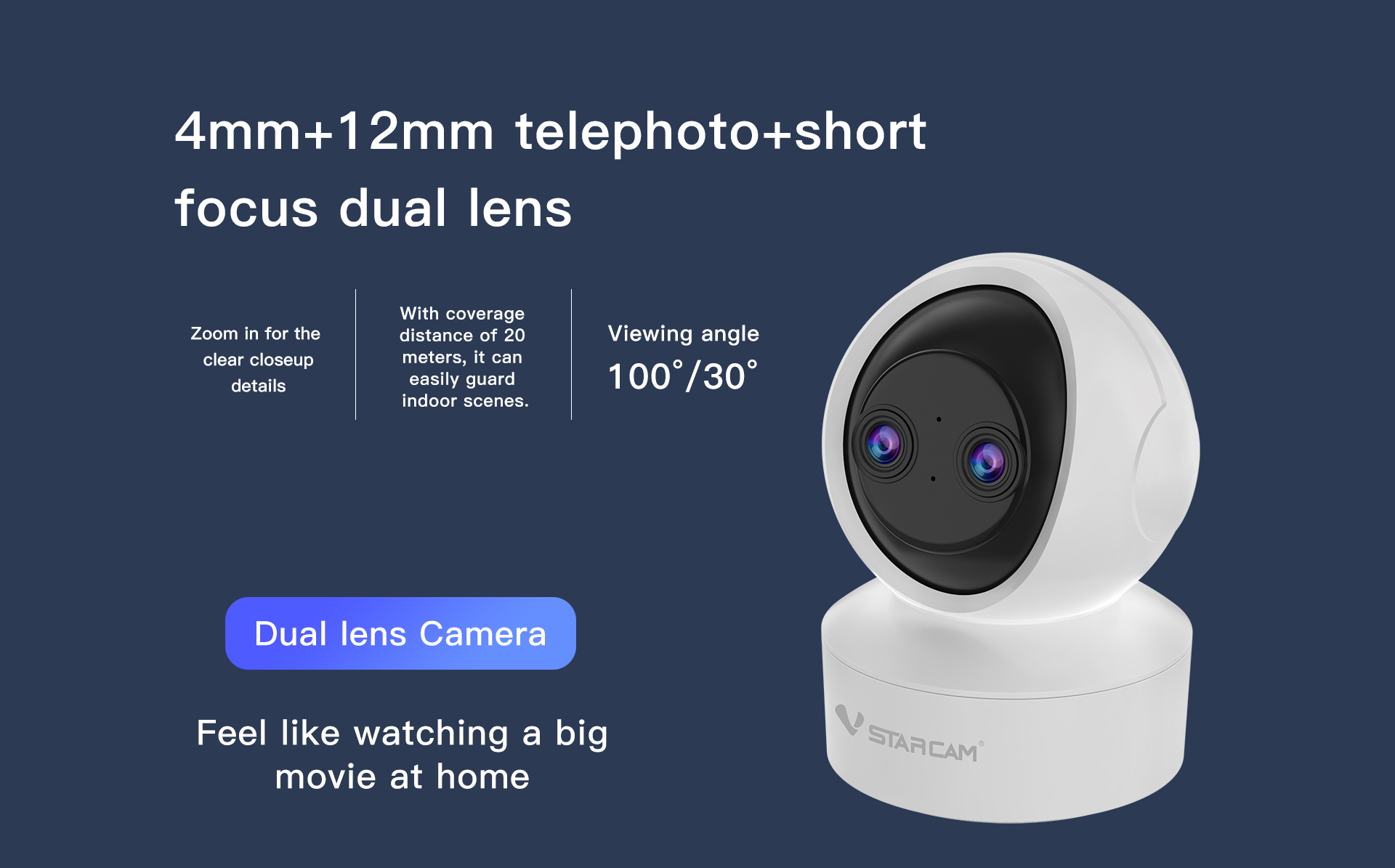

| Lens | 4mm short focus lens+ 12mm long focus lens, angle of view100°/30° | |
| Night vision | Automatic switch dual filters, 8 IR lights, night vision range 5-10 meters | |
| Compression standard | H.264 main profile/Motion-JPEG/JPEG | |
| Data rate | Mainstream：1296p(2304×1296)@25fps； Substream：360p(640×360)@25fps | |
| Bit rate/maximum frame rate | 128～4096kbps/25fps | |
| Image adjustment | Adjustable brightness and contrast | |
| Audio | Input | Built-in -38dB microphone |
| Output | Built-in 8 Ω 1W speaker | |
| Sampling frequency/bit width | 8KHz/16bit | |
| Compression standard/bit Rate | G.711/64kbps | |
| Network | Network interface | 10Mbps/100Mbps adaptive/RJ45 interface |
| Network protocol | TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P etc. | |
| Wireless network | IEEE802.11b/g/n；Support AP mode. | |
| Wireless frequency | 2.4GHz | |
| Wireless security encryption | 64/128-bit WEP/WPA-PSK/WPA2-PSK data encryption | |
| Pan&Tilt | Rotation angle | Horizontal 348 °/Vertical 70 ° (visible angle 360 °) |
| Preset position | Supports 16 presets (mobile app only supports 5) | |
| Storage | Storage | Supports TF card(max 256GB); Cloud Storage;NVR;NAS; |
| Alarm | Alarm detection | Support for motion detection, human detection, humanoid framing,human tracking |
| Physical Indicators | Rated voltage | DC 5V±5% |
| Power consumption | Rated power: 2.9W (infrared light on)/maximum power: 6.6W (pan &tilt on) | |
| Operating condition | Temperature: -10～50℃; Humidity: ＜90% | |
| Weight | N.W.:200 g, G.W.:360 g (Note: in kind prevail） | |
| Package size | 90x90x185mm(LxWxH) |
