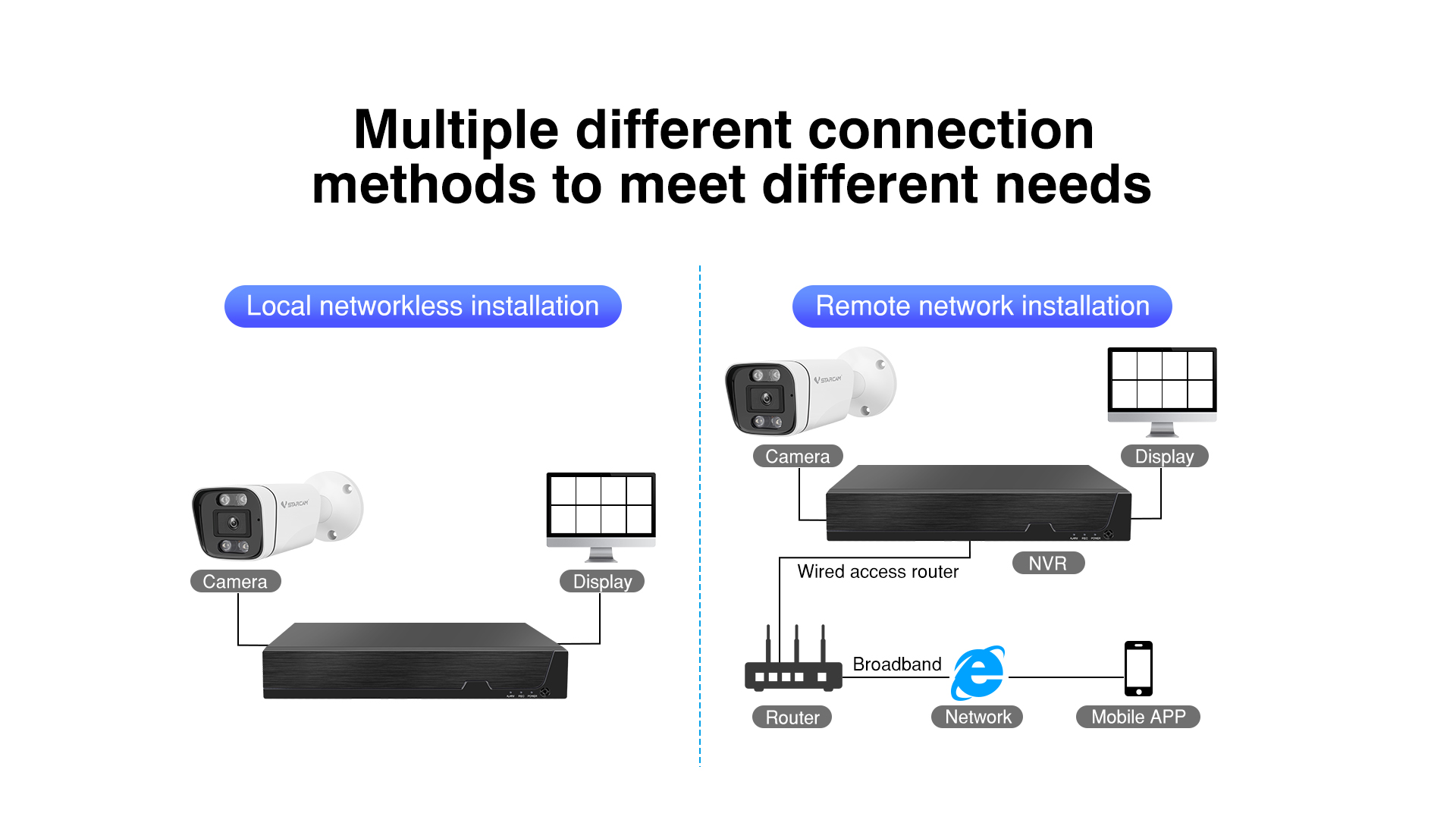

| Main functions:Through cloud services, various network penetrations can be easily achieved, and remote monitoring can be realized in one step, eliminating the complex network settings. It is simple, easy to operate, and very convenient; Support cross segment search and addition of network cameras under the protocol; Support H.264+ video decoding and H.264+ encoding front-end hybrid adaptive access; Support adding network cameras with one click; Support up to 8 MP network camera's preview, recording, and playback; Network video access bandwidth can reach up to 80Mbps, supporting up to 8 channels of HD network video for full real-time digital channel preview and recording; Support up to 8 IPC direct POE interfaces; Support up to 8 channels of synchronous playback, with free switching between main and auxiliary code streams; Supports 1 SATA interface, 10TB hard disk; Support hard disk S.M.A.R.T technology and hard disk bad track skipping, greatly reducing data loss caused by hard disk failures; Support plug and play, SMTP, SSL email alarm | ||
| Sorts | Type | Parameters |
| XKY-NVR3208-P8 | ||
| System | Main processor | Industrial grade embedded microcontroller MC6830 |
| Operating system | Embedded LINUX operating system | |
| System resource | Simultaneous multi-channel real-time recording, real-time playback, multi-channel multi-person network operation, USB backup | |
| Interface | Operation interface | 16-bit true color graphical menu interface, support mouse operation |
| Screen display | 1/4/6/8 screen | |
| Image coding | H.264+（Main Profile@L5.0 High-tie）/ H.264 (Up to High Profile@Level5.0) | |
| Playback quality | 1 channel of 8MP playback（synchronous playback of multi-channel auxiliary code rate);Support 800W/500W/400W/300W/1080P/960P/720P/D1/VGA | |
| Video access | 8 channels | |
| Audio | Audio compression | G.711, G.726 |
| Audio, video and others | Video recording | Manual, timing |
| Local playback | Supports up to 8-channel synchronous playback | |
| Video query | Time search, calendar search, event search, channel search | |
| Backup method | U disk or USB mobile hard disk | |
| Video output | 1 HD-OUT, 3840×2160, 1920×1080 | |
| Audio output | No separate audio output interface | |
| Network Interface | 1*RJ45 10M/100M adaptive Ethernet port | |
| USB interface | 2*USB2.0(Rear) | |
| Hard disk interface | 1 SATA 2.0 (support up to 10TB hard disk) | |
| Onvif Protocol | Support | |
| Power supply | DC 48V 2A | |
| Weight | 0.73(kg) | |
| Working humidity | 10%－90% | |
| Operating temperature | 0°C-＋50°C | |
| Size | 253*218*43(mm) | |
| Camera | ||
| System | Operating system | Embedded Linux |
| Online visitor | Supports 4 visitors at the same time | |
| Collection | CPU/Image sensor | 1/3 inch CMOS sensor |
| Minimum illumination | 0.5 Lux(Color mode), 0.1 Lux(B&W mode) | |
| Lens | 4mm@F2.0/90.7°Diagonal | |
| Night Vision | IR-CUT with auto-switching,4pcs 850nm IR lights, irradiation distance 5-10M | |
| Video | Compression standard | H.264 main profile/H.264+ main profile/Motion-JPEG/JPEG |
| Data rate | Main stream:1440p(2560*1440)@25fps | |
| Substream：360p(640*360)@25fps | ||
| Bit rate/maximum frame rate | 128～4096kbps/25fps | |
| Image adjustment | Adjustable brightness, contrast, saturation, and chromaticity | |
| Audio | Input | Built-in - 38dB microphone |
| Sampling frequency/bit width | 8KHz/16bit | |
| Compression standard/Bit Rate | G.711/32kbps | |
| Network | Network interface | 10Mbps/100Mbps adaptive/RJ45 interface |
| Network Protocol | TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P etc. | |
| Physical indicators | Rated voltage | 12V/supporting POE (48V) power supply |
| Power consumption | Power: 4.32W (infrared light on) Maximum power: 5W | |
| Operating condition | Temperature: -10～50℃; Humidity: ＜90% | |
| Weight | N.W.: 335g Note: in kind prevail | |
| Package size | Note: in kind prevail | |
