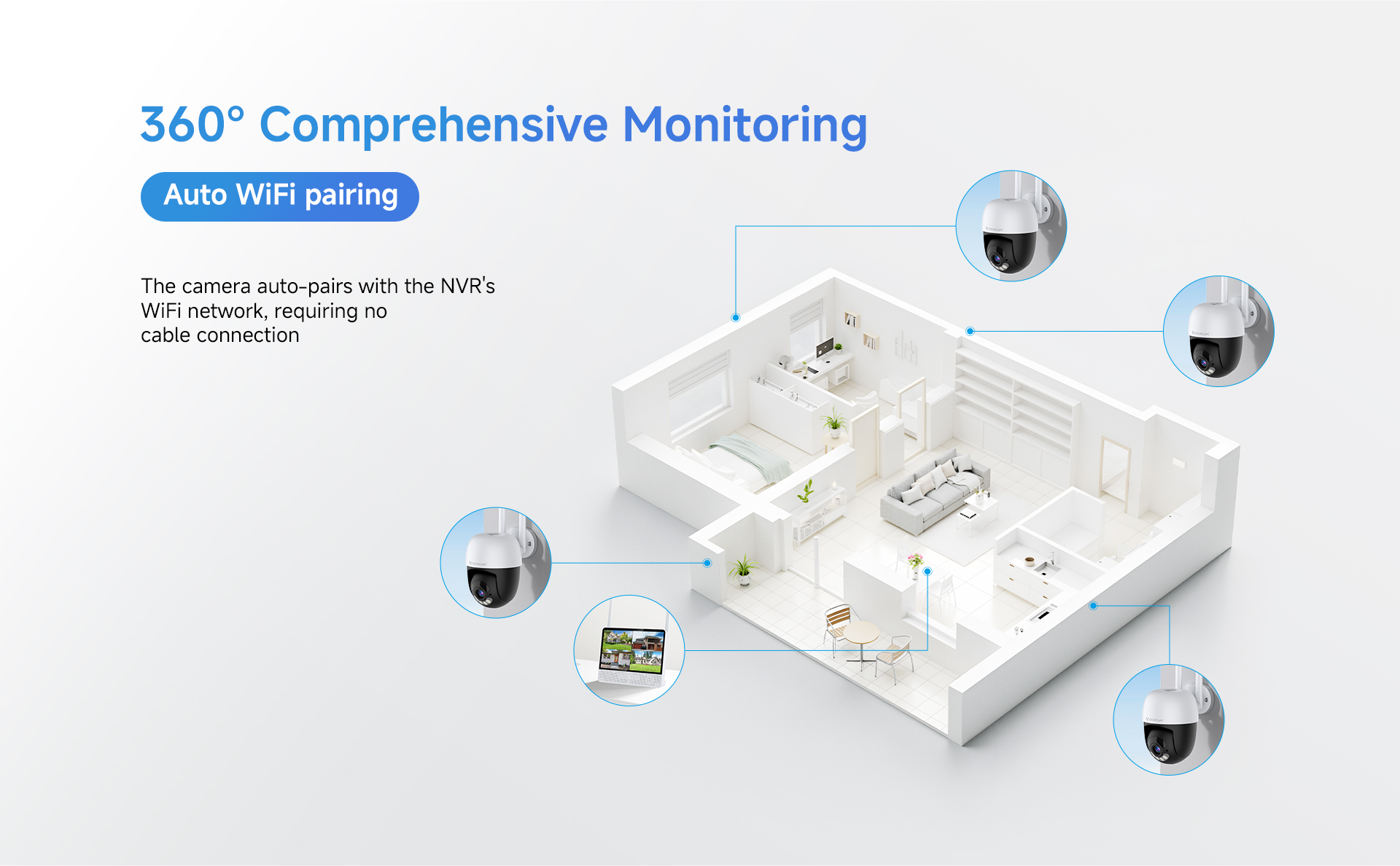

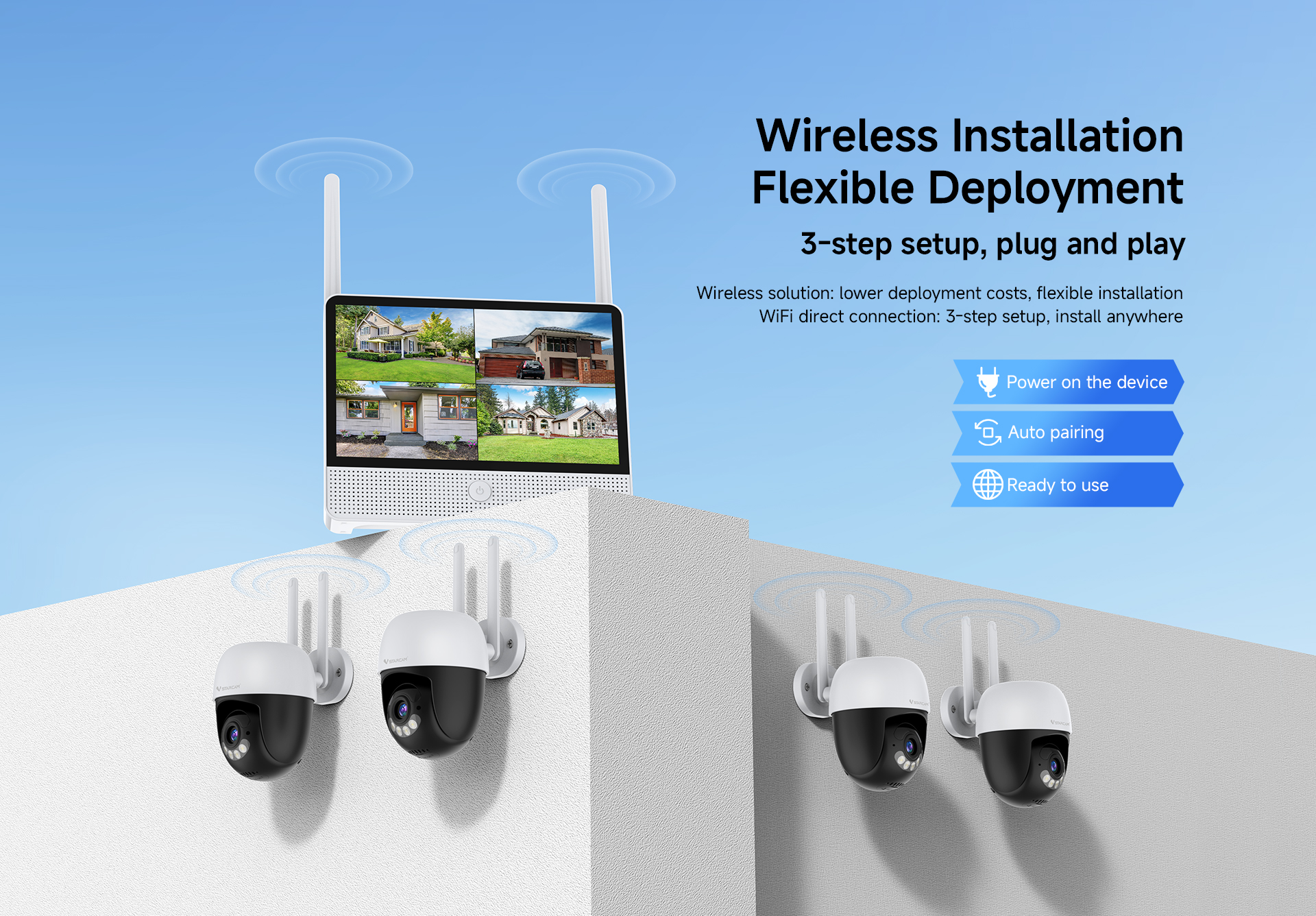

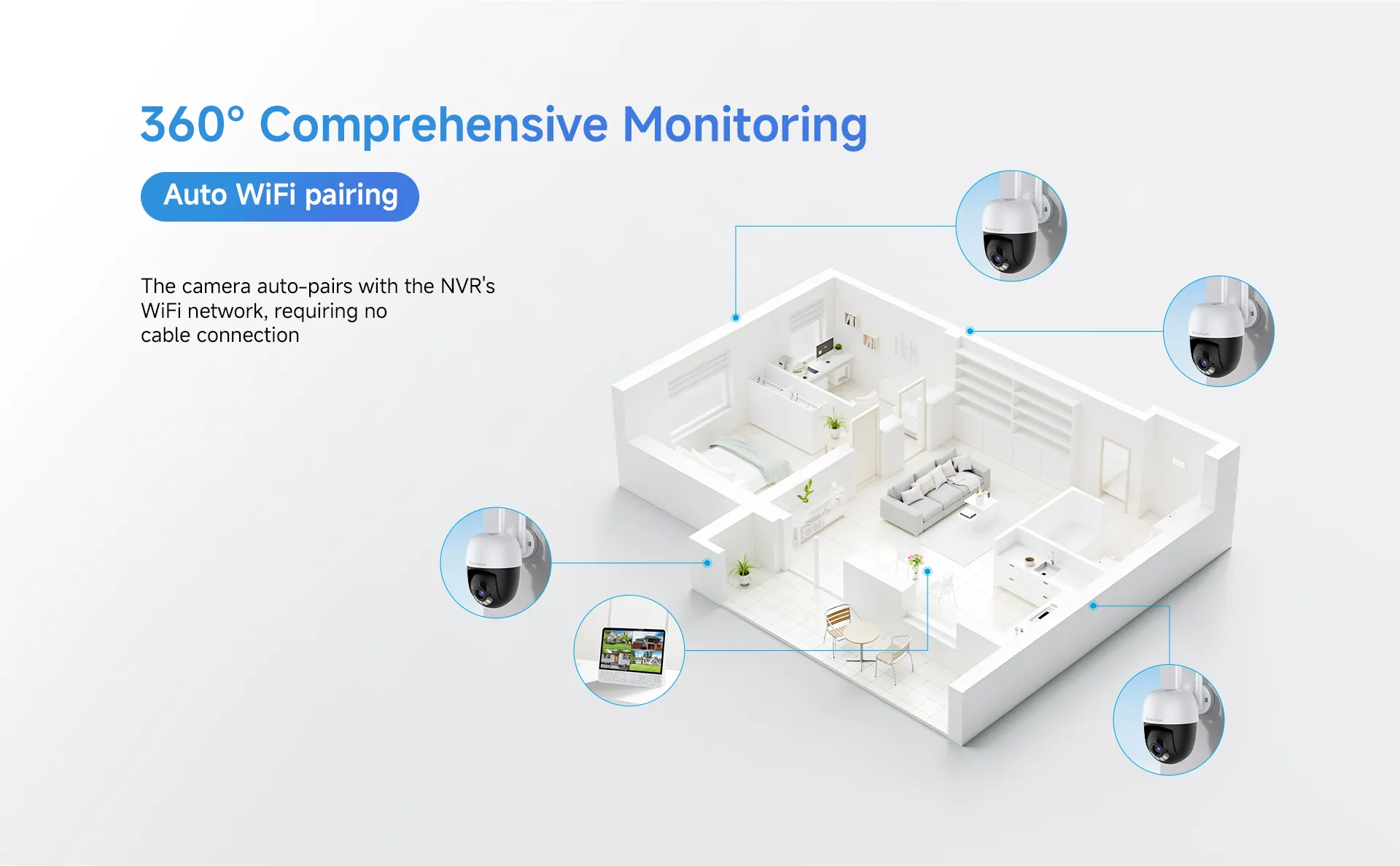

| ＊True wireless design, free from cable constraints. Quick WiFi connection enables setup in just three steps via the companion app - no professional technicians required, enjoy effortless security monitoring | ||
| ＊Equipped with an intelligent motion detection algorithm. The system will instantly send a push notification to your phone and trigger automatic video recording upon detecting unusual activity in the monitored area, ensuring you stay informed and can respond immediately. | ||
| ＊Supports local storage via MicroSD card and encrypted cloud storage. Your video recordings are securely stored, preventing loss and ensuring privacy. | ||

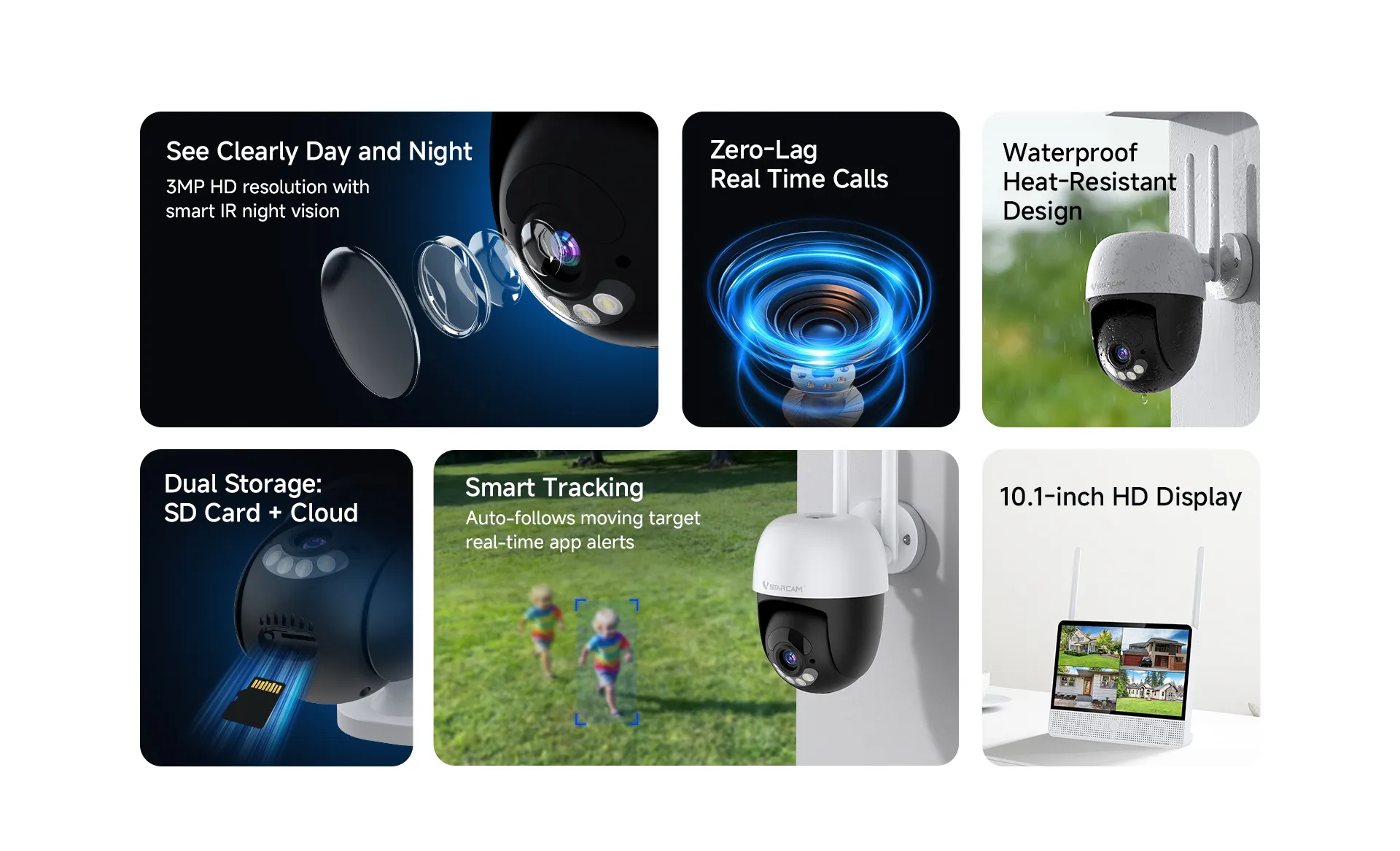

| ＊With high-definition lens, the camera delivers clear images around the clock. By day, it captures true-to-life colors; by night, it automatically switches to infrared night vision mode, ensuring detailed footage even in complete darkness. | ||
| ＊Supports 1 HDMI and 1 VGA output. | ||

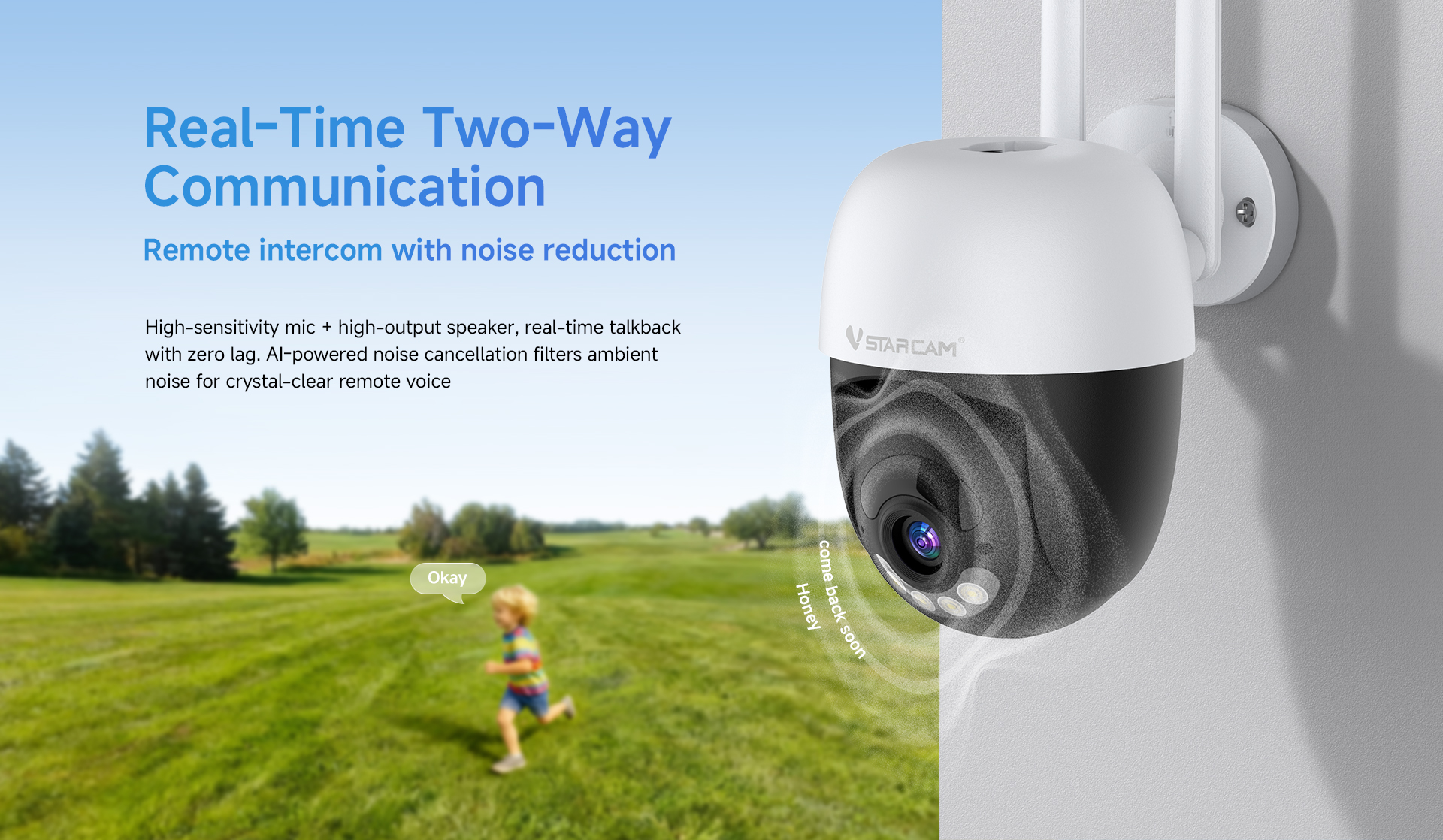

| ＊With a built-in microphone and speaker, it enables real-time two-way voice communication. You can not only hear live audio but also engage in remote conversations with family, pets, or visitors. | ||

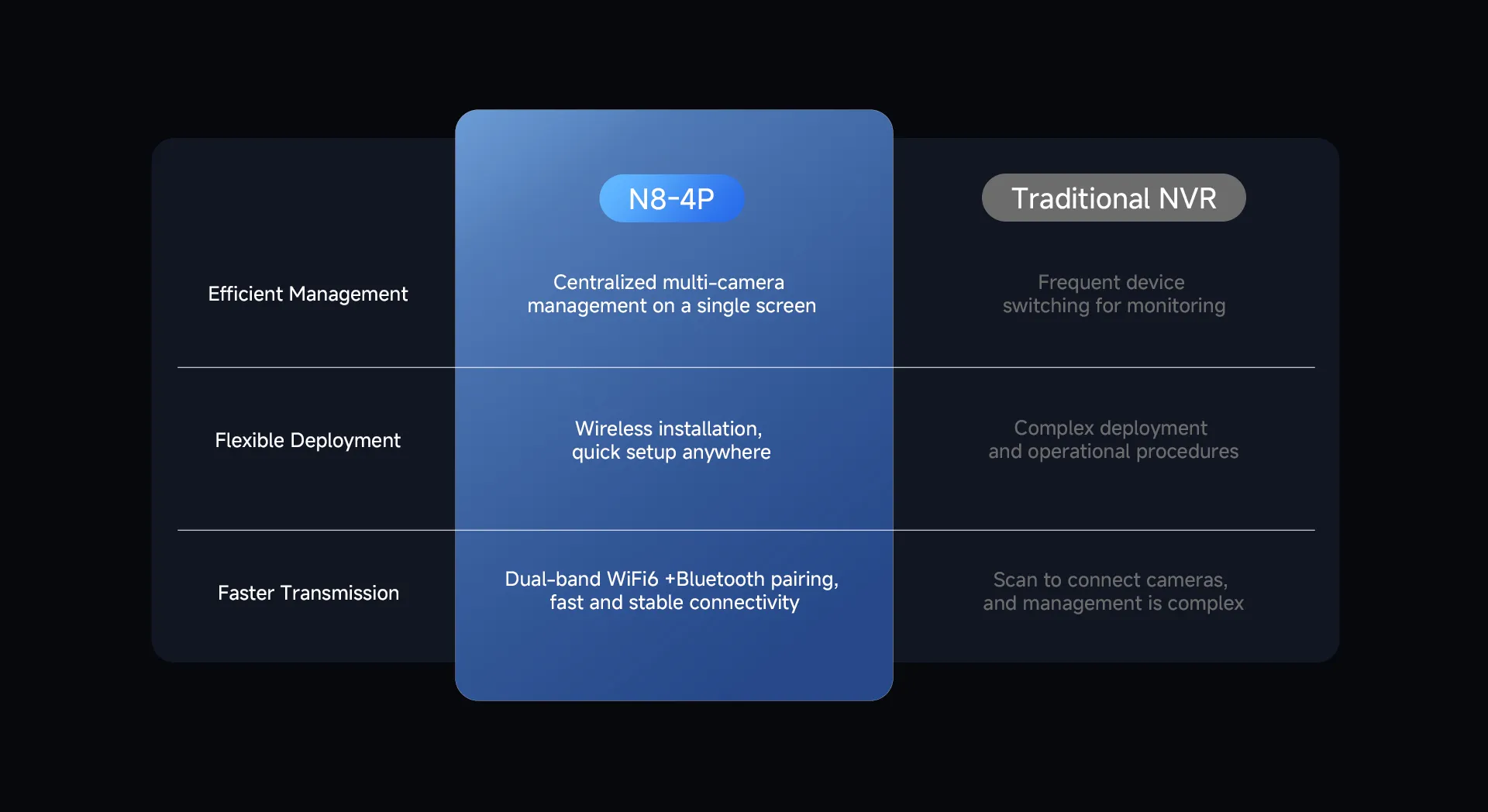

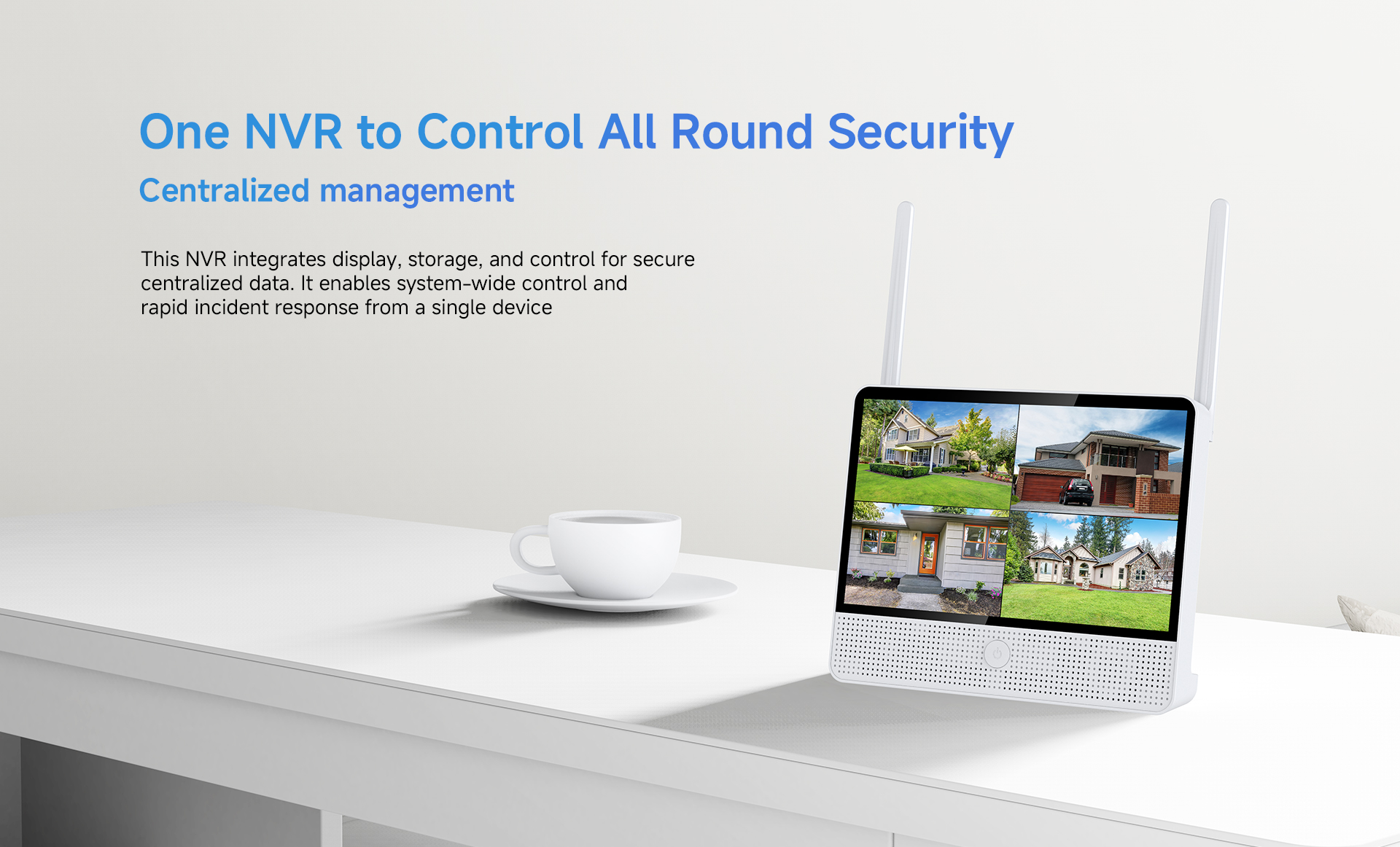

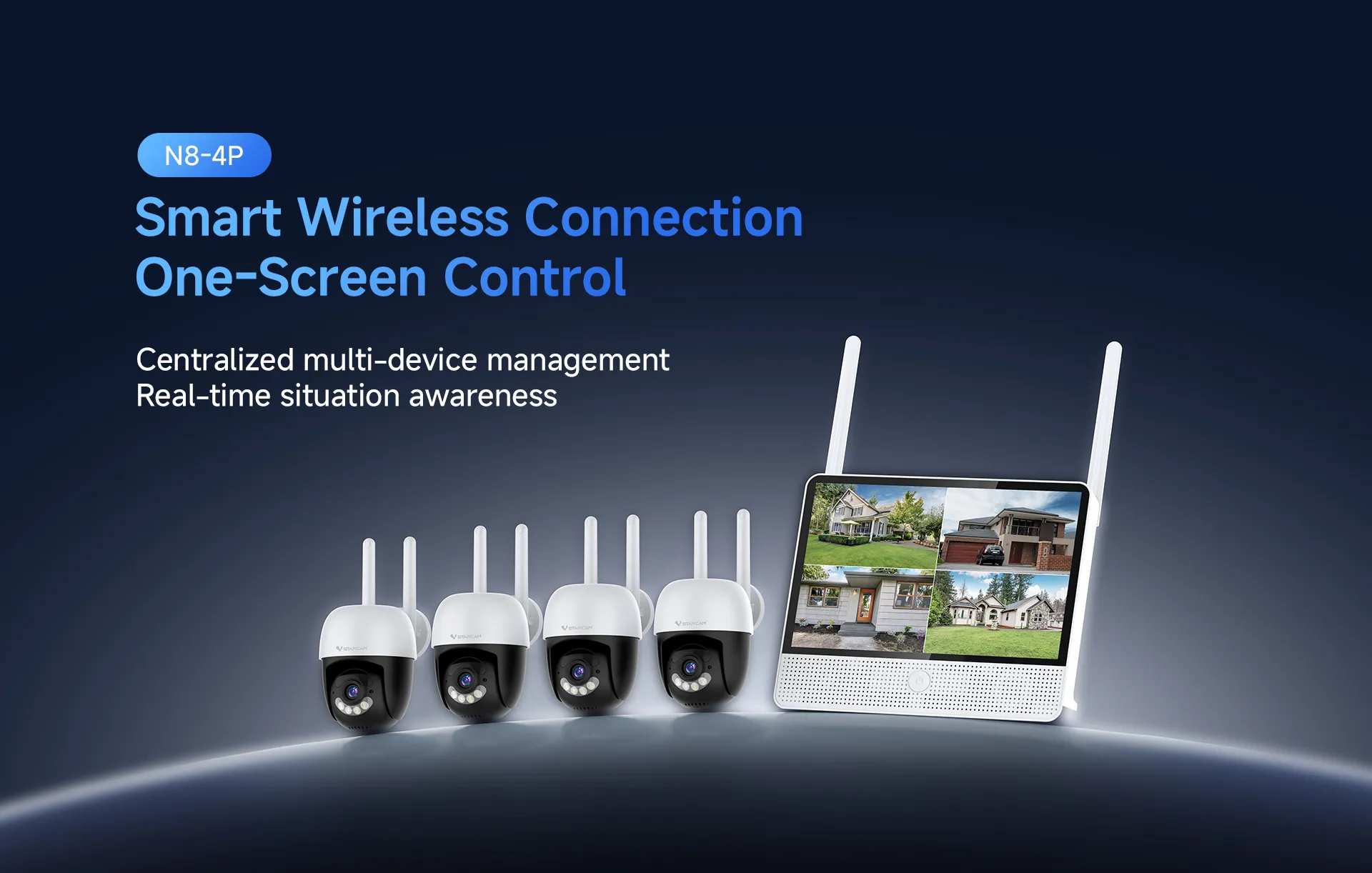

| ＊The NVR kit includes all necessary components: multiple cameras and an NVR with built-in display and storage. Easy setup—connect to WiFi for live monitoring, playback, and full control via the mobile app or NVR screen. | ||
| Camera Specification | ||
| Camera | Resolution | 3MP |
| Image Sensor | 1/3” CMOS Sensor | |
| Lens | 3.6mm@F2.0 fixed focus | |
| Shutter | Auto/Manual | |
| Supplement Light Range | 10m | |
| Day/Night Switch | Auto, manual | |
| WiFi | Supports WiFi wireless connection (IEEE 802.11b/g/n protocol), dual-band WiFi 6 (2.4 GHz & 5.8 GHz), and Bluetooth network pairing. | |
| Video | Video Compression | H.264/H.265, supports dual streams |
| Video Stream | Main stream: 1080P@15fps; Sub-stream: 360P@15fps | |
| Audio | Audio Compression | G711A |
| Built-in MIC | 1 | |
| Built-in Speaker | 1 | |
| Two-Way Audio | Support | |
| Interface | SD Card Slot | 1 built-in Micro SD card slot, supports up to 256GB Micro SD card. |
| Power Port | USB port | |
| Pan/Tilt | Rotation Rangle | Horizontal range 0°~335°; Vertical range 0°~85° |
| Others | Camera Type | Plastic dome camera, suitable for indoor and outdoor use. |
| Accessories | Bracket | |
| Power Supply | DC 5V1A | |

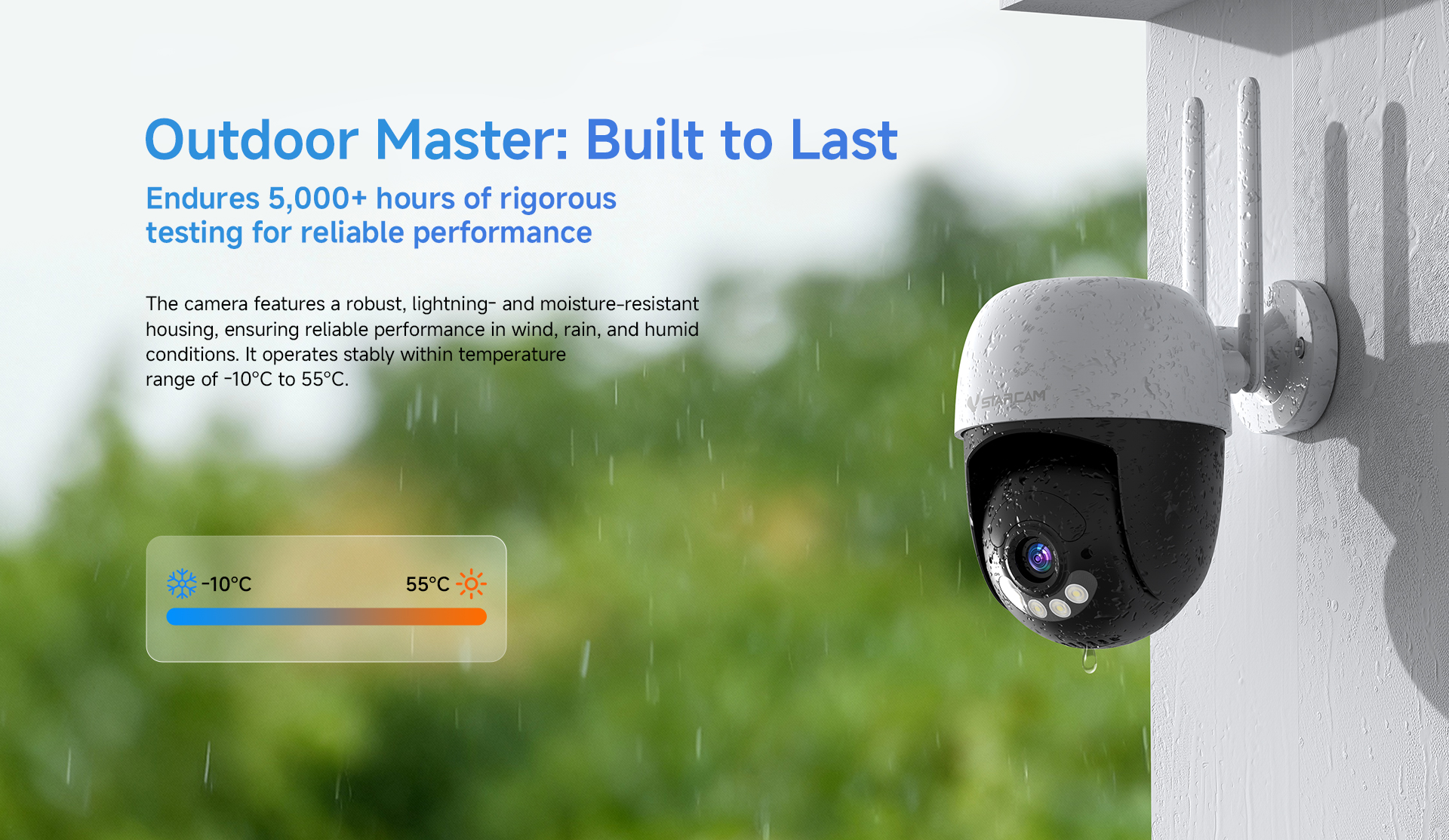

| Reliability | Lightning protection: TVS 4000V lightning, surge, and transient protection; stable and reliable after 24/7 testing at 65℃ (including whole-unit testing). | |
| NVR Specification | ||
| Decoding | Decoding Format | H.265、H.264 |
| Decoding Capability | 8MP/5MP/3MP/1080P/720P | |
| Video and Audio Input | Video Input | 10-ch, 8MP resolution, H.265 or H.264 camera |
| Video and Audio Output | HDMI Output | 1-ch，Resolution：1024x768，1280x1024,1440x900,1920x1080,4K@30HZ, supports audio output |
| VGA Output | 1-ch，Resolution：1024x768,1280x1024,1440x900,1920x1080 | |
| Audio Output | 1-ch | |
| Screen layout | 1/4/8/10 | |
| Audio and Video Encoding/Decoding Parameters | Recording Resolution | 8MP/5MP/3MP/1080P/720P |
| Synchronous Playback | 1*4K / 4*5MP | |
| Query mode | Alarm-triggered recording，motion detection recording，scheduled recording | |
| Backup type | USB flash drive backup | |

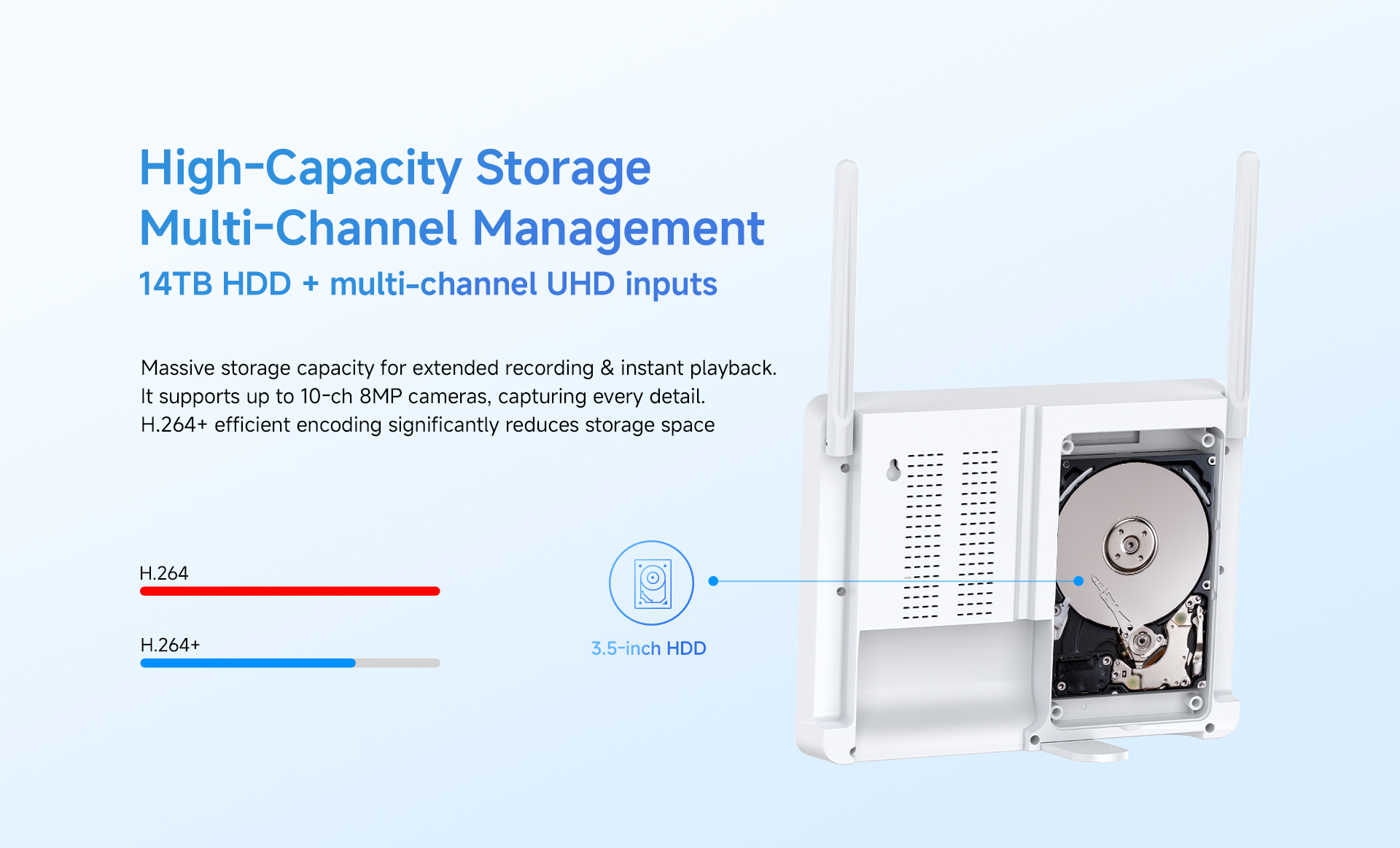

| HDD | Type | 1 SATA interface |
| Capability | Supports HDD with a maximum capacity of 14TB | |
| External Interface | HDMI port | 1*HDMI port |
| RJ45 Interface | 1*RJ45 10M/100M adaptive Ethernet port | |
| USB Interface | 1*USB2.0 | |
| Others | Power Supply | 12V/2A DC |
| Display Screen | Size：10.1 inch；resolution：1024*600 | |
| Power Consumption (Excluding HDD) | ≤18W | |
| Operating Temperature | - 10°C ~ + 55°C | |
| Operating Humidity | 10% ~ 90% (non-condensing) | |
| Weight(Excluding HDD) | ≤1.05Kg | |
| Size | 275mm (L) × 225mm (W) × 47mm (H) | |
