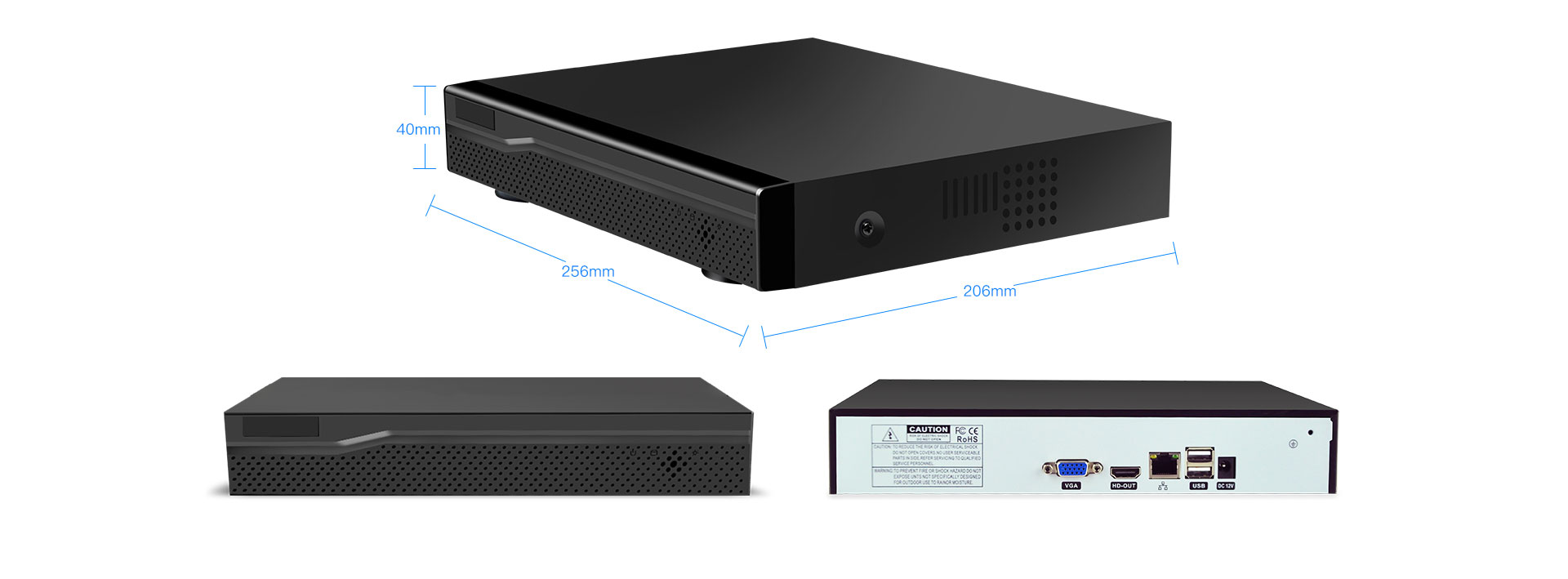

| NVR | ||
| Video Input | IP Video Input | 9 CH 720P/960P/1080P，RJ45 interface |
| Switch | NO | |
| Video Encoding | HDMI Output | 1 CH ，HDMI output ；Resolution：1920x1080P/60Hz; |
| VGA Output | 1 CH ，VGA output ；Resolution：1920x1080P/60Hz | |
| Audio Output | HDMI Audio output, optional for 3.5mm audio port output | |
| Video Encoding | Video Compression | stander H.265, H.264 |
| Recording /Playback | 9CH 1080P record, 2 CH 1080P playback | |
| Video Resolution | 720P，960P，1080P record | |
| Frame Rate | PAL: 25 F/S；NTSC :30 F/S | |
| Video Bitrate | 256 Kbps -- 4.0Mbps(@1080P) | |
| Stream Type | Audio/Video,Variable Rate(VBR) , Constant Bit Rate(CBR) | |
| Dul-Stream | supprt | |
| Audio Compression | G.711 | |
| Stream | 70Mbps | |
| HDD | Storage Type | 1 * SATA |
| Storage Capacity | 6TB In Max | |
| Backup | USB Backup,remote backup | |
| External Interface | Network Interface | RJ45 10M / 100M Internet Interface |
| USB Interface | 2 * USB2.0 Interface(Support Upgrade,Backup,Mouse) | |
| Serial Interface | 1 * RS485 Interface | |
| Others | Temperature | -10°---- 55° |
| Size | TBD | |
| Weight | TBD | |
| Operation System | Embedded Linux Operation System | |
| Soft Power-Off | Not Support | |
| Device Control | IR remote control,Mouse | |
| Power Input | DC +12 V / 2A | |
| System | Operation system | Embedded Linux OS |
| Online visitor | Support 4 visitors at the same time | |
| Image Capture | Image sensor | 1/2.9 inch 1080p Progressive Scan CMOS |
| Minimum Illumination | 0.3~0.5Lux(color mode),0Lux(B&W mode) | |
| Lens/View Angle | 4mm@F2.0/101˚(Diagonal) | |
| Nightvision | Dual Filter,IR-Cut，18pcs 850nm patch IR LED， | |
| IR irradiation distance:15m | ||
| Video | Encode format | H.264+/H.264 main profile/Motion-JPEG/JPEG |
| Streams | Main stream：1080p(1920×1080)@30fps/1296p(2304×1296)@30fps | |
| Substream：360p(640×360)@15fps | ||
| Bit Rate/Max Fps | 128～4096kbps/30pfs | |
| Image adjustment | Brightness and contrast can be adjusted | |
| Audio | Input | Built-in -38db microphone |
| Network | Ethernet | 10Base-T / 100Base-TX, RJ45 connector |
| Protocols | TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P etc | |
| Wireless LAN | IEEE802.11b/g/n, Supports AP mode | |
| Wireless LAN Frequency | 2.4~ 2.4835GHz | |
| Wireless LAN security | 64/128-bit WEP/WPA-PSK/WPA2-PSK data encryption | |
| Memory | Socket | TF Push-push socket,(support maximum 256GB); Cloud Storage；NVR；NAS |
| Alarm | Alarm Trigger | Motion detection, Humanoid detection，Absence monitoring |
| Physical Environmental |
Rated voltage | DC12V±5% |
| Power consumption | Related power:6W | |
| Operating condition | Temperature:-10～50℃,humidity:＜90% | |
| Weight | Net: 230g Gross：450 g (Note: in kind prevail) | |
| Package size | 265x130x85 mm (L×W×H) | |
