| AOV ultra-low power consumption, 24-hour video recording, and long-lasting battery life | ||
| Ultra-wide-angle, pan 270° tilt 90° | ||
| 4G network | ||
| Color night vision, black & white night vision，11pcs dual-color dual light source lights, clearer night vision | ||
| AI algorithm, smart tracking, human feature analysis and framing | ||
| Dual lens dual views; | ||
| Customizable alarm sound, multiple application scenarios | ||
| Free cloud storage | ||
| Sorts | Type | Parameters |
| System | Operating system | Linux |
| Online visitor | Supports 4 visitors at the same time | |
| APP | O-KAM Pro | |
| Collection | CPU | T23ZN |
| Internal storage | 512MB | |
| Image sensor | GC2083+GC2083+GC2083 | |
| Min. Illumination | 0.8Lux/F1.4(color mode),0.3Lux/F1.4(B&W mode） | |
| Lens | Panorama camera: focal length 4mm，1G3P Panorama camera: focal length 4mm(1G3P ) | |
| Sensor performance | Support automatic white balance, automatic gain control and automatic backlight compensation | |
| Pan&tilt | Horizontal 270°, Vertical 90° | |
| Viewing angle | D100° | |
| Video | Night vision | Color night vision, dual light sources, 11pcs dual-color dual light source lights |
| Compression standard | MJPEF/JPEG | |
| Multi stream | Mainstream:1080P/15fps, sub stream:360P/15fps | |
| IR control | When the IR night vision function is enabled, IR and ICR are automatically detected; when the IR night vision function is disabled, IR is off and ICR is fixed in the day vision mode. | |
| Bit rate | CBR/VBR two rate control modes, and the output rate range is 128~4096kbps | |
| Image adjustment | Vertical, horizontal adjustable, OSD display | |
| Audio | Input | Built-in-38dB microphone |
| Output | Built-in 8Ω1W speaker | |
| Sampling frequency/bit width | 8KHz/16bit | |
| Compression standard/Bit Rate | G711A | |
| AI | Human detection | Human detection, filtering invalid video contents |
| Area detection | Free daub, only monitoring the areas concerned by users | |
| Smart notification sound | Different devices push different sounds, so that you can know exactly which device is triggered | |
| Intelligent alarm sound | Set different equipment alarm sounds according to different scenarios | |
| More AI functions (testing) | Pets, vehicles, parcels, etc | |
| Network | Networking | Use APP to scan the QR code on device to add; Use the device to scan QR code on APP to add |
| Cat1 China | FDD:B1/B3/B5/B8 TDD:B34/B38/B39/B40/B41 | |
| Cat4 Overseas | European/Japanese/American versions | |
| Key/interface | Key 1 | On/Off key |
| Reset key | long press to restore factory settings | |
| Storage | External TF card | Support TF card (up to 256GB) |
| Cloud storage | Free loop cloud storage | |
| Alarm | Sound light alarm | Sound and light alarm, 11 infrared + 11 white lights, full color night vision |
| Alarm detection | Support human detection, PIR detection range: 10 meters | |
| Physical Indicators | Rated voltage | DC5V±5% |
| Power supply | Built in 8000mAh battery | |
| Consumption | Sleep standby 300uA, working: 400MA-1.8A max | |
| Operating condition | Working temperature: -10～55℃, working humidity <90% | |
| Weight | Net weight: 680g | |
| Size | Camera：183*164*122mm | |

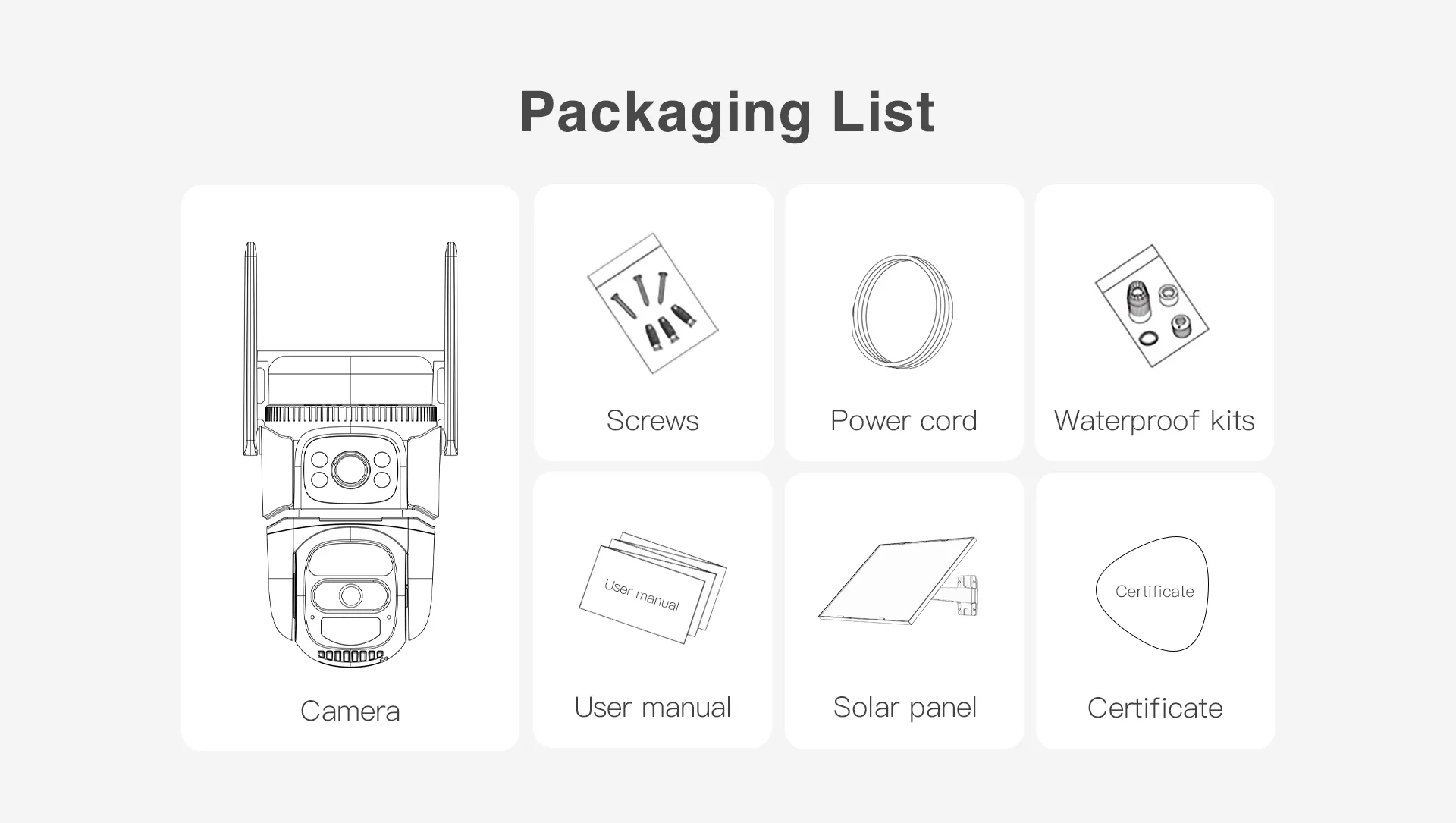

| Packing list | Camera*1, manual*1, solar panel*1, solar panel bracket*1 | |
