| ✮F2.0 large aperture, more light inputs, clearer night vision | ||
| ✮Dual light source, full color day and night | ||
| ✮ISP image processing technology, preserving true colors | ||

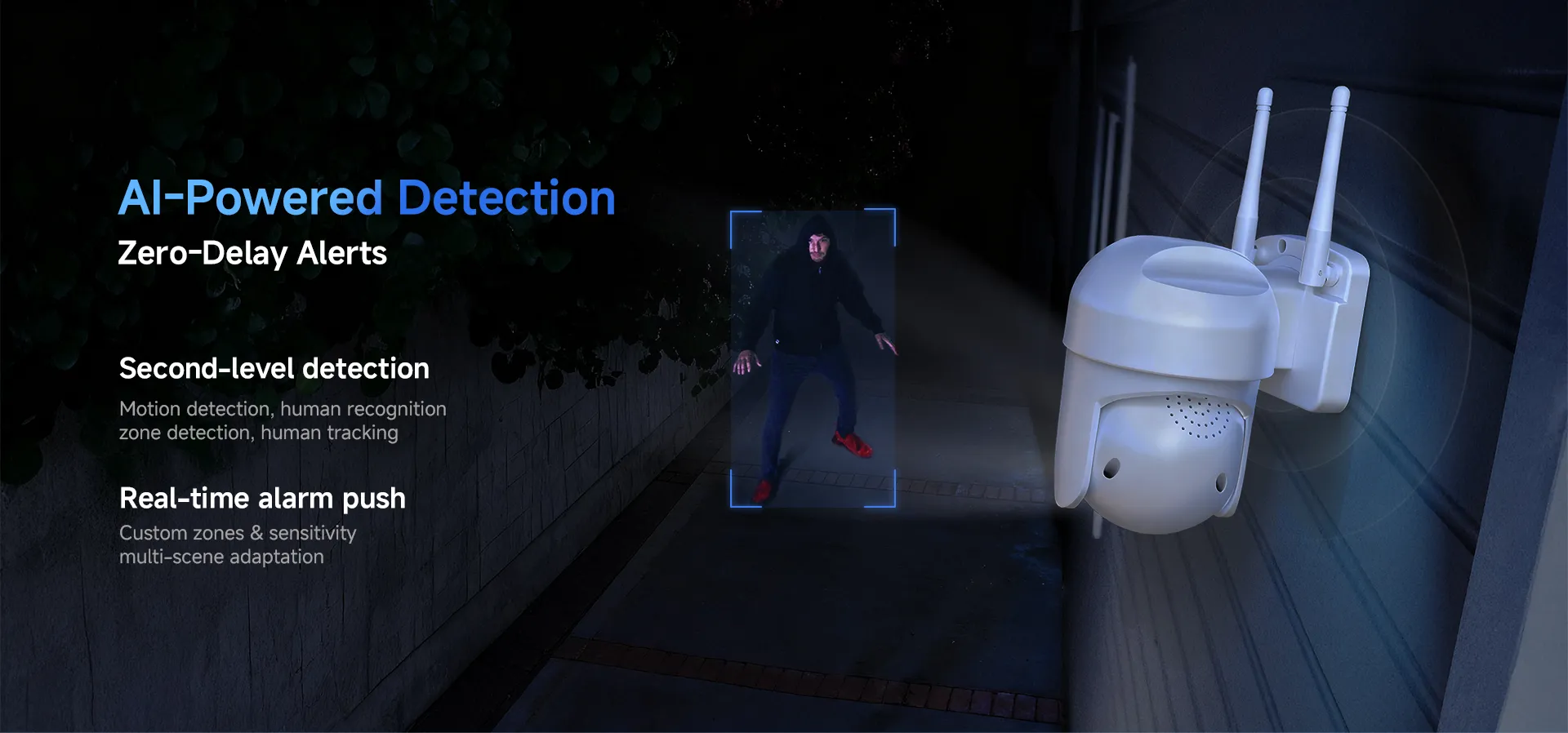

| ✮Human detection, real time alerts | ||
| Sorts | Type | Parameters |
| System | Operating system | Linux |
| Online visitor | Supports 4 visitors at the same time | |
| APP | VStarcam Ultra | |
| Collection | Processor | Tsingmicro TX5110CV206 |
| Memory | 512Mb | |
| Lens | 3.6mm | |
| Image sensor | 1/3.3" GC20C3 1080p progressive scan CMOS image sensor | |
| Min. Illumination | 0.5Lux (color mode), 0.1Lux (b&w mode) | |
| Sensor performance | Support automatic white balance, automatic gain control and automatic backlight compensation | |

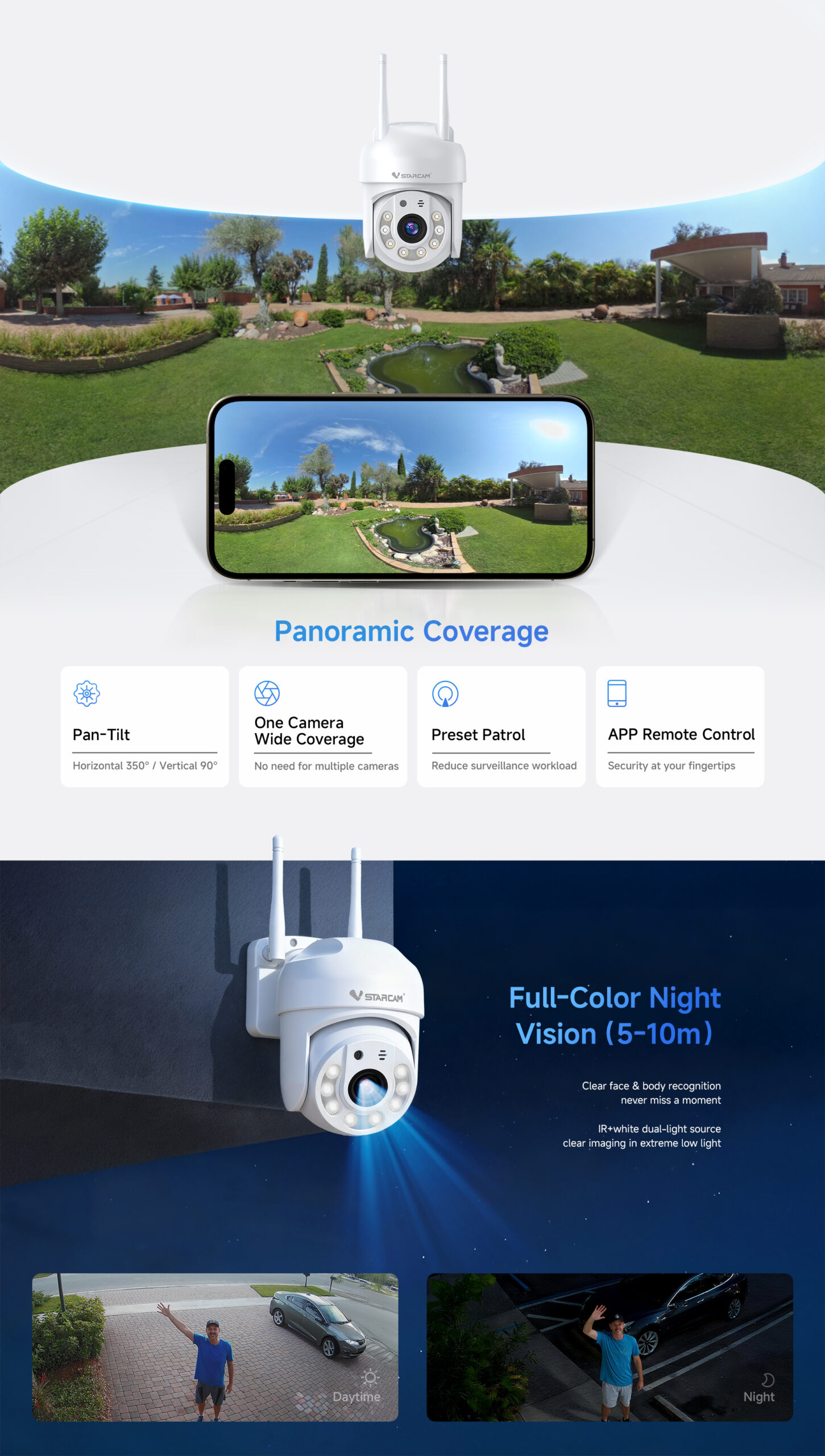

| Night vision | Color night vision, Infrared night vision | |
| Field of View | 79° | |
| Video | Resolution | 1080P 1920x1080/15FPS/2MP; 1296P 2304x1296/15FPS/3MP(Interpolation) |
| Night vision | 5-10m | |
| Compression standard | H.264 main profile/Motion-JPEG/JPEG | |
| IR control | IR-CUT, soft photosensitive control | |
| Bit rate | 128～4096kbps | |
| Image adjustment | Brightness, contrast, OSD display | |

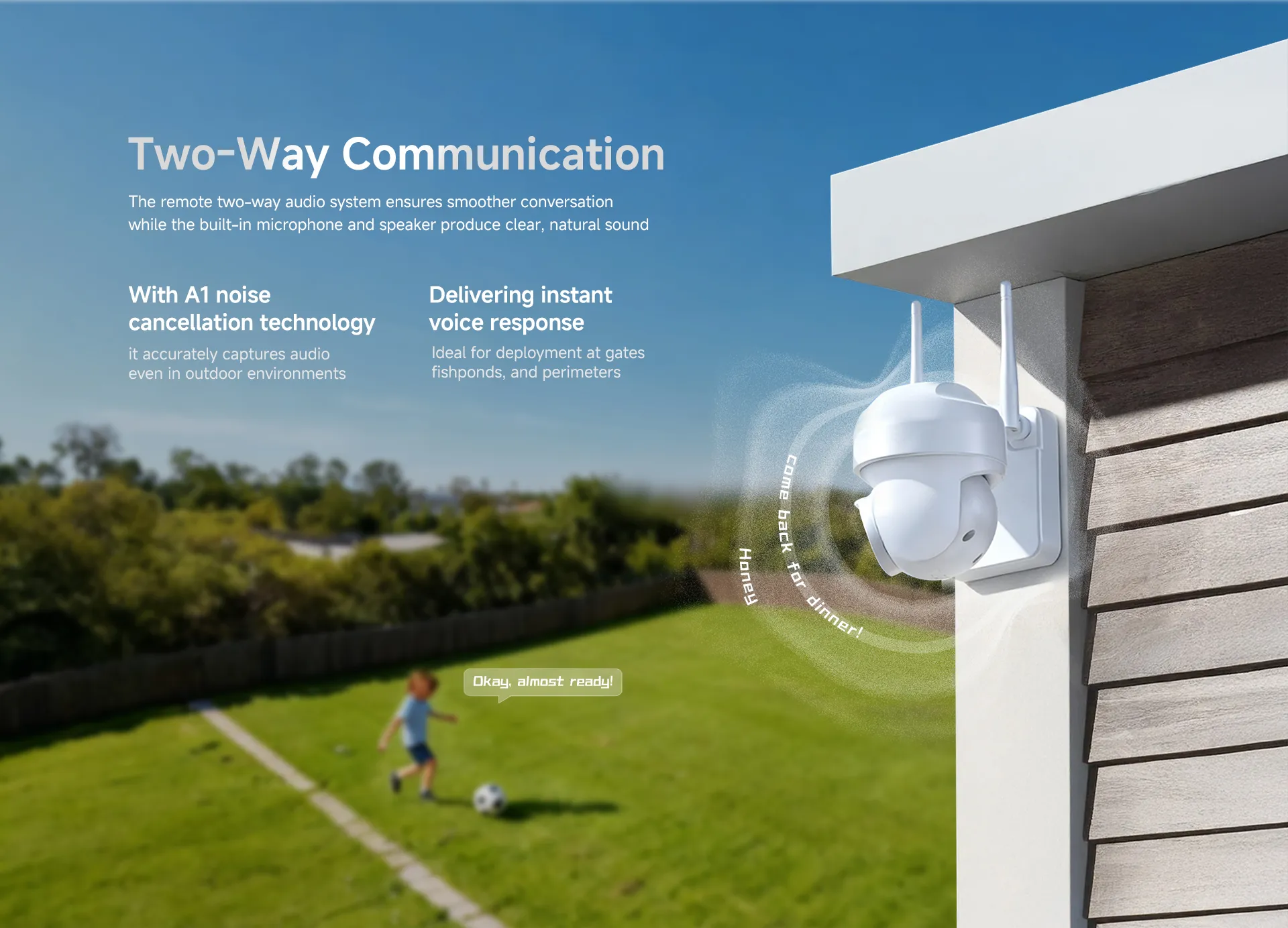

| Audio | Input | Built-in -38dB microphone |
| Output | Built-in 8Ω1W speaker | |
| Sampling frequency / Bit depth | 8KHz/16bit | |
| Compression standard/Bit rate | G711A | |

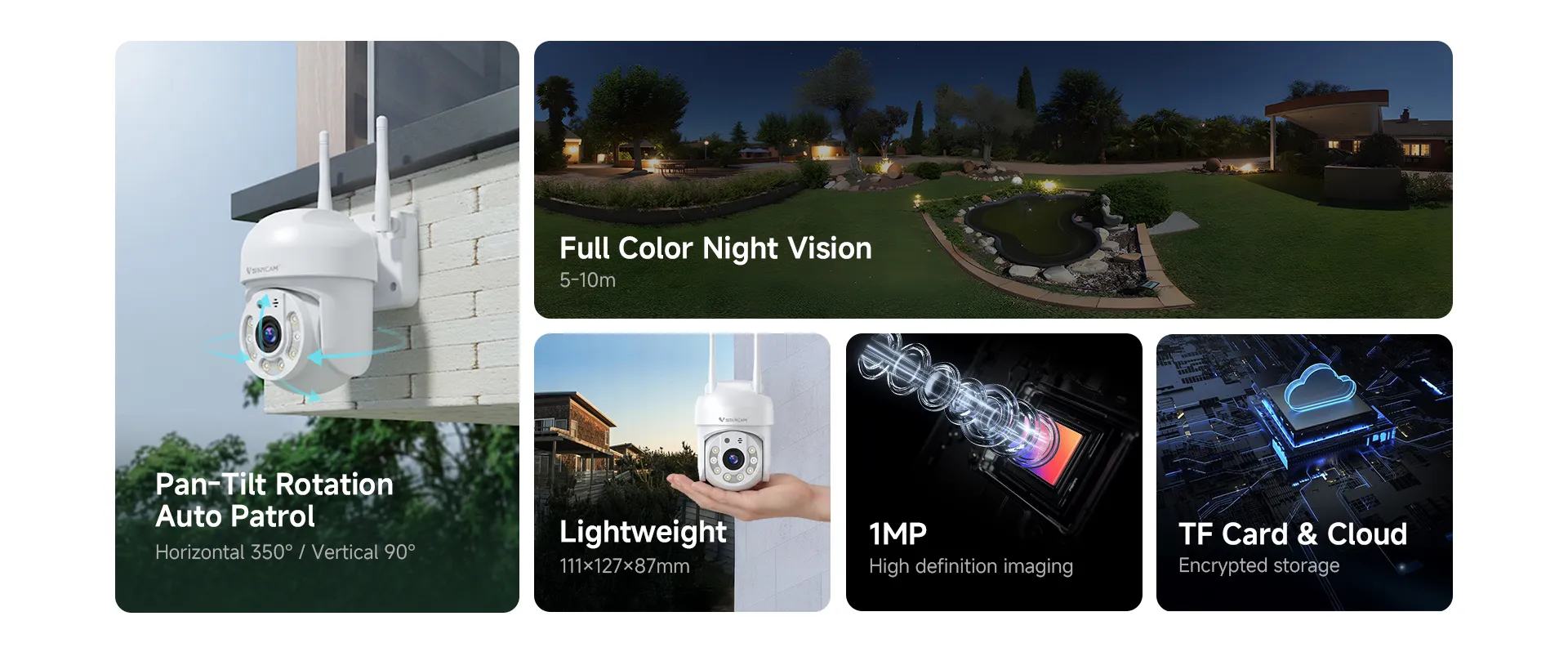

| PTZ | Movement range | Pan: 350° Tilt: 90° |
| Network | Network interface | N/A |
| Network protocol | TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P | |
| Wireless network | IEEE802.11b/g/n | |
| Wireless frequency | 2.4G | |
| Wireless security | 64/128-bit WEP/WPA-PSK/WPA2-PSK | |
| Storage | External TF card | Supports T-Flash cards (up to 256GB) |
| Cloud storage | Support cloud storage (subscription required) | |
| Alarm | Alarm detection | Motion detection, human detection, human framing,human tracking, and area detection |
| Physical Indicators | Rated voltage | DC5V±5% |
| Power consumption | Power: 1.6W (0.32A) Maximum power: 2.75W (0.55A) | |
| Operating condition | Temperature: -10～45℃; Humidity: ＜90% | |
| Weight | Net weight: 237g; Gross weight: 589g | |
| Product Dimension | 111x127x87mm | |
| Package Dimension | 205x160x140mm | |
| Carton Dimension | 580x425x345mm | |
| QTY/CTN | 16PCS | |
| Package Contents | Camera ×1, screw pack ×1, power adapter ×1, power cable ×1, user manual ×1 | |
