| ✮Dual-core light board supporting full-color day/night mode | ||

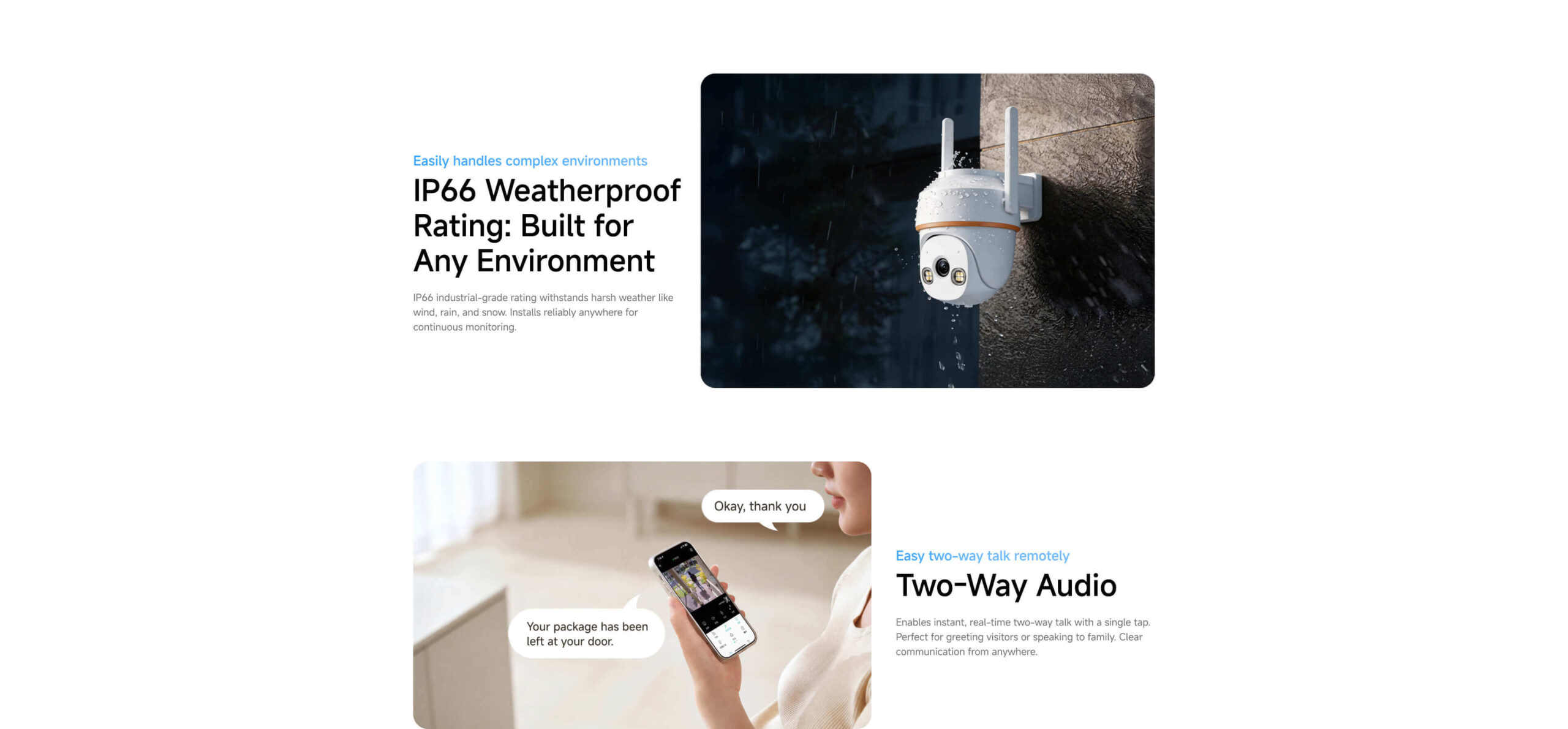

| ✮Full-duplex two-way audio intercom | ||
| ✮F2.0 large aperture for enhanced light intake and clearer night vision | ||
| ✮Dual-core light board supporting full-color day/night mode | ||
| ✮ISP image processing technology for true-to-life color reproduction | ||
| ✮Human motion detection with smart alarm push notifications | ||
| Sorts | Type | Parameters |
| System | Operating system | linux |
| Online visitor | Supports 4 visitors at the same time | |
| APP | VStarcam Ultra | |
| Collection | CPU | HI608 |
| Internal storage | 512Mb | |
| Lens | 4mm | |
| Image sensor | 1/3.3" GC20C3-1080p progressive scan CMOS sensor | |
| Minimum illumination | 0.5 Lux (color mode), 0.1 Lux (B/W mode) | |
| Sensor performance | Supports auto white balance, auto gain control, and auto backlight compensation | |
| Night vision | Black‑and‑white night vision, full‑color night vision | |
| Viewing angle | 79° | |
| Video | Resolution | 1080P: 1920×1080 / 15 FPS / 2MP 1296P: 2304×1296 / 15 FPS / 3MP (interpolated) |
| Night vision | 10m | |
| Compression standard | H.265 main profile/Motion-JPEG/JPEG | |
| IR control | IR‑CUT with software‑controlled light sensing | |
| Bit rate | 128～4096kbps | |
| Image adjustment | Brightness, contrast, and OSD display adjustment | |
| Audio | Input | Built-in-38dB microphone |
| Output | Built-in 8Ω1W speaker | |
| Sampling frequency/bit width | 8KHz/16bit | |
| Compression standard/Bit Rate | G711A | |

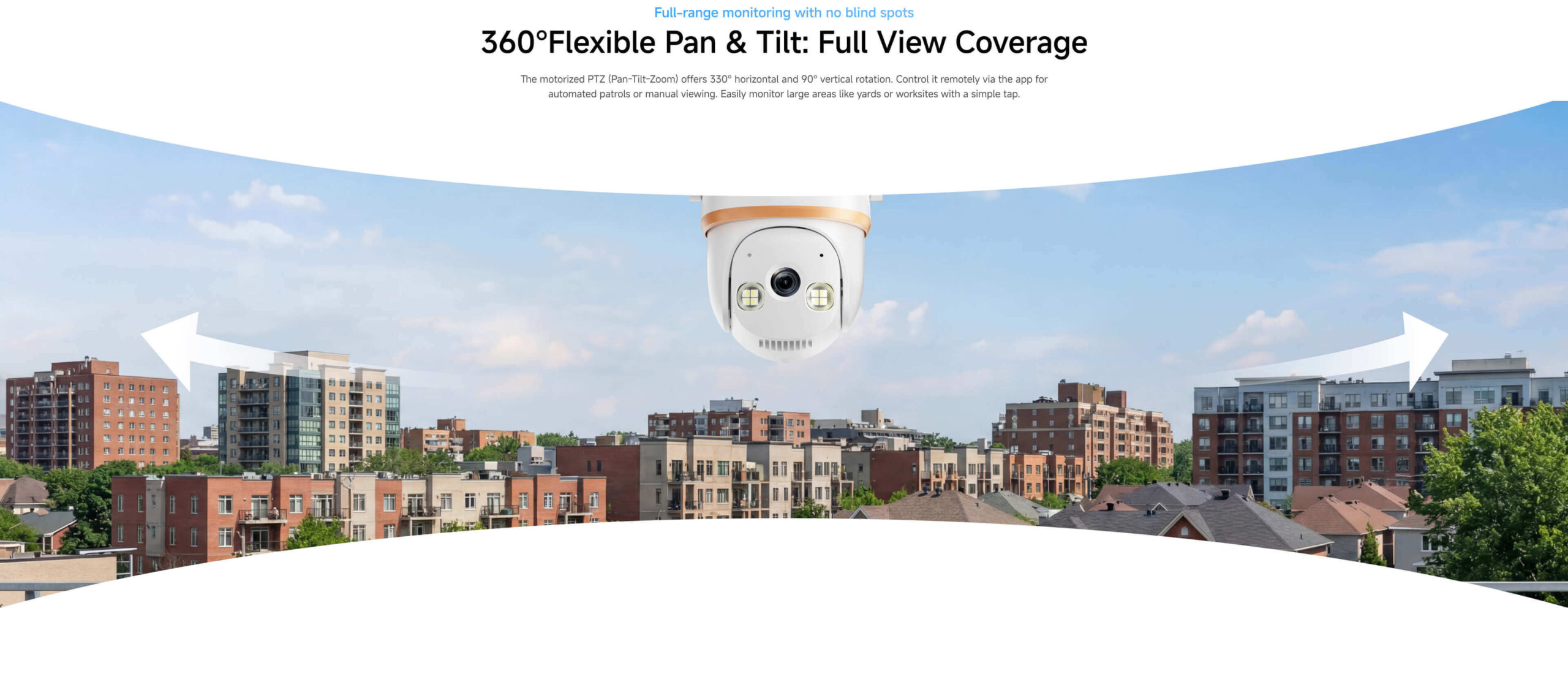

| Pan/Tilt | Rotation angle | Horizontal: 330°; Vertical: 90° |
| Network | Network interface | 10Mbps/100Mbps |
| Network protocol | TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P | |
| Wireless network | IEEE802.11b/g/n | |
| Wireless frequency | 2.4G | |
| Wireless security encryption | 64/128-bit WEP/WPA-PSK/WPA2-PSK | |
| Storage | External TF card | Support TF card (up to 256GB) |
| Cloud storage | Support | |
| Alarm | Alarm Detection | Supports motion detection, human detection, human framing, area detection, human tracking, and siren detection alarm. |
| Physical Indicators | Rated voltage | DC12V±5% |
| Power consumption | Power: 6.24 W (0.52 A)，Max. power: 9.96 W (0.83 A) | |
| Operating condition | Operating temperature: –10 ℃ to 55 ℃，Operating humidity: <90% | |
| Weight | Net weight: 456 g, Gross weight: 756 g | |
| Camera size | 164x144x115mm | |
| Color box size | 200x165x136mm | |
| Outer carton size | 610x510x295mm | |
| QTY/CTN | 18pcs/CTN | |
| Packing List | Camera × 1, Waterproof Set × 1, Bracket / Stand × 1, Manual × 1, Power Supply × 1 | |
