| ✮4-channel real-time recording for multi-directional monitoring; PTZ dual lens with 10x digital zoom | ||
| ✮Ultra-wide-angle surveillance, 6-motor PTZ control with flexible rotation for 360° unobstructed viewing | ||
| ✮Starlight full-color night vision & infrared night vision, dual-color fill light, clearer full-color image and brighter night vision | ||
| ✮Adopts ISP image processing technology to restore true-to-life colors | ||
| ✮Customizable alarm tone with synchronized sound and light, suitable for multiple scenarios | ||
| ✮AI human auto-tracking with automatic recording | ||
| Sorts | Type | Parameters |
| System | Operating system | Linux |
| Online visitor | Supports 4 visitors at the same time | |
| APP | VStarcam Ultra | |
| Collection | Processor | Hi608 |
| Memory | 1Gbit | |
| Lens | PTZ channel(Center)：3.6mm+12mm；Bullet channel：3.6mm； PTZ channel( Left and right side)：3.6mm（1G3P） | |
| Image sensor | 1/3.3" GC203C 1080p Progressive Scan CMOS Sensor | |
| Min. Illumination | 0.5Lux (Color), 0.1Lux (B/W) | |
| Sensor performance | Support auto white balance, auto gain control and auto backlight compensation. | |
| Night vision | Color night vision, Infrared night vision, 16PCS dual-color LEDS | |
| Field of View | 70° | |
| Video | Resolution | Main stream：1080P/1920x1080/10FPS，Sub stream：640P/640x360/10FPS |
| Night vision | 20m | |
| Compression standard | H.265 /MJPEF/JPEG | |
| IR control | IR-CUT, soft photosensitive control | |
| Bit rate | 128～4096kbps | |
| Image adjustment | Horizontal & vertical adjustable, OSD display. | |
| Audio | Input | Built-in -32dB Microphone |
| Output | Built-in 8Ω 2W Speaker | |
| Sampling frequency/Bit depth | 8KHz/16bit | |
| Compression standard/Bit rate | G711A | |

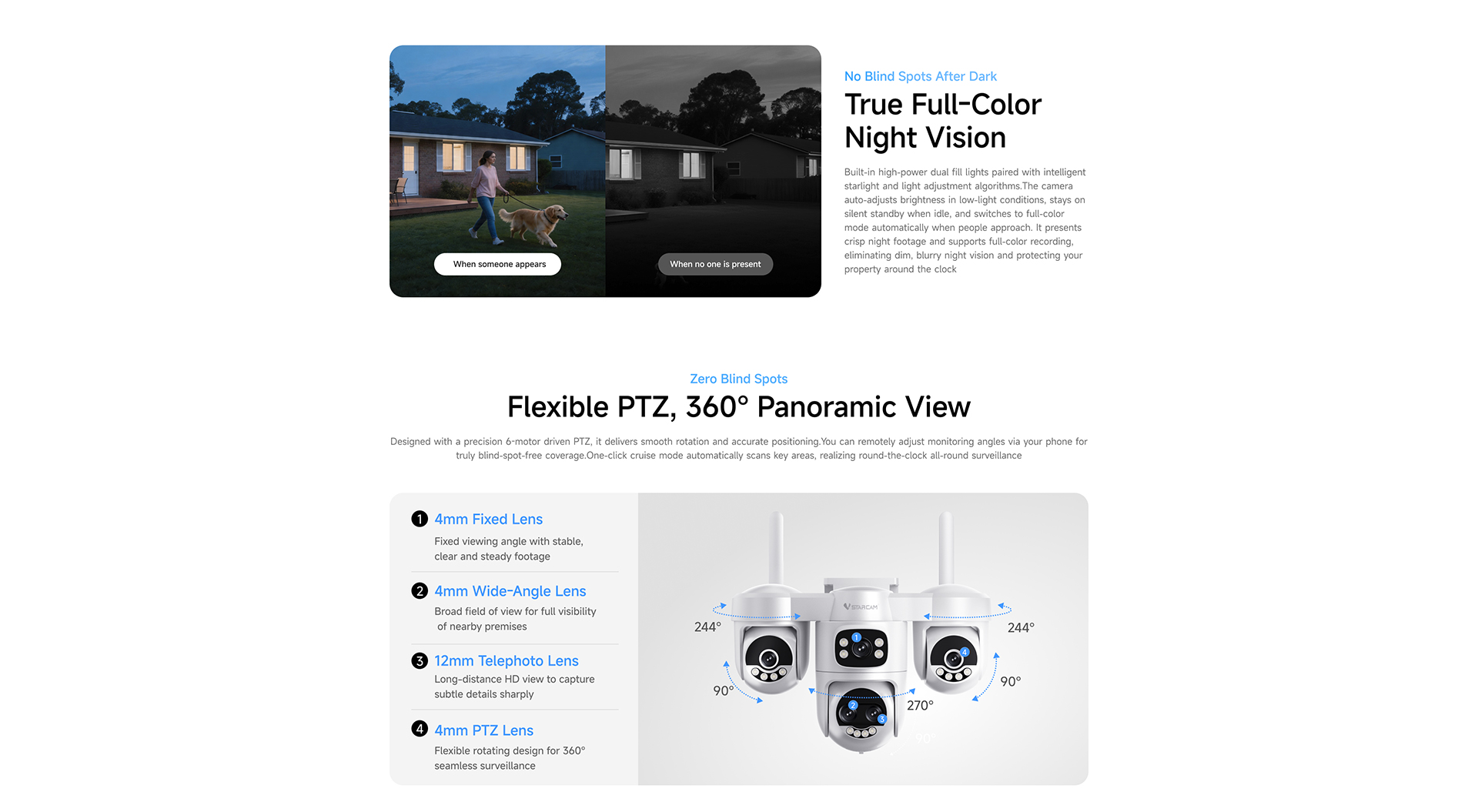

| PTZ | Movement range | PTZ channel：Pan 270° Tilt 90°；Bullet channel：Pan 244° Tilt 90° |
| Network | Network interface | 10Mbps/100Mbps |
| Network protocol | TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P | |
| Wireless network | IEEE802.11b/g/n | |
| Wireless frequency | 2.4G-5.8GHz | |
| Wireless security | 64/128-bit WEP/WPA-PSK/WPA2-PSK | |
| Storage | External TF card | Support TF card (up to 256GB) |
| Cloud storage | Cloud storage supported (subscription required) | |
| Alarm | Alarm detection | Motion detection, human detection, human framing, area detection,siren alarm |
| Physical Indicators | Rated voltage | DC12V±5% |
| Power consumption | Power: 8.16W (0.68A); Max Power: 14.04W (1.17A) | |
| Operating condition | Temperature: -20～55℃, Humidity: ＜90% | |
| Weight | Net Weight: 950g, Gross Weight: 1880g | |
| Product Dimensions | 192x286x173mm | |
| Package Dimensions | 310x190x220mm | |
| Carton Dimensions | 635x585x460mm | |
| Quantity per Carton | 12PCS/CTN | |
| Package Contents | Camera ×1, Screw Kit ×1, Mounting Bracket ×1, Power Adapter ×1, User Manual ×1 | |
