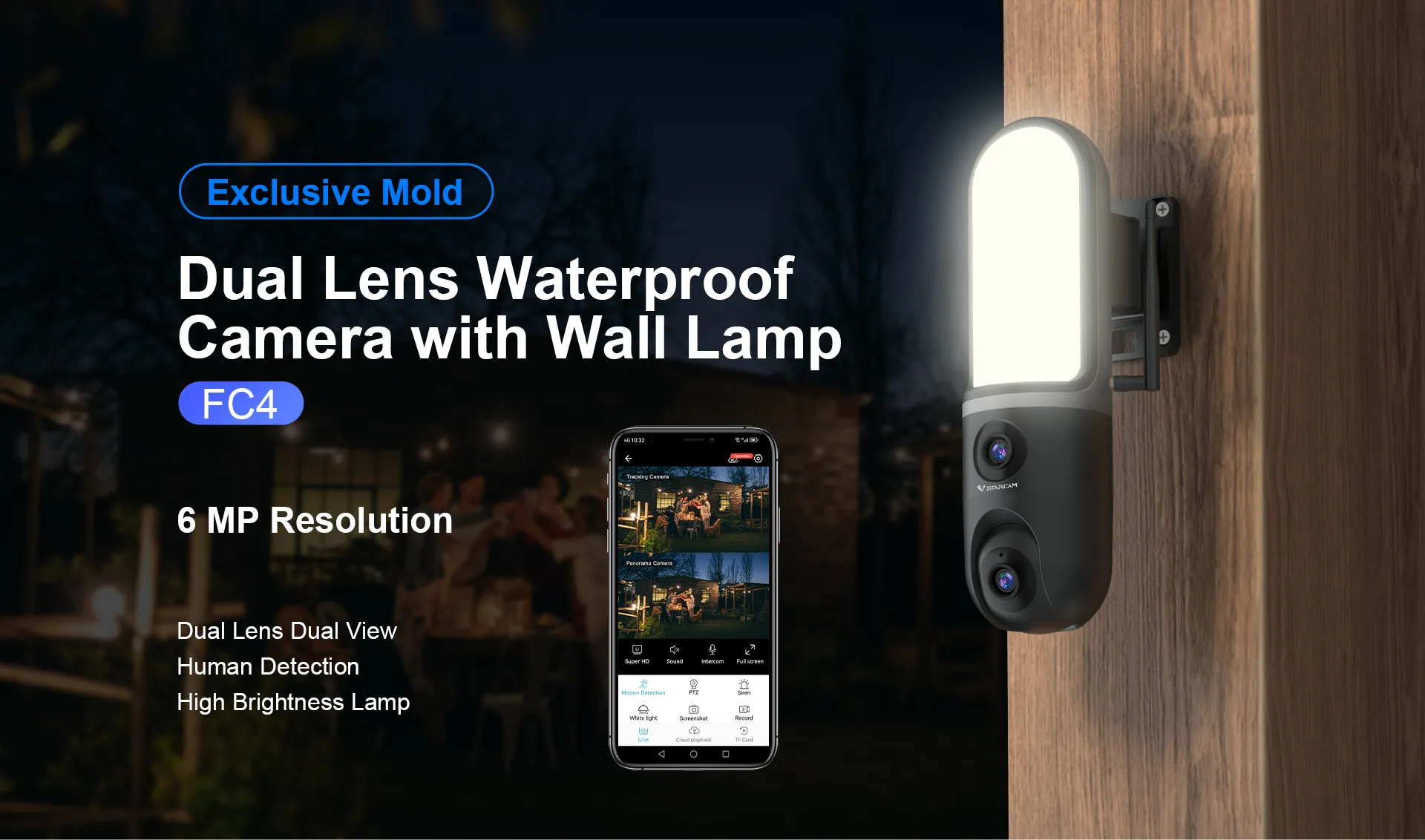

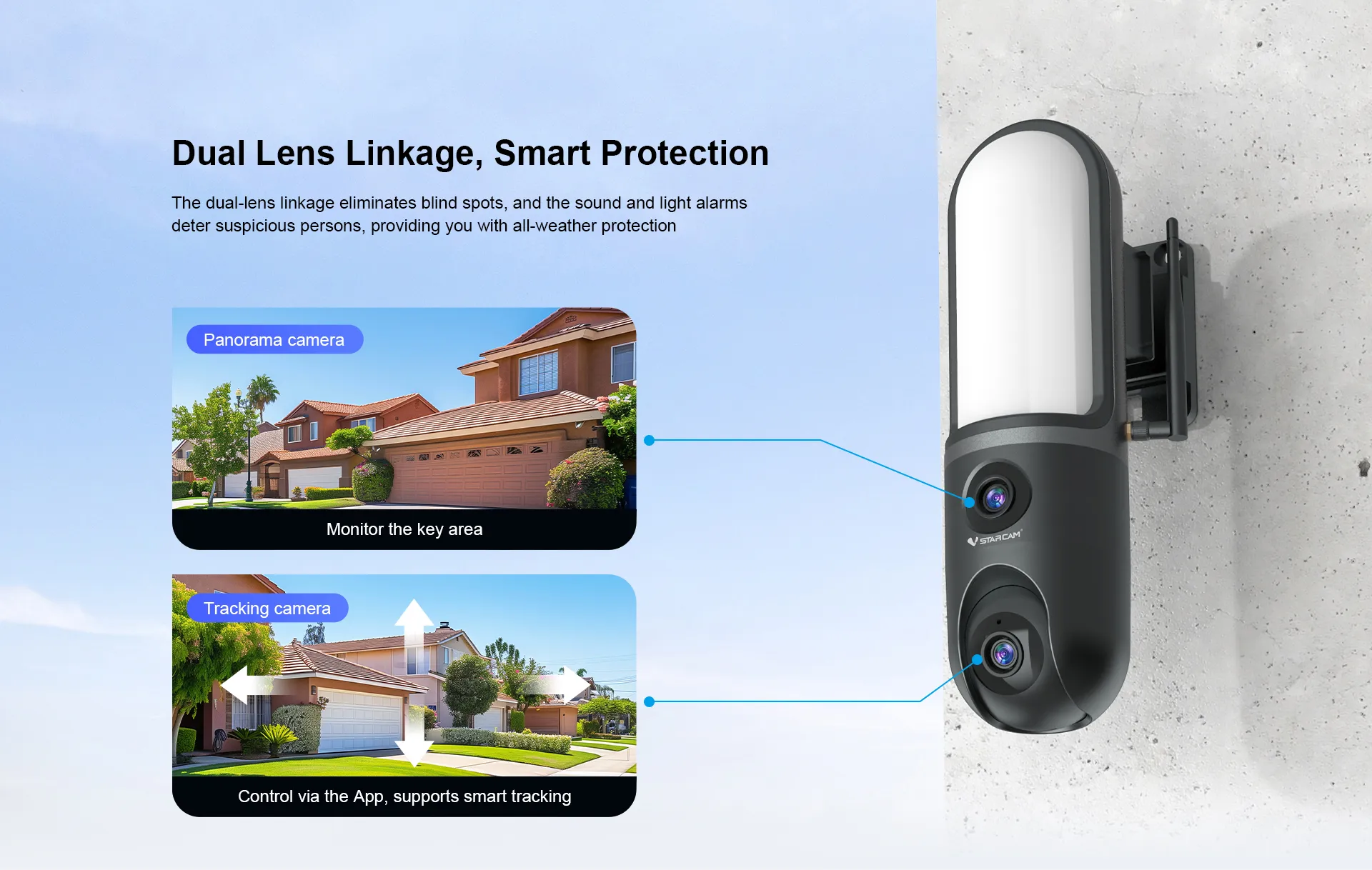

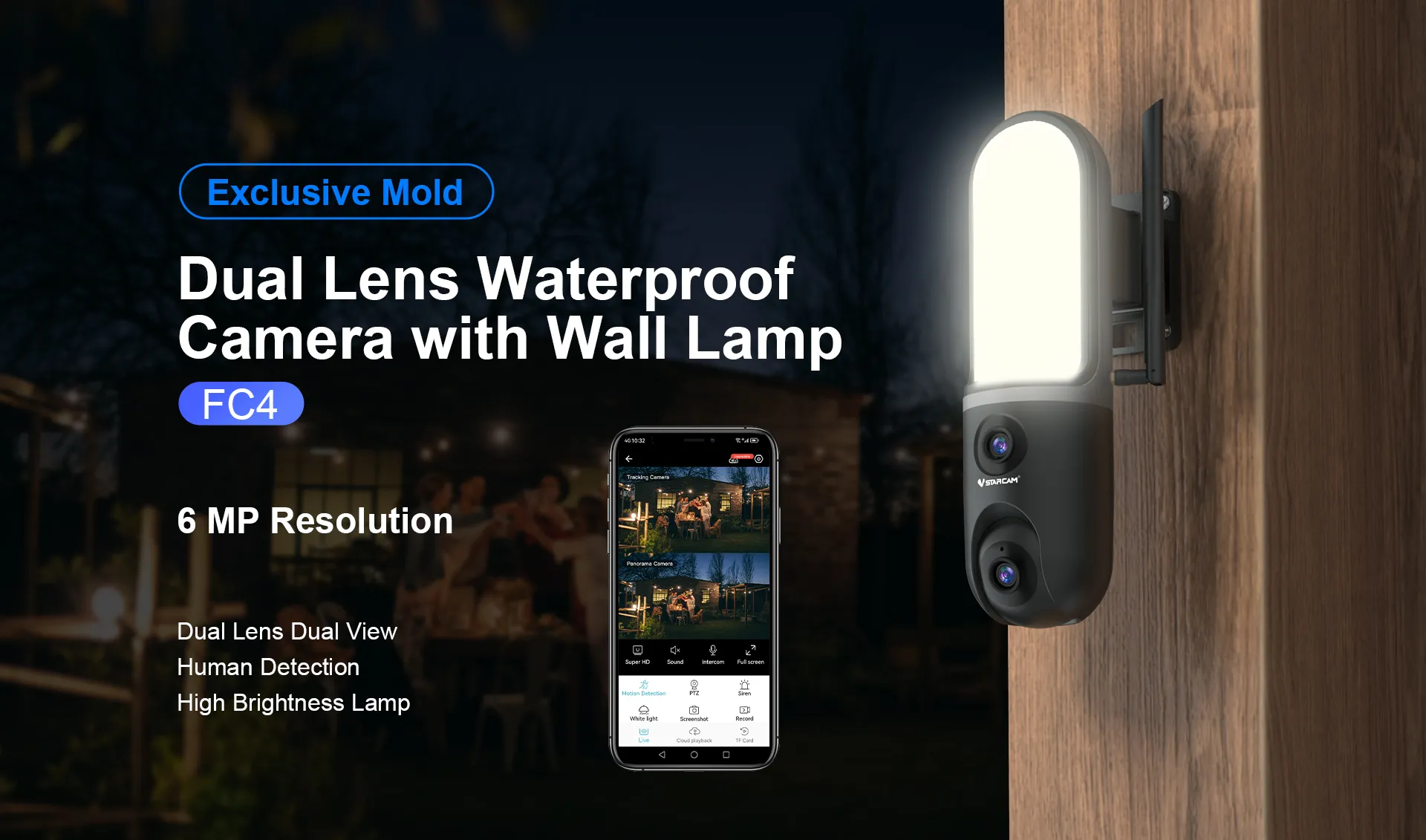

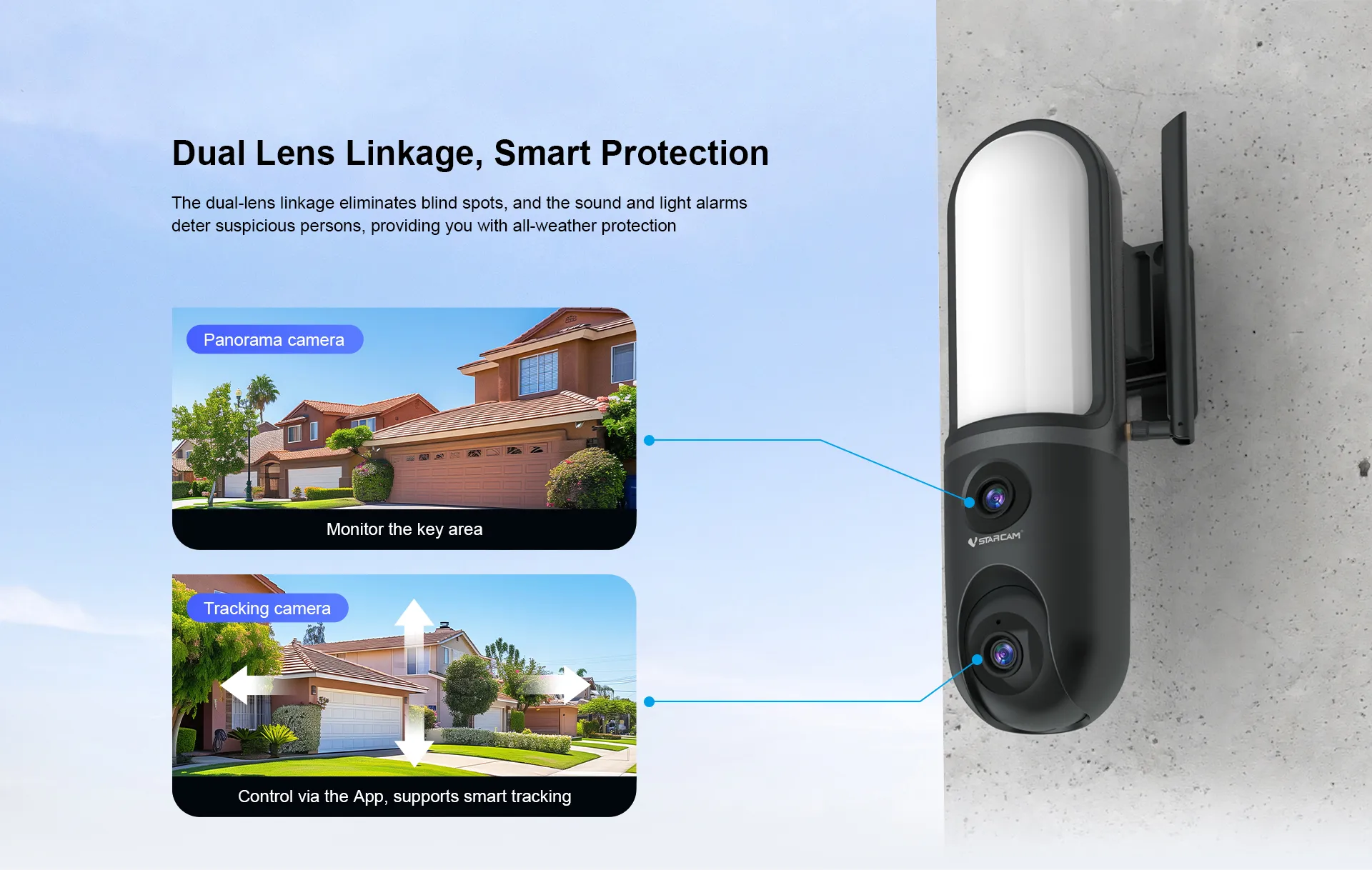

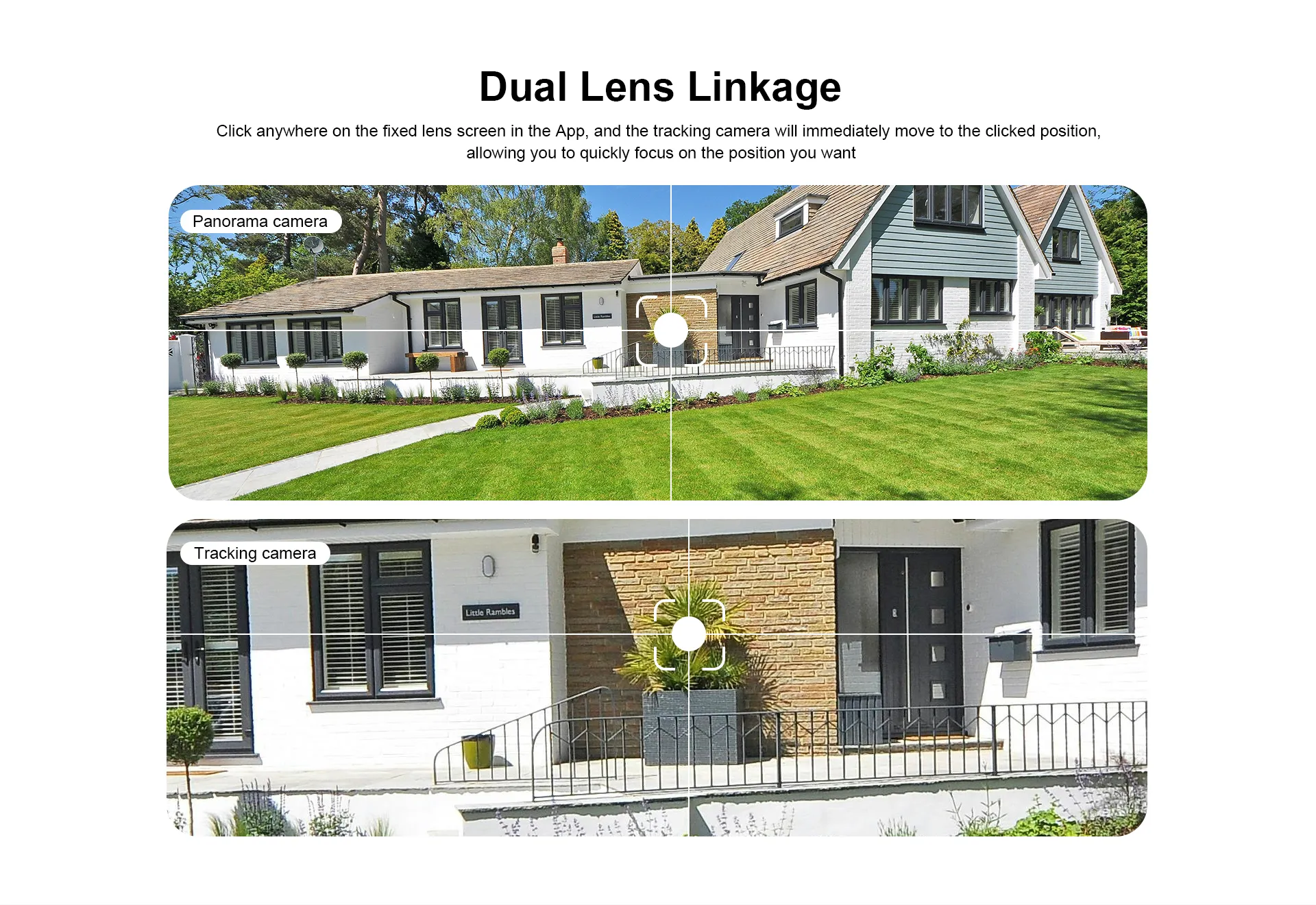

| ✮Dual lens ensuring coverage with no blind spots, two cameras in one | ||

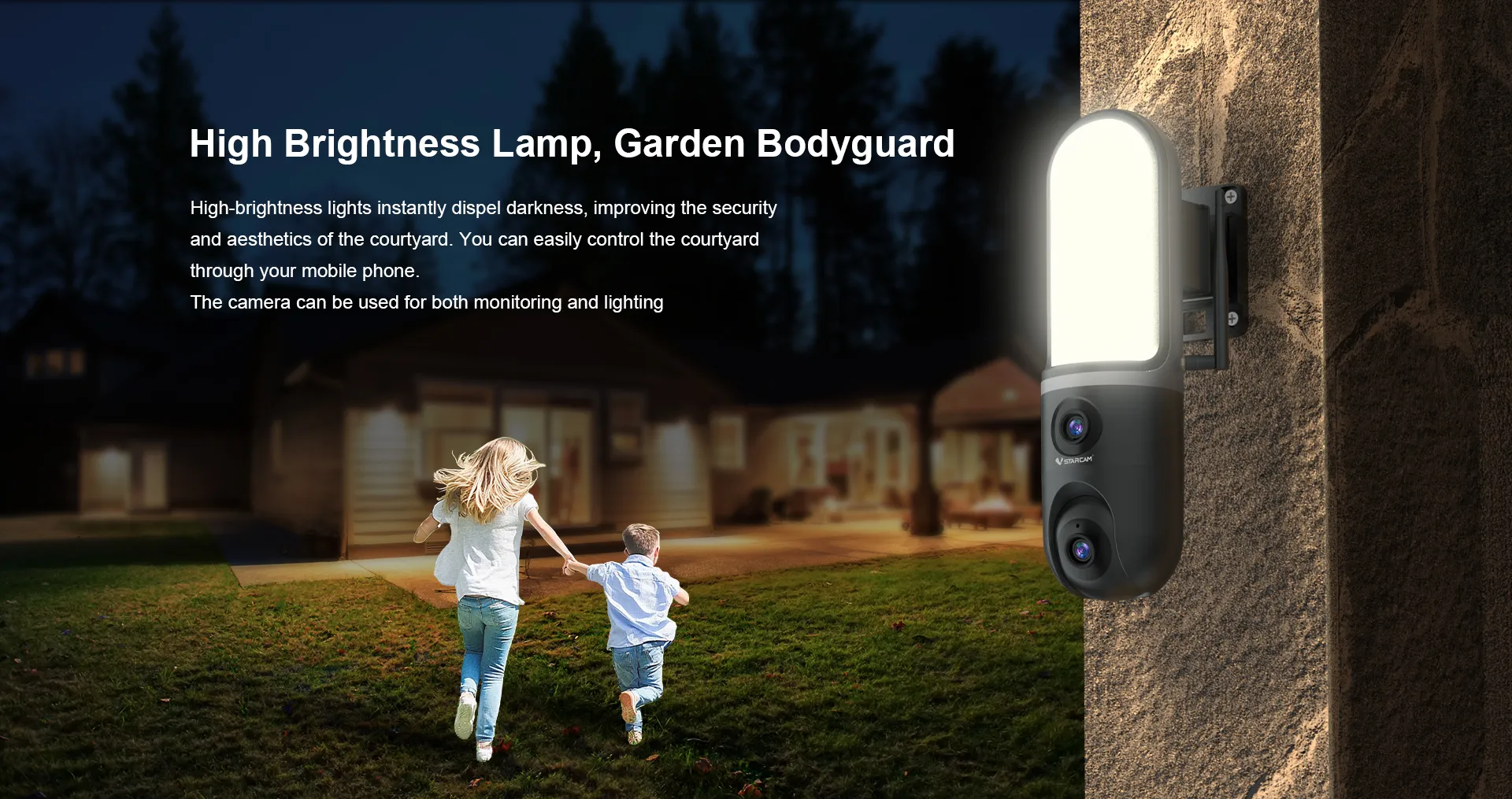

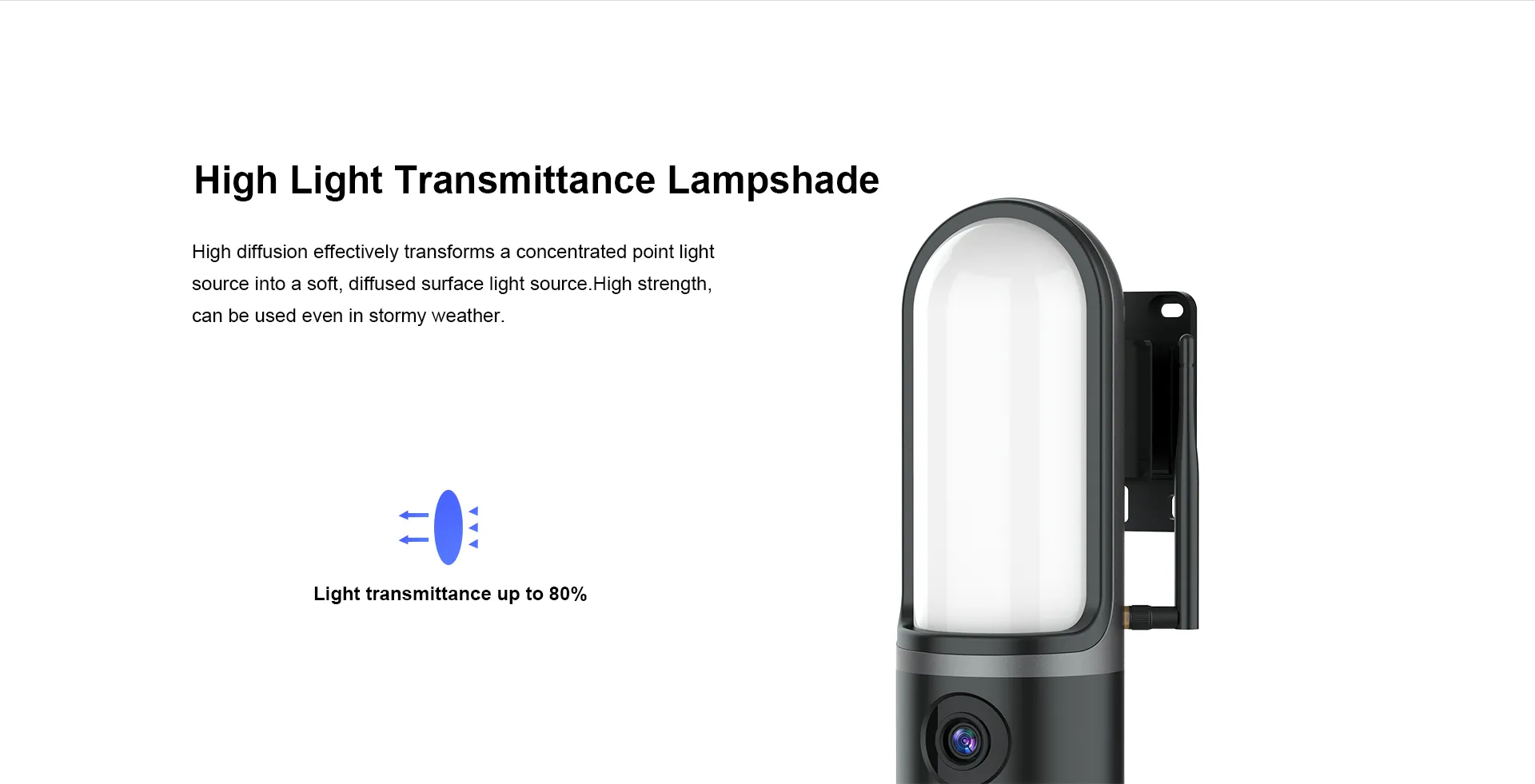

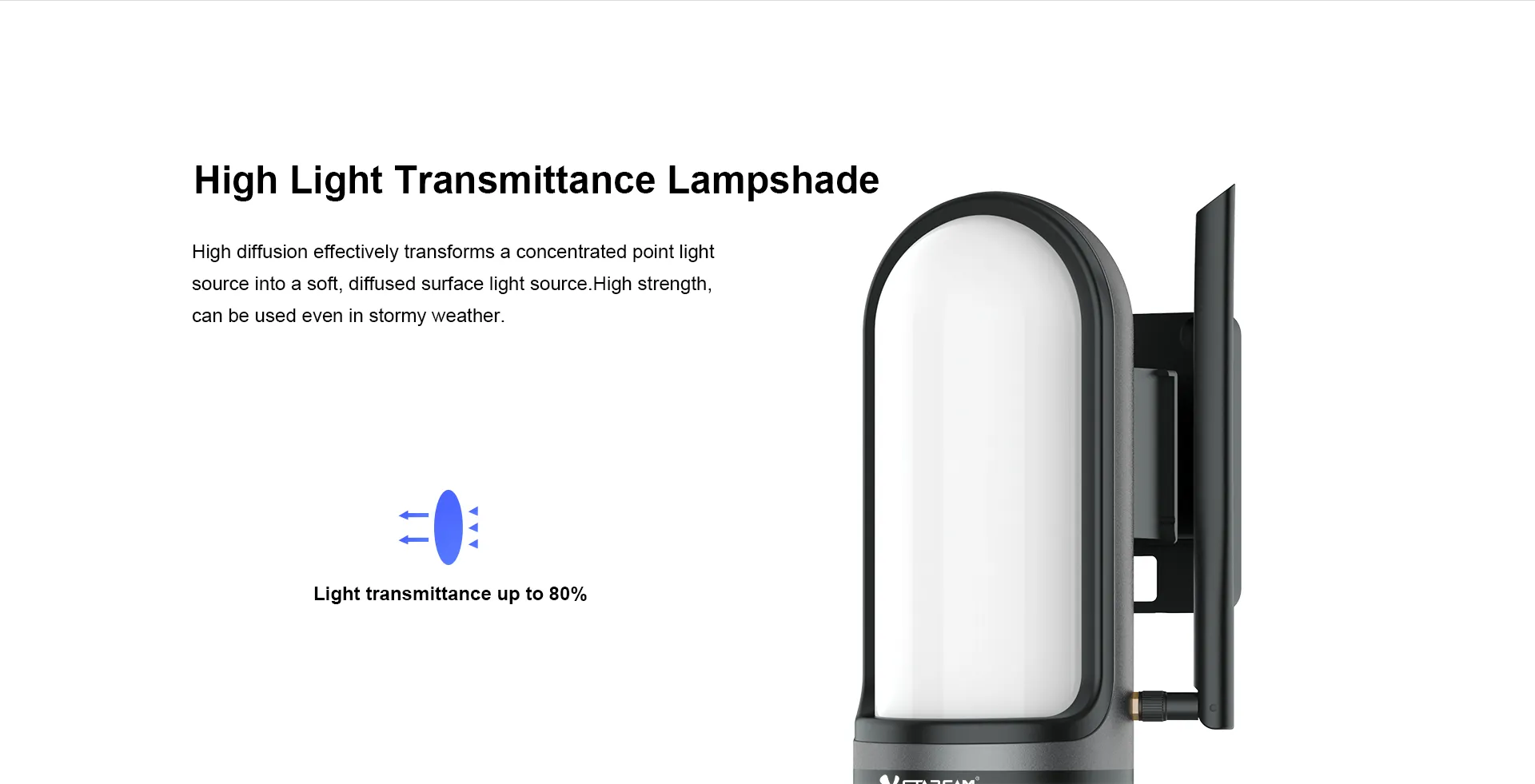

| ✮High-brightness lighting, can be used for lighting and surveilance | ||

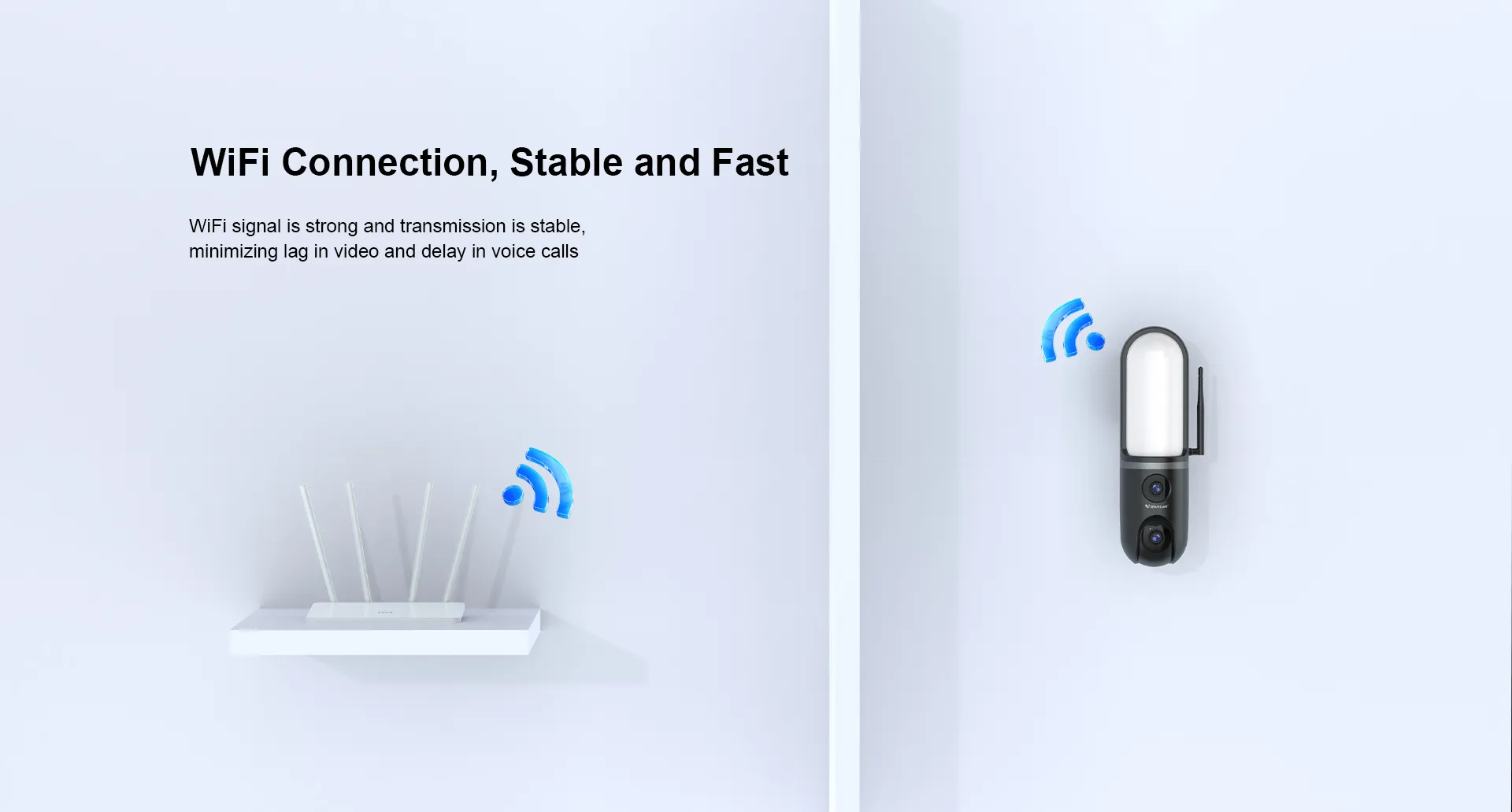

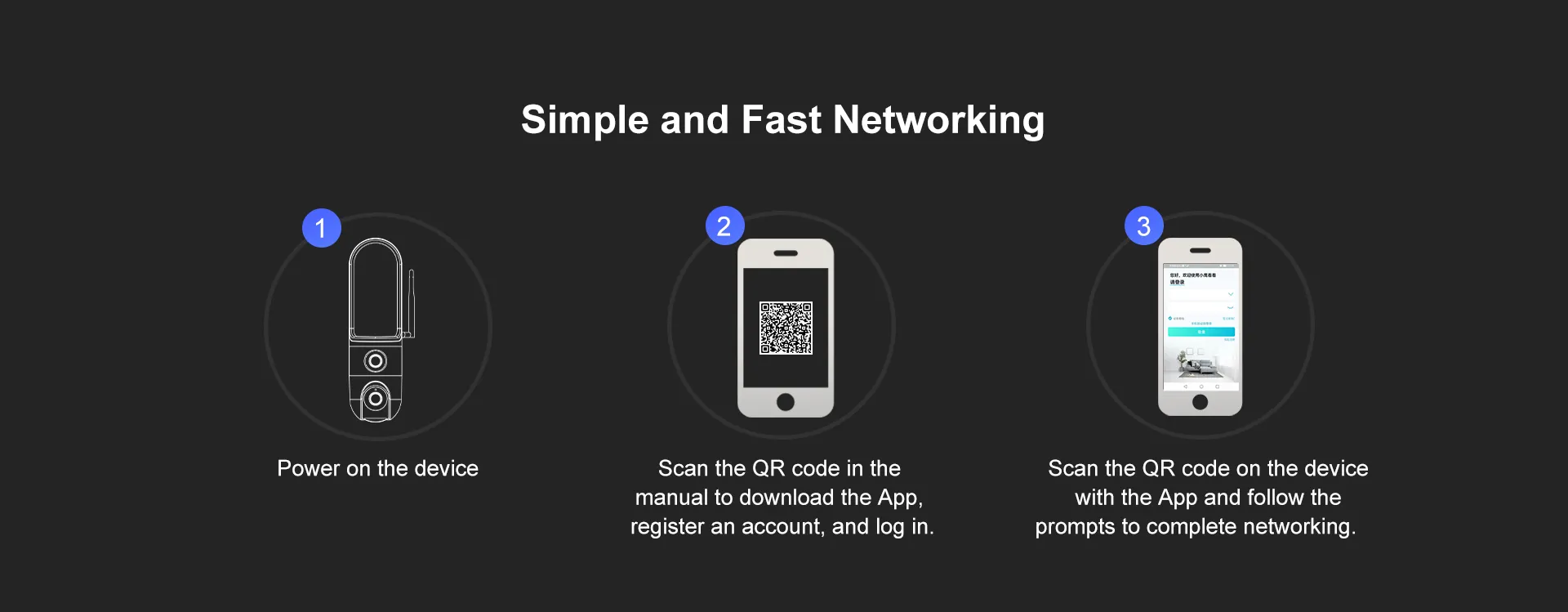

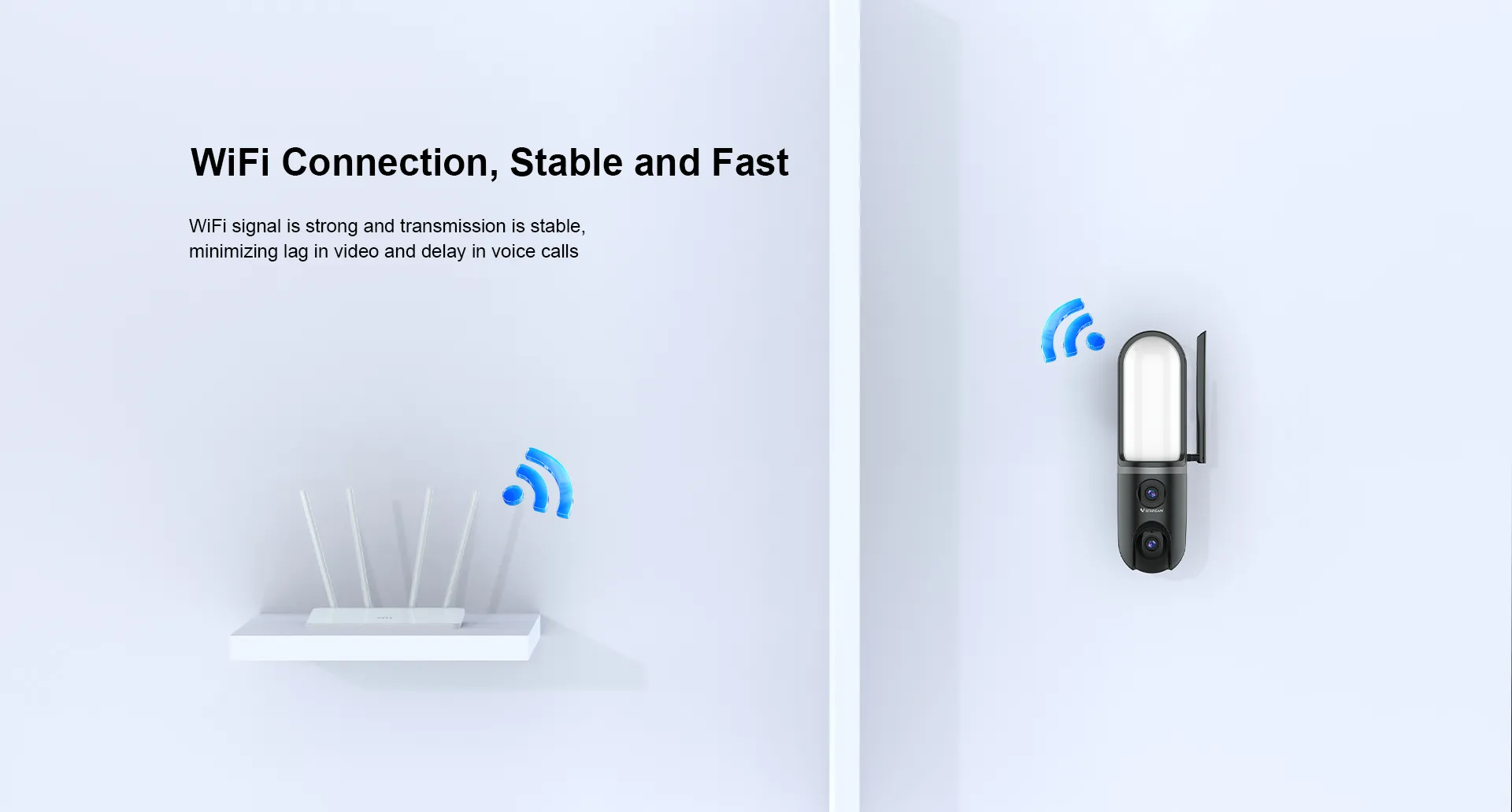

| ✮WiFi connection, wireless freedom | ||
| ✮F2.0 large aperture, more light intake, clearer night vision | ||
| ✮ISP image processing technology, preserving true colors | ||
| ✮Human detection, real time alerts | ||

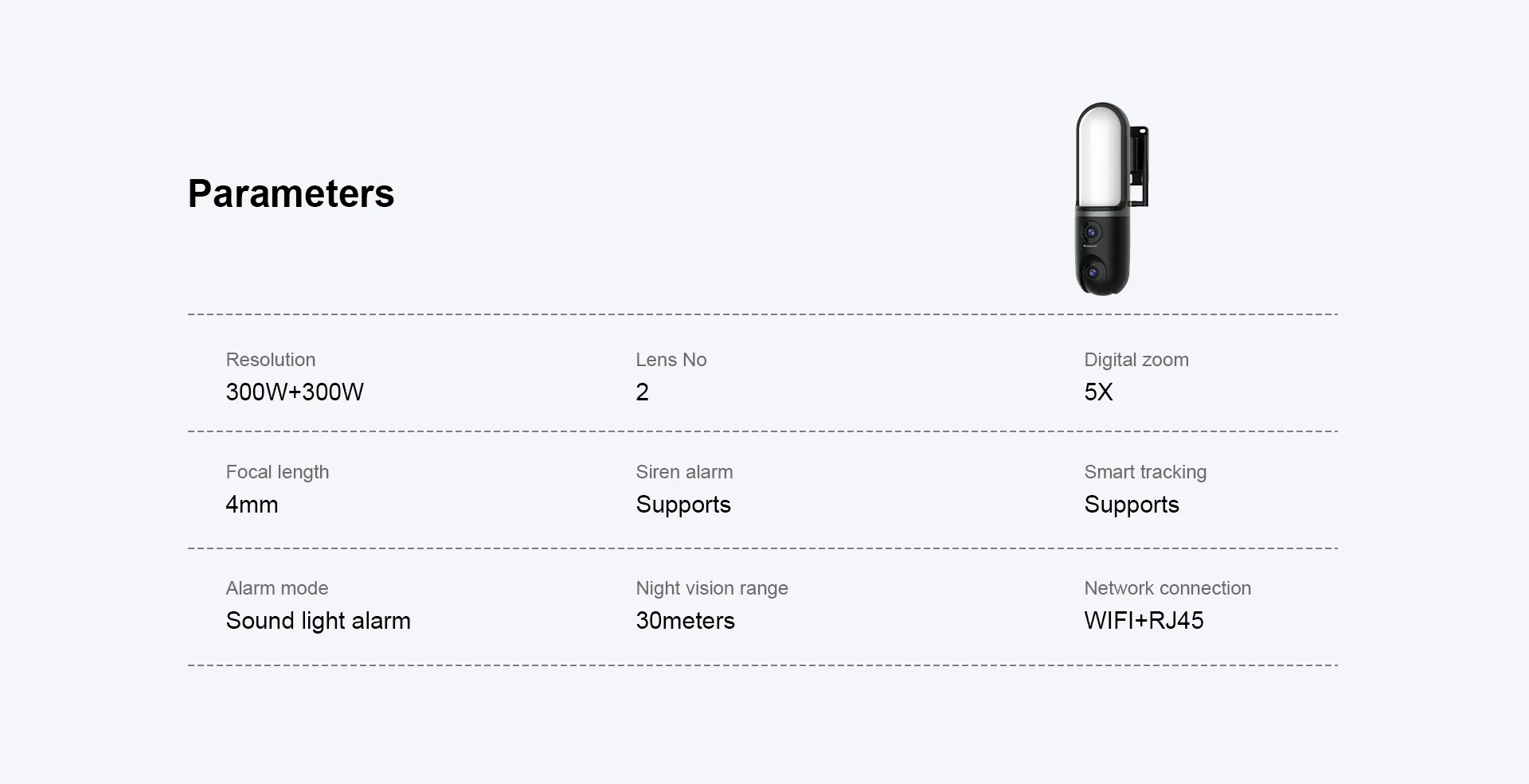

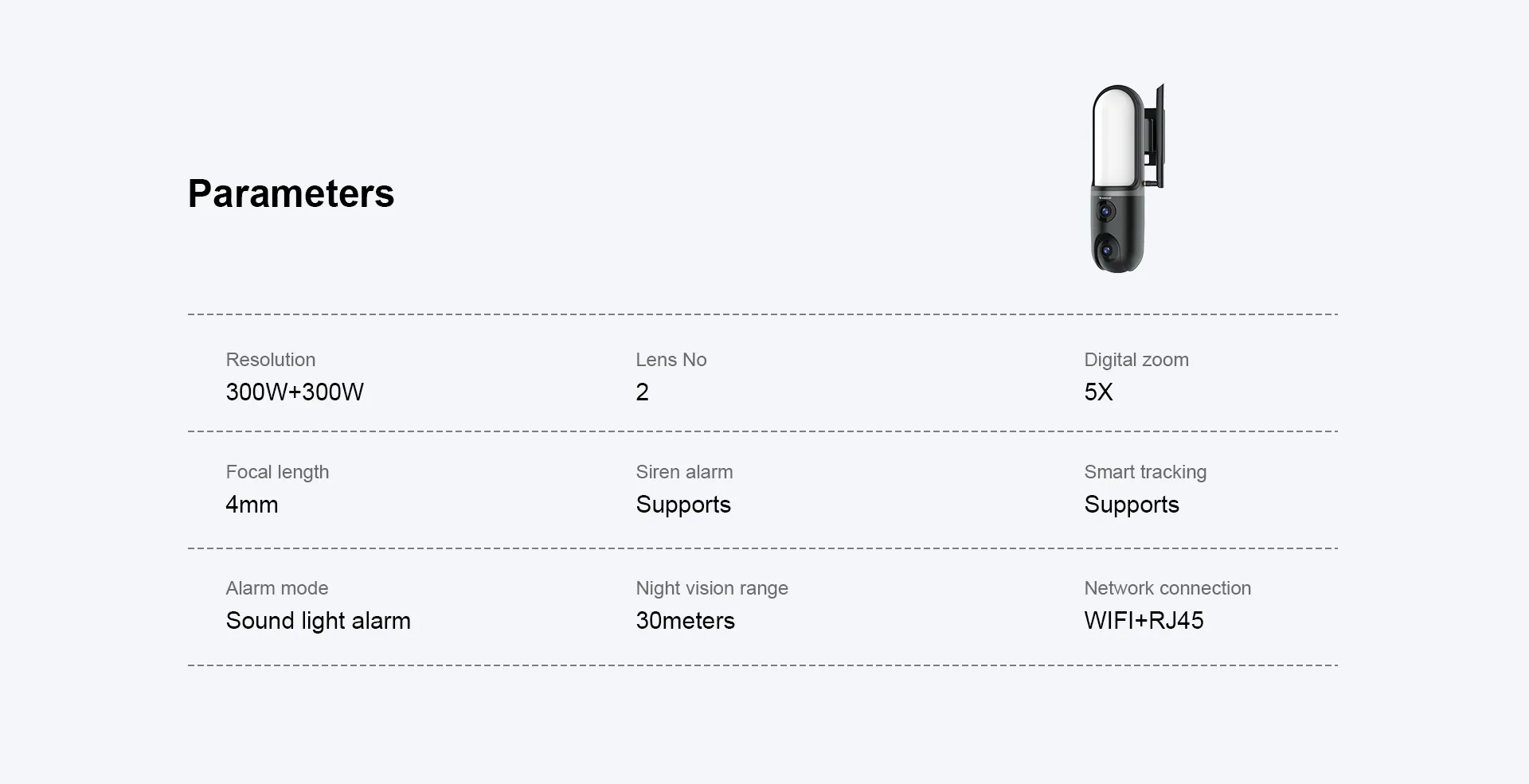

| Sorts | Type | Parameters |
| System | Operating system | Linux |
| Online visitor | Supports 4 visitors at the same time | |

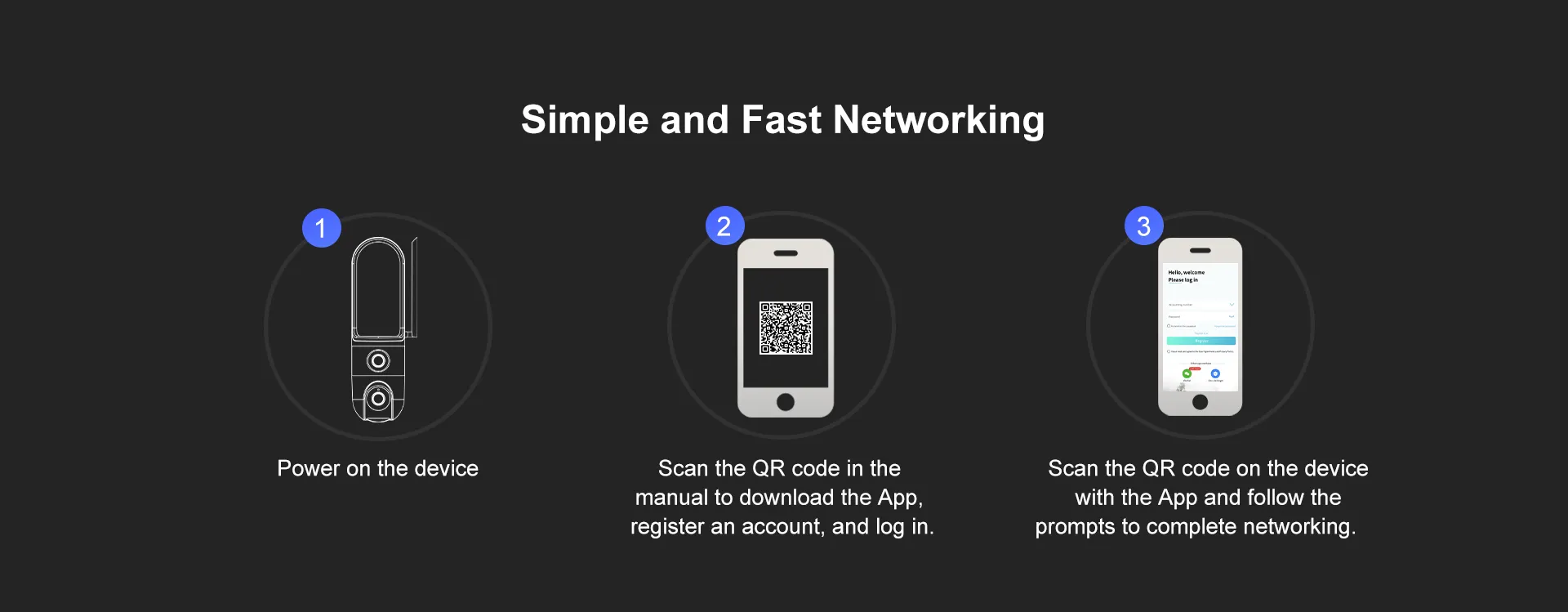

| APP | O-KAM Pro | |
| Collection | CPU | Ingenic |
| Memory | 512Mb | |
| Lens | 4mm | |
| Image sensor | 1/3" 1080p progressive scan CMOS sensor | |
| Min. Illumination | 0.5Lux (color mode), 0.1Lux (b&w mode) | |
| Sensor performance | Support automatic white balance, automatic gain control and automatic backlight compensation | |
| Night vision | Black and white night vision, full-color night vision | |
| Light brightness | 1333φ | |
| Viewing angle | 88° | |
| Video | Resolution | 1080P 1920x1080/15FPS/2MP；1296P 2304x1296/15FPS/3MP |
| Night vision | 20-30meters | |
| Compression standard | H.264 main profile/Motion-JPEG/JPEG | |
| IR control | IR-CUT, soft photosensitive control | |
| Bit rate | 128～4096kbps | |
| Image adjustment | Brightness, contrast, OSD display | |
| Audio | Input | Built-in -38dB microphone |
| Output | Built-in 8Ω1W speaker | |
| Sampling frequency/bit width | 8KHz/16bit | |
| Compression standard/Bit Rate | G711A | |

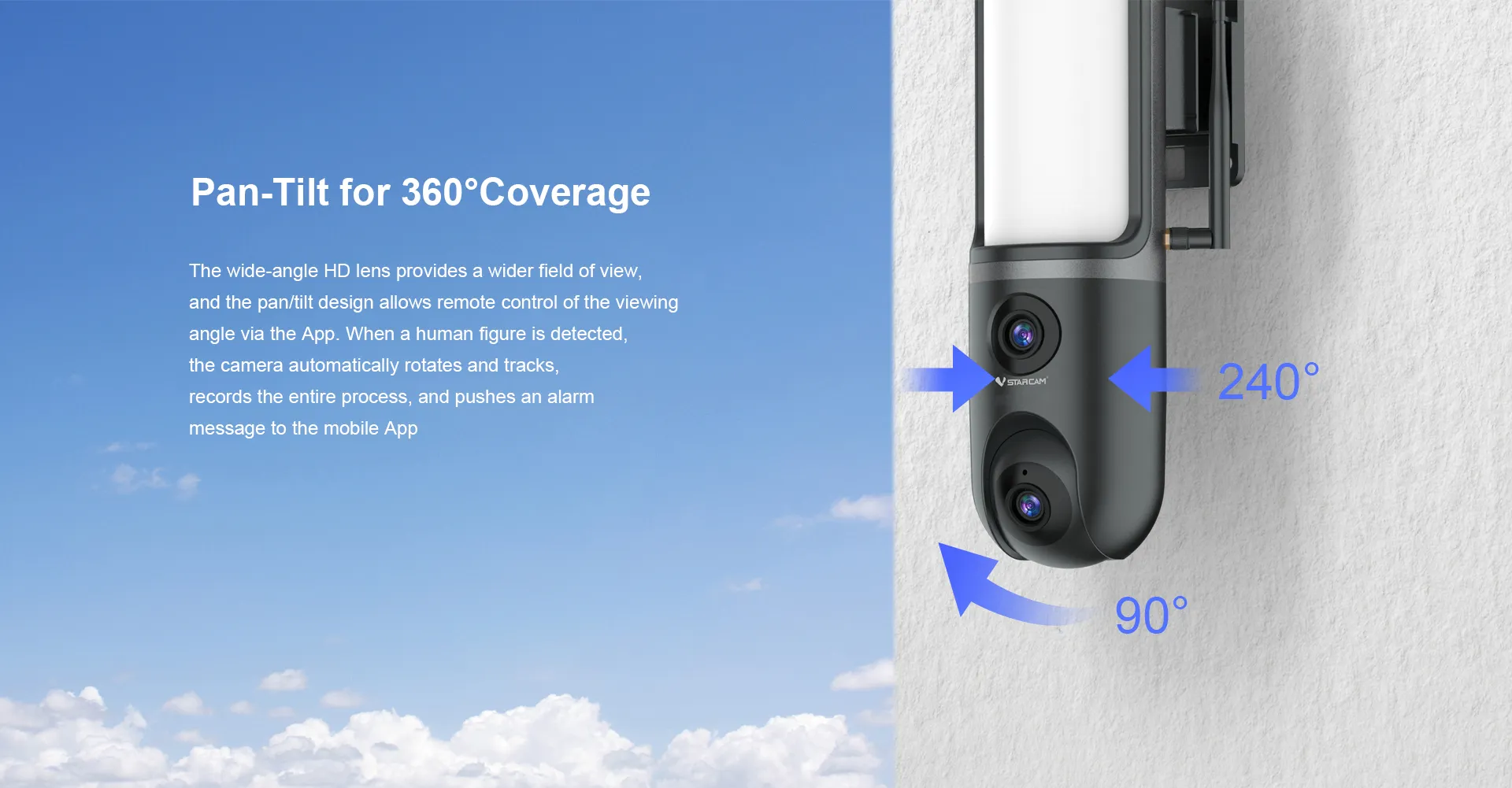

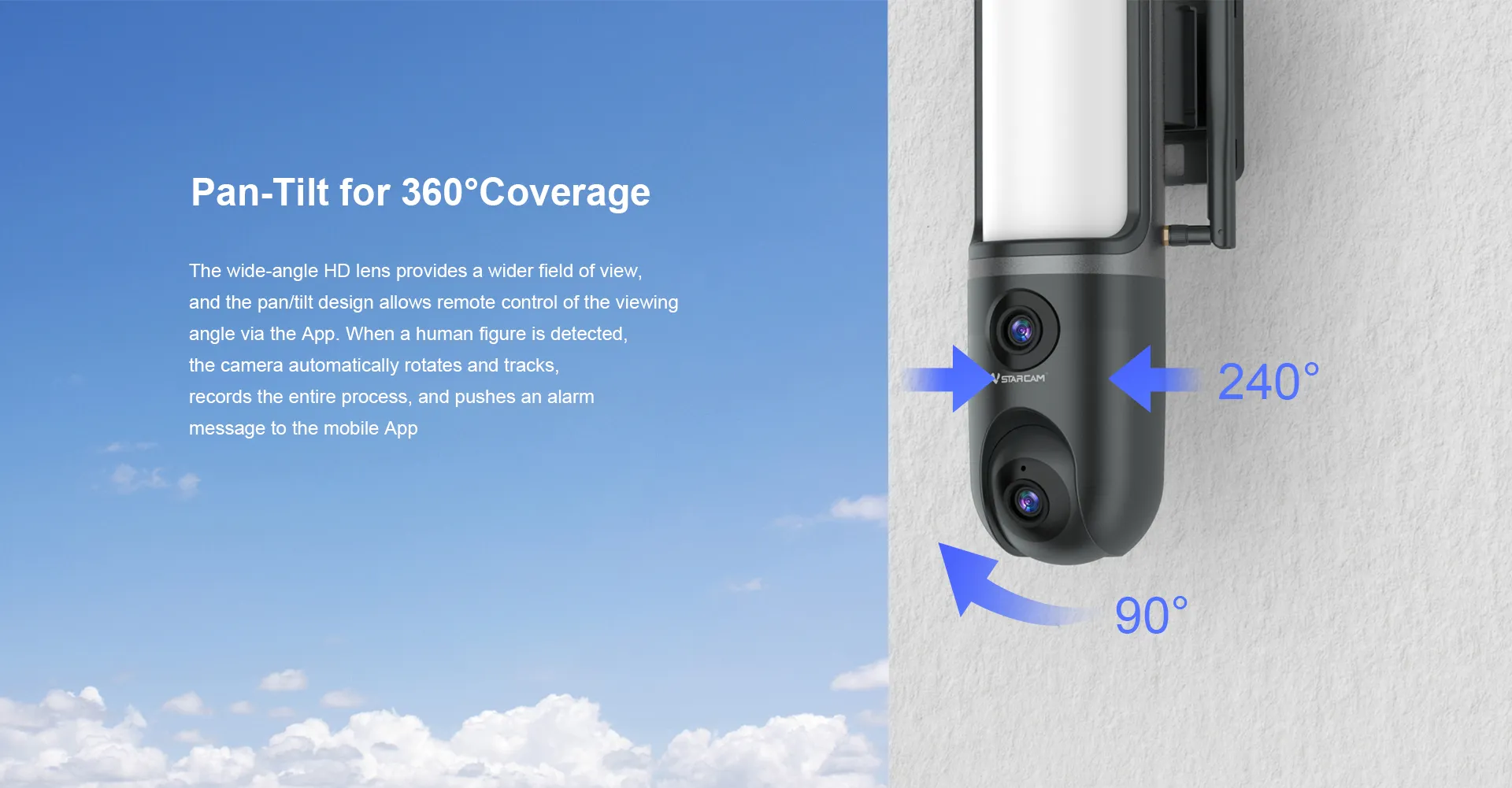

| Pan/Tilt | Rotation angle | Pan：240° Tilt：90° |
| Network | Network interface | 10Mbps/100Mbps；Adaptive/RJ45 |
| Network protocol | TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P | |
| Wireless network | IEEE802.11b/g/n | |
| Wireless frequency | 2.4G | |
| Wireless security encryption | 64/128-bit WEP/WPA-PSK/WPA2-PSK | |

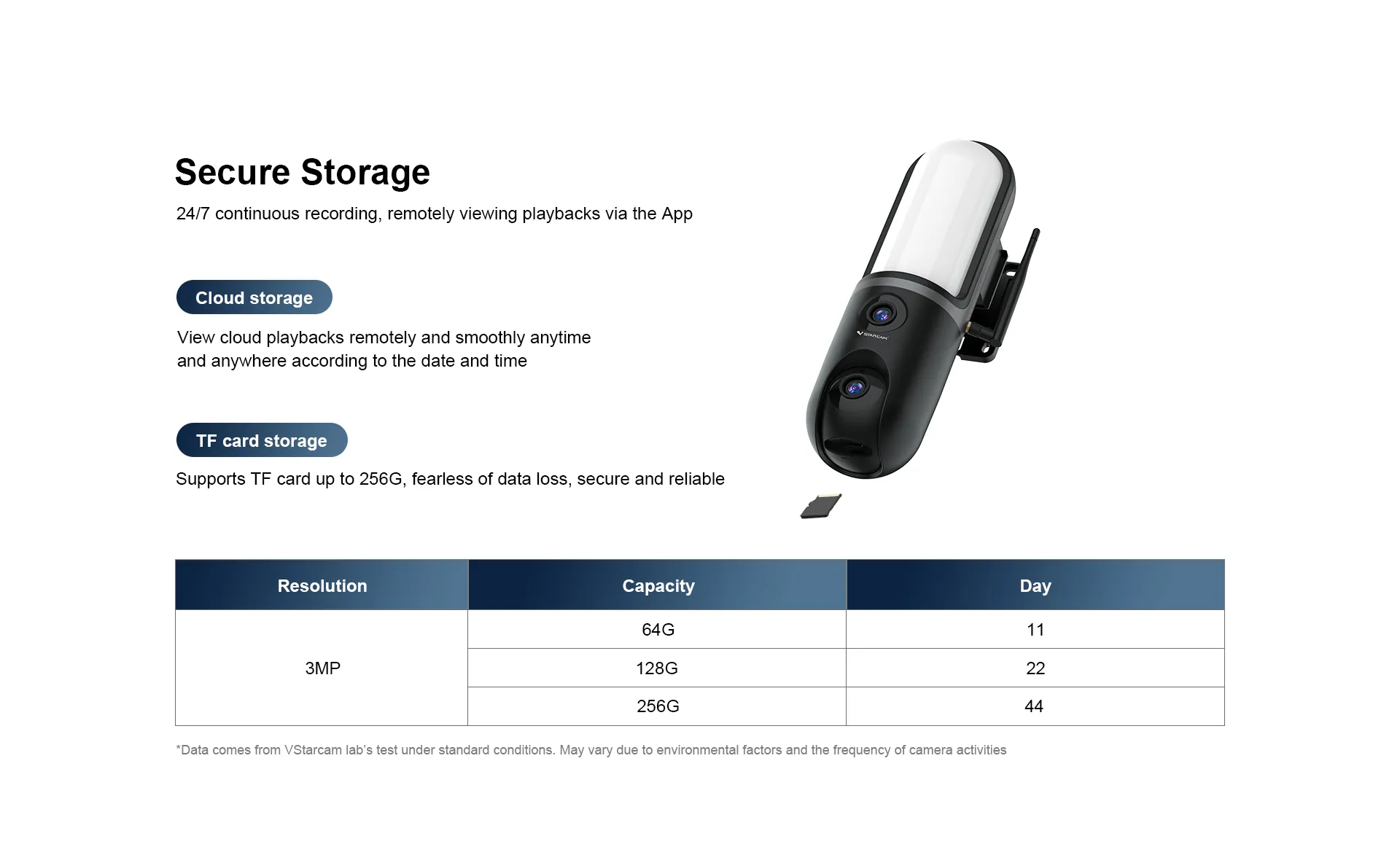

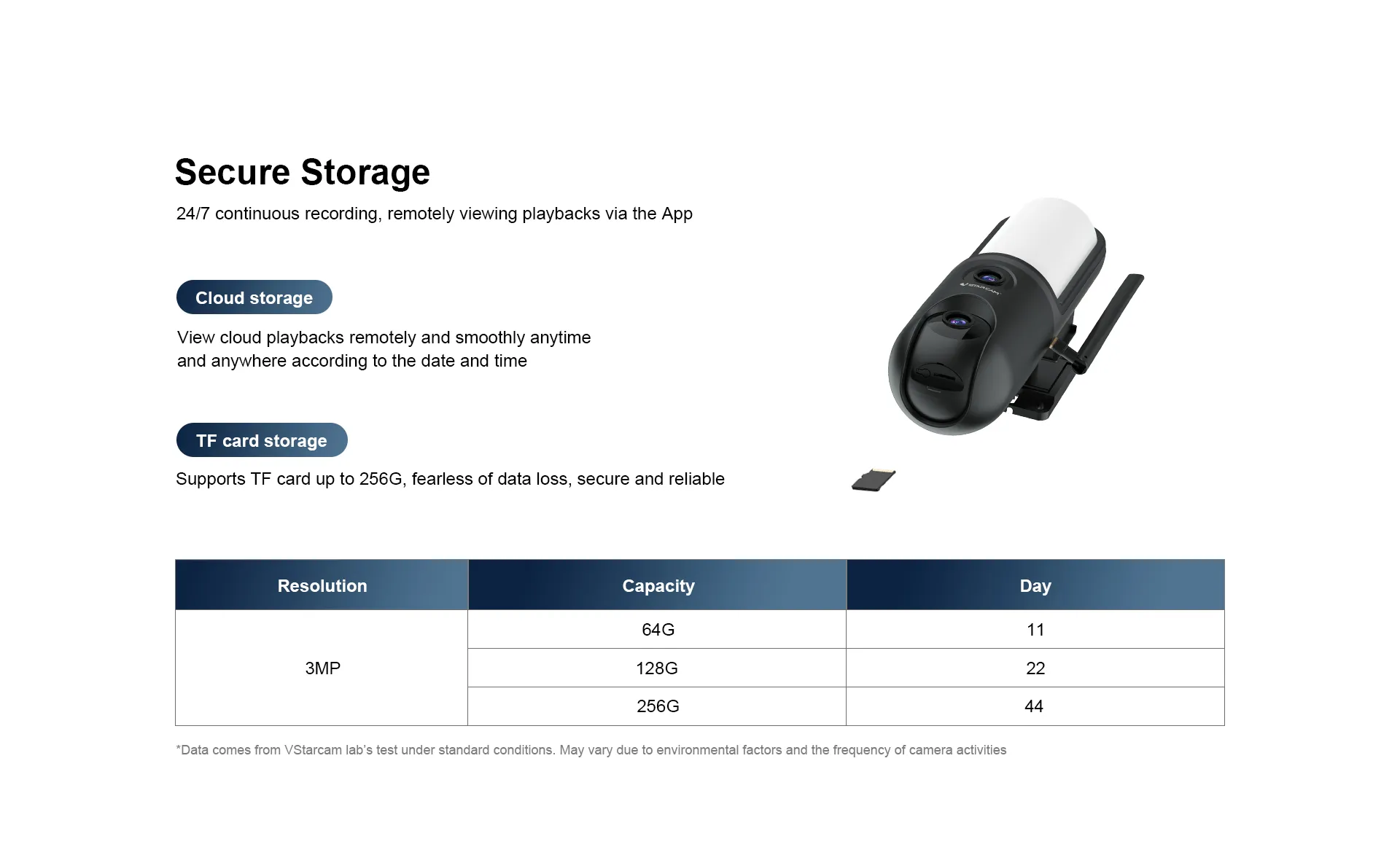

| Storage | External TF card | Supports T-Flash cards (up to 256GB) |
| Cloud storage | Support cloud storage (sold separately) | |
| Alarm | Alarm detection | Motion detection, human detection, human framing, human tracking, and area detection, siren alarm |
| Physical Indicators | Rated voltage | DC12V±5% |
| Power consumption | Power: 6.24W (0.52A) Maximum power: 14.52W (1.21A) | |
| Operating condition | Working temperature: -10～55℃, working humidity <90% | |
| Weight | Net weight: 812g, gross weight: 1350g | |

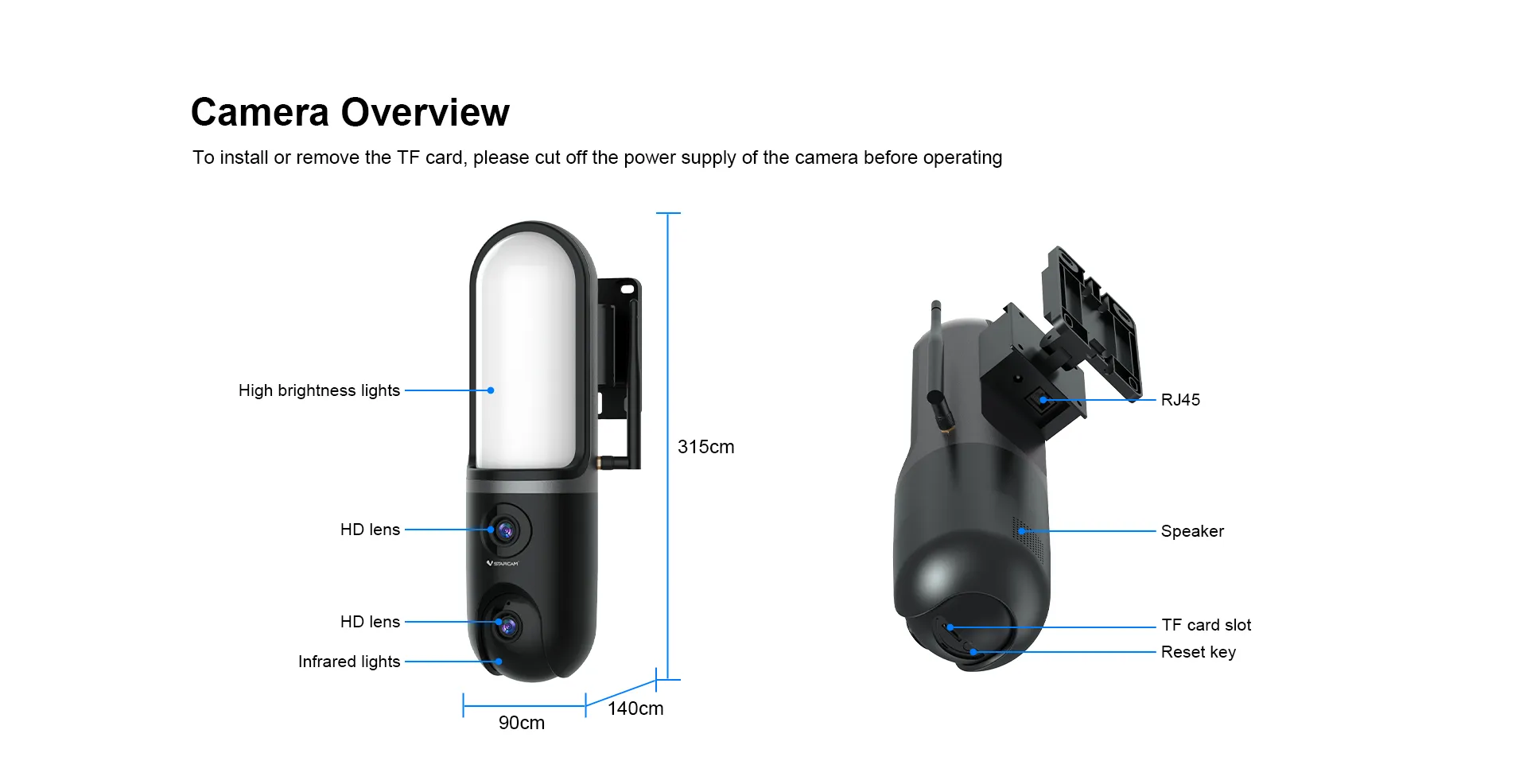

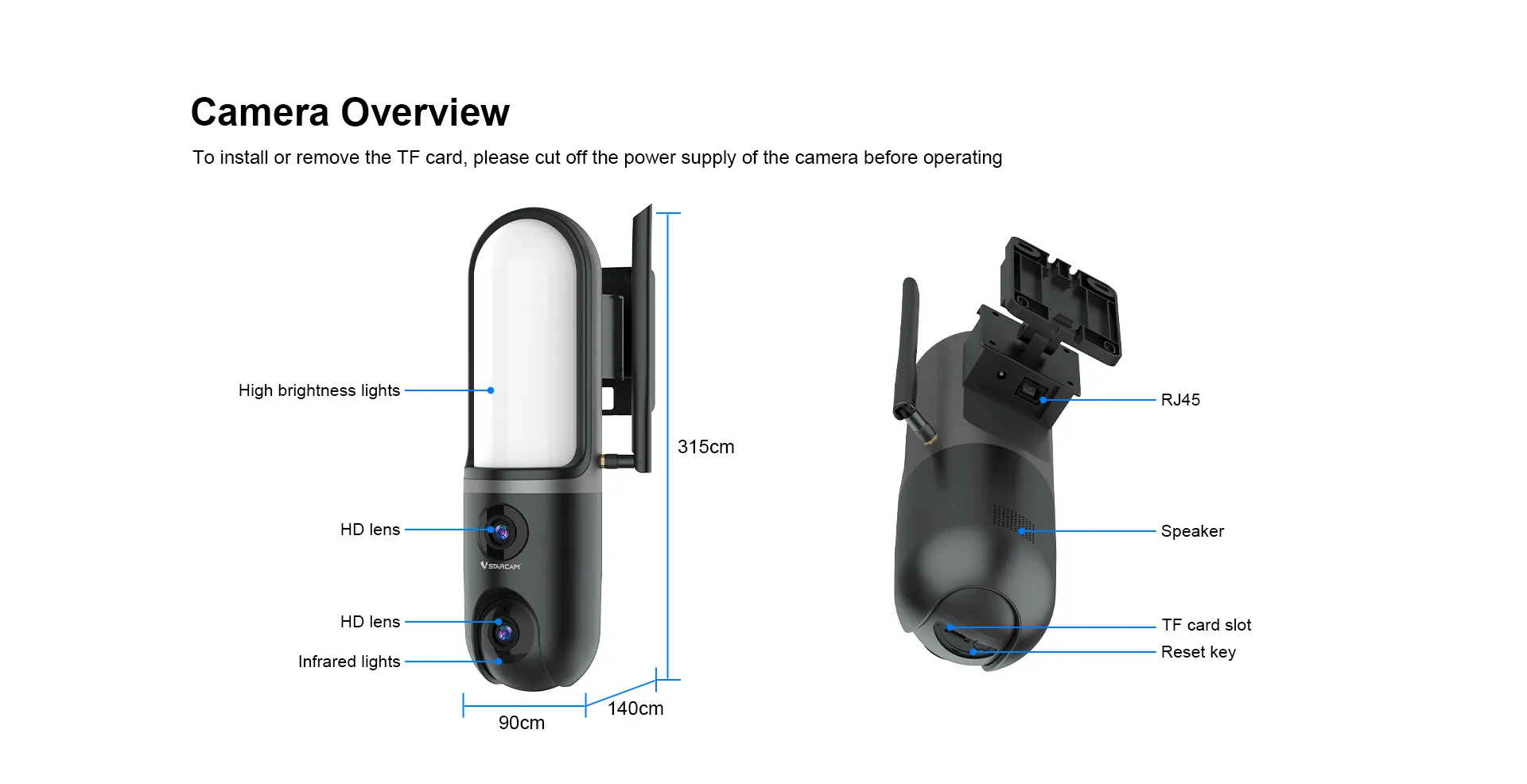

| Camera size | 315x90x140mm | |
| Packaging box size | 337x120x170mm | |
| Carton size | 525x350x510mm, 12PCS/Carton | |
