  • VStarcam CB75
    Category Type Parameters
    System Operating system linux
    Online vistors 4 users watch online at the same time
    Collection Processor T31
    Image Sensor GC2083 , 1/ 3 CMOS (Pixel selectable, PCB compatible)
    Minimum illumination 0 .3 ~ 0.5Lux (Color mode), 0Lux (B&W mode)

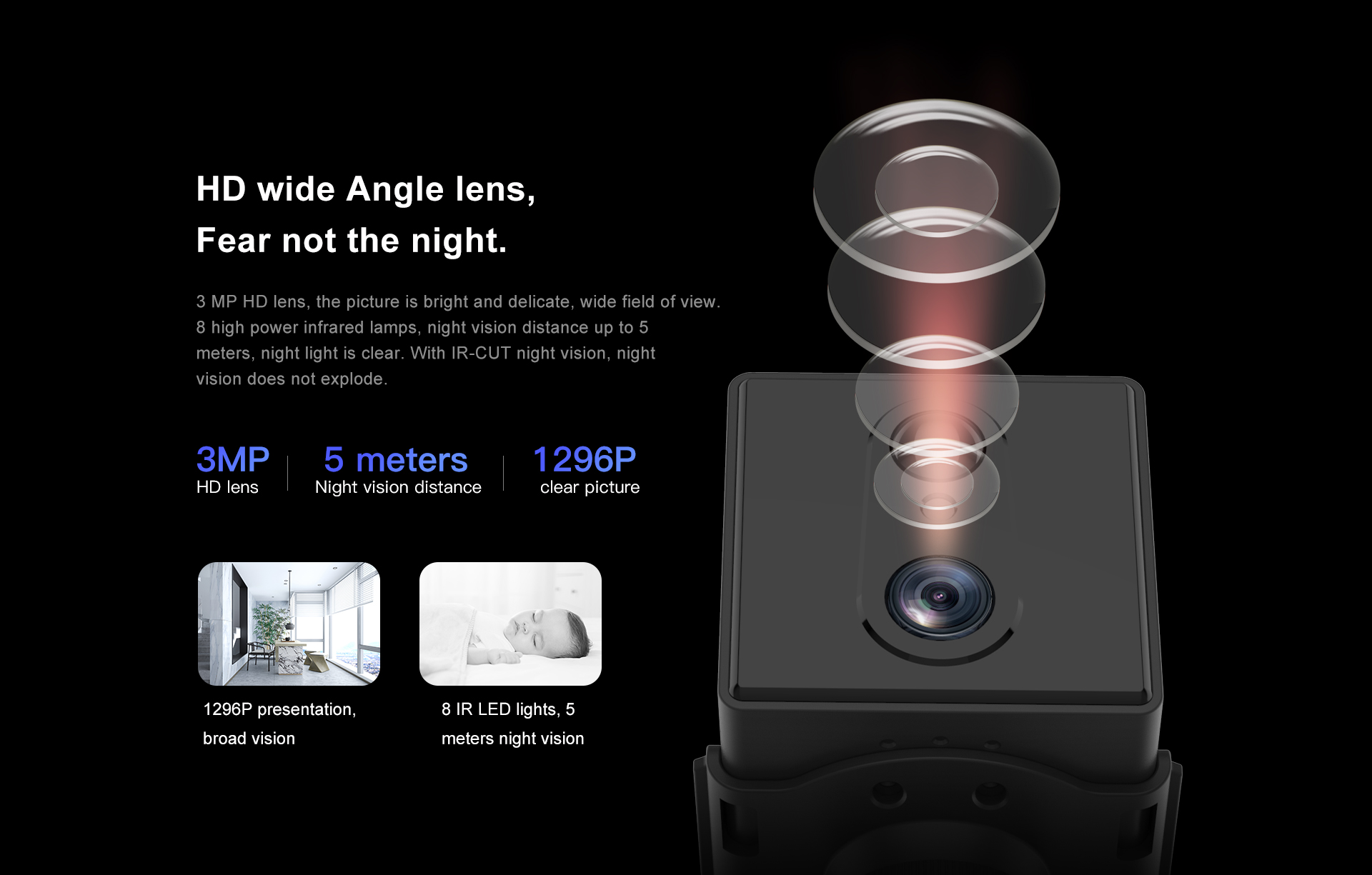

    Lens 4G lens, IR CUT integrated, standard lens diameter 10mm
    Viewing angle D135 ° diagonal
    Video Night vision Black and white night vision, photosensitive automatic recognition of light switching, 8pcs 940nm non-luminous patch infrared lights,illumination distance : 3 to 5 meters
    Compression standard H.264/MJPEF/JPEG
    Multi- stream Main stream: 1296P/ 15fps Sub-stream: 360P/ 15fps
    Bit rate CBR/ VBR two rate control modes, and the output rate range is 128 ~ 4096kbps
    Image adjustment Brightness, contrast, tilt, pan adjustable, OSD display
    Audio Input Built- in - 38dB microphone
    Output Built- in 8Ω1W speaker
    Sampling frequency/ bit 8KHz/ 16bit
    Compression standard/ code rate G711A
    AI Humanoid detection Humanoid detection, filtering invalid video content
    Smart notification sound Different devices push sound difference, know exactly which device is triggered
    Smart alarm sound Set different equipment alarm sounds according to different scenarios
    Network Wireless connection Scan the QR code of the device to add/Scan the QR code of the App
    China Cat 1 FDD:B1/ B3/B5/B8
    Overseas Cat4 LTE-FDD: B1/B3/B7/B8/B20
    LTE-TDD: B40/B41
    Key Toggle button 1 ON/ OFF
    Toggle button 2 Mode switching ( 4 G networking mode and DV local recording mode switching)
    Reset button Long press to restore factory settings
    Storage External TF card Support T-Flash card (up to 256GB)
    Cloud Storage Free Cloud Storage
    Alarm Alarm detection Support Humanoid & Motion detection, PIR detection
    Physical indicators Rated voltage DC5V± 5%

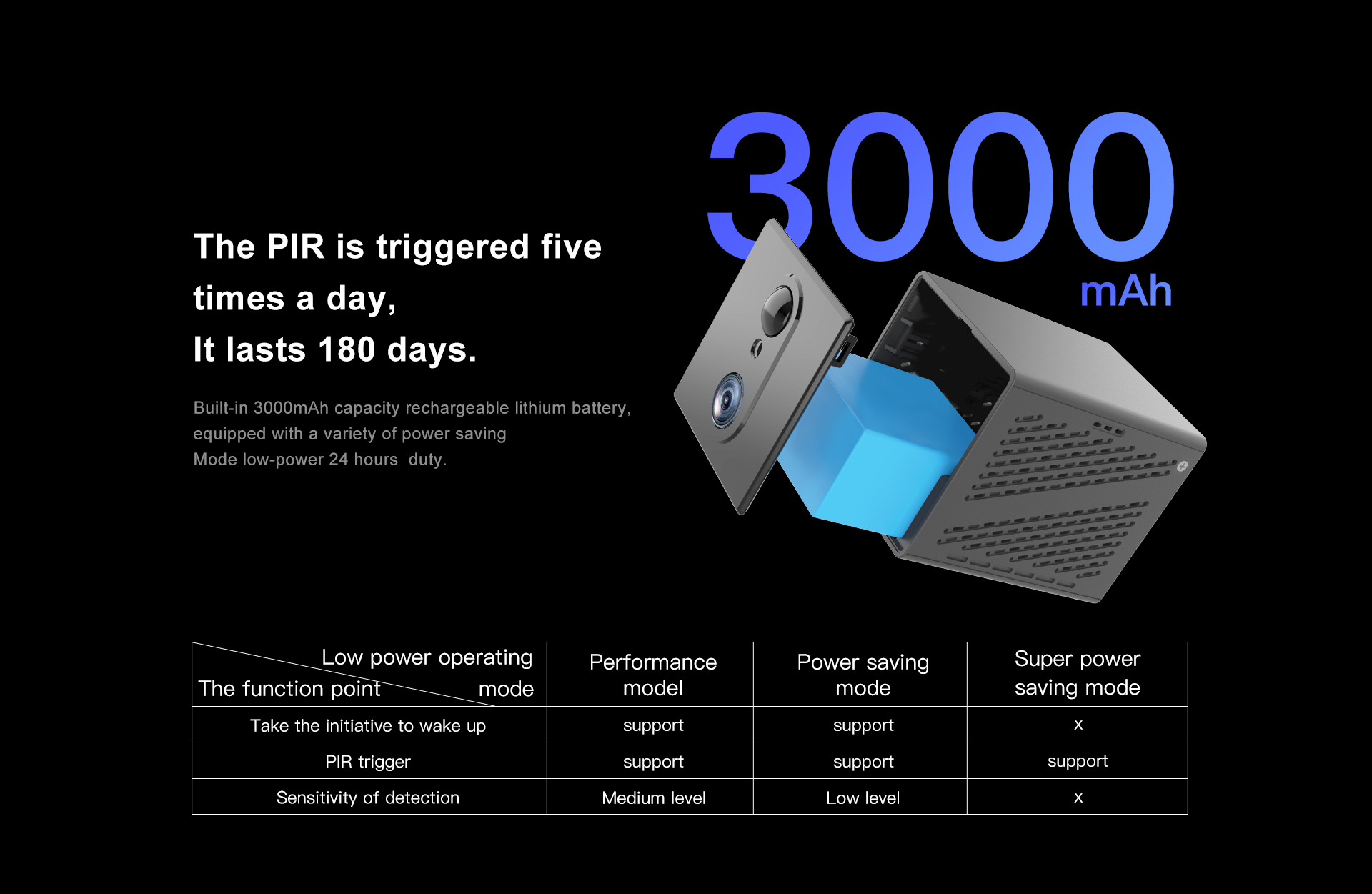

    Powered by Powered by 3000 mAh battery
    Power consumption Sleep standby current 5mA, Work current: 400 - 600mA
    Working environment Working temperature: - 10 ~ 55℃ , Working humidity <90%
    Weight (Note: in kind prevailed)

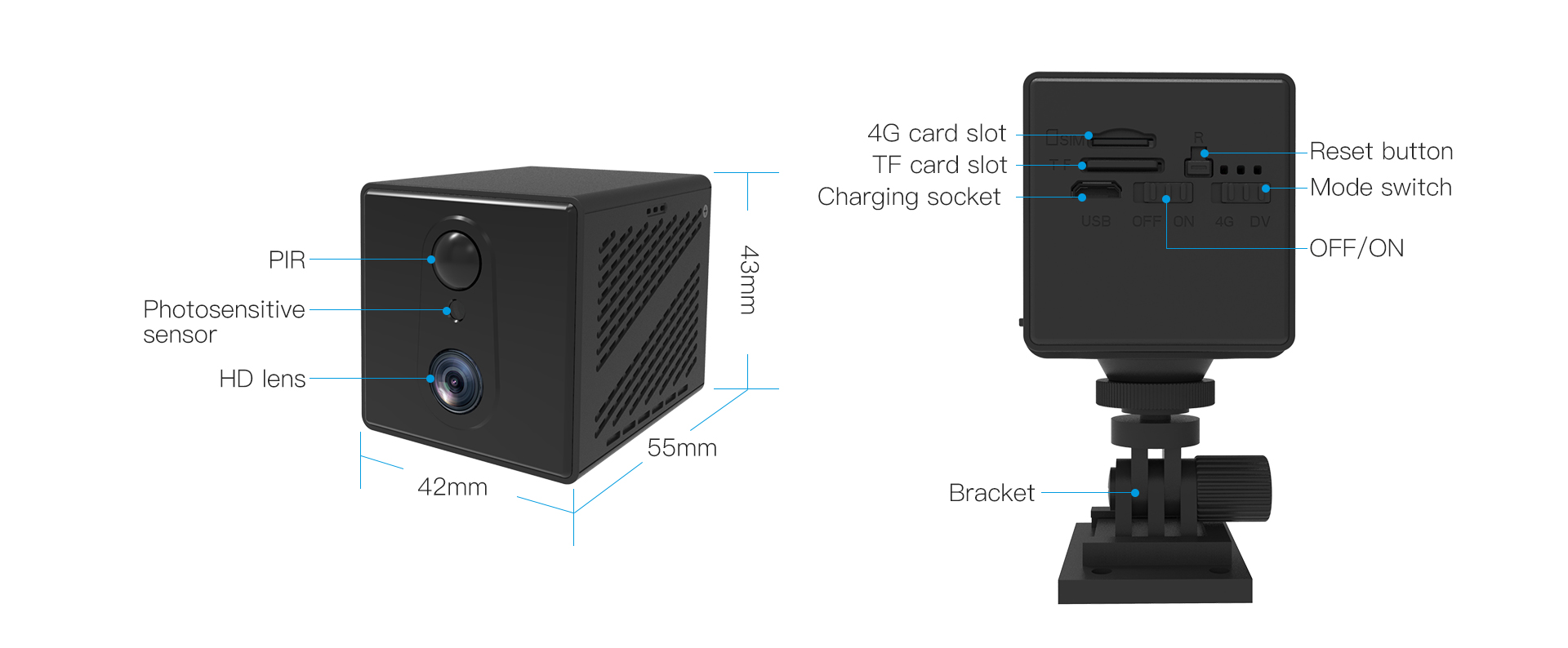

    Size 56×43×44mm, L*W*H

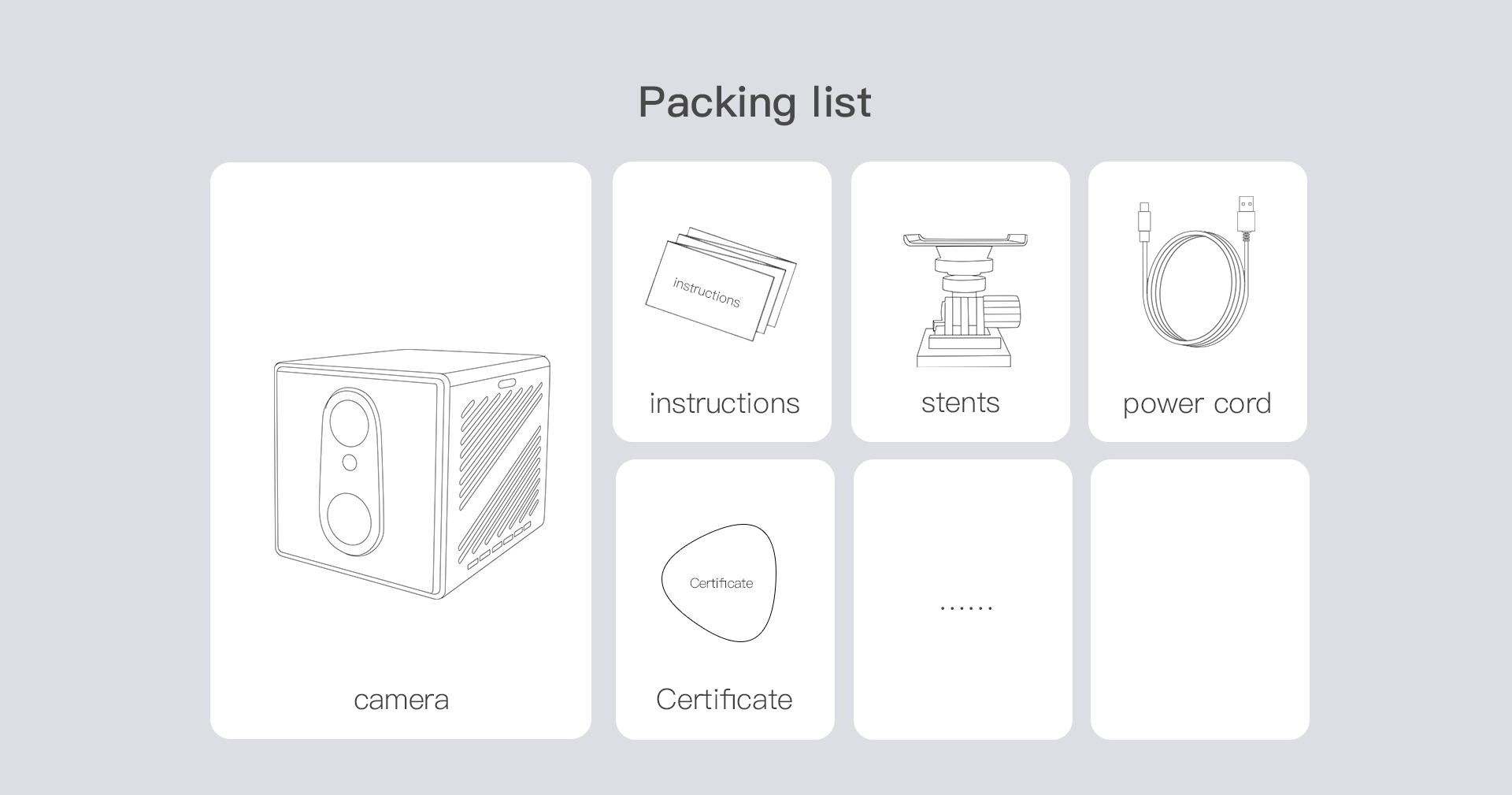

    Packing list Camera*1 , Bracket*1 , MICRO USB*1 , Manual*1 , SIM Card*1

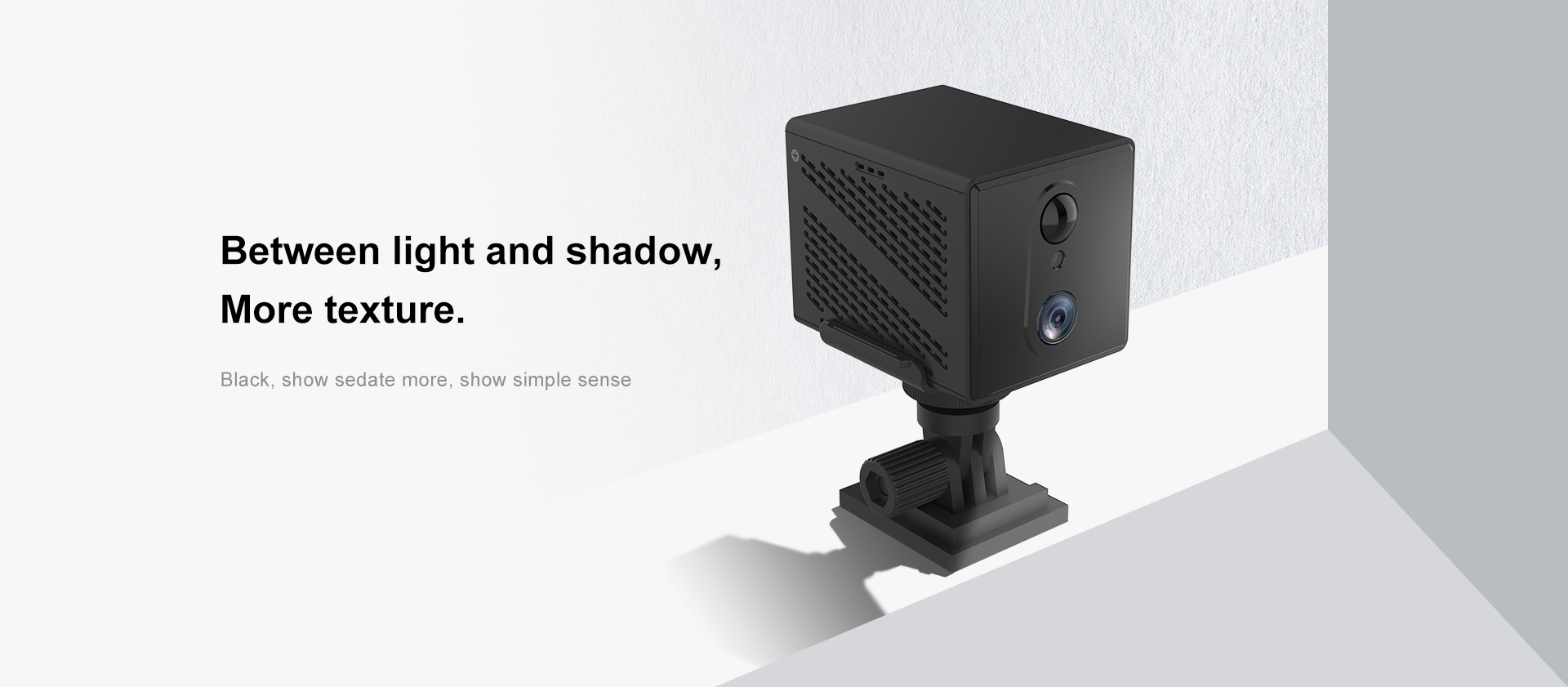

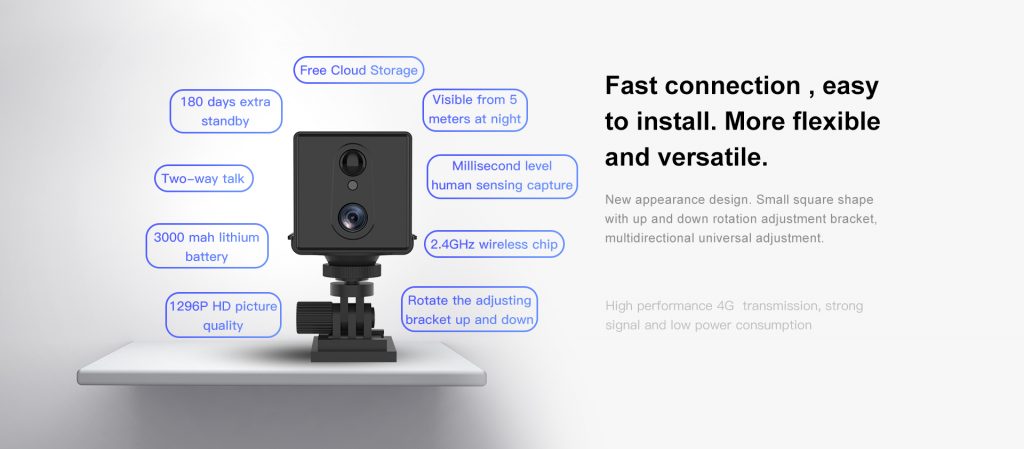

    Portable 4G wireless ultra-low power camera CB75
