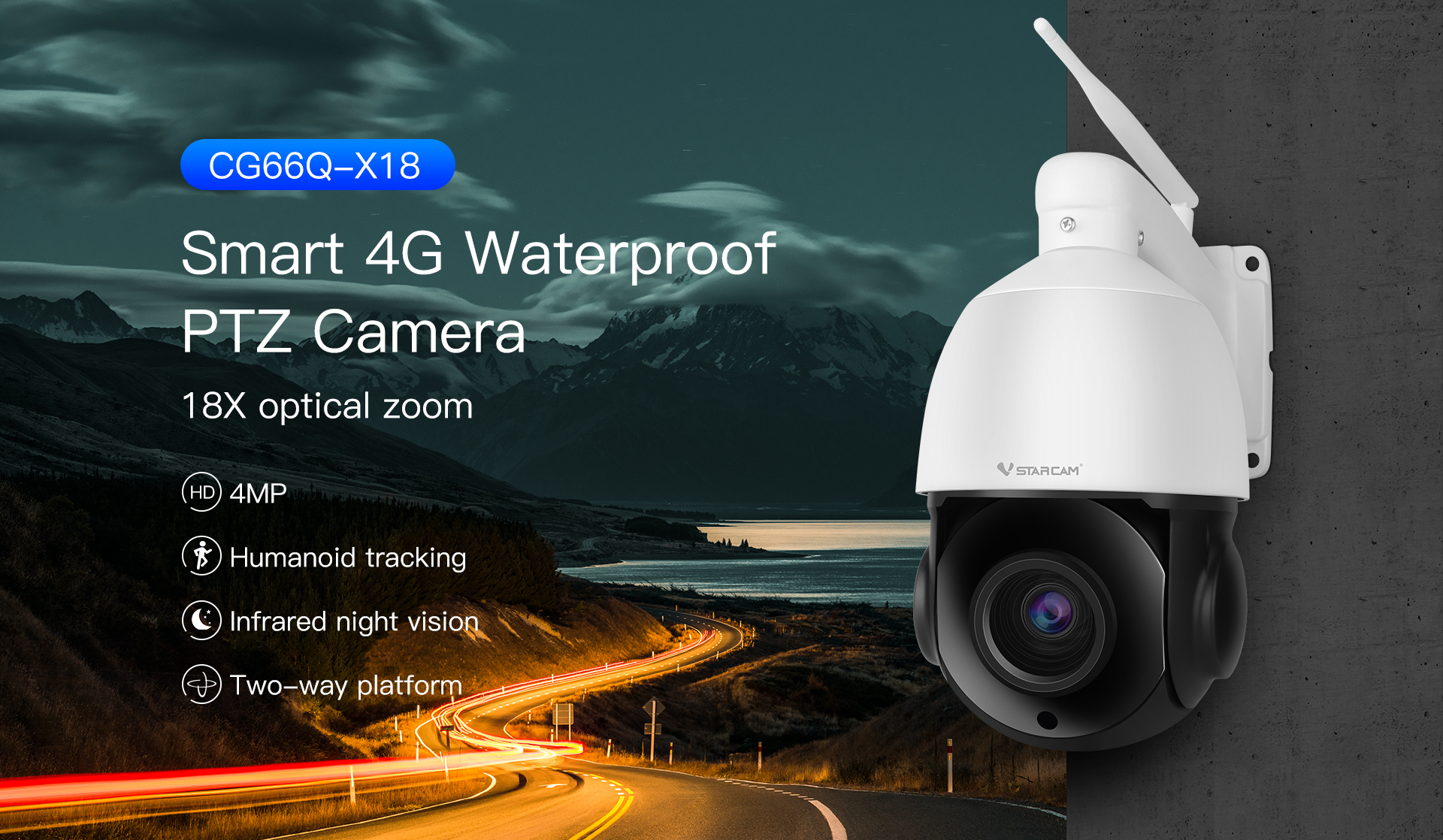

CG66Q-X18

Detail Specs Videos
  • Support
  • Sorts Type Parameters
    System Operating system Embedded Linux
    Online visitor Supports 4 visitors at the same time
    CPU/Image sensor 1/3  inch progressive scan CMOS sensor
    Minimum illumination 0.5 Lux(Color mode), 0.1 Lux(B&W mode)
    Lens/Viewing angle 5.9mm~94.4mm zoom lens/Diagonal viewing angle 62°@1X~4° @18X
    Night vision IR-CUT with auto-switching,6PCS IR LED lights, Irradiation distance: 20~50 m
    Video Compression standard H.264 main profile/H.264+ main profile/Motion-JPEG/JPEG
    Data Rate Main stream:1520P(2688*1520)@25fps,Substream:360p(640×360)@25fps
    Bit rate/maximum frame rate 128~4096kbps/25fps
    Image adjustment Brightness and contrast are adjustable
    Audio Input Built-in -28dB microphone
    Output Built-in 8Ω2W speaker
    Sampling frequency/bit width 8KHz/16bit
    Compression standard/Bit Rate G.711/32kbps
    Network Network interface 10Mbps/100Mbps adaptive /RJ45
    Network Protocol TCP/IP, HTTP, TCP, UDP, DHCP, DNS, NTP, RTSP, P2P, etc.

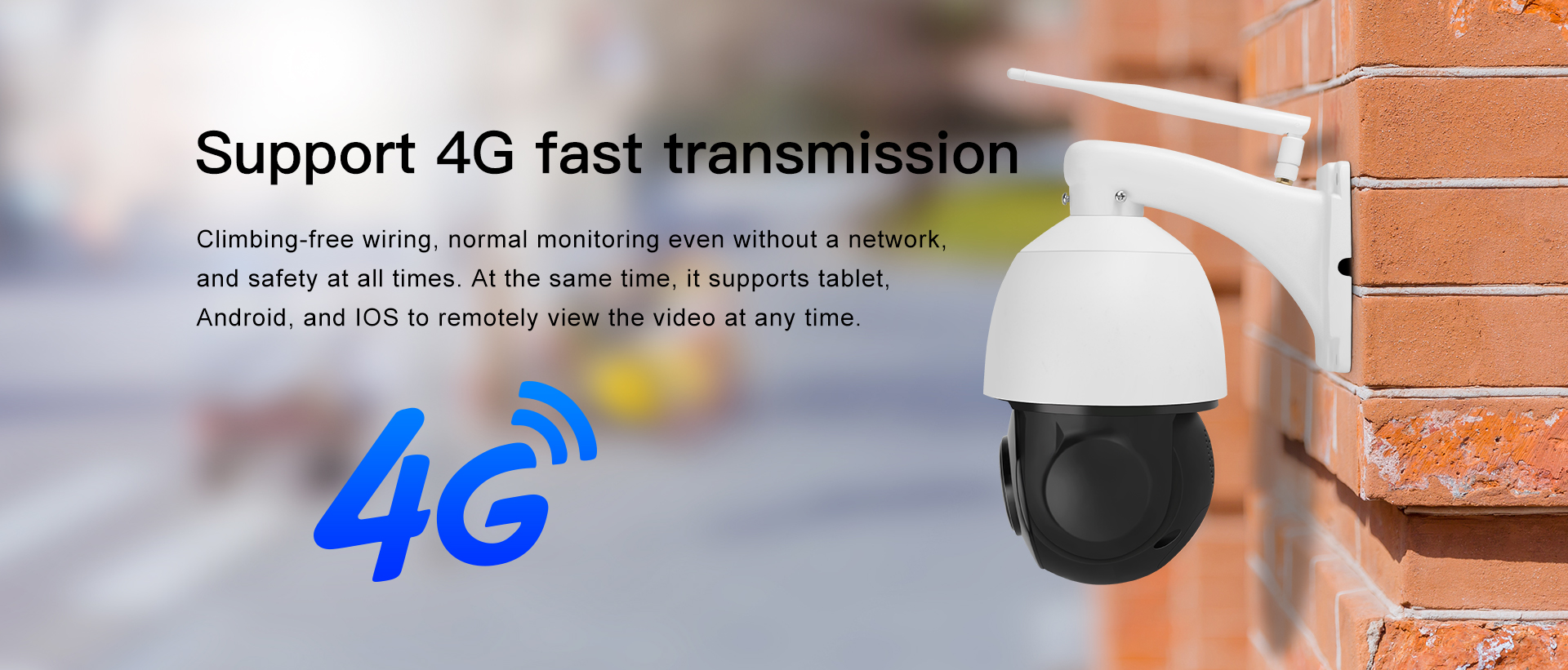

    4G (China) LTE FDD:B1/B3/B5/B8
    TDD:B34/B38/B39/B40/B41
    WCDMA:B1/B5/B8
    4G (EU) LTE FDD:B1/B3/B5/B7/B8/B20
    TDD:B38/B40/B41
    WCDMA:B1/B5/B8

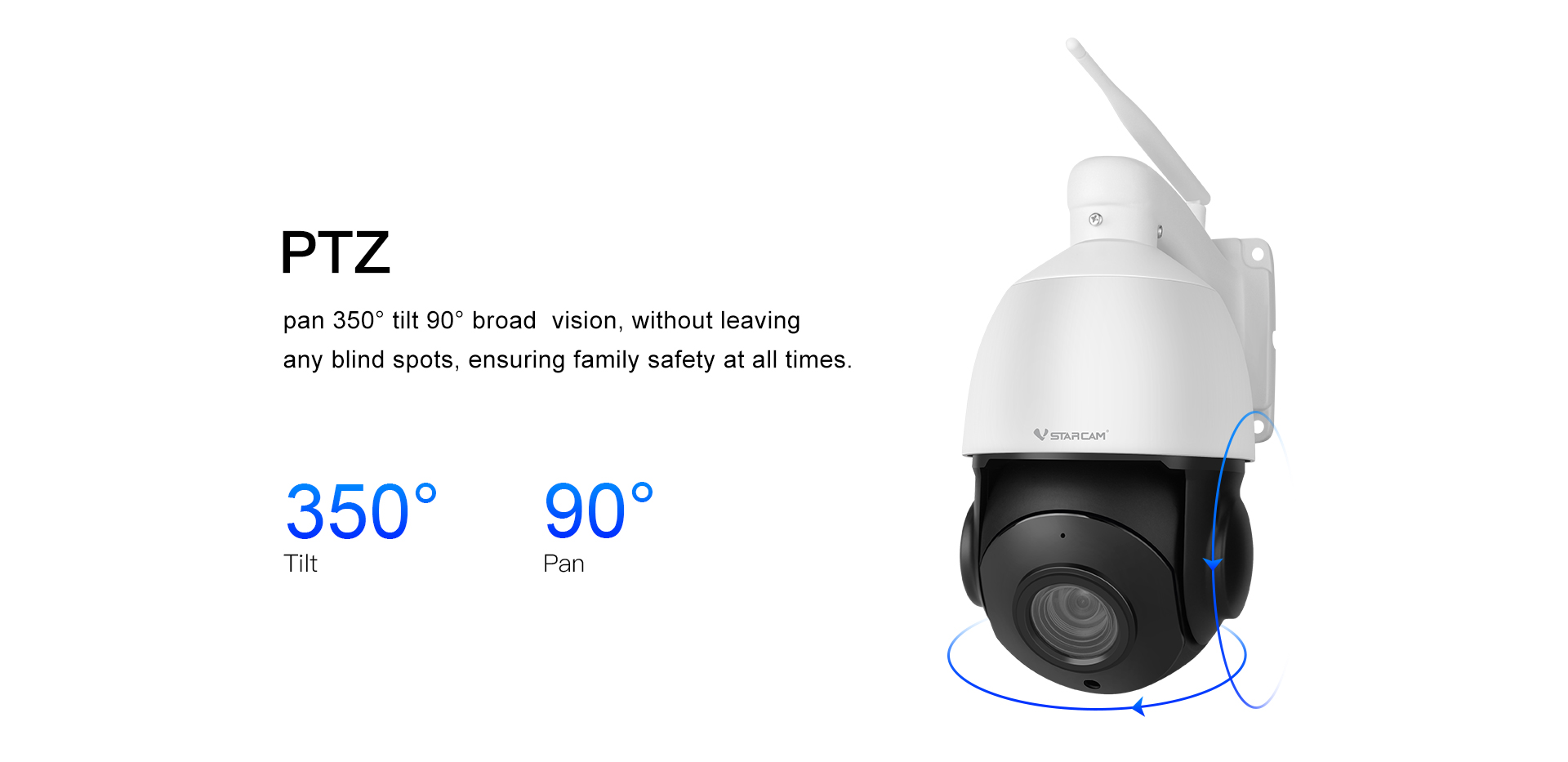

    Pan & Tilt Pan & Tilt Pan 350° /Tilt 100°
    Preset position Supports 16 (Mobile phone App supports 5) preset positions
    Storage Storage functions Supports T-Flash card(max supports 256GB); Cloud Storage; NVR;NAS
    Alarm Alarm detection Motion detection; Humanoid detection; Humanoid framing;  Smoke sound detection; Absence detection; Delimitation detection
    Physical Indicators Rated voltage DC12V  2A
    Power consumption Rated power: 11.1 W (With IR LED lights ON)/ Max power: 16.6W
    Operating condition Temperature: -10~50℃, Humidity: <90%
    Weight Net:1540g Gross:2060g(Note: in kind prevail)
    Package size 280x230x155mm LxWxH
