  • Sorts Type Parameters
    System Operating system Embedded Linux
    Online visitor Supports 4 visitors at the same time
    Collection CPU/Image sensor 1/3 inch CMOS sensor
    Minimum illumination 0.5 Lux(Color mode),  0.1 Lux(B&W mode)
    Lens/Viewing angle 5X Zoom lens/Viewing angle 105°@1X~40°@5X
    Night Vision IR-CUT with auto-switching, 6pcs 850nm IR LED lights, 4pcs high power white lights, Irradiation distance 15~20 m
    Video Compression standard H.264 main profile/H.264+ main profile/Motion-JPEG/JPEG
    Data rate Main stream: 1296p(2304×1296)@25fps
    Bit rate/maximum frame rate 128~4096kbps/25fps
    Image adjustment Brightness, contrast are adjustable
    Audio Input Built-in-28dB microphone
    Output Built-in 8Ω1.2W speaker
    Sampling frequency/bit width 8KHz/16bit
    Compression standard/Bit Rate G.711/32kbps
    Network Network interface 10Mbps/100Mbps adaptive /RJ45 interface
    Network protocol TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P etc.
    4G(Domestic Version)Network FDD:B1/B3/B5/B8
    4G(Europe Version)Network WCDMA:B1/B5/B8

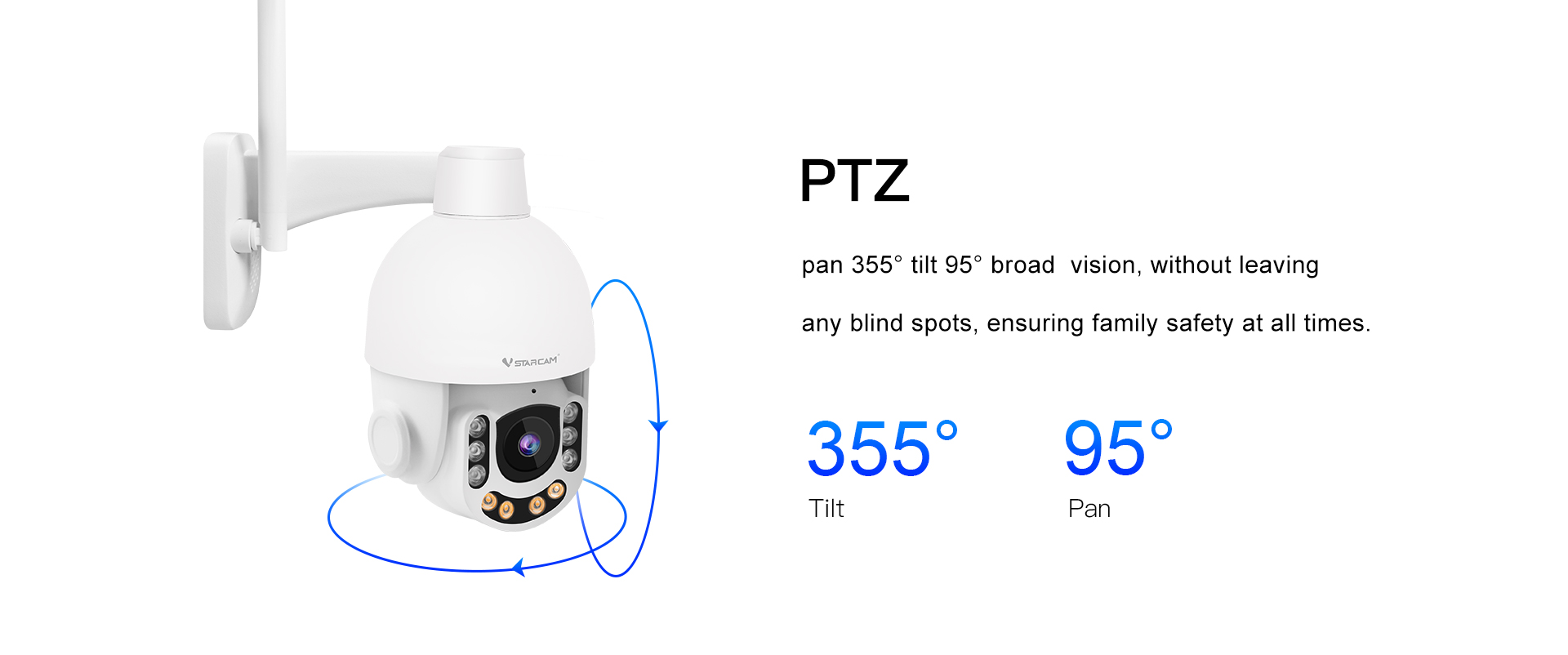

    Pan & Tilt    Pan & Tilt   Pan 355°/Tilt  95°
    Preset position Supports 16 (Mobile phone App supports 5) preset positions
    Storage Storage functions Support T-Flashcard(max256GB); Cloud storage; NVR;NAS
     Alarm Alarm detection Supports Motion detection; Humanoid detection; Humanoid tracking;  Absences alarm; Delimitation detection
    Physical  Rated voltage DC12V±5%
    Indicators Power consumption Rated power: 3.6 W(with IR LED lights ON)/ Max Power:13.2W
    Operating condition Temperature: -10~50℃; Humidity: <90%
    Weight N.W.: 970g   G.W.:1335g(Note: in kind prevail)
    Size 257x208x130mm(LxWxH)
