CG65

Detail Specs
  • Support
  • 4g Security camera 4g Security camera 4g Security camera 4g Security camera 4g Security camera 4g Security camera 4g Security camera 4g Security camera 4g Security camera 4g Security camera 4g Security camera 4g Security camera 4g Security camera 4g Security camera 4g Security camera

    SystemOperation systemEmbedded Linux OS
    Online visitorSupport 4 visitors at the same time
    Image CaptureImage sensor1/2.9 inch 1080p Progressive Scan CMOS
    Minimum Illumination0.3~0.5Lux(Color mode),0Lux(B&W Mode)
    Lens4.0mm@F2.0
    View Angle101°(Diagonal)
    Night visionAutomatic switching of dual filters, six 850nm infrared lamps and four high-power white lamps, with irradiation distance of 15-20 meters
    VideoEncode formatH.264+/H.264 main profile/Motion-JPEG/JPEG
    StreamsMain stream:1080p(1920×1080)@30fps/1296p(2304×1296)@30fps Substream:360p(640×360)@15fps
    Bit Rate/Max Fps128~4096kbps/30pfs
    Image adjustmentBrightness and contrast can be adjusted
    AudioInputBuilt in -28db microphone
    OutputBuilt-in 8Ω2w speakers
    Sampling frequency /width8KHz/16bit
    Compression standardADPCM/32kbps
    NetworkEthernet10Mbps/100Mbps adaptive /RJ45 interface

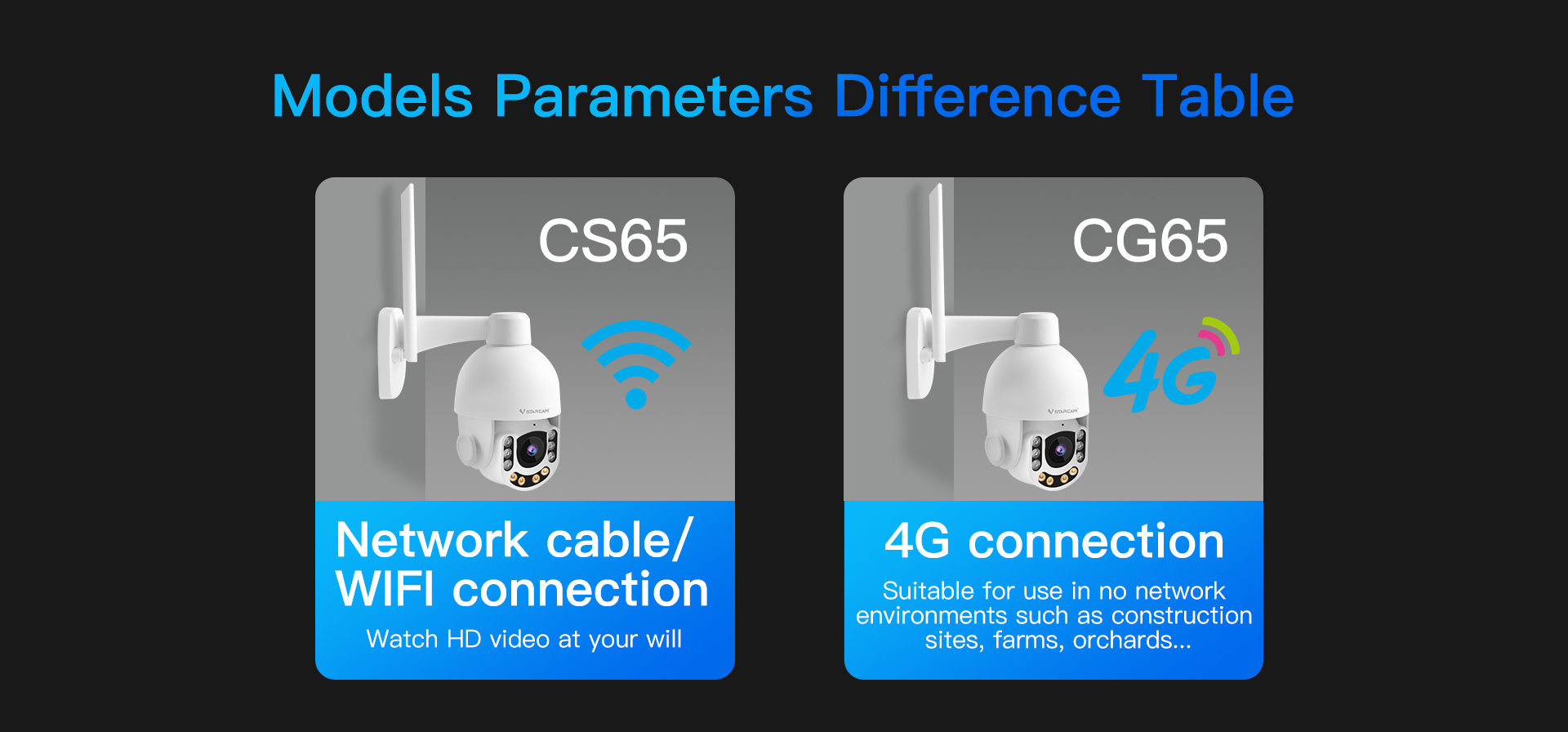

    4G(EU) networkWCDMA:B1/B5/B8 FDD:B1/B3/B5/B7/B8/B20 TDD: B38/B40/B41

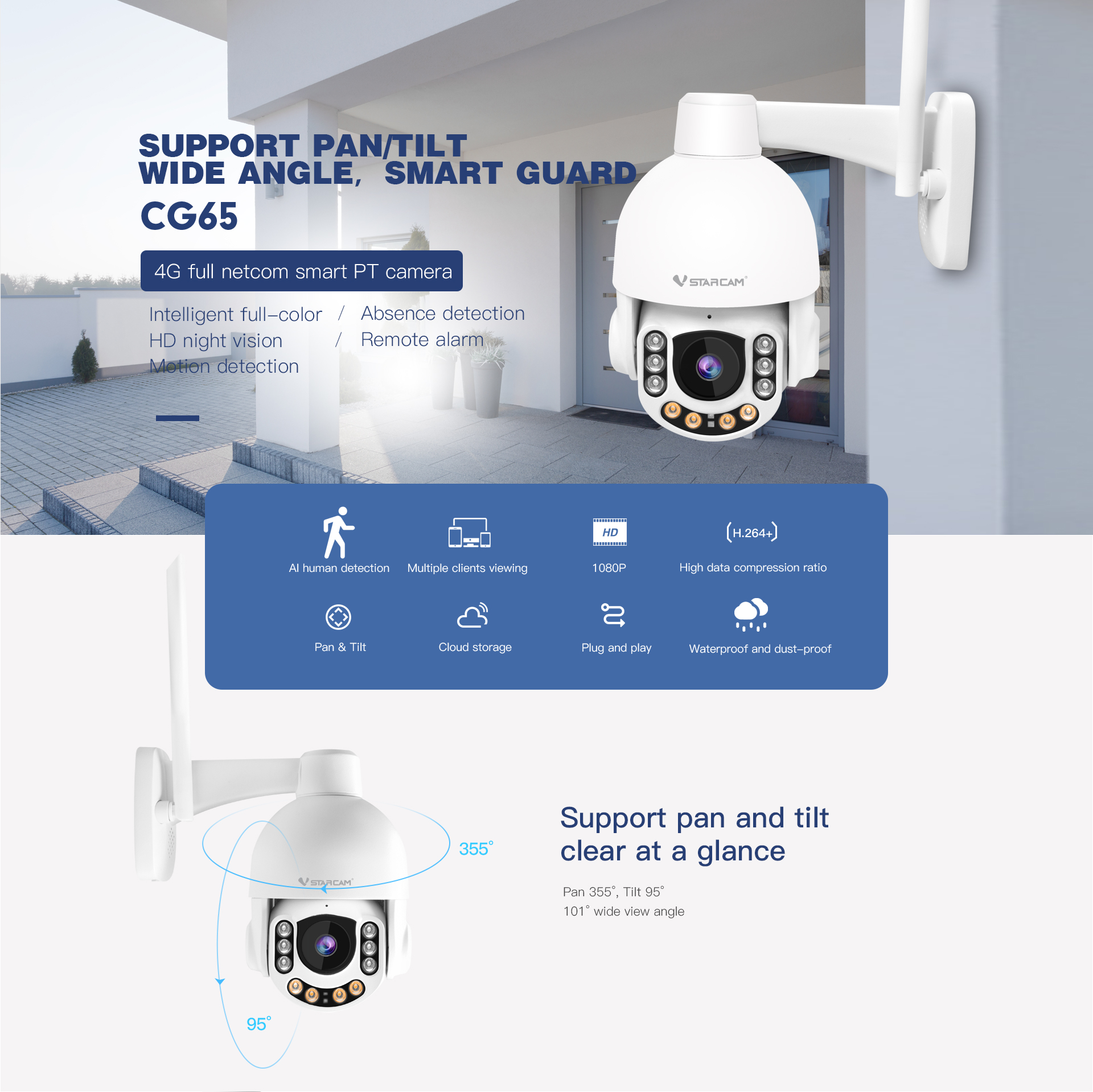

    Pan/TiltPan-tiltPan:355°,tilt:95°
    Preset positionPC APP:support 16 positions,  Phone APP:support 5 positions

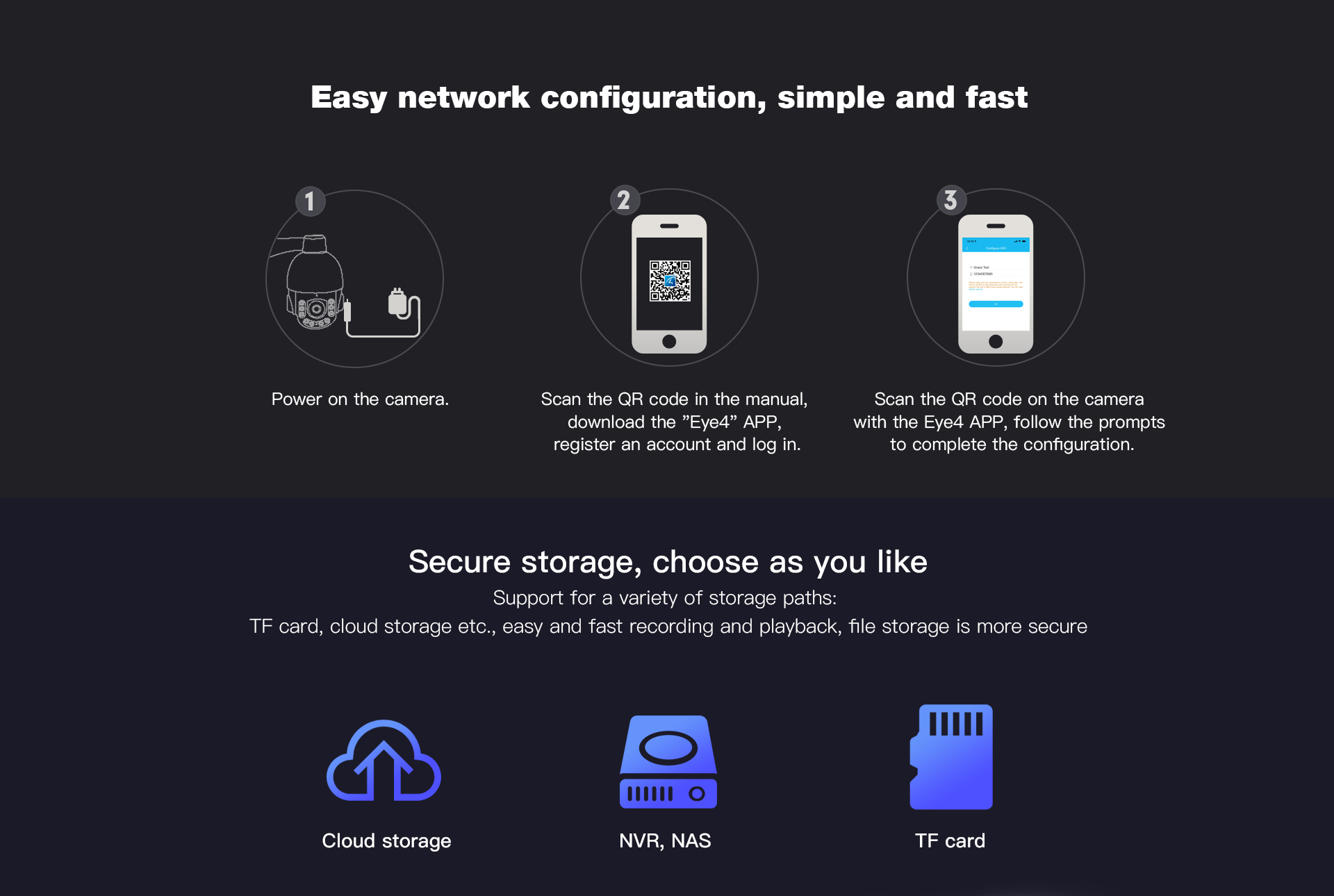

    MemorySocketTF Push-push socket,Maximum support 256GB; Cloud Storage
    AlarmAlarm TriggerSupport motion detection, human detection,smoke alarm detection, absence monitoring
    Physical EnvironmentalRated voltageDC12V±5%
    Power consumptionRelated power:8.5W(IR on)
    Operating conditionTemperature:-10~50℃,humidity:<90%
    WeightNet: 875 g  Gross:TBD g(Note: in kind prevail)

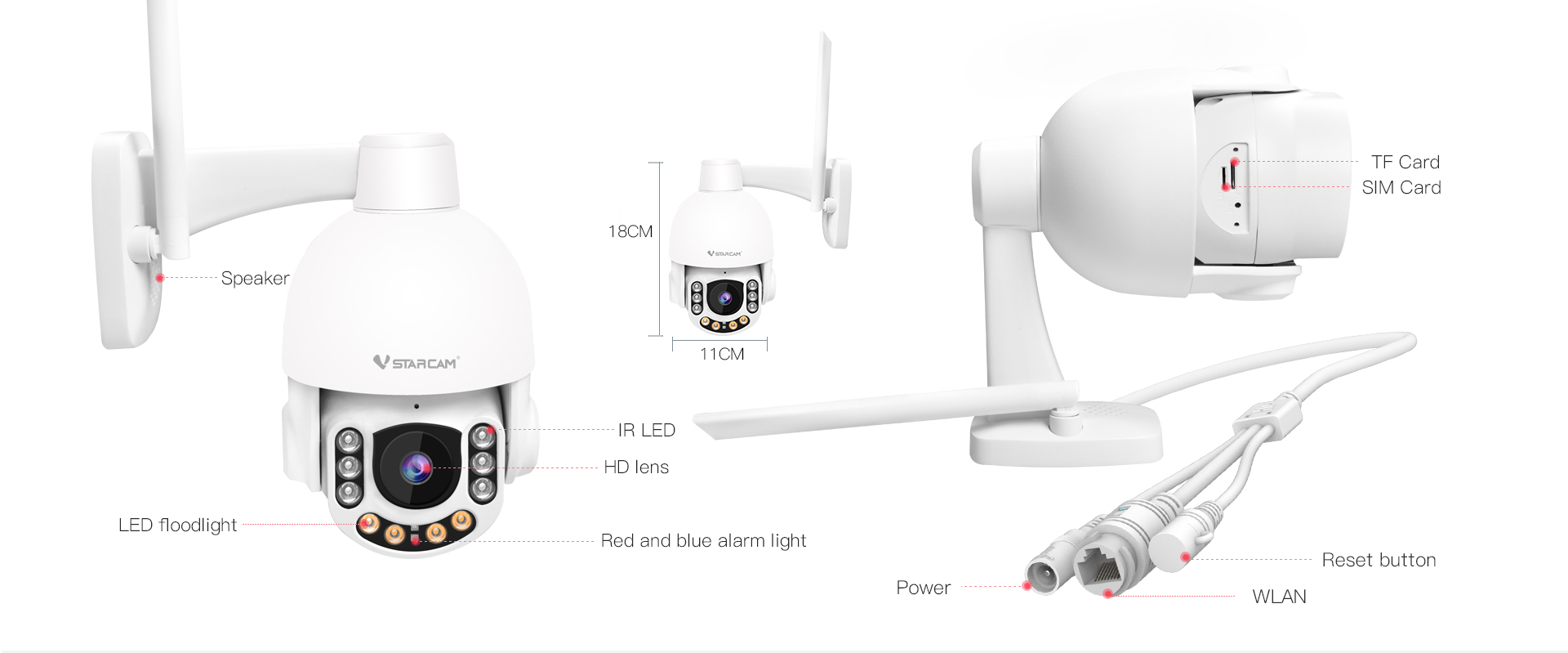

    Package size205x195x130mm(L*W*H)
