                System        Operating systemEmbedded Linux
    Online visitorSupports 4 visitors at the same time
    CPU/Image sensor1/2.9 inch 1080p progressive scan CMOS sensor
    Minimum illumination0.5 Lux(Color mode), 0.1 Lux(B&W mode)
    Lens/Viewing angle3.6mm@F2.0/101°(Diagonal)
    Night visionIR-CUT with auto-switching,9 pcs LED lights, 6 pcs IR LED lights, Irradiation distance: 20~30 m
    Compression standardH.264 main profile/Motion-JPEG/JPEG
    Data RateMain stream: 1080p(1920×1080)@30fps/1296p(2304×1296)@15fps Substream: 360p(640×360)@15fps
    Bit rate/maximum frame rate128~4096kbps/30fps
    Image adjustmentBrightness and contrast are adjustable
        AudioInputBuilt-in -38dB microphone
    OutputBuilt-in 8Ω2W speaker
    Sampling frequency/bit width8KHz/16bit
    Compression standard/Bit RateG.711/64kbps
        NetworkNetwork interface
    Network protocol
    Wireless network
    Wireless frequency
    4G Frequency bandWCDMA  FDD  TDD
    Wireless security encryption

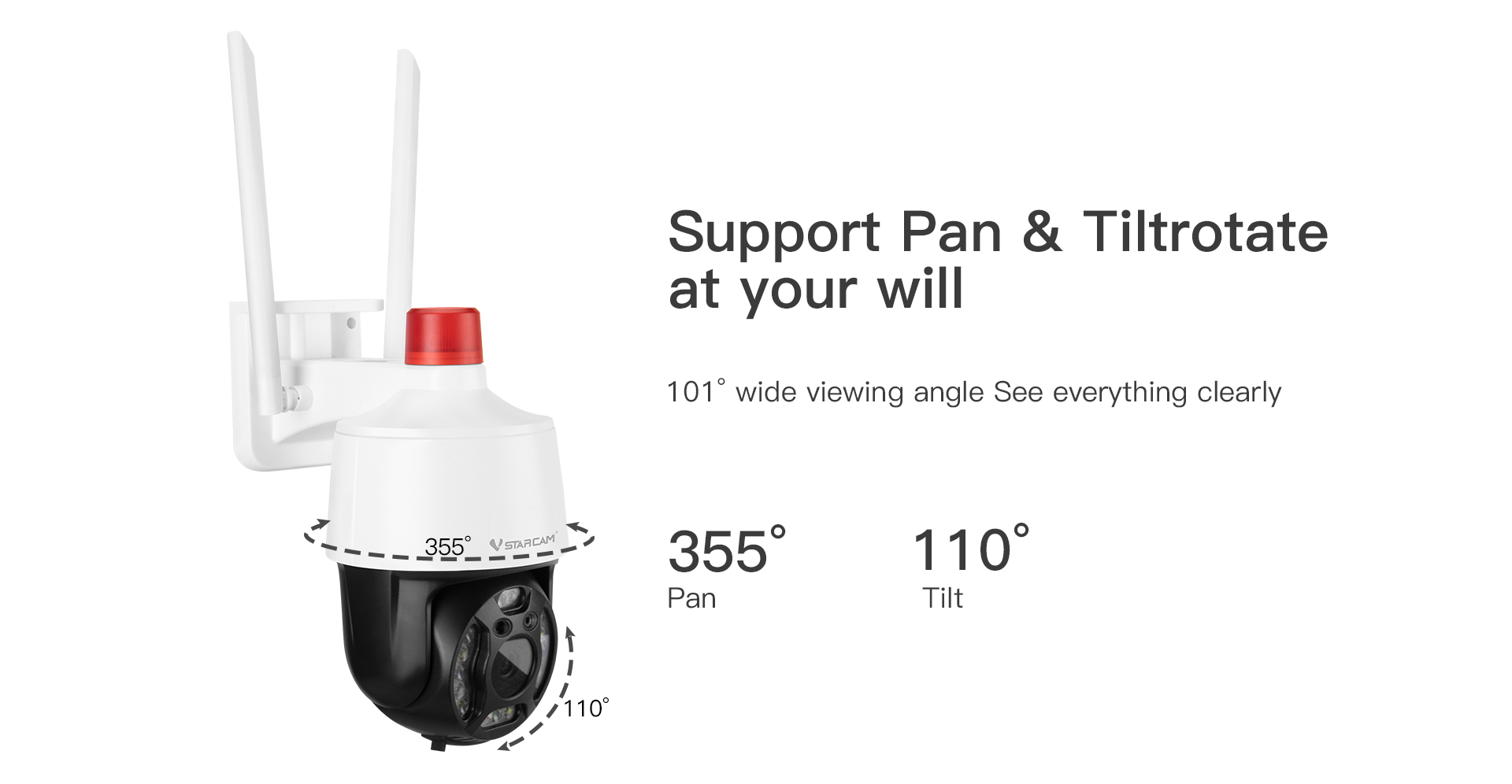

      Pan & Tilt  Pan & Tilt  Pan 355° /Tilt 110°
    Preset positionSupports 16 (Mobile phone App supports 5) preset positions
    StorageStorage functionsSupports T-Flash card(max supports 256GB); Cloud Storage; NVR;NAS
        Alarm    Alarm detectionMotion detection; Humanoid detection; Humanoid tracking;  Absence detection; Alarm voice prompt , flash & irradiation; LED light timing ON & OFF
      Physical IndicatorsRated voltageDC12V
    Power consumptionRated power: 4.5 W (With IR LED lights ON)/ Max power: 11 W (With Pan & Tilt ON)
    Operating conditionTemperature: -10~50℃, Humidity: <90%
    Weight(Note: in kind prevail)
    Package size(230x205x140)mm

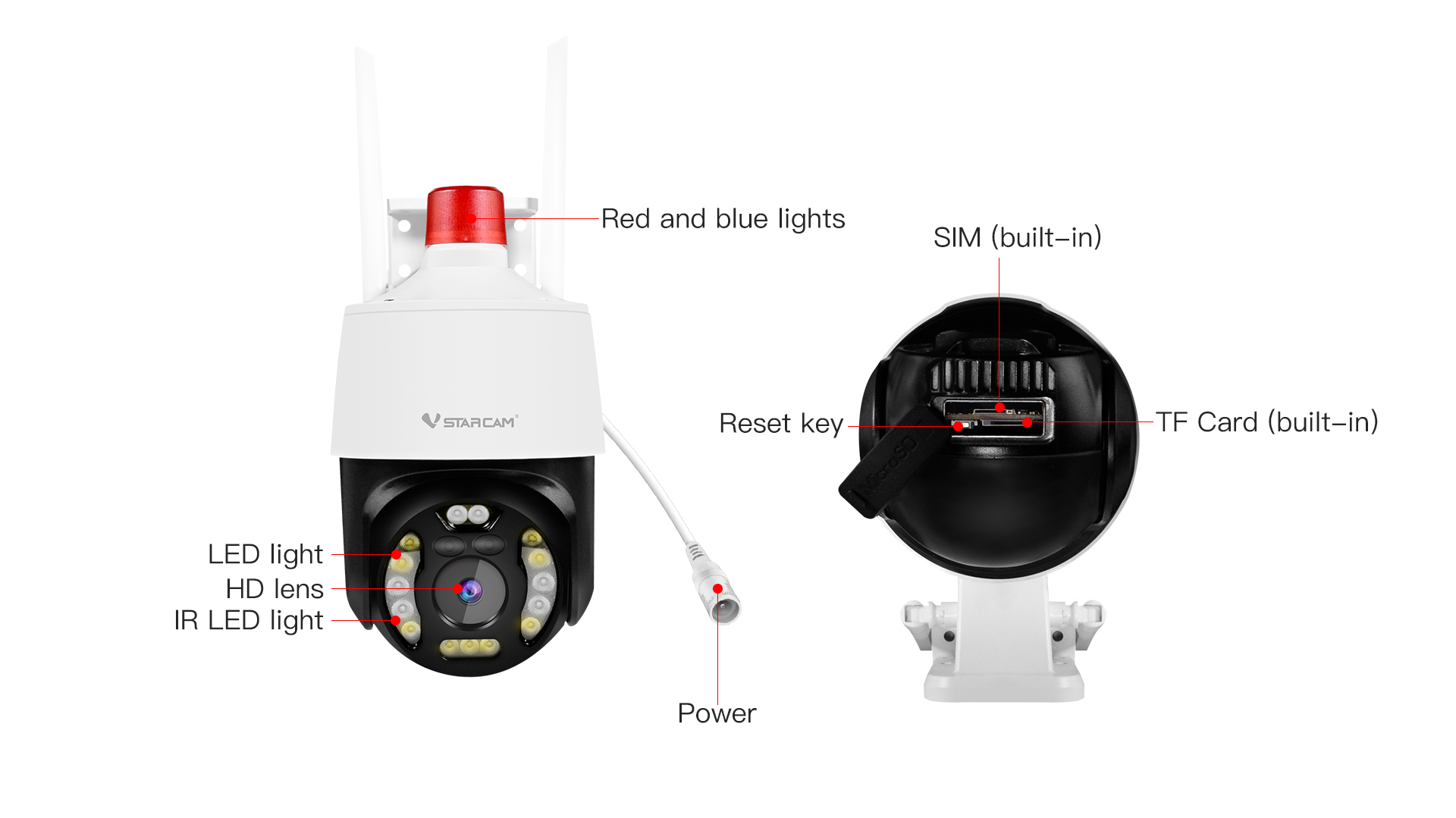

    CG668 Smart 4G Full Color Waterproof Camera
