    Sorts Type Parameters
                System         Operating system Embedded Linux
    Online visitor Supports 4 visitors at the same time
    CPU/Image sensor 1/2.9 inch 1080p progressive scan CMOS sensor
    Minimum illumination 0.5 Lux(Color mode), 0.1 Lux(B&W mode)
    Lens/Viewing angle 3.6mm@F2.0/101°(Diagonal)

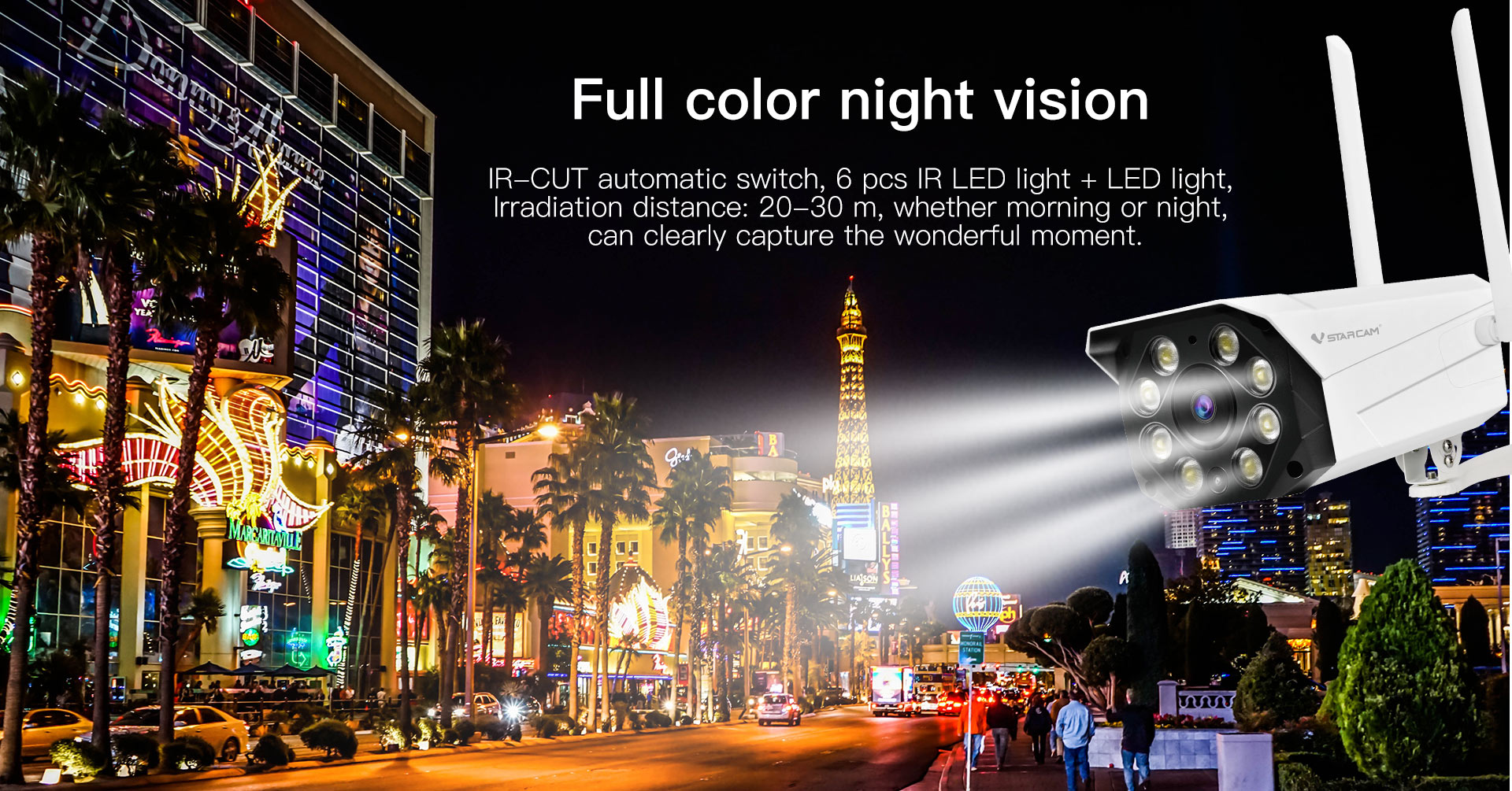

    Night vision IR-CUT with auto-switching,6 pcs IR LED lights, 2 pcs Red & blue lights alarm; Irradiation distance: 20~30 m
    Compression standard H.264 main profile/Motion-JPEG/JPEG
    Data Rate Main stream: 1080p(1920×1080)@15fps/1296p(2304×1296)@15fps Substream: 360p(640×360)@30fps
    Bit rate/maximum frame rate 128~4096kbps/30fps
    Image adjustment Brightness and contrast are adjustable
        Audio Input Built-in -38dB microphone
    Output Built-in 8Ω2 W speaker
    Sampling frequency/bit width 8KHz/16bit
    Compression standard/Bit Rate G.711/64kbps
        Network Network interface
    Network protocol
    Wireless network
    4G Frequency band WCDMA FDD TDD
    Wireless frequency
    Wireless security encryption
    Storage Storage functions Supports T-Flash card(max supports 256GB); Cloud storage; NVR;NAS
        Alarm     Alarm detection Delimitation detection; Humanoid framing; Humanoid detection; Absence detection; Alarm voice prompt , flash & irradiation; LED light timing ON & OFF
      Physical Indicators Rated voltage DC12V±5%
    Power consumption Rated power: TBD W (With IR LED lights ON)/ Max power: TBD W (With Pan & Tilt ON)
    Operating condition Temperature: -10~50℃, Humidity: <90%
    Weight (Note: in kind prevail)
    Package size (208x149x110)mm
