| Sorts | Type | Parameters |
| System | Operation system | Embedded Linux OS |
| Online visitor | Support 4 visitors at the same time | |
| Image Capture | Image sensor | Progressive Scan CMOS |
| Minimum Illumination | 0. 1-0.5Lux(color mode), 0 Lux(B&W mode) | |
| View Angle | 130˚(Diagonal) | |
| Night vision | 4 pcs 940nm 14mil patch IR LED, IR irradiation distance: 3m | |
| Video | Encode format | H.264 main profile@level:4.0/Motion-JPEG/JPEG |
| Streams | Main stream：1920*1080@30fps； Sub stream：640*360@25fps/30fps | |
| Bit Rate/Max Fps | 128~4096kbps/30pfs | |
| Image adjustment | Brightness and contrast can be adjusted | |
| Encode format | H.264 main profile/Motion-JPEG/JPEG | |
| Audio | Input | Built-in－38±5dB microphone |
| Output | N/A | |
| Sampling frequency /Bit width | 8KHz/16bit | |
| Compression standard /code rate | ADPCM/32kbps | |
| Network | Ethernet | N/A |
| Protocols | TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,P2P etc | |

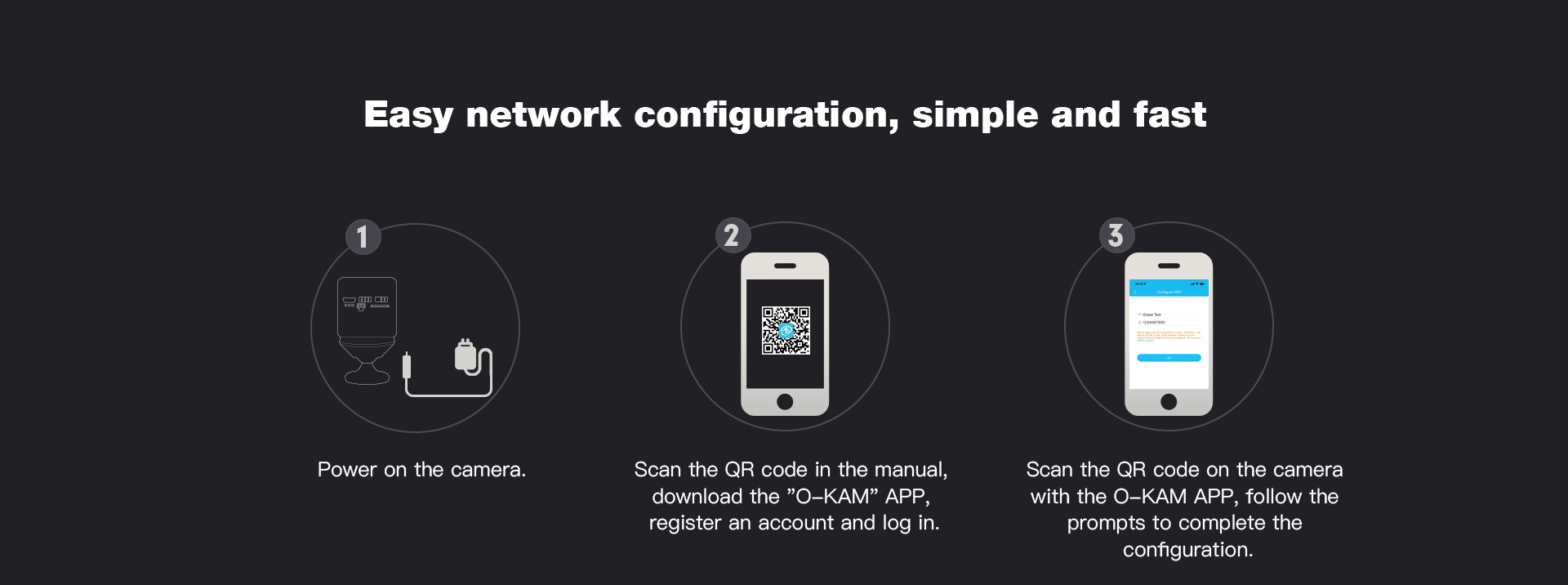

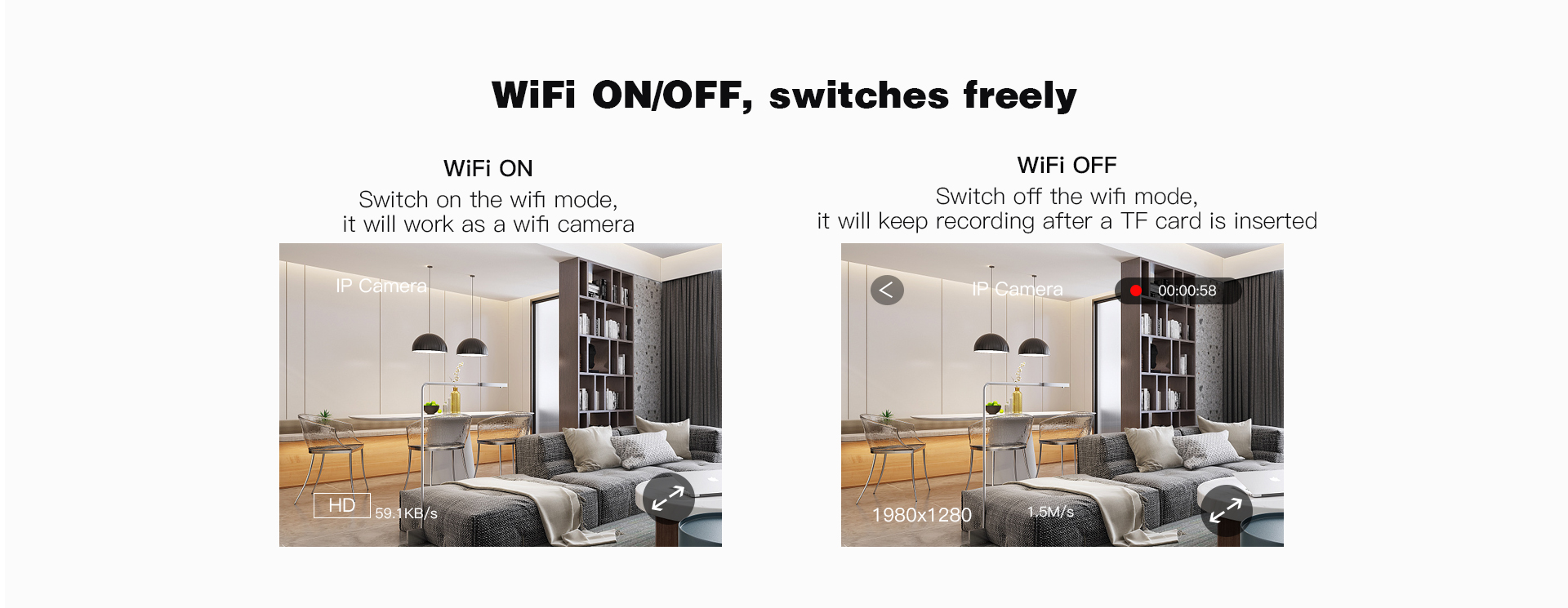

| Wireless LAN | IEEE802. 11b/g/n, Supports AP mode | |
| Wireless LAN Frequency | 2.4~ 2.4835GHz | |
| Wireless LAN security | 64/ 128-bit WEP/WPA-PSK/WPA2-PSK data encryption | |
| Memory | Socket | TF Card up to 256GB,Cloud storage |

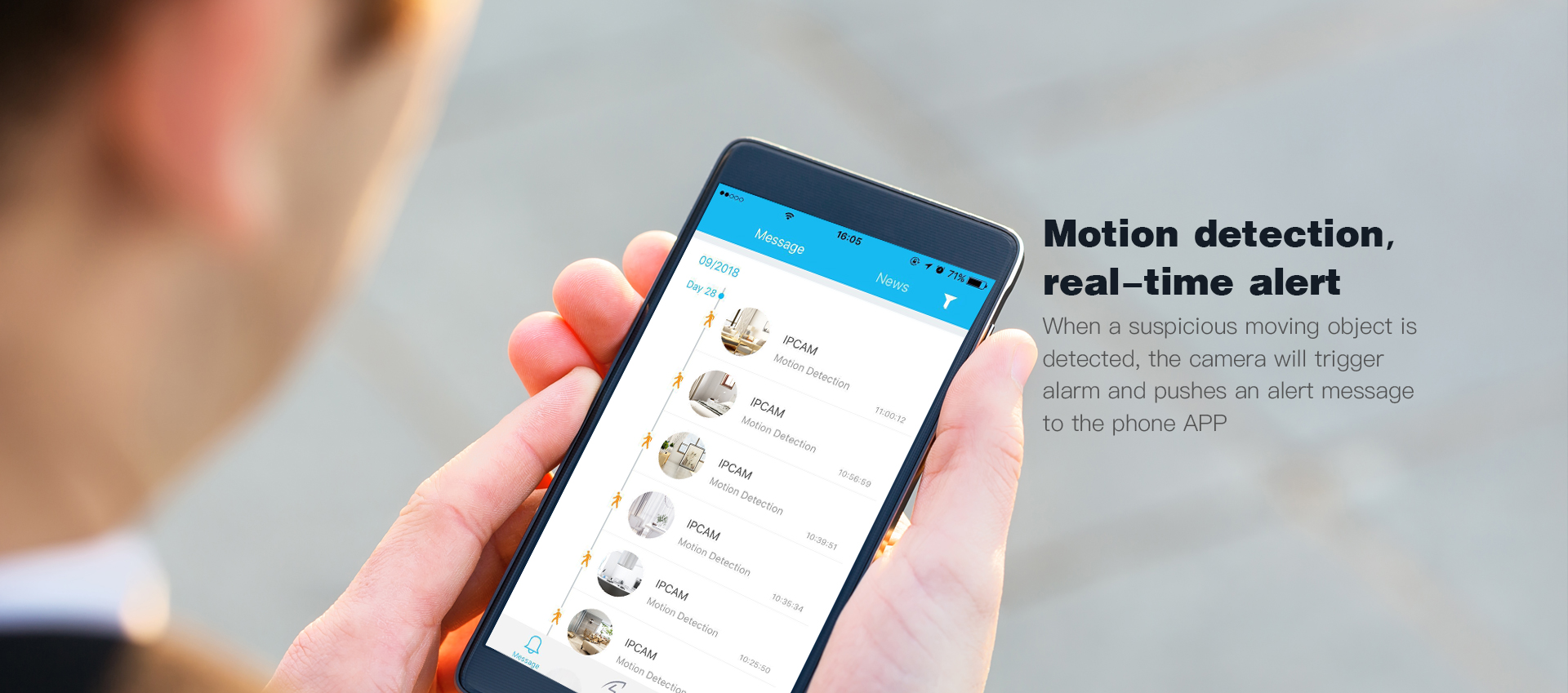

| Alarm | Alarm Trigger | Motion detection |
| Physical Environmental | Rated voltage | DC5V±5%@Micro USB |
| Power consumption | Rated power: 1.3W (with infrared lights on) | |
| Operating condition | Temperature:-10~50℃,humidity:＜90% | |
| Weight | Net: TBD Gross：TBD (Note: in kind prevail) | |

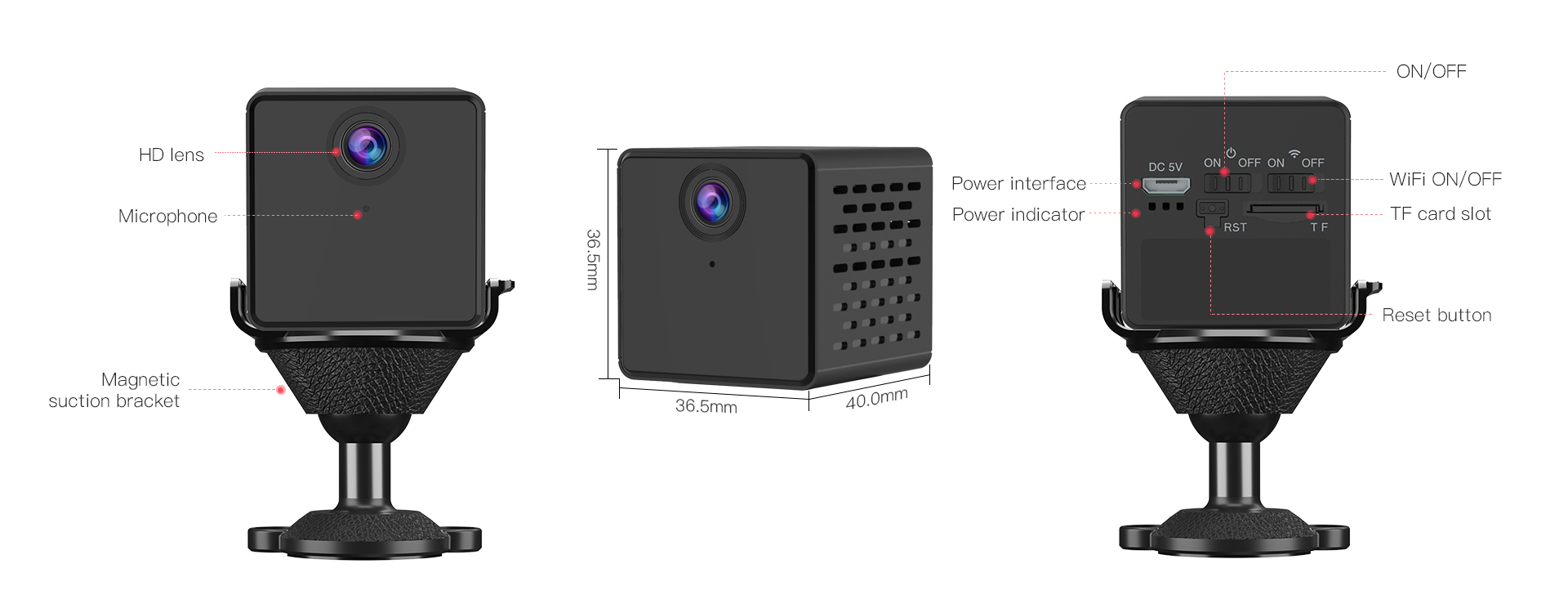

| Package size | 130x90x50mm (L×W×H) |
