CS24B

Detail Specs Videos
  • Support
  • smart ip camera smart ip camera smart ip camerasmart ip camera smart ip camera smart ip camera smart ip camera smart ip camera smart ip camera smart ip camera smart ip camera smart ip camera smart ip camera smart ip camerasmart ip camera

    SystemOperation systemEmbedded Linux OS
    Online visitorSupport 4 visitors at the same time
    Image CaptureCPU/Image sensor1/2.9 inch 1080p Progressive Scan CMOS
    Minimum Illumination0.3~0.5Lux(Color mode),0Lux(B&W Mode)
    Lens/View Angle4.0mm@F2.0/101°(diagonal)
    Night visionDual Filter,IR-Cut,6pcs 850nm patch IR LED IR irradiation distance:5~10m
    VideoEncode formatH.264 main profile/H.264+ main profile/Motion-JPEG/JPEG
    ResolutionMain Stream:1080p(1920×1080)@30fps/1296p(2304×1296)@30fps Substream:360p(640×360)@15fps
    Bit Rate/FPS/Frequency128~4096kbps/1~30pfs
    Image adjustmentBrightness and contrast can be adjusted
    AudioInputBuilt-in -38 dB microphone
    OutputBuilt-in speaker(8Ω1W)
    Sampling frequency / width8KHz/16bit
    Compression standardADPCM/32kbps
    NetworkEthernet10Base-T / 100Base-TX, RJ45 connector
    ProtocolsTCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,P2P etc
    Wireless LANIEEE802.11b/g/n
    Wireless LAN Frequency2.4~ 2.4835GHz
    Wireless LAN security64/128-bit WEP/WPA-PSK /WPA2-PSK data encryption
    Pan-tiltPan-tiltPan:345°,Tilt:84°
    Preset positionPC APP:support 16 positions,  phone APP:support 5 positions
    MemorySocketTF Push-push socket,Maximum support 256GB; cloud storage;NVR;NAS

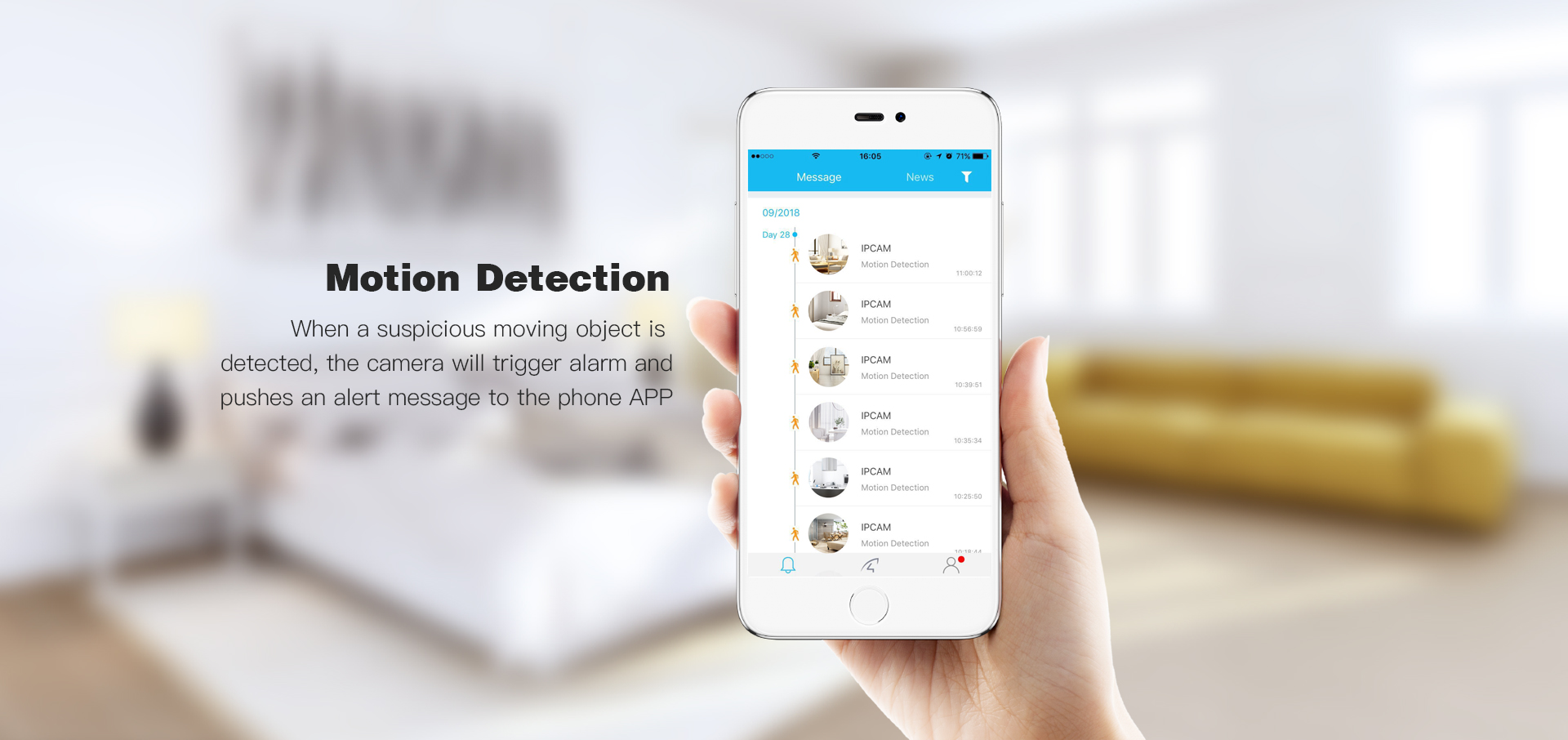

    AlarmAlarm TriggerMotion detection, Human detection, Human tracking, Smoke detector alarm detection, absence monitoring
    Physical EnvironmentalRated voltageDC 5V±5%

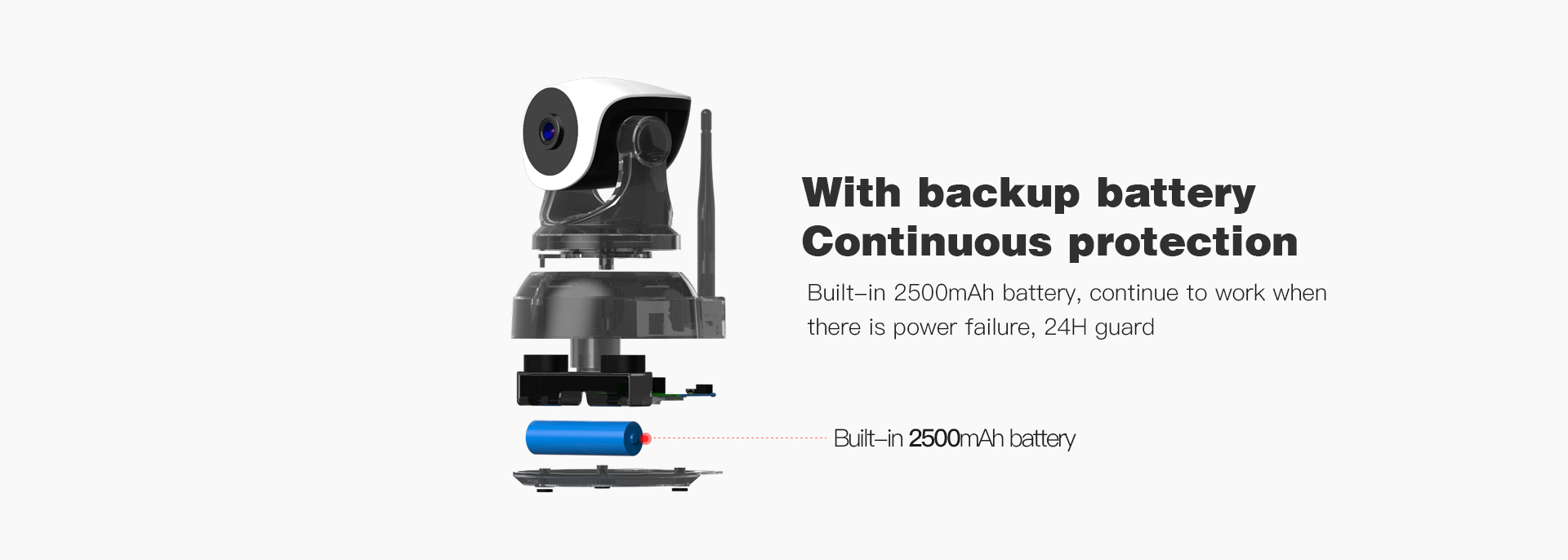

    Battery3.7V 2500mAh  18650 lithium battery
    Power consumptionRelated power:2.7W(IR LED on), Maximum Power: 3.5W(Pan&Tilt on)
    Operating conditionTemperature:-10~50℃,humidity:<90%
    WeightNet:300g   Gross: 570g (Note: in kind prevail)
    Package size197*157*120 mm(L×W×H)

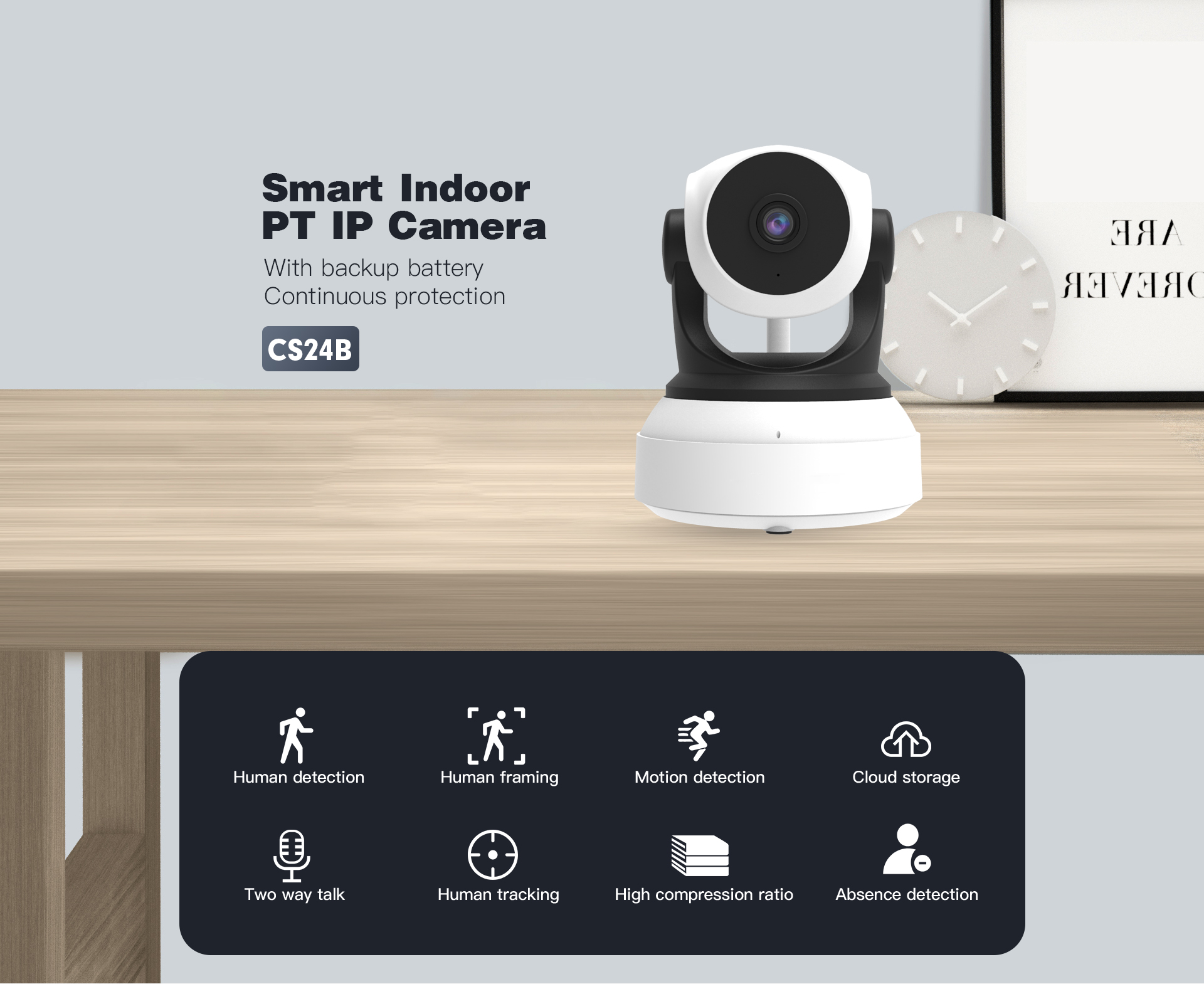

    Indoor IP Camera with Backup Battery
