  • VStarcam cb67d
    ✮2K UHD wireless connection
    ✮Remote active wake-up, two-way voice intercom
    ✮400ms quick start
    ✮Intelligent detection of human movement, intelligent alarm push
    ✮Dual lens, free choice of far and near focus, HD image is close to your eyes.

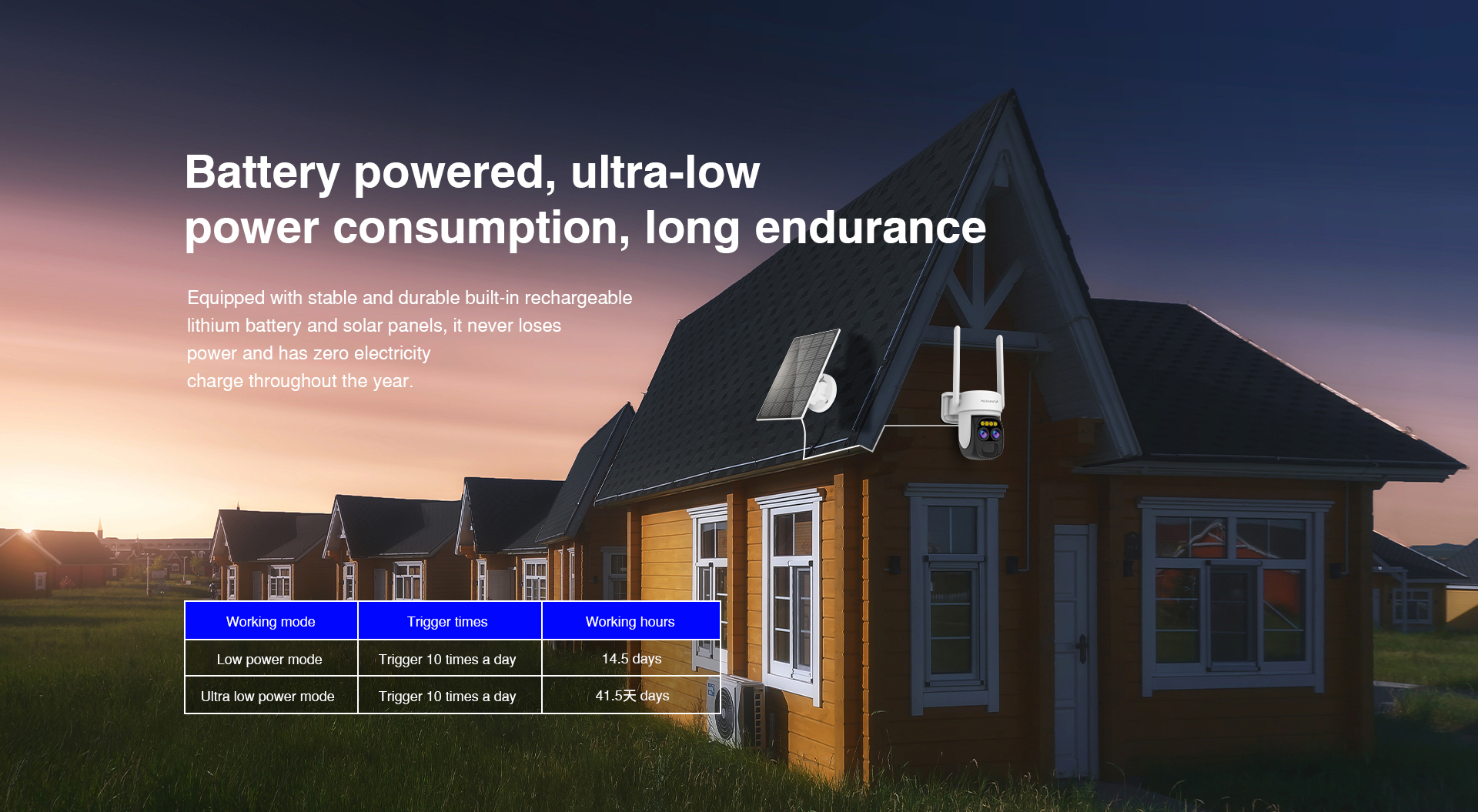

    ✮Ultra-low power system optimization
    ✮Free cloud storage to save alarm videos
    ✮Support external connection of 5W-15W voltage stabilizer free solar panel, continuous power supply, and the device will not powered off
    ✮Dual light source, full color day and night
    Sorts Type Parameters
    System Operating system Linux
    Online visitor Supports 4 visitors at the same time
    Collection CPU T31
    No. of Lens Dual Lens
    Lens 4mm+12mm Long focus lens+short focus lens, IRCUT integrated
    Image sensor 1/2.9 CMOS sensor
    Minimum illumination 0.01Lux
    Sensor performance Support automatic white balance, automatic gain control and automatic backlight compensation
    Night Vision 4 IR lights+4 white lights, Dual light source, 20MIL,850nm wavelength
    Viewing angle 100°/30°
    Video Resolution 2304×1296P/15fps/3MP
    Zoom Dual lens stepless 5x hybrid zoom
    Night Vision Full color night vision/black and white night vision/intelligent night vision
    Compression standard H.264 /MJPEF/JPEG
    IR control When the IR night vision function is enabled, IR and ICR are automatically detected; when the IR night vision function is disabled, IR is off and ICR is fixed in the day vision mode.
    Bit rate CBR/VBR two rate control modes, and the output rate range is 128~4096kbps
    Image adjustment Flip up and down, OSD display
    Audio Input Built-in-38dB microphone
    Output Built-in 8Ω1W speaker
    Sampling frequency/bit width 8KHz/16bit
    Compression standard/Bit Rate G711A
    AI Humanoid detection Humanoid detection, filtering invalid video content
    Object tracking /
    Area detection Free daub, only monitoring the areas concerned by users
    Smart notification sound Different devices push different sounds, so that you can know exactly which device is triggered
    Intelligent alarm sound Set different equipment alarm sounds according to different scenarios
    More AI functions (testing) Pets, vehicles, parcels, etc
    Network Network WiFi
    Wireless network IEEE802.11b/g/n
    Wireless frequency 2.4~2.4835GHz
    Wireless security encryption 64/128-bit WEP/WPA-PSK/WPA2-PSK data encryption
    Wireless connection AP hotspot networking, QR code networking

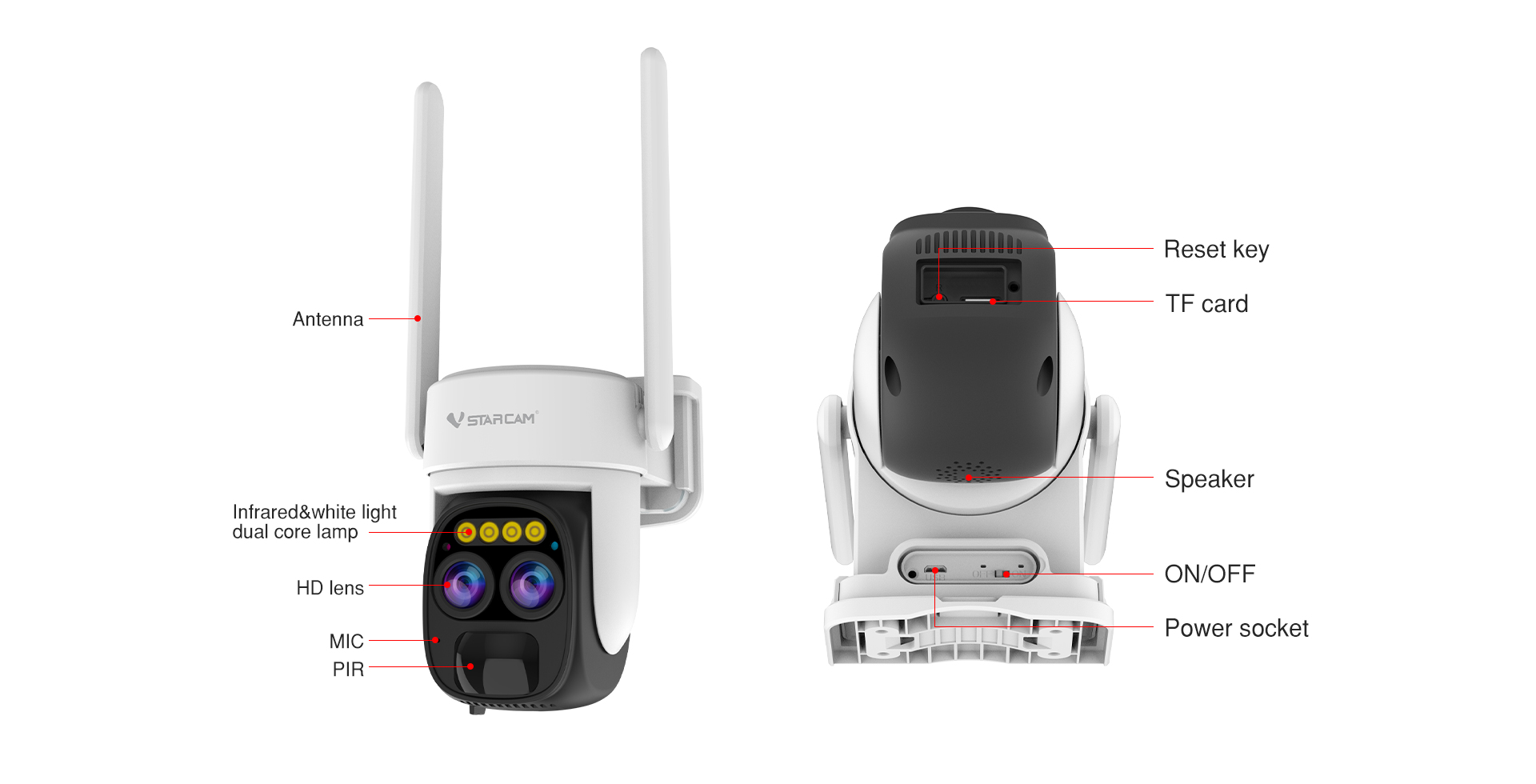

    Key/interface USB Micro usb/Charging port
    Key1 Toggle switch/left and right toggle switch mode
    Reset key 1 reset key/long press to restore factory settings
    Storage External TF card Support TF card (up to 256GB)
    Cloud storage Free loop cloud storage
    Alarm Alarm detection Motion detection/PIR human detection/humanoid detection, adjustable distance by gear, detection distance up to 15M
    Physical Indicators Rated voltage DC5V±5%
    Operating condition Temperature: -10~50℃; Humidity: <90%
    Weight Gross weight: 1070g (Note: in kind prevail)
    Size Camera: 233 * 109 * 133mm, Color box: 205 * 181 * 147mm, Outer packaging box: 560 * 425 * 470mm, 18PCS/box
    Packing list Camera * 1, screw package, MICRO USB * 1, manual * 1, (solar panel * 1, solar panel bracket * 1 optional)

    VStarcam Dual Lens Wide Angle Zoom Wireless Camera CB67D

    VStarcam Dual Lens Camera CB67D
