    Product features
    ✮Stable 4G connection
    ✮Remote active wake-up, two-way voice intercom
    ✮Quick start, start recording within 400ms
    ✮Intelligent detection of human movement, intelligent alarm push

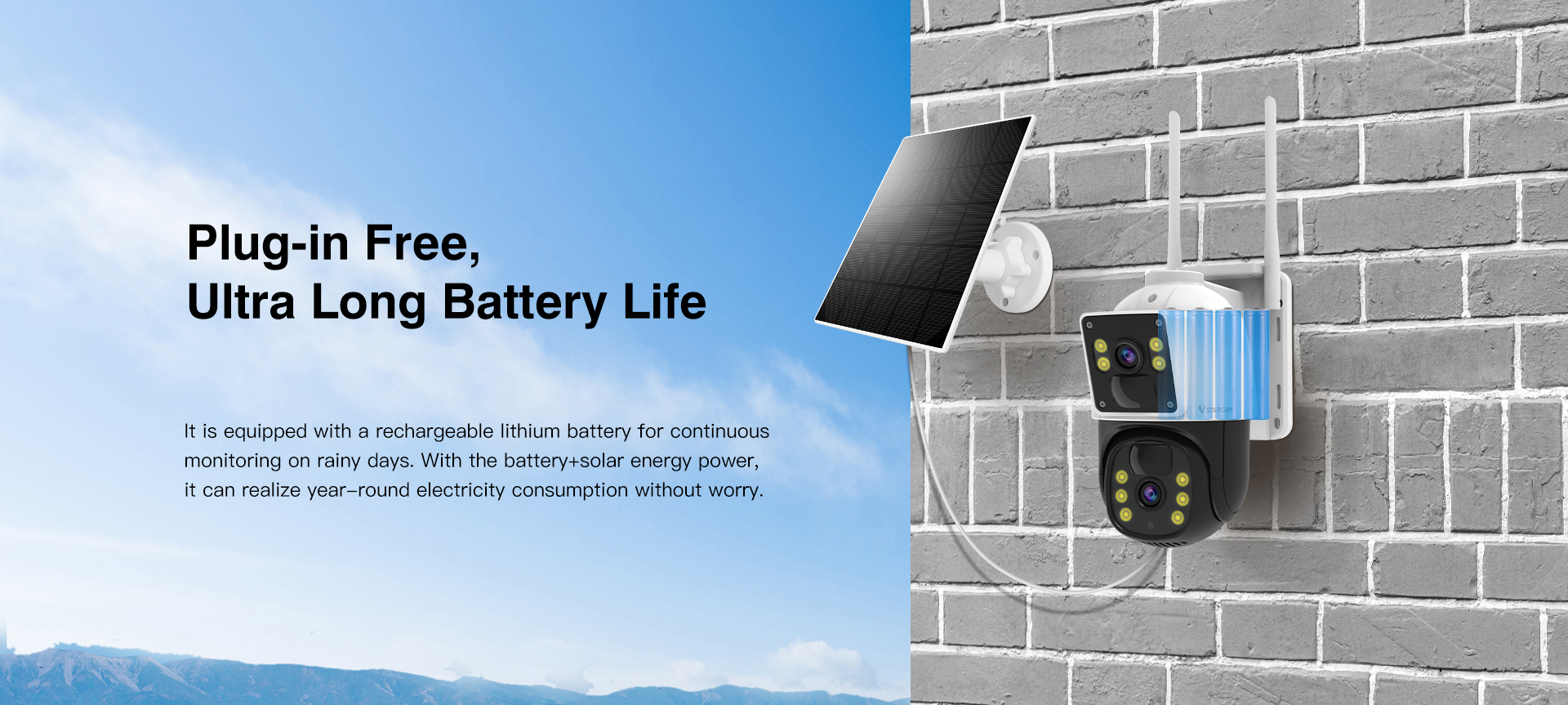

    ✮8000mAh battery powered, low battery reminder

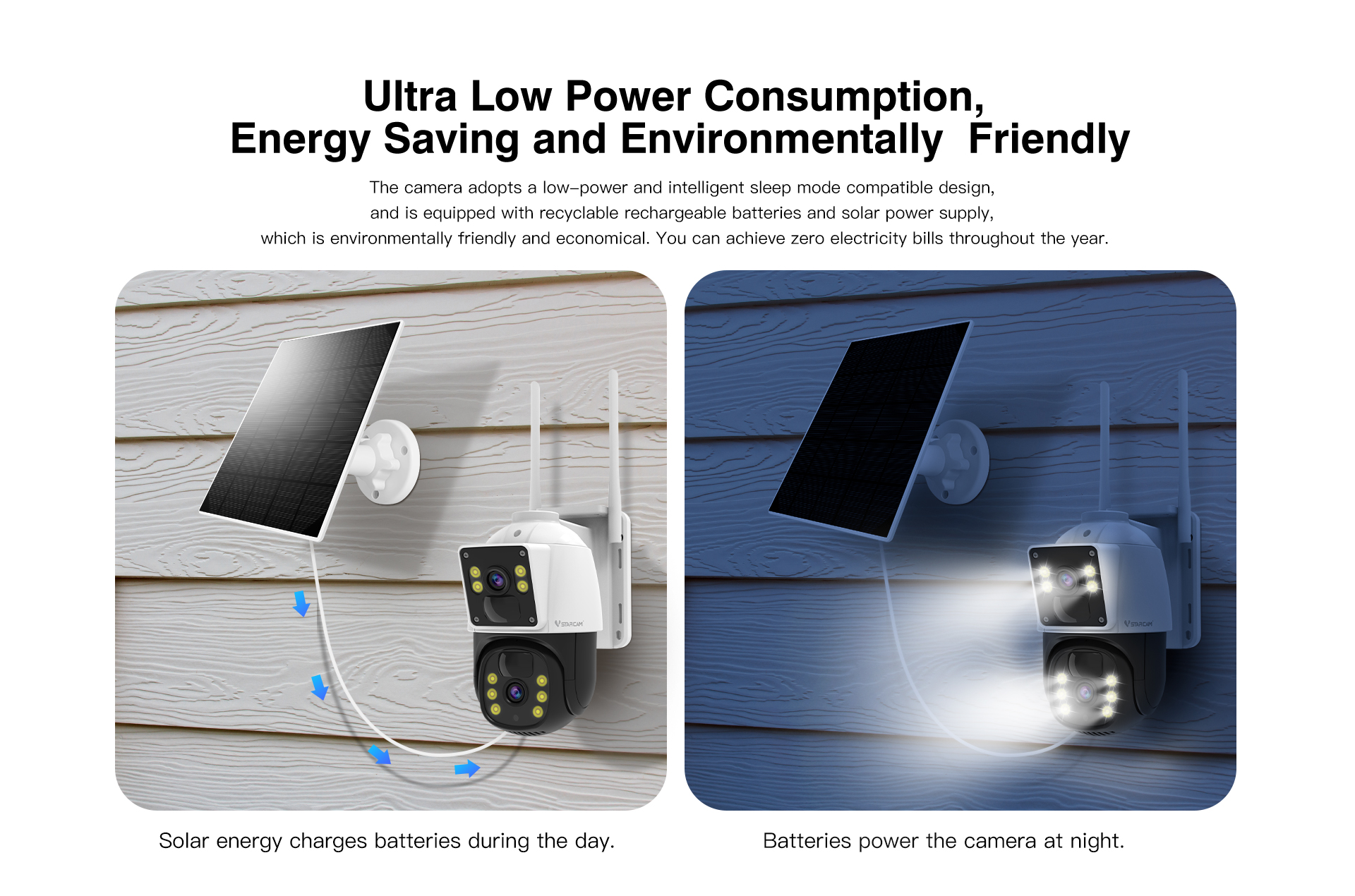

    ✮Low power system optimization
    ✮1-day free cloud storage to save alarm videos
    ✮Dual lens dual recording to guard different directions
    ✮Dual lens linkage, automatic zoom
    ✮Dual light source, full color day and night
    ✮Low power and corded power compatible design
    Sorts Type Parameters
    System Operating system Linux
    Online visitor Supports 4 visitors at the same time
    Collection CPU T40N
    Internal storage 1GB
    Image sensor GC2083+GC2083
    Minimum illumination 0.8Lux/F1.4(color mode), 0.3Lux/F1.4(B&W mode)
    Lens Bullet camera: focal length 4mm, 1G3P Dome camera: focal length 4mm, 1G3P
    Sensor performance Support automatic white balance, automatic gain control and automatic backlight compensation
    PTZ Horizontal 305°, vertical 90°
    Viewing angle Bullet camera:100° diagonal, dome camera:60° diagonal
    Video Night vision Full color night vision, dual light source, 6 infrared lights+6 white lights
    Compression standard H.264 /MJPEF/JPEG
    Multi stream Main stream: 1080P/15fps, sub stream:360P/15fps
    IR control When the IR night vision function is enabled, IR and ICR are automatically detected; when the IR night vision function is disabled, IR is off and ICR is fixed in the day vision mode.
    Bit rate CBR/VBR two rate control modes, and the output rate range is 128~4096kbps
    Image adjustment Vertical, horizontal adjustable, OSD display
    Audio Input Built-in-38dB microphone
    Output Built-in 8Ω1W speaker
    Sampling frequency/bit width 8KHz/16bit
    Compression standard/Bit Rate G711A
    AI Humanoid detection Humanoid detection, filtering invalid video content
    Area detection Free daub, only monitoring the areas concerned by users
    Smart notification sound Different devices push different sounds, so that you can know exactly which device is triggered
    Intelligent alarm sound Set different equipment alarm sounds according to different scenarios
    More AI functions (testing) Pets, vehicles, parcels, etc

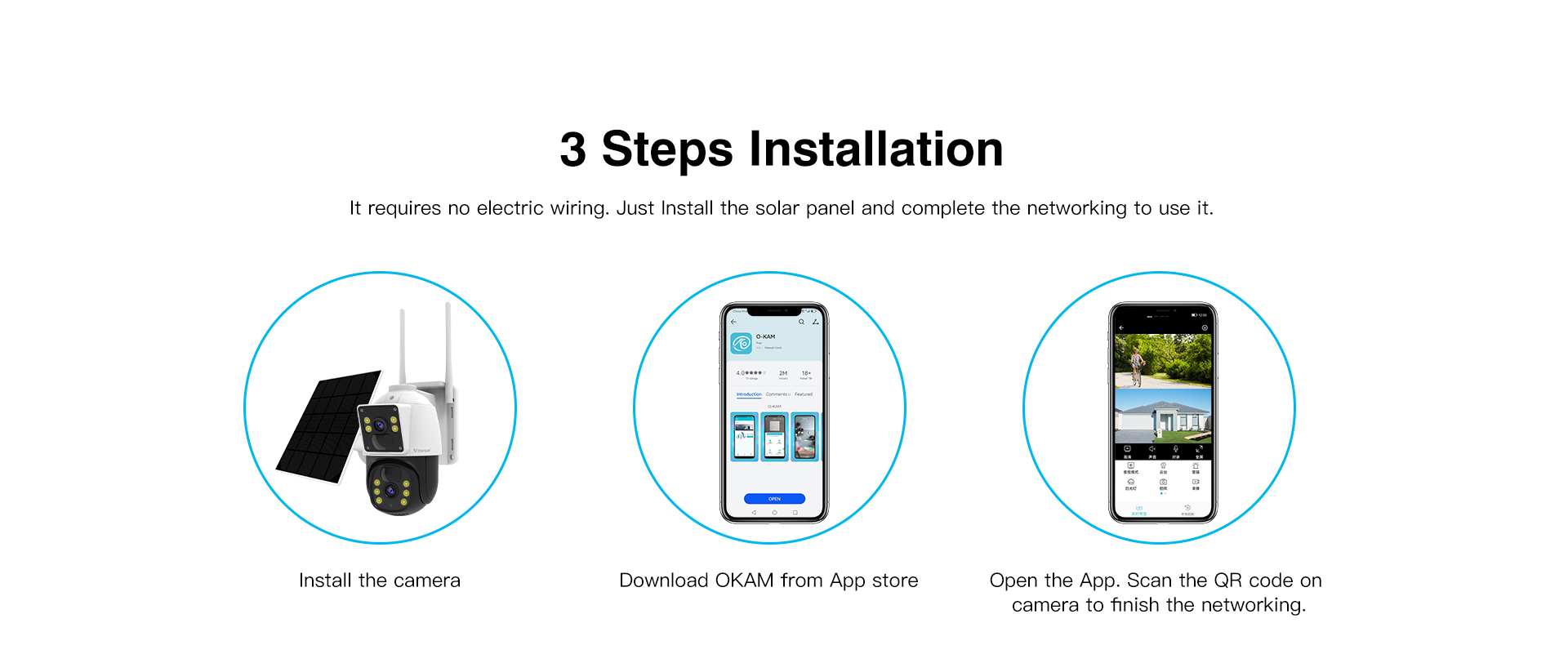

    Network Networking Use APP to scan the QR code on device to add; Use the device to scan QR code on APP to add
    Cat1 China FDD:B1/B3/B5/B8 TDD:B34/B38/B39/B40/B41
    Cat4 Overseas European/Japanese/US versions
    Key/interface Key 1 On/Off key
    Reset key long press to restore factory settings
    Storage External TF card Support TF card (up to 256GB)
    Cloud storage One-day free loop cloud storage
    Alarm Sound light alarm Sound light alarm,6 infrared lights+6 white lights, full color night vision
    Alarm detection Support for human detection, PIR infrared human detection for 10 meters
    Physical Indicators Rated voltage DC5V±5%
    Power supply Equipped with 8000mAh battery
    Consumption Sleep standby 300uA,working:400MA-1.5A max
    Operating condition Temperature: -10~55℃; Humidity: <90%
    Weight Net weight: 770g; Gross weight: 1680g
    Size Camera:210*115*206mm

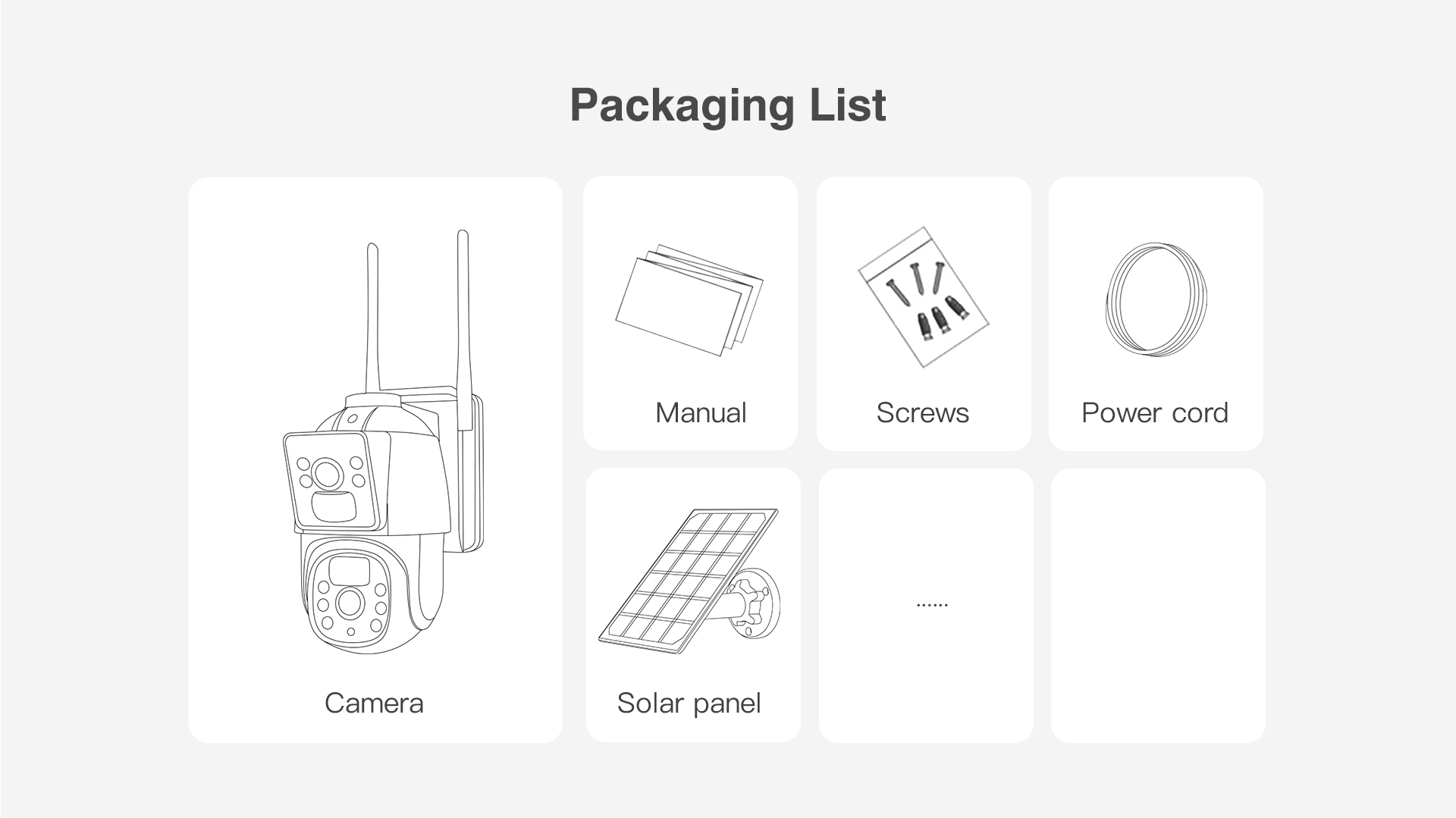

    Packing list Camera * 1, manual * 1, solar panel * 1, solar panel bracket * 1
