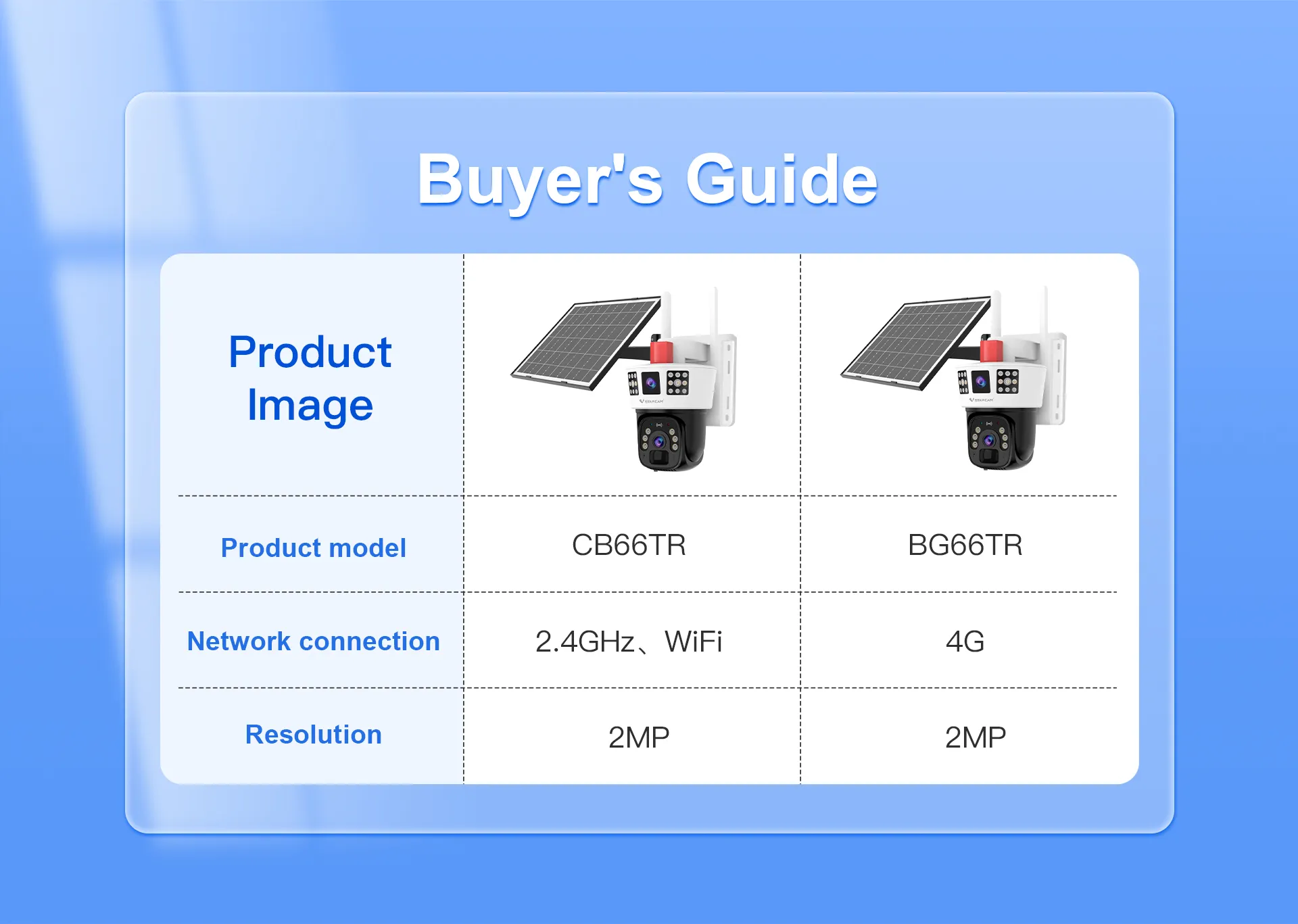

| CB66TR | ||
| ✮WiFi connection | ||
| ✮Remote active wake-up, two-way voice intercom | ||
| ✮Quick start, start recording within 400ms | ||
| ✮Intelligent detection of human movement, intelligent alarm push | ||
| ✮8000mAh battery powered, low battery reminder | ||
| ✮Low power system optimization | ||
| ✮1-day free cloud storage to save alarm videos | ||

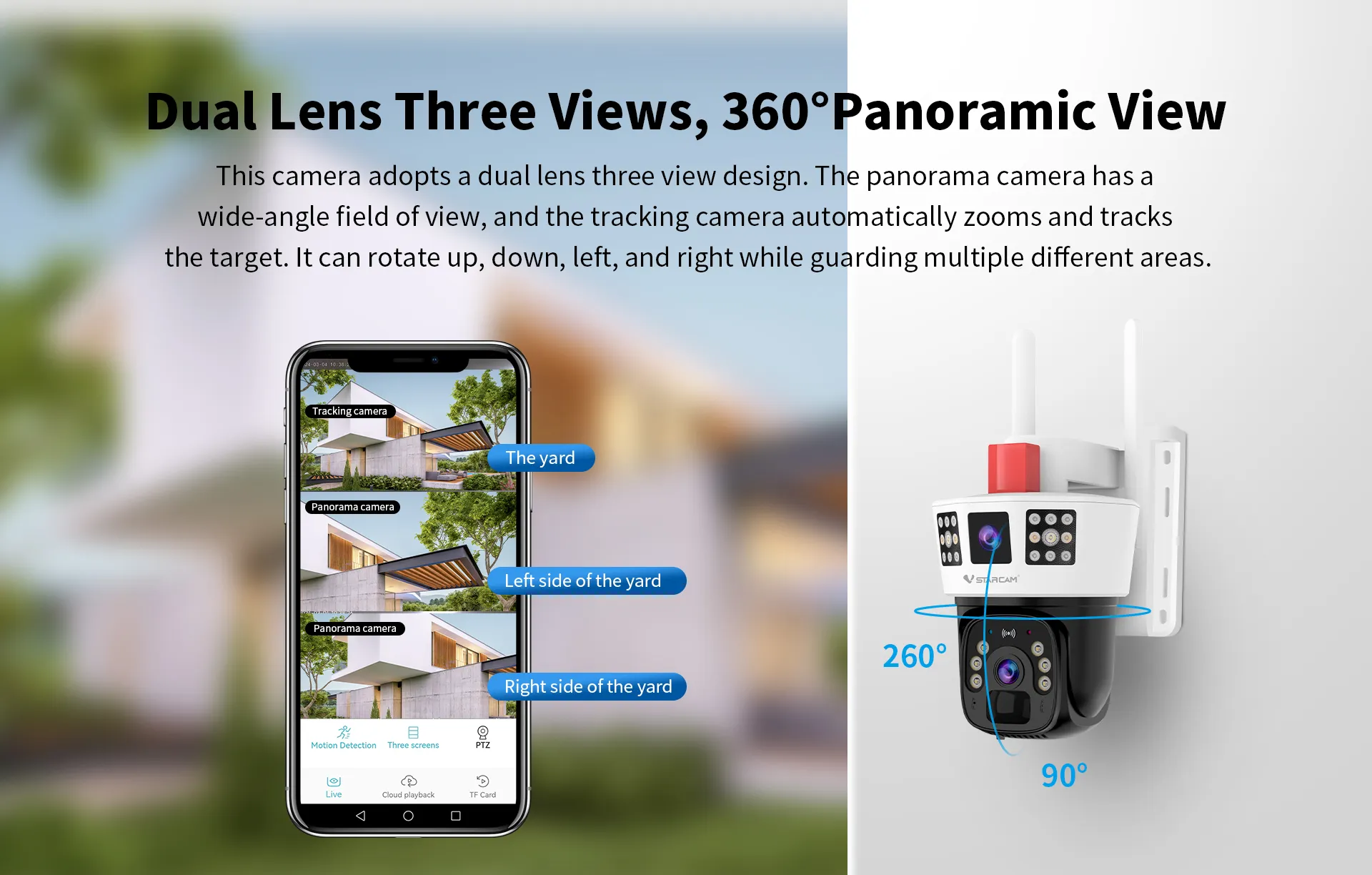

| ✮Dual lens dual recording to guard different directions | ||
| ✮Dual lens linkage, automatic zoom | ||
| ✮Dual light source, full color day and night | ||
| ✮Low power and corded power compatible design | ||
| Sorts | Type | Parameters |
| System | Operating system | Linux |
| Online visitor | Supports 4 visitors at the same time | |
| APP | O-KAM Pro | |
| Collection | CPU | T23ZN |
| Internal storage | 512MB | |
| Image sensor | GC2083+GC2083 | |
| Minimum illumination | 0.8Lux/F1.4(color mode), 0.3Lux/F1.4(B&W mode) | |
| Lens | Fixed lens: focal length 4mm, 1G3P ，Pan&tilt lens: focal length 4mm, 1G3P | |
| Sensor performance | Support automatic white balance, automatic gain control and automatic backlight compensation | |
| PTZ | Horizontal 260°, vertical 90° | |
| Viewing angle | Fixed lens：100° diagonal, pan&tilt lens：60° diagonal | |

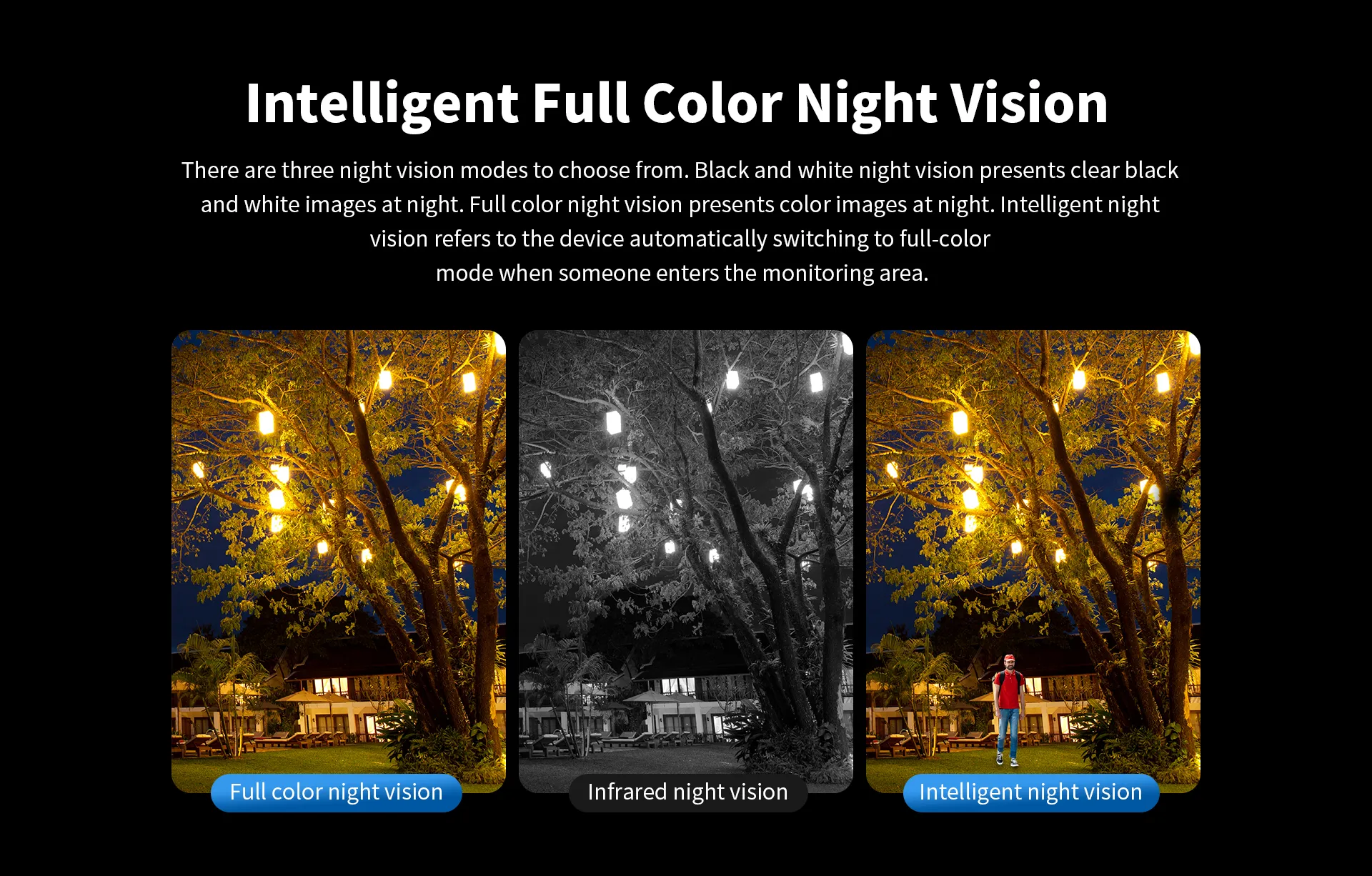

| Video | Night vision | Full color night vision, dual light source，Pan&tilt lens: 6pcs dual source lights Fixed lens: 12pcs IR lights+6pcs white lights |
| Compression standard | MJPEF/JPEG | |
| Multi stream | Main stream: 1080P/15fps, sub stream:360P/15fps | |
| IR control | When the IR night vision function is enabled, IR and ICR are automatically detected; when the IR night vision function is disabled, IR is off and ICR is fixed in the day vision mode. | |
| Bit rate | CBR/VBR two rate control modes, and the output rate range is 128~4096kbps | |
| Image adjustment | Vertical, horizontal adjustable, OSD display | |
| Audio | Input | Built-in-38dB microphone |
| Output | Built-in 8Ω1W speaker | |
| Sampling frequency/bit width | 8KHz/16bit | |
| Compression standard/Bit Rate | G711A | |
| AI | Humanoid detection | Humanoid detection, filtering invalid video content |
| Area detection | Free daub, only monitoring the areas concerned by users | |
| Smart notification sound | Different devices push different sounds, so that you can know exactly which device is triggered | |

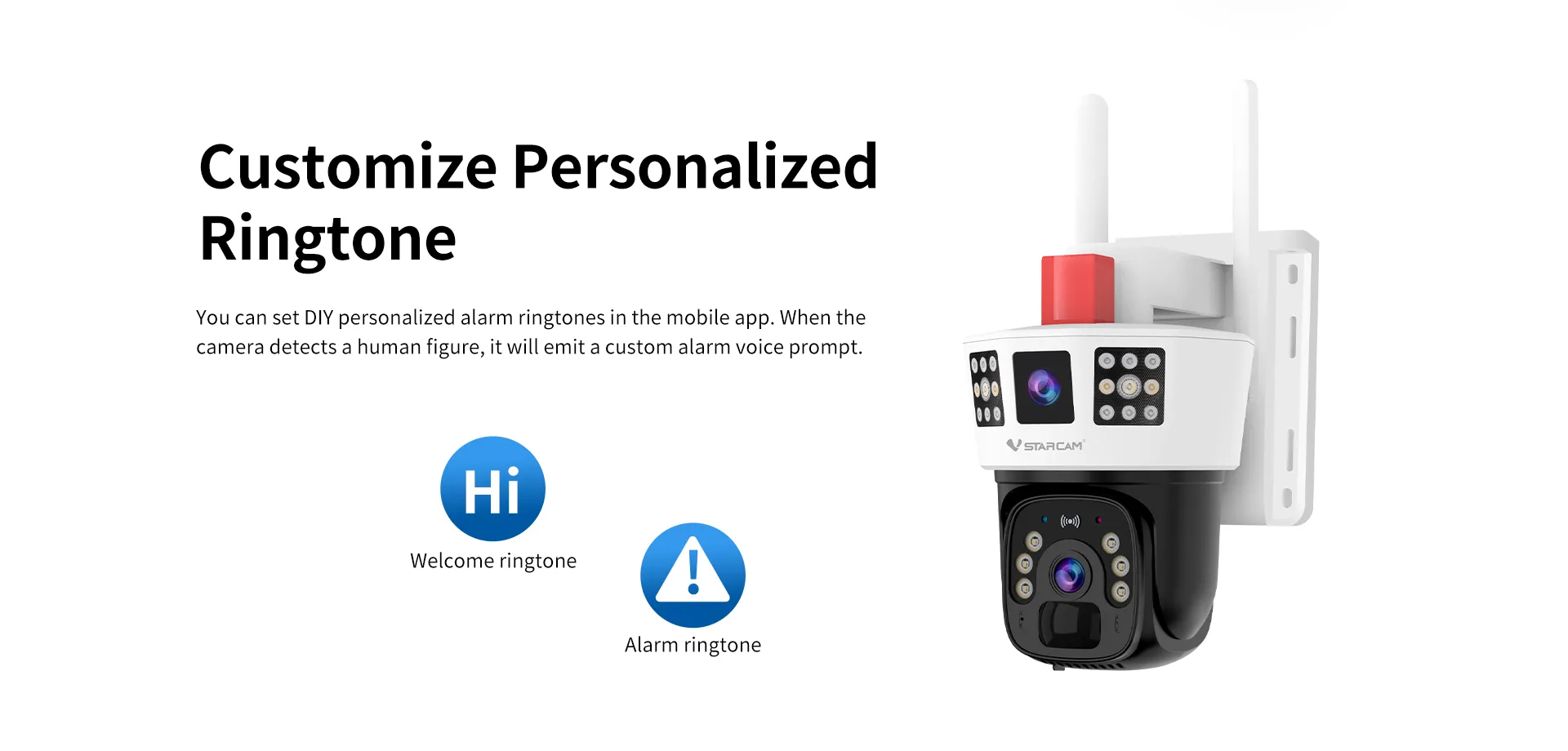

| Intelligent alarm sound | Set different equipment alarm sounds according to different scenarios | |
| More AI functions (testing) | Pets, vehicles, parcels, etc | |
| Network | Network protocol | TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P,IPV4 |
| Wireless network | IEEE802.11b/g/n | |
| Wireless frequency | 2.4~2.4835GHz | |
| Wireless security encryption | 64/128-bit WEP/WPA-PSK/WPA2-PSK | |
| Connection | AP hotspot network configuration, QR code network configuration, bluetooth network configuration | |

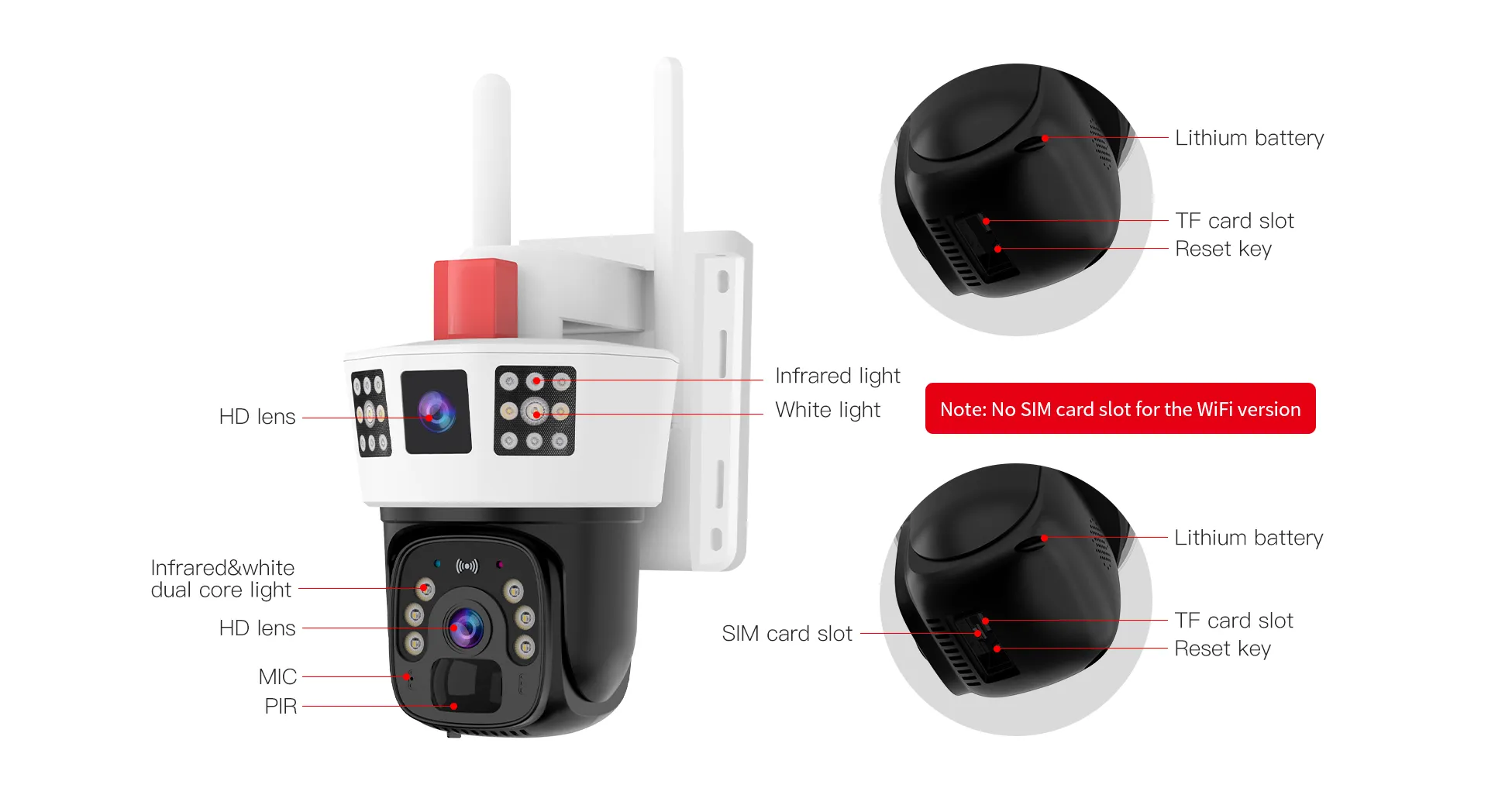

| Key | Key 1 | On/Off key |
| Reset key | long press to restore factory settings | |
| Storage | External TF card | Support TF card (up to 256GB) |
| Cloud storage | One-day free loop cloud storage | |
| Alarm | Sound light alarm | Sound light alarm, full color night vision |
| Alarm detection | Support for human detection, PIR infrared human detection for 10 meters | |
| Physical Indicators | Rated voltage | DC5V±5% |
| Power supply | Built in 8000mAh battery | |
| Consumption | Sleep standby 300uA, working: 230MA-1.5A Max | |
| Operating condition | Temperature: -10～55℃; Humidity: ＜90% | |
| Weight | Net weight: 770g; Gross weight: 1680g | |
| Size | Camera: 210*115*206mm | |
| Packing list | Net weight: 770g; Gross weight: 1680g | |

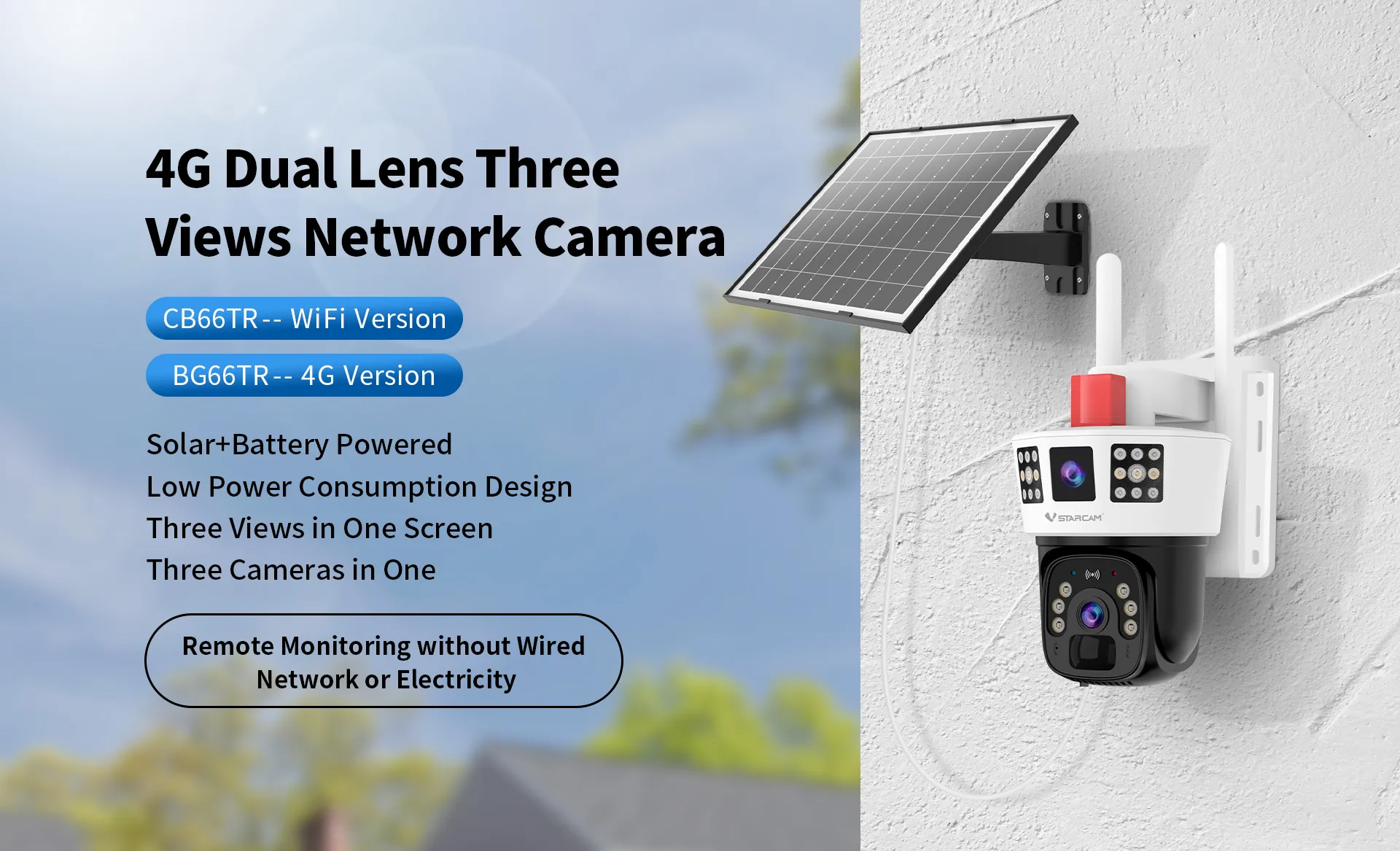

| BG66TR | ||
| ✮Stable 4G connection | ||
| ✮Remote active wake-up, two-way voice intercom | ||
| ✮Quick start, start recording within 400ms | ||
| ✮Intelligent detection of human movement, intelligent alarm push | ||
| ✮8000mAh battery powered, low battery reminder | ||
| ✮Low power system optimization | ||
| ✮1-day free cloud storage to save alarm videos | ||
| ✮Dual lens dual recording to guard different directions | ||
| ✮Dual lens linkage, automatic zoom | ||
| ✮Dual light source, full color day and night | ||
| ✮Low power and corded power compatible design | ||
| Sorts | Type | Parameters |
| System | Operating system | Linux |
| Online visitor | Supports 4 visitors at the same time | |
| APP | O-KAM Pro | |
| Collection | CPU | T23ZN |
| Internal storage | 512MB | |
| Image sensor | GC2083+GC2083 | |
| Minimum illumination | 0.8Lux/F1.4(color mode), 0.3Lux/F1.4(B&W mode) | |
| Lens | Fixed lens: focal length 4mm, 1G3P Pan&tilt lens: focal length 4mm, 1G3P | |
| Sensor performance | Support automatic white balance, automatic gain control and automatic backlight compensation | |
| PTZ | Horizontal 260°, vertical 90° | |
| Viewing angle | Fixed lens：100° diagonal, pan&tilt lens：60° diagonal | |
| Video | Night vision | Full color night vision, dual light source， Tracking camera: 6pcs dual source lights Panoramic camera: 12pcs IR lights+6pcs white lights |
| Compression standard | MJPEF/JPEG | |
| Multi stream | Main stream: 1080P/15fps, sub stream:360P/15fps | |
| IR control | When the IR night vision function is enabled, IR and ICR are automatically detected; when the IR night vision function is disabled, IR is off and ICR is fixed in the day vision mode. | |
| Bit rate | CBR/VBR two rate control modes, and the output rate range is 128~4096kbps | |
| Image adjustment | Vertical, horizontal adjustable, OSD display | |
| Audio | Input | Built-in-38dB microphone |
| Output | Built-in 8Ω1W speaker | |
| Sampling frequency/bit width | 8KHz/16bit | |
| Compression standard/Bit Rate | G711A | |
| AI | Humanoid detection | Humanoid detection, filtering invalid video content |
| Area detection | Free daub, only monitoring the areas concerned by users | |
| Smart notification sound | Different devices push different sounds, so that you can know exactly which device is triggered | |
| Intelligent alarm sound | Set different equipment alarm sounds according to different scenarios | |
| More AI functions (testing) | Pets, vehicles, parcels, etc | |

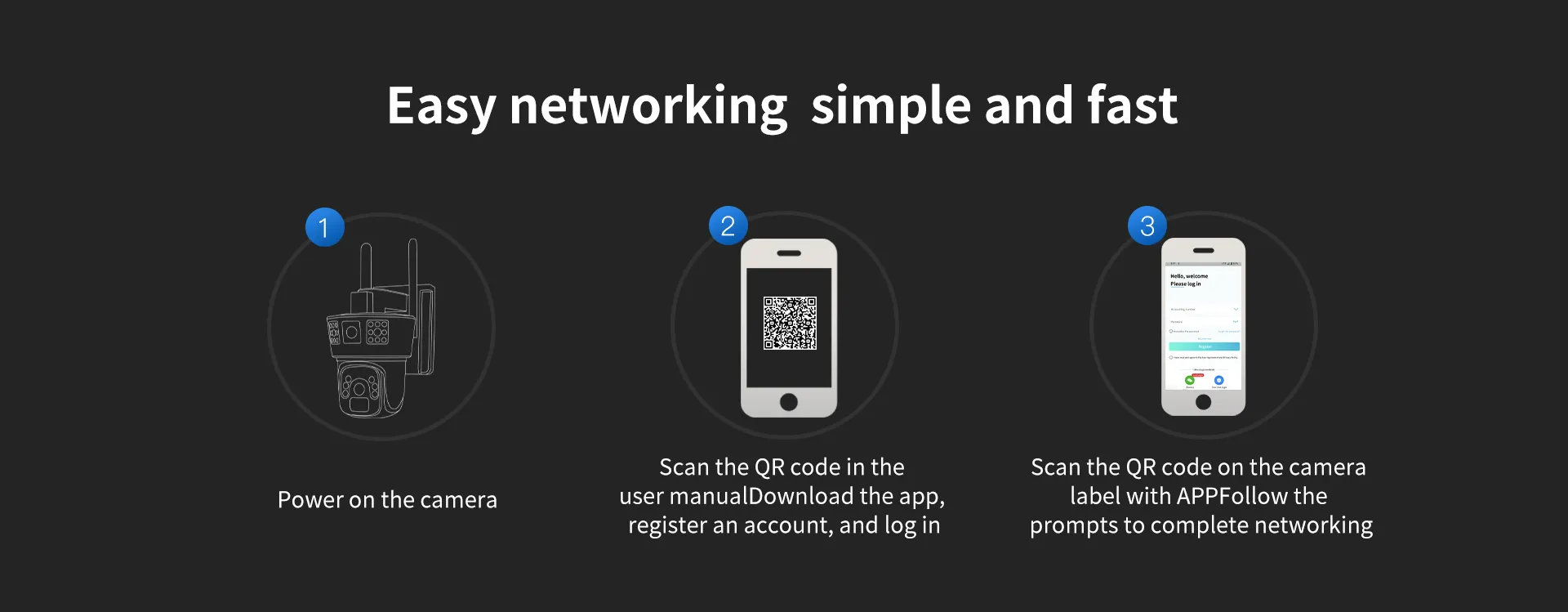

| Network | Networking | Use APP to scan the QR code on device to add; Use the device to scan QR code on APP to add |
| Cat1 China | FDD:B1/B3/B5/B8 TDD:B34/B38/B39/B40/B41 | |
| Cat4 Overseas | European/Japanese/US versions | |
| Key | Key 1 | On/Off key |
| Reset key | long press to restore factory settings | |
| Storage | External TF card | Support TF card (up to 256GB) |
| Cloud storage | One-day free loop cloud storage | |
| Alarm | Sound light alarm | Support |
| Alarm detection | Support for human detection, PIR infrared human detection for 10 meters | |
| Physical Indicators | Rated voltage | DC5V±5% |
| Power supply | Built in 8000mAh battery | |
| Consumption | Sleep standby: 300uA，working：400MA-1.5A Max | |
| Operating condition | Temperature: -10～55℃; Humidity: ＜90% | |
| Weight | Net weight: 770g; Gross weight: 1680g | |
| Size | Camera：210*115*206mm | |

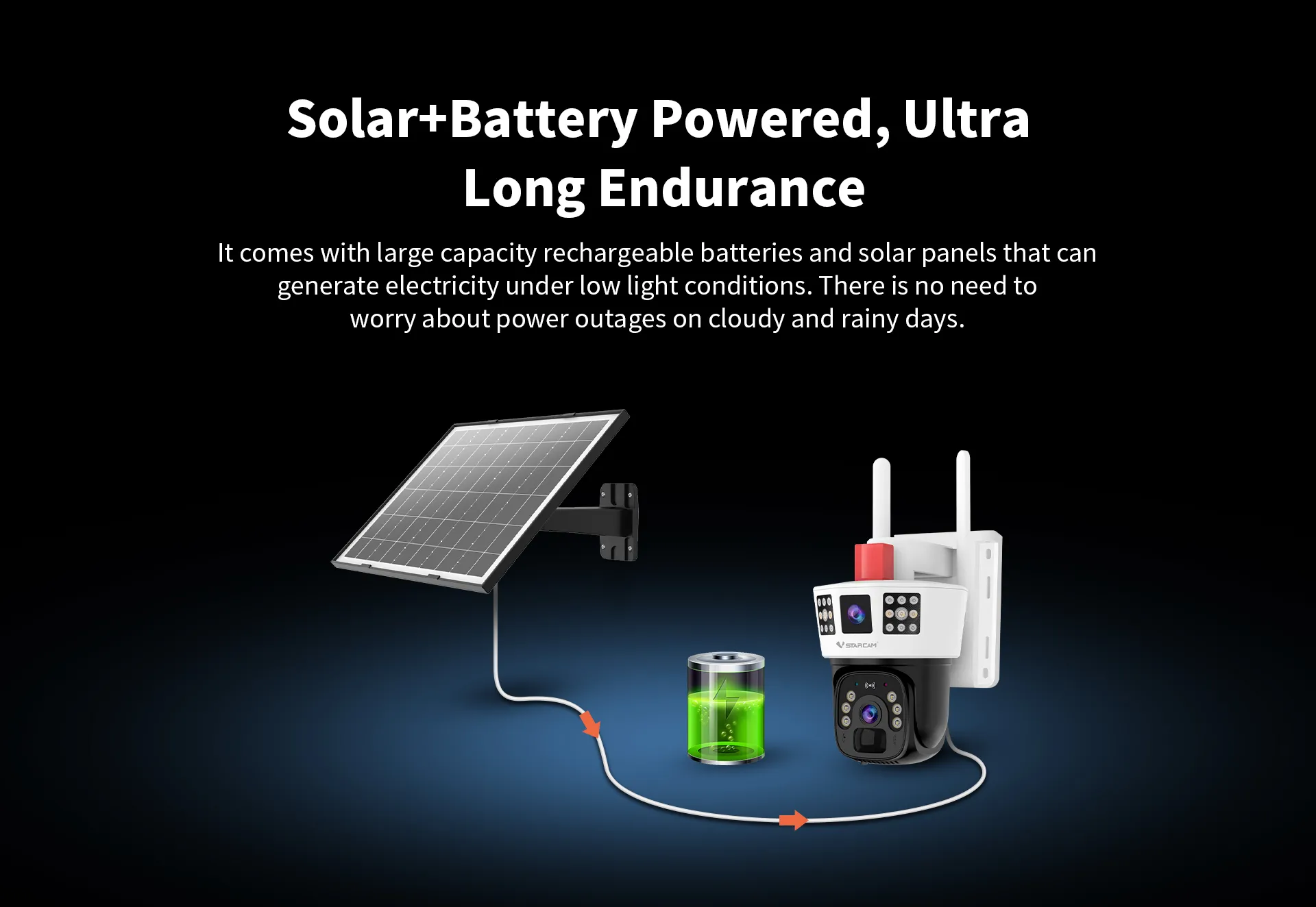

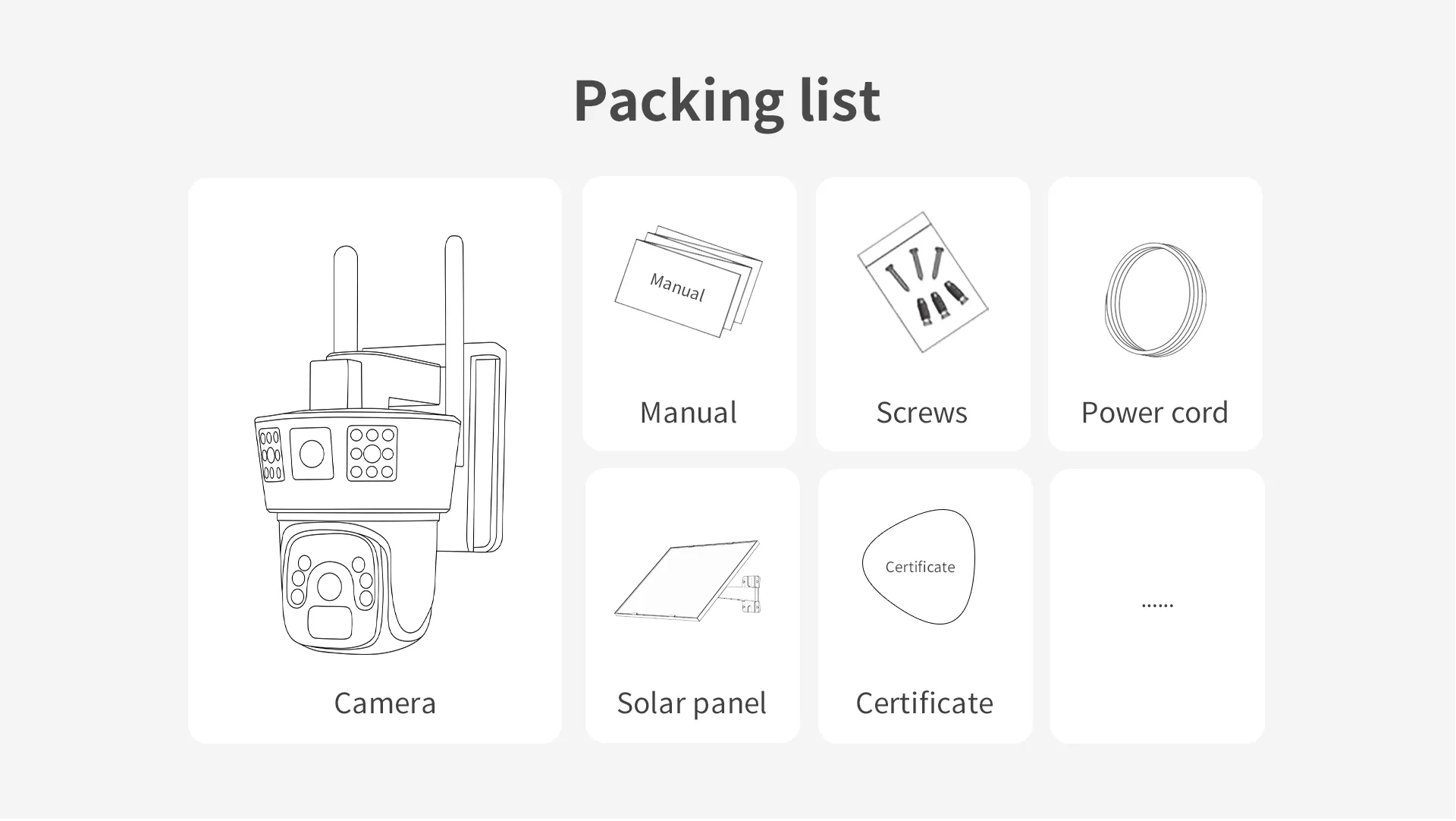

| Packing list | Camera * 1, manual * 1, solar panel * 1, solar panel bracket * 1 | |
