  • VStarcam DB2
    Sorts Type Parameters
    CPU Model T31ZL
    Clock Speed 1.5GHz
    Flash NOR Flash 16 MB
    SENSOR CMOS Size 1/2.9”
    Model GC2063
    Effective Pixels 1920H×1080V
    Color Filter RGBIR
    CRA 17.5°
    Lens Model YG-30200-4019 (Increase Height) +IR CUT
    Image Plane Size 1/3”
    Aperture F2.0 ,Fixed Aperture
    View Angle Focal Length 3.2mm Angle 126°
    Day and Night Confocal Support
    Distortion ≦6%
    Resolution 2MP
    Audio and Video Encode Format H.264
    Bit Rate 256Kbps~1920Kbps (Adjustment)
    Compression Standard 64Kbps(G.711A)
    Wireless Standard IEEE802. 11b/g/n
    Wireless Frequency 2.4~2.4835GHz
    Wireless Security 64/ 128-bit WEP/WPA-PSK/WPA2-PSK data encryption
    Function and Performance Frame Rate 1920*1080P@ 15fps
    Night Vision Distance 7 meters
    Number of Infrared Lamps 4 Pcs
    Storage Cloud Storage, TF Card Storage (max 128GB)
    Intercom Two-way Talk
    Intelligent Function PIR Human Detection

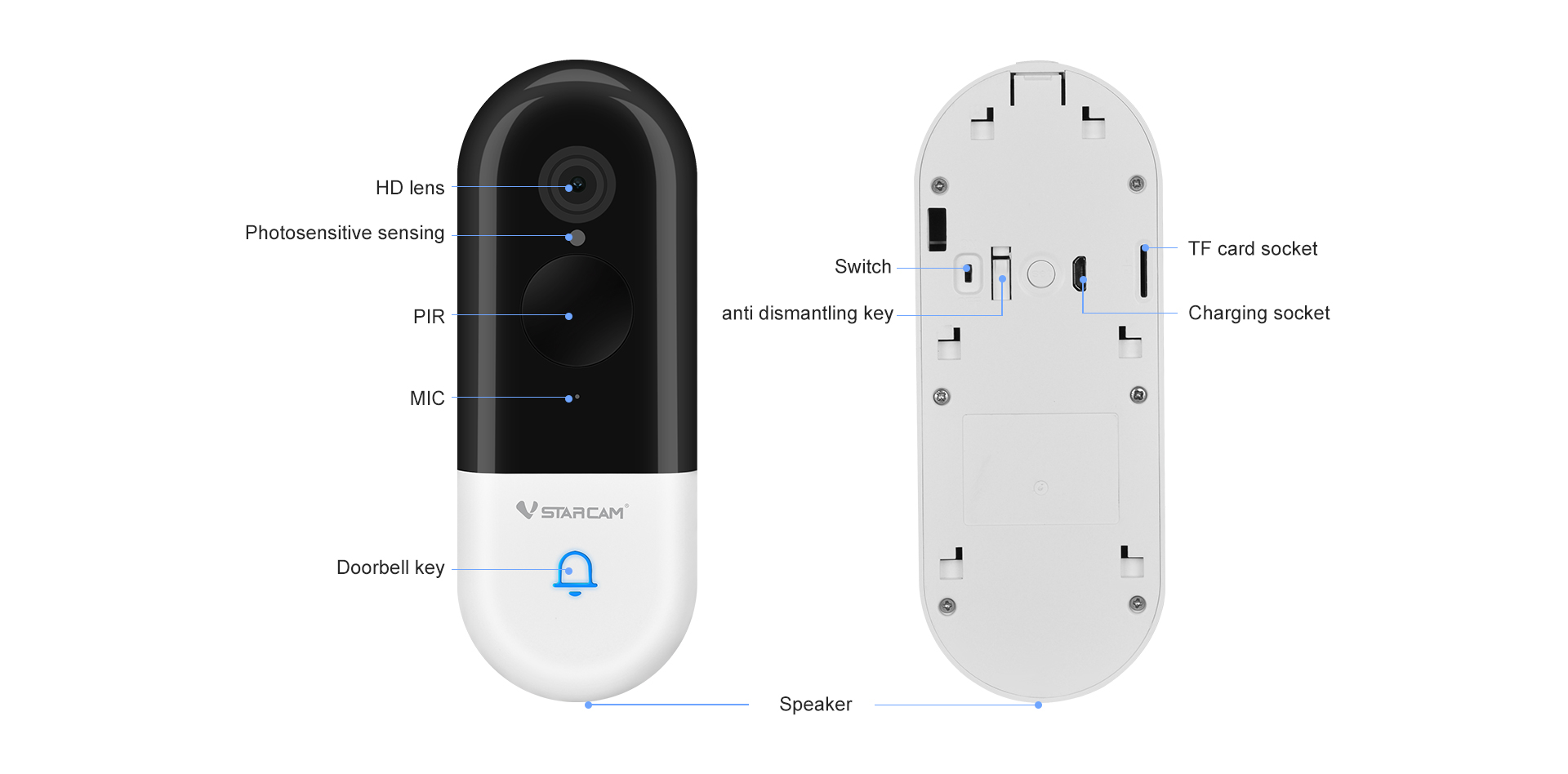

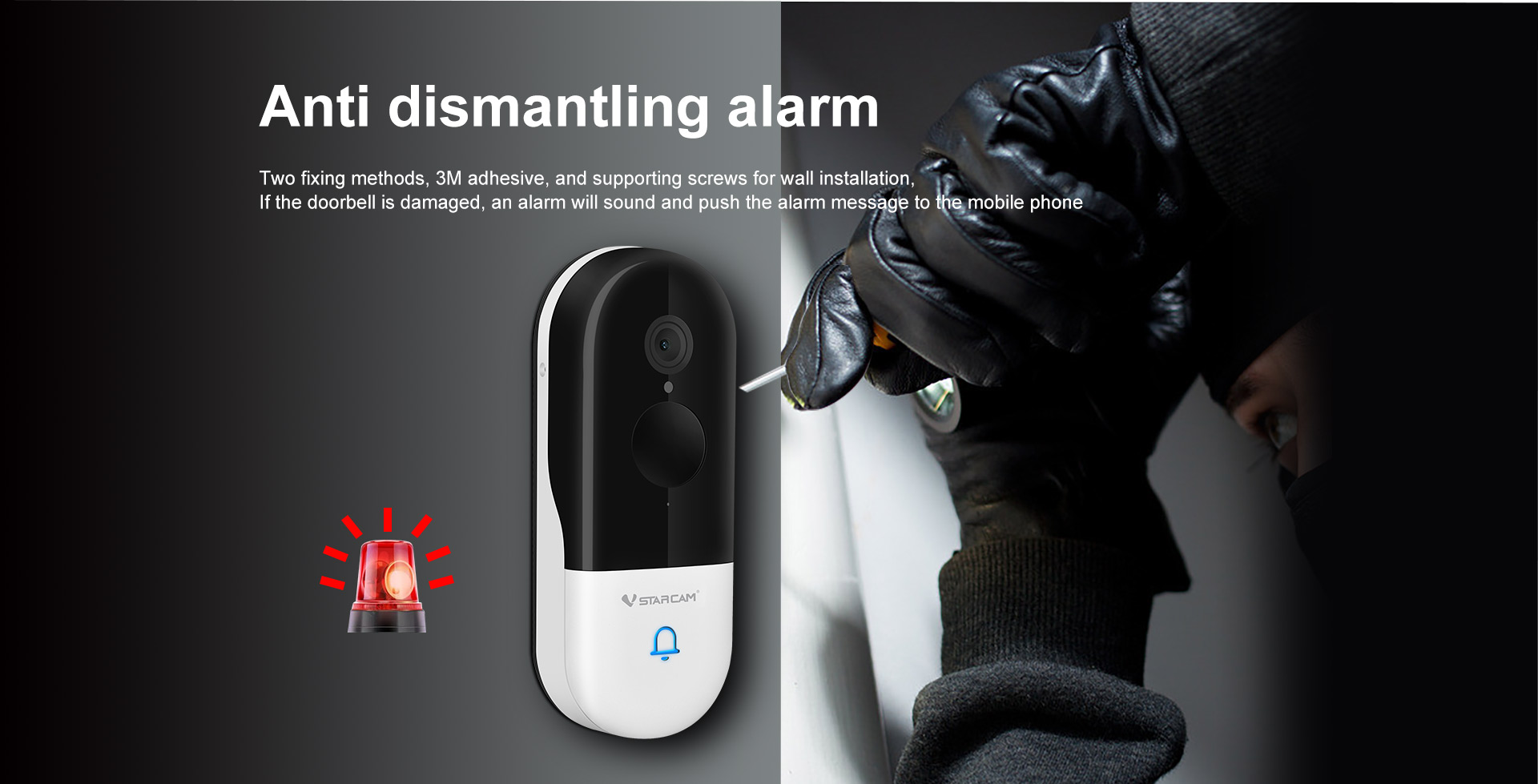

    Interface Anti-dismantling key Support
    Power Interface Micro USB
    TF Interface Support
    On / Off Key Toggle Switch
    Routine Working Temperature - 10℃~+60℃

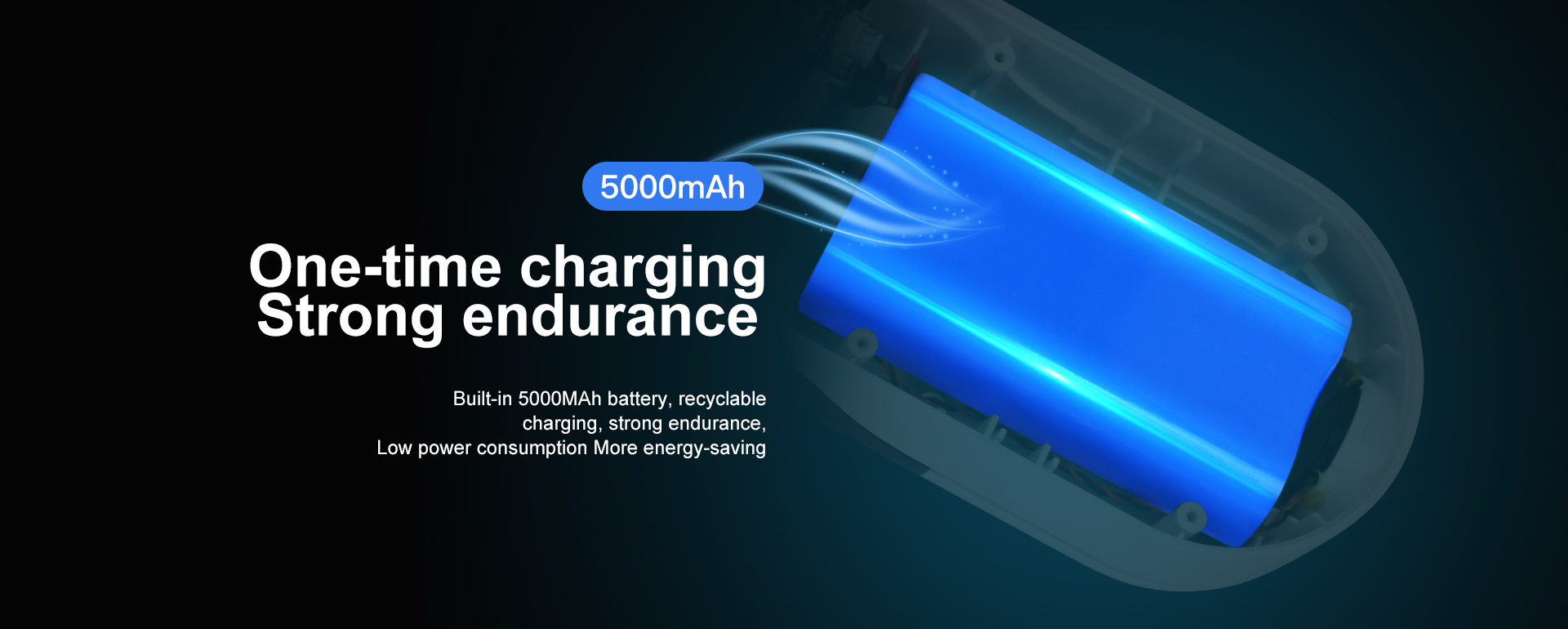

    Power Supply 5V1A / Built-in 5000mAh Battery
    Shell Material ABS+PC
    Installation mode Wall Mounting / 3M Pasting
    Packaging and Packing Material 1200G White Card Mounting
    Accessories 157G Coated Paper
    Power Adapter A Micro USB data line

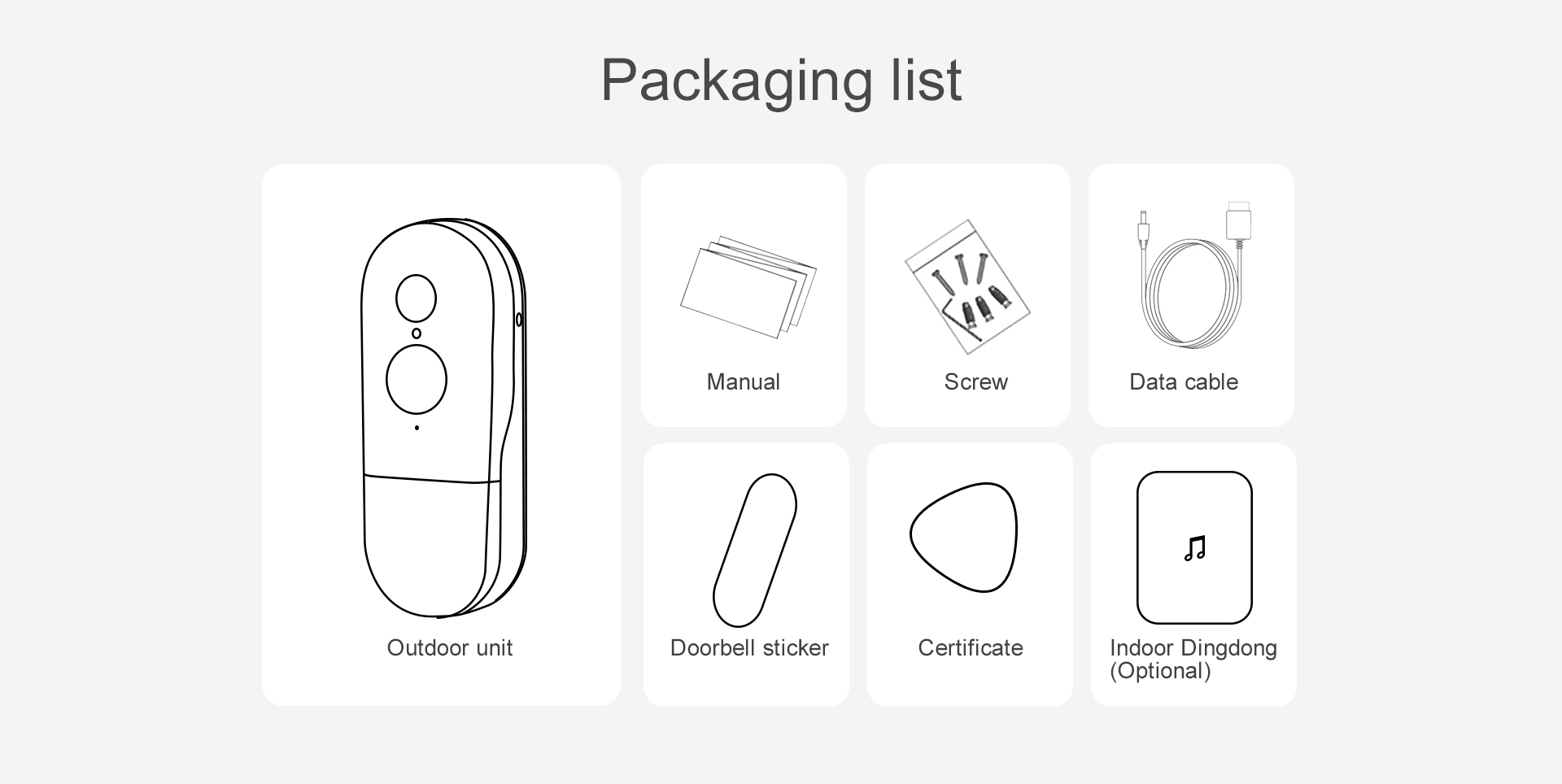

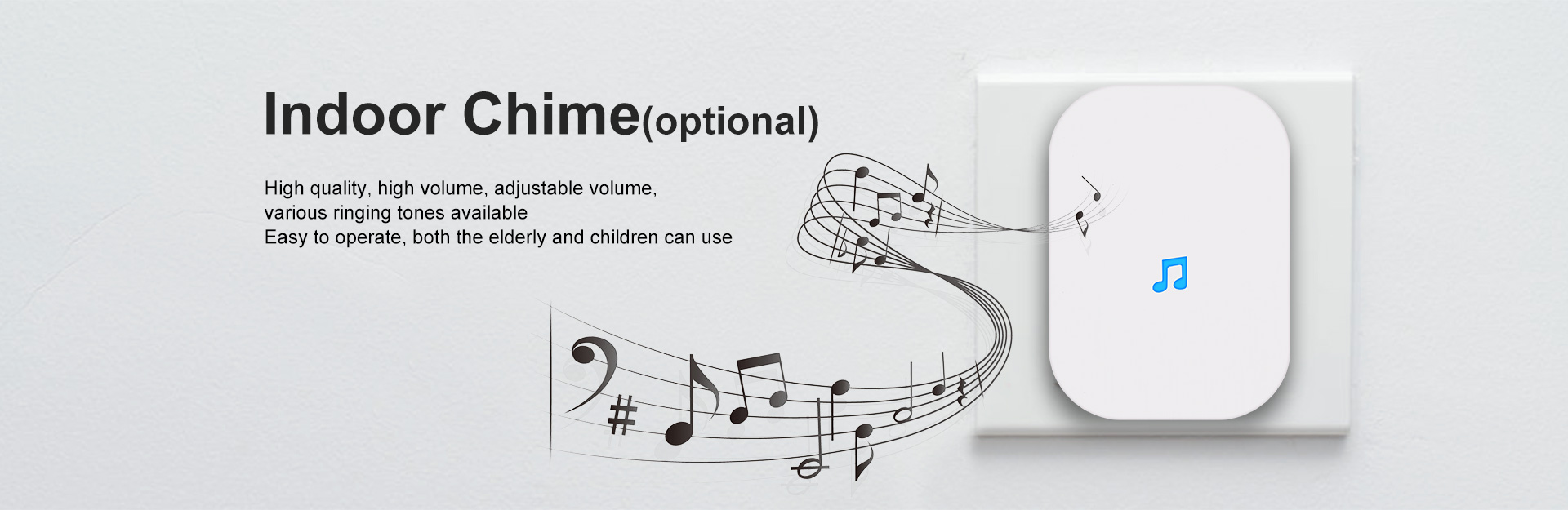

    Packing List Data Line * 1 Camera * 1 Manual * 1 Doorbell Sticker * 1 Screw Pack * 1 Indoor Chime * 1

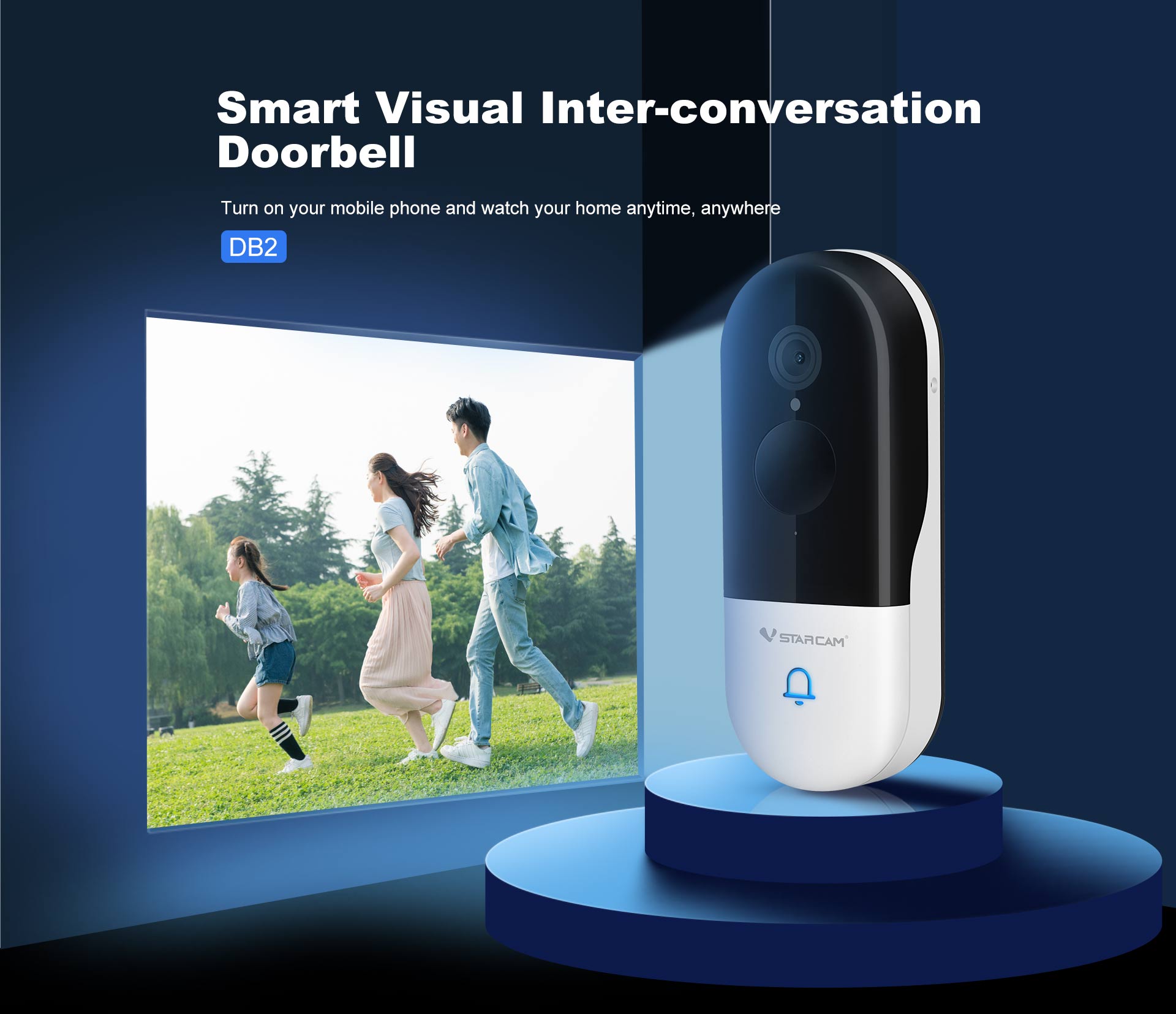

    Smart video intercom wireless doorbell DB2
