  • VStarcam BG69
    Sorts Type Parameters
    System Operating system Embedded Linux
    Online visitor Supports 4 visitors at the same time
    CPU/Image sensor 1/2.9 inch 1080p progressive scan CMOS sensor
    Minimum illumination 0.5 Lux(Color mode), 0. 1 Lux(B&W mode)
    Lens/Viewing angle 4mm@F2.0/ 107°Diagonal
    Night vision IR-CUT with auto-switching, 6PCS IR LED lights; Irradiation distance: 10~ 15 m
    Compression standard H.264 main profile/Motion-JPEG/JPEG
    Data Rate Main stream: 1296p(2304× 1296)@15fps; Substream:360p(640×360)@15fps
    Bit rate/maximum frame rate 128~4096kbps/30fps
    Image adjustment Brightness and contrast are adjustable
    Audio Input Built-in -38d B microphone
    Output Built-in 8Ω2 W speaker
    Sampling frequency/bit width 8KHz/ 16bit
    Compression standard/Bit Rate G.711/64kbps
    Network 4G LTE (Chinese version) FDD: B1/ B3/ B5/ B8
    TDD:B34/B38/B39/ B40/ B41
    4G LTE (European version) LTE- FDD:
    B1/B3/ B7/ B8/ B20
    LTE-TDD: B40/ B41

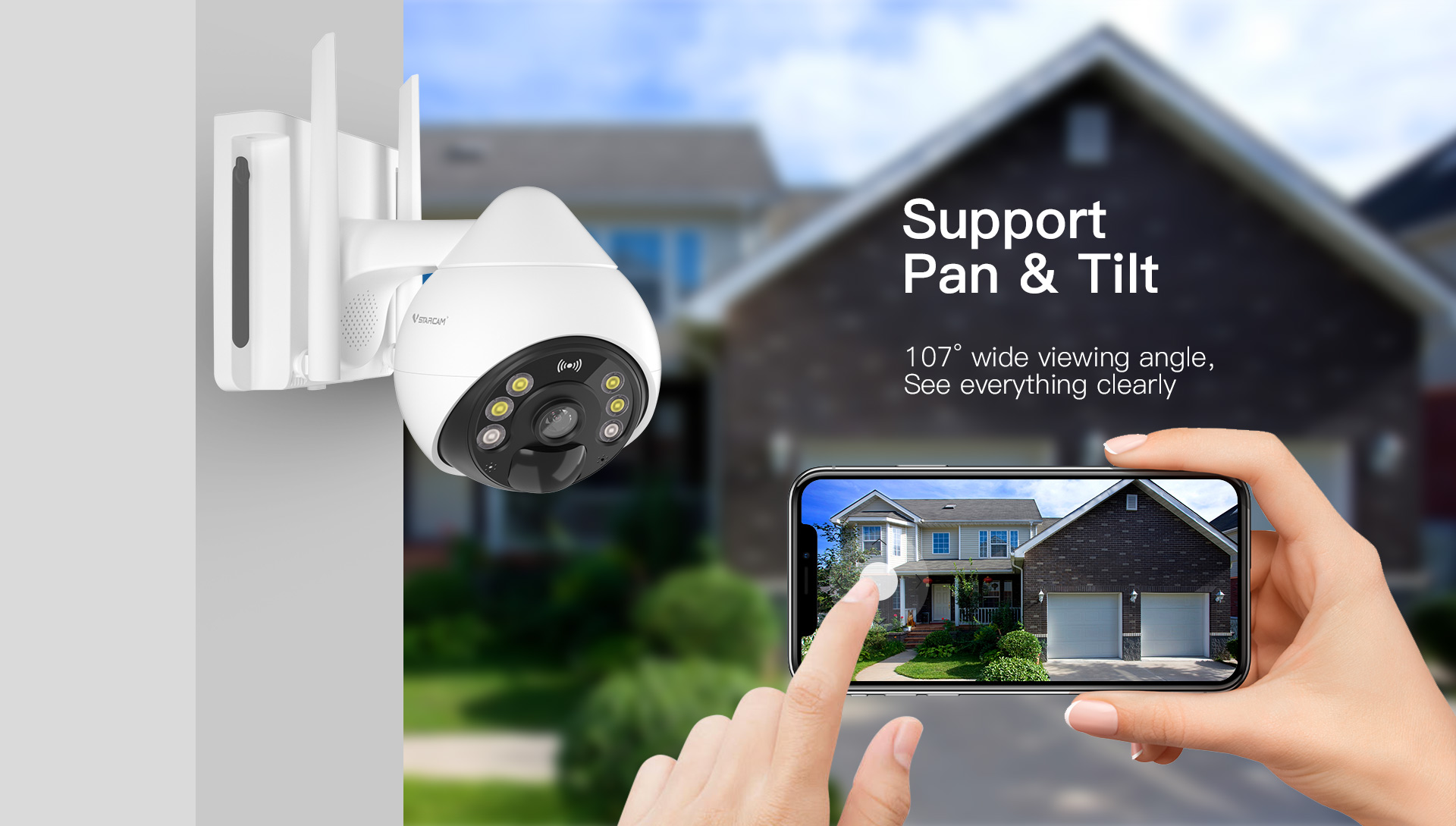

    Pan & Tilt Pan & Tilt Pan 345° /Tilt 55°
    Preset position Supports 16 ( Mobile phone App supports 5) preset positions
    Storage Storage functions Supports T- Flash card(max supports 256GB); Cloud Storage
    A larm Alarm detection Humanoid detection
    Physical Rated voltage DC5V±5%

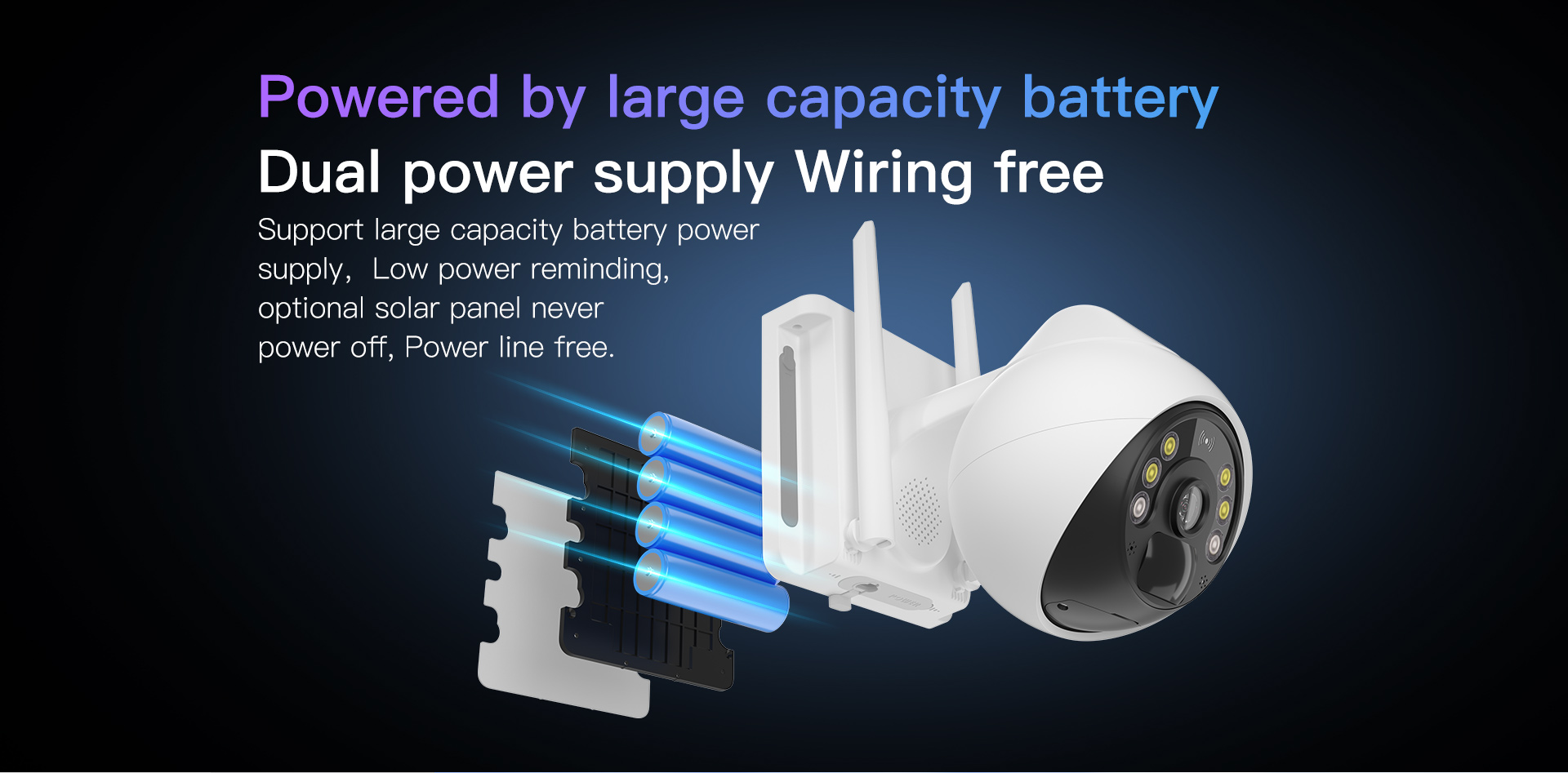

    Power supply Supports four 18650 or four 21700 batteries
    Power consumption Rated power:5W (with IR LED lights ON)/Max power:11W (with Pan & Tilt ON)
    Operating condition Temperature: - 10~50C; Humidity: <90%
    Weight ( Note: in kind prevail)
