  • Sorts Type Parameters
    Collection Operating system Embedded Linux
    Online visitor Supports 4 visitors at the same time

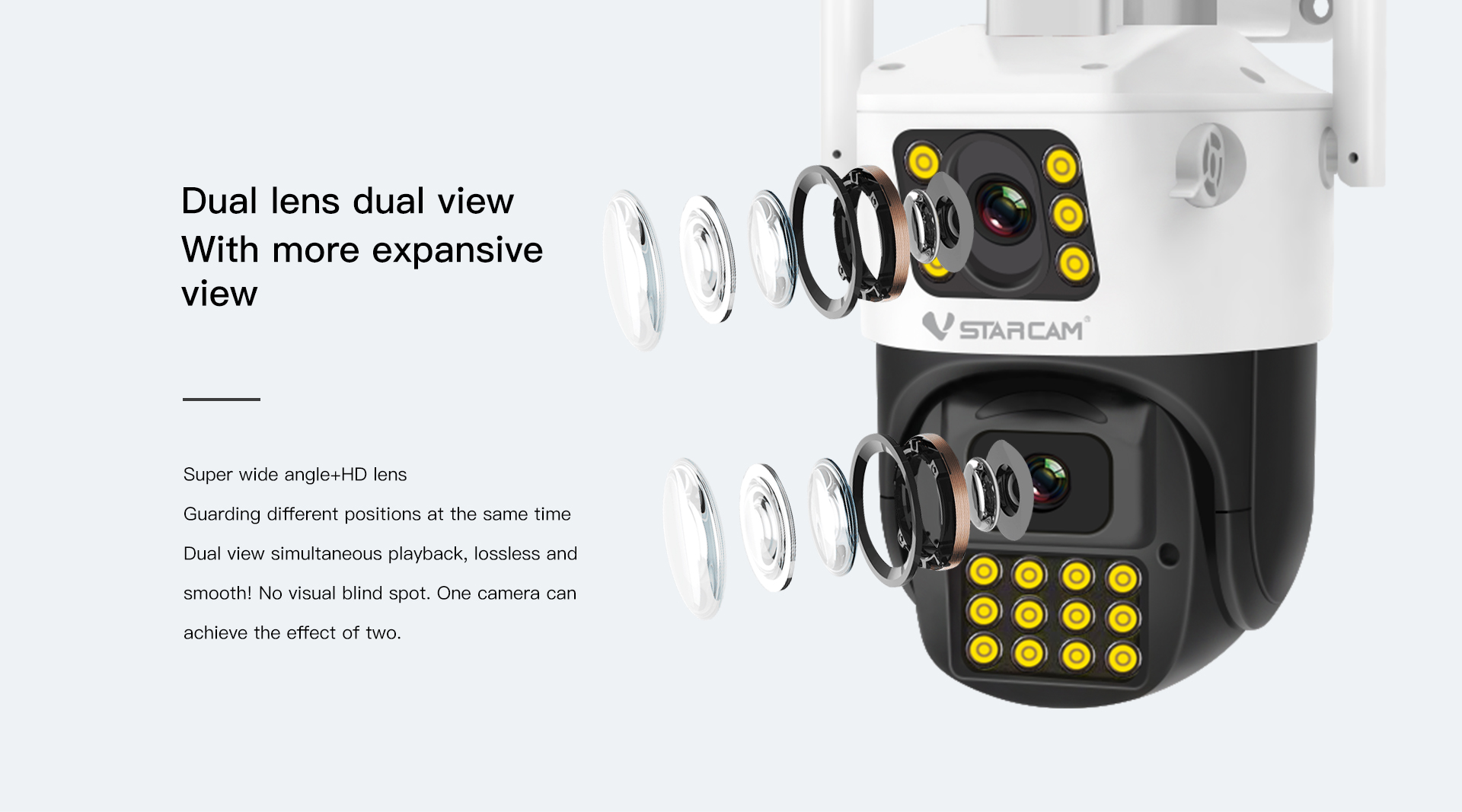

    CPU/Image sensor Ingenic T40, 2MP, dual lens, 1/3 inch 1080p progressive scan CMOS sensor
    Minimum illumination 0.5 Lux(Color mode), 0.1 Lux(B&W mode)
    Lens 4mm-6mm

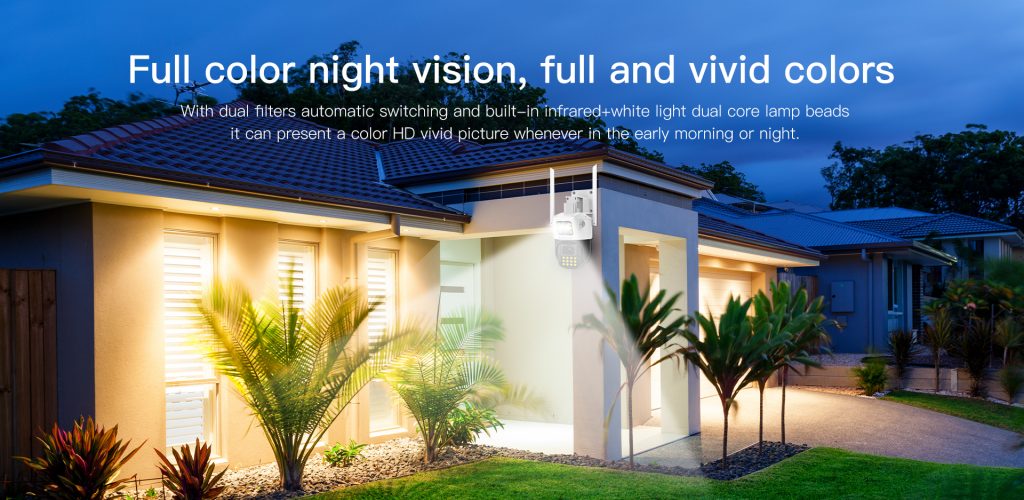

    Night Vision IR-CUT with auto-switching, dual light source, irradiation distance 15-30 meters
    Compression standard H.264 main profile/H.264+ main profile/Motion-JPEG/JPEG
    Data rate Main stream:1080p(1920*1080)@25fps;Substream:360p(640×360)@15fps
    Bit rate/maximum frame rate 128~4096kbps/25fps
    Image adjustment Adjustable brightness and contrast
    Audio Input Built-in - 38dB microphone
    Output Built-in 8 Ω 2W speaker
    Sampling frequency/bit width 8KHz/16bit
    Compression standard/Bit Rate G.711/64kbps
    Network Network interface 10Mbps/100Mbps adaptive /RJ45 interface
    Network protocol TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P etc.

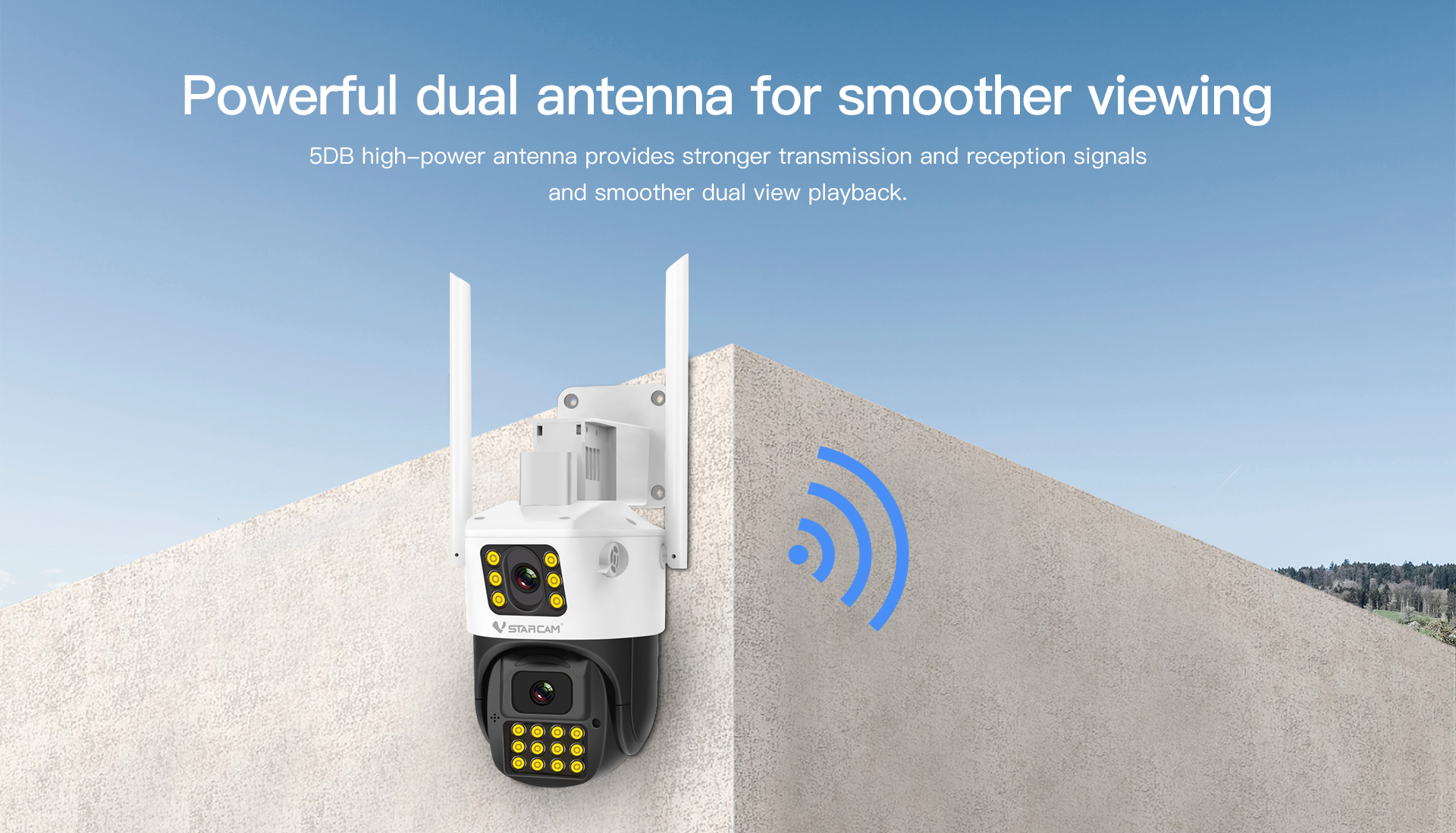

    Wireless network IEEE802.11b/g/n
    Wireless frequency 2.4G
    Wireless security encryption 64/128-bit WEP/WPA-PSK/WPA2-PSK data encryption

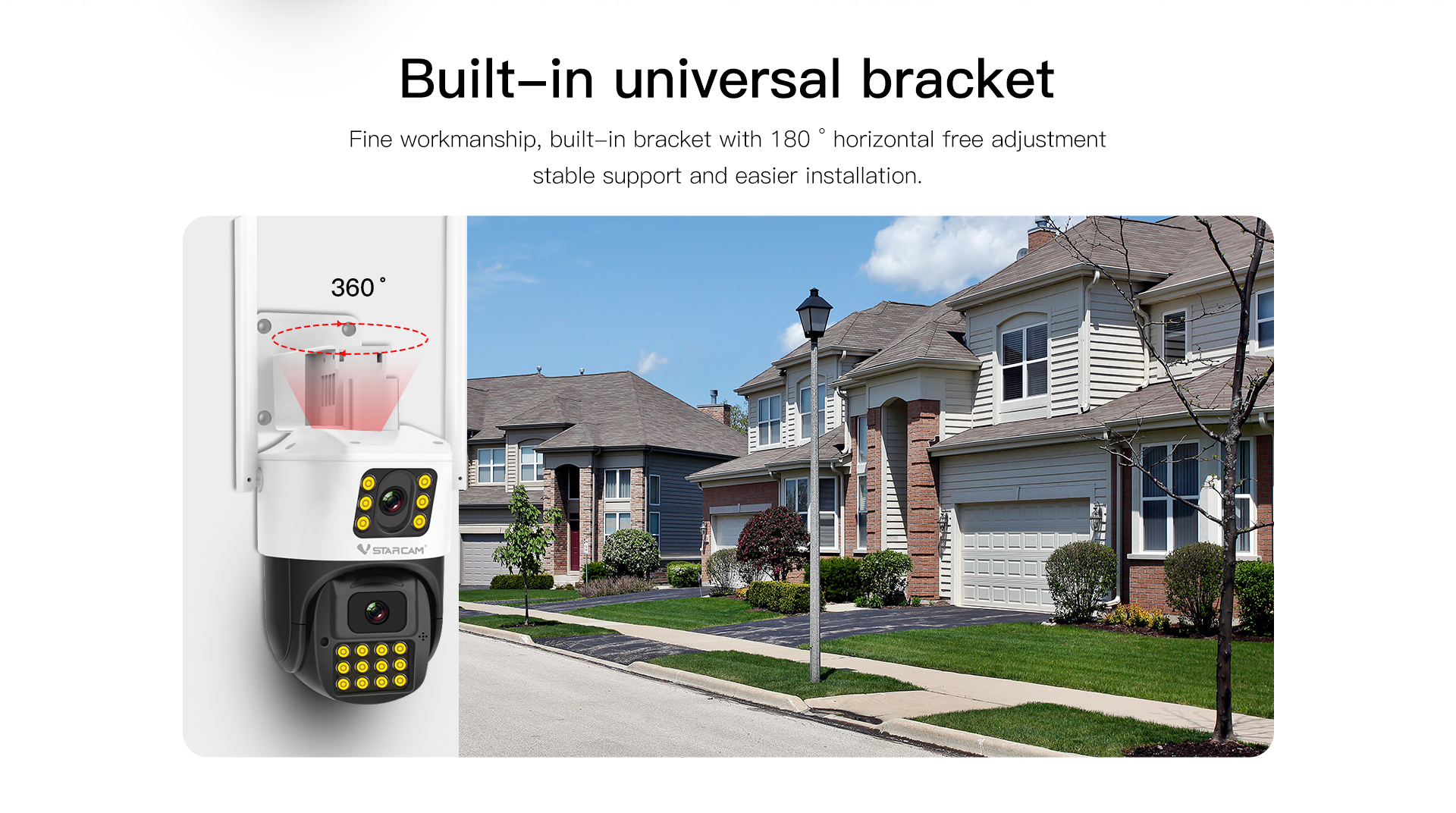

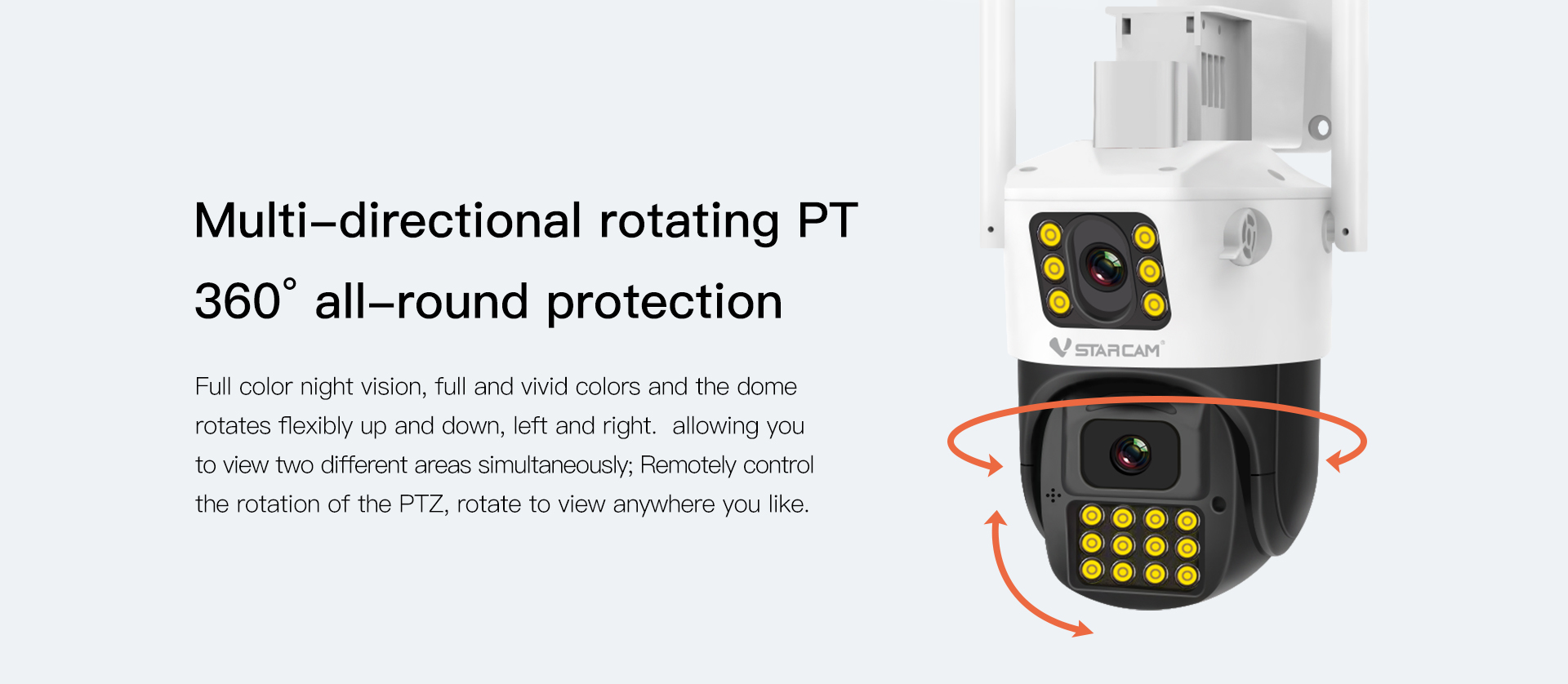

    Pan&Tilt Rotation angle Horizontal 350 °/Vertical 90 °, can be installed with 360 ° rotation
    Preset position Supports 16 presets (mobile app only supports 5)
    Storage Storage functions Supports T-Flash card(max supports 256GB); Cloud Storage;NVR;NAS
    Alarm Alarm detection Support motion detection, humanoid detection, human tracking, alarm voice prompts, flash and illumination functions, and timed activation and shutdown of white light.
    Physical indicators Rated voltage DC12V
    Power consumption Rated power: 4.5W (infrared light on)/maximum power: 11W (PTZ on)

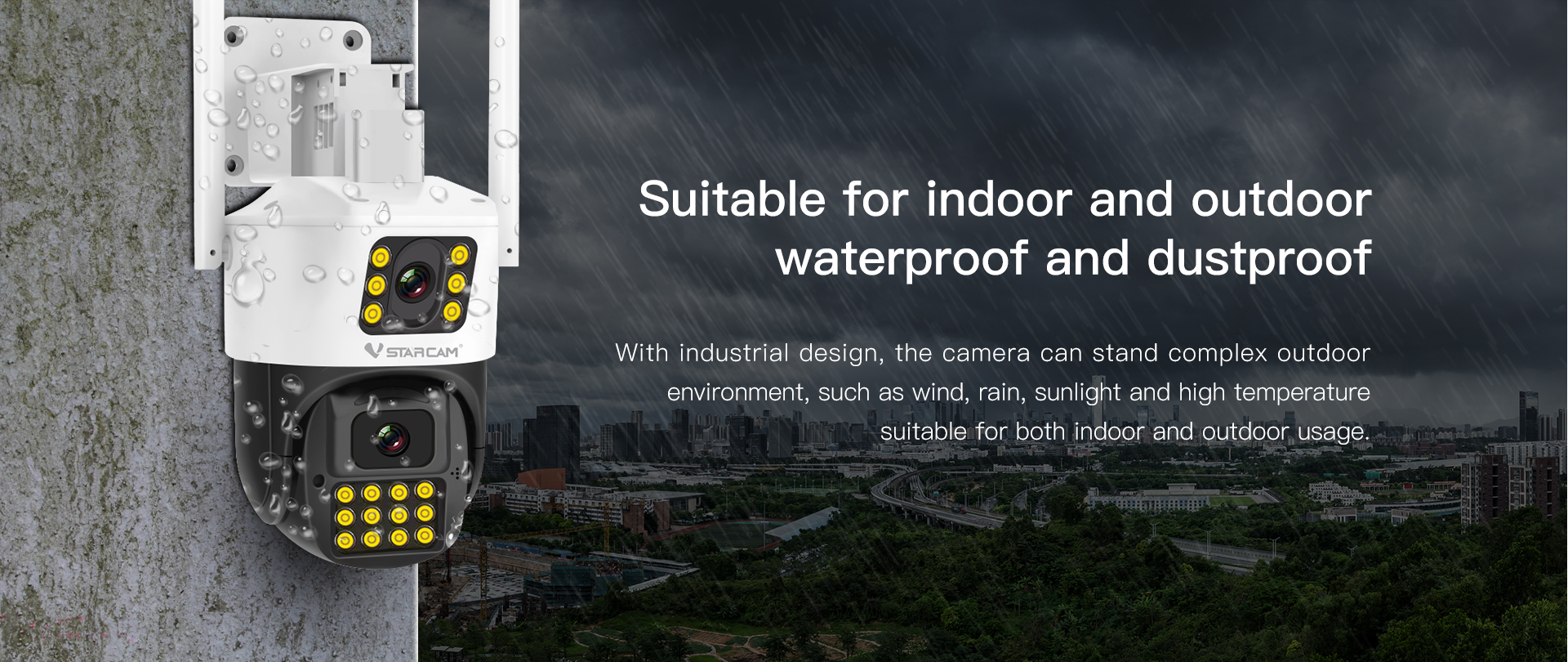

    Operating condition Temperature: -10~50℃; Humidity: <90%
    Weight Note: in kind prevail
    Package size Note: in kind prevail

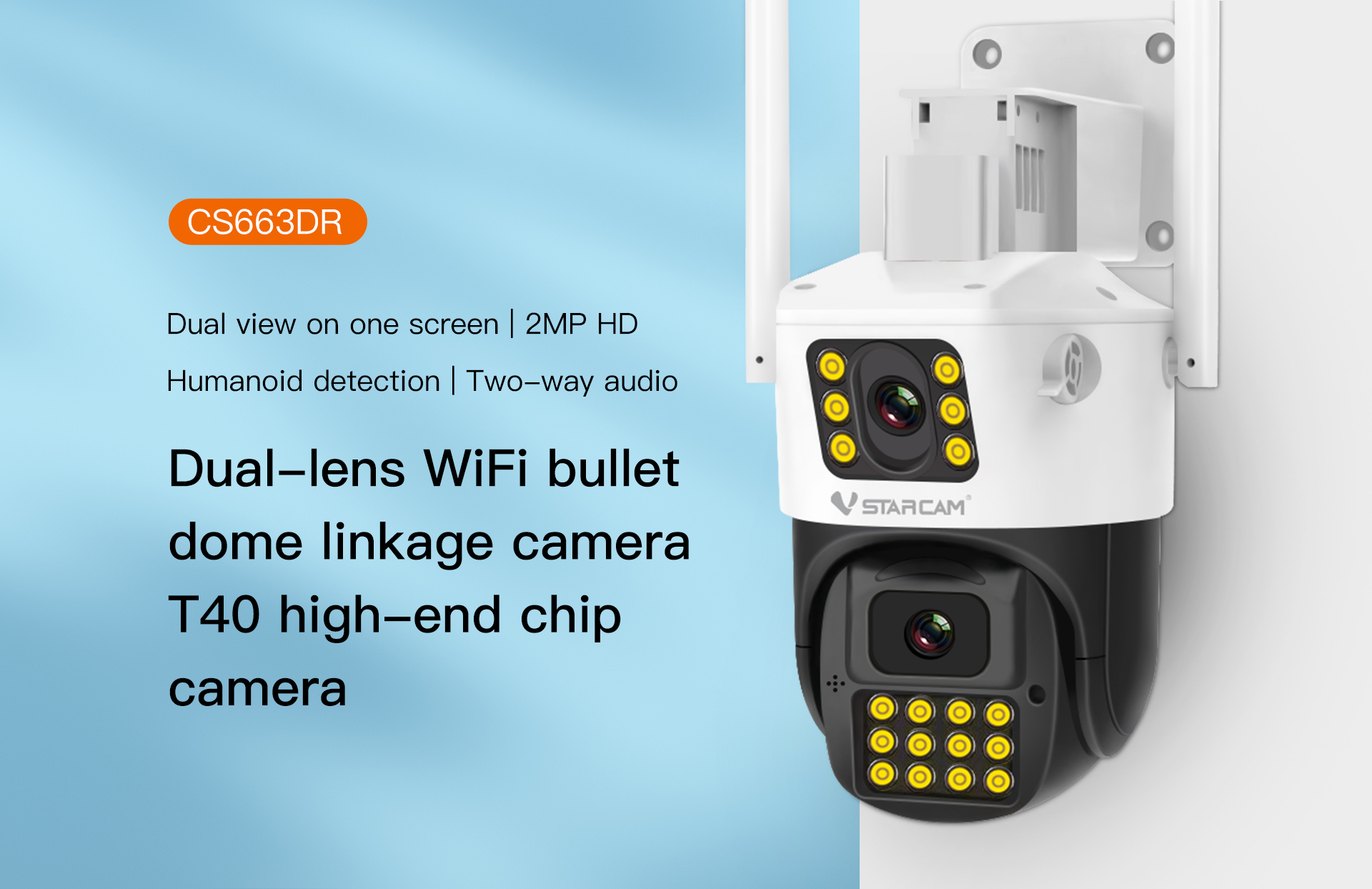

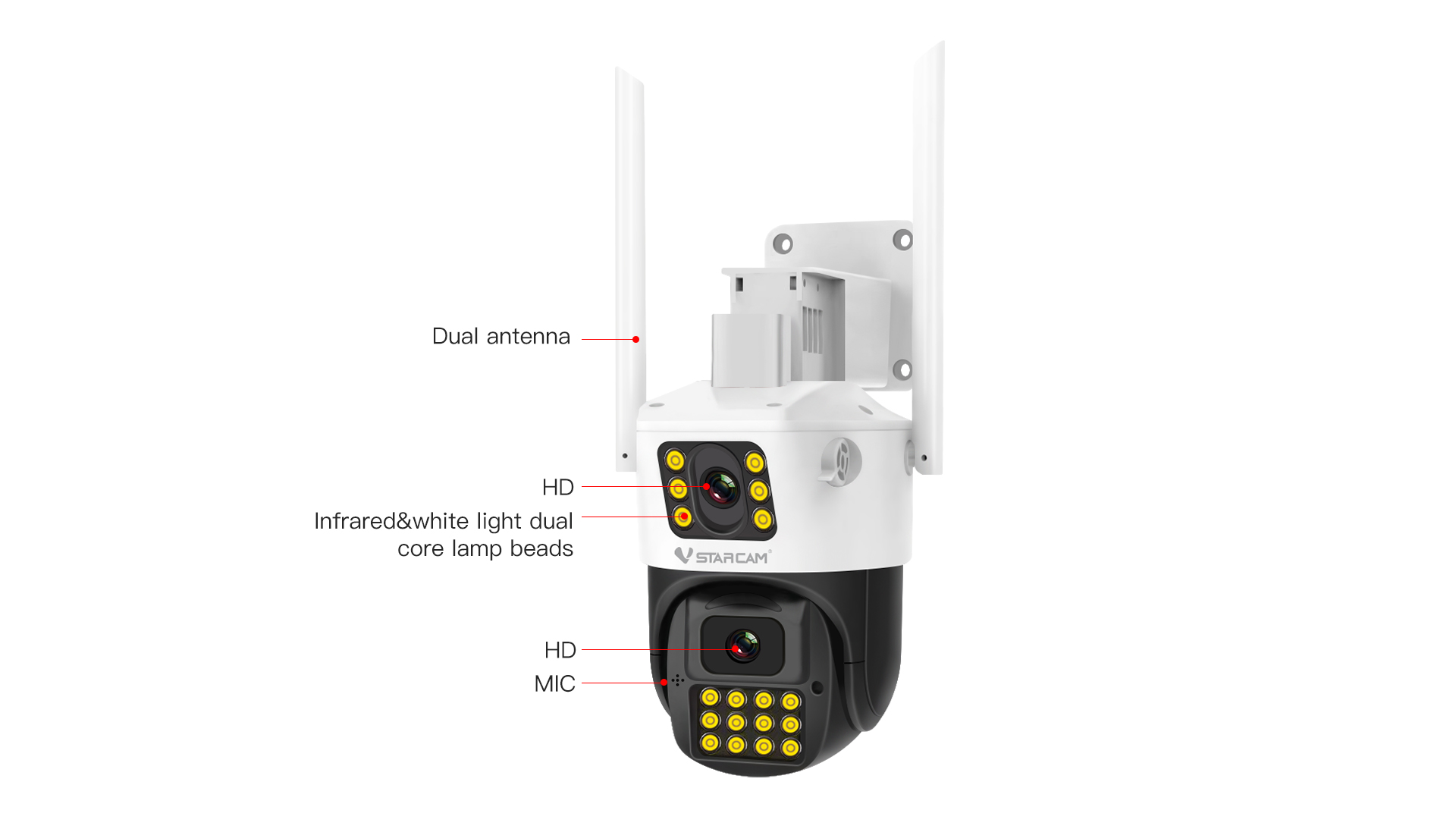

    Dual lens WiFi camera CS663DR
