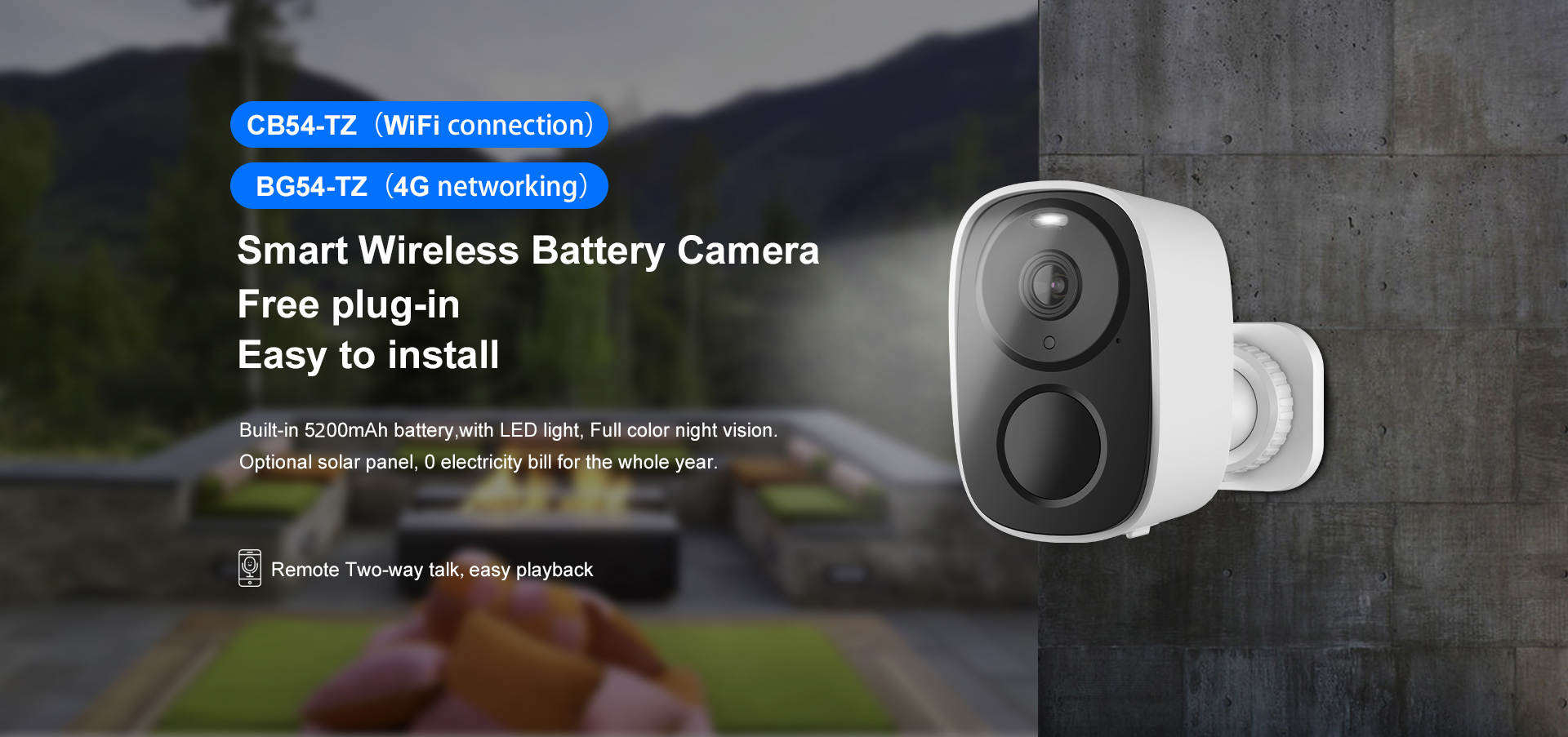

Smart Wireless Battery Camera
Free plug-in
Easy to install
Built-in 5000mAh battery,with LED light, Full color night vision.
Optional solar panel, 0 electricity bill for the whole year.
Wireless installation
Simple and convenient
Wiring free, effectively solve the troubles of wiring.

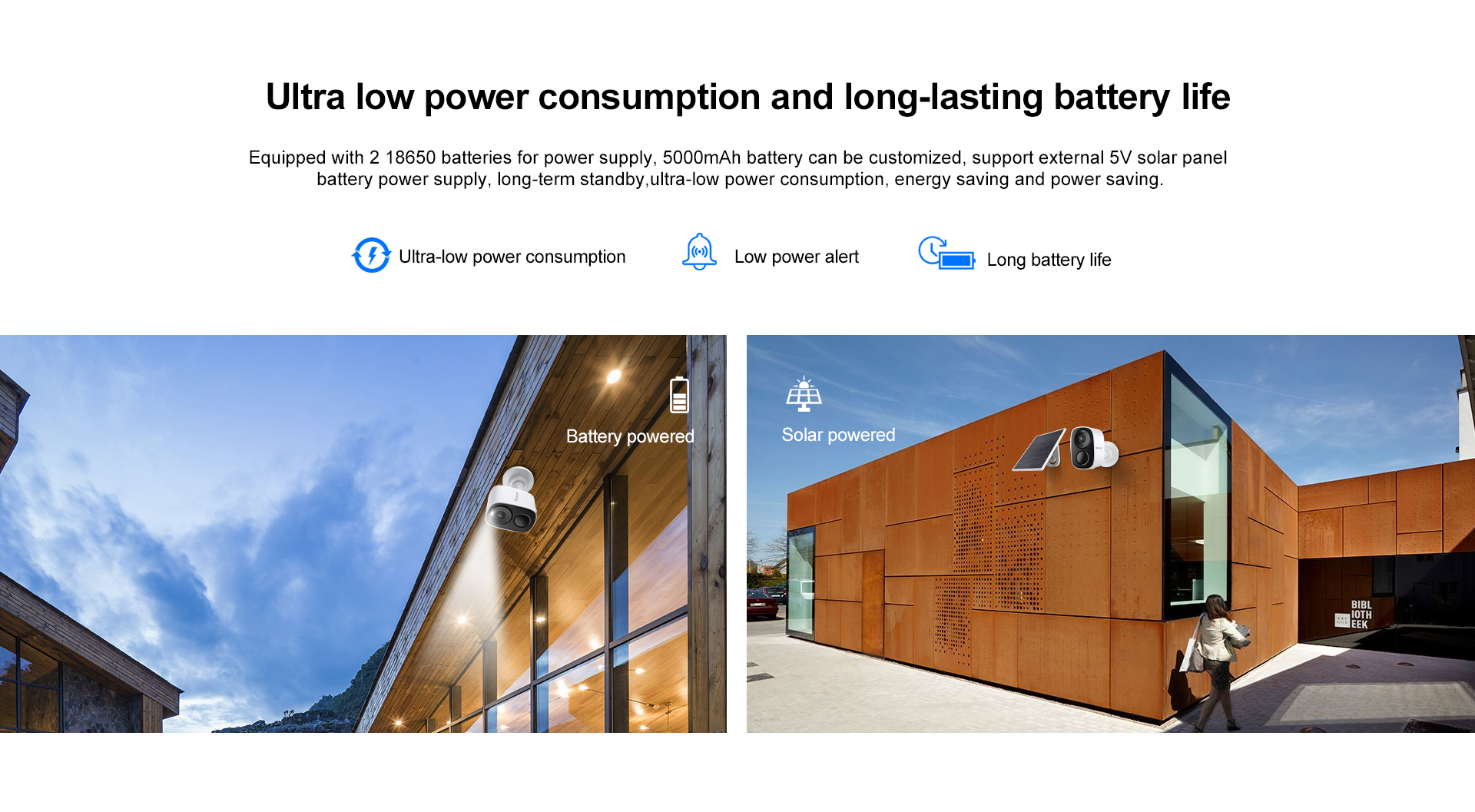

Ultra low power consumption and long-lasting battery life
Equipped with 2 18650 batteries for power supply, 5000mAh battery can be customized, support external 5V solar panel
battery power supply, long-term standby,ultra-low power consumption, energy saving and power saving.

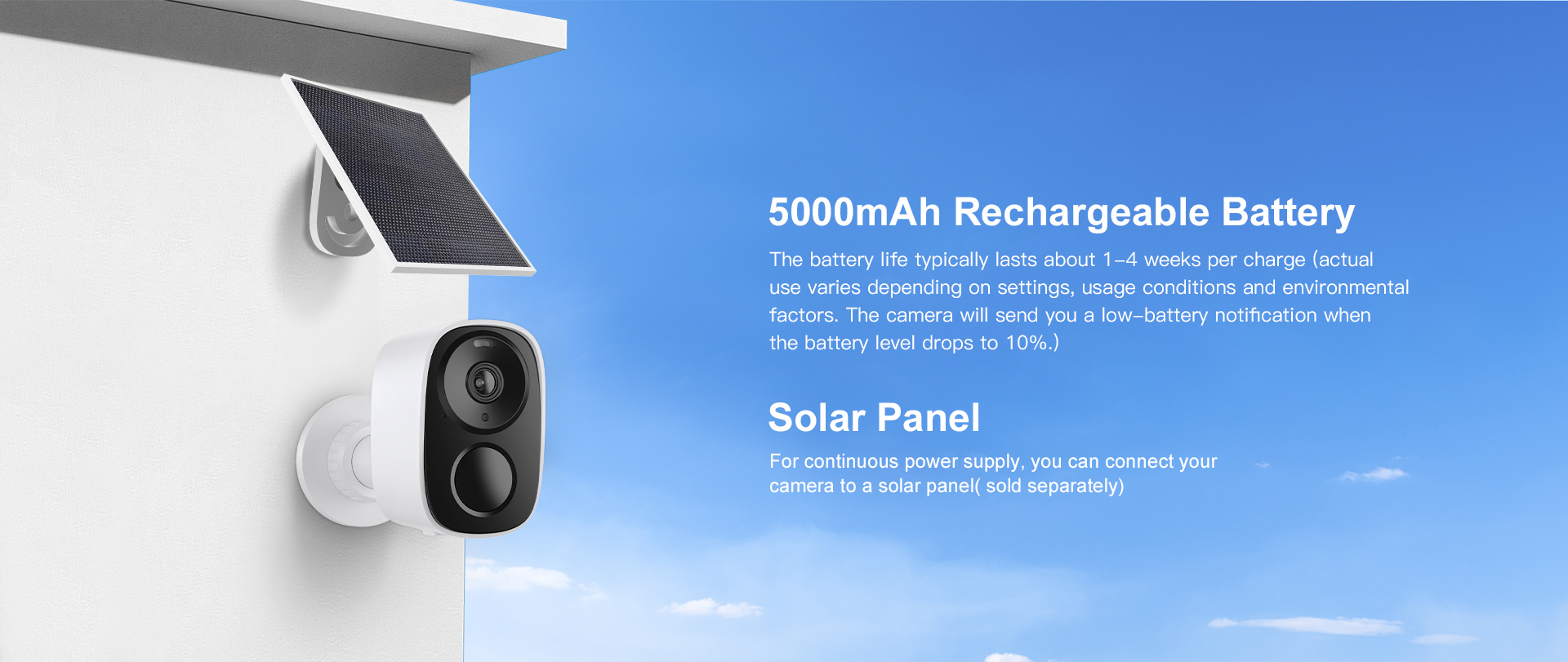

5000mAh Rechargeable Battery
The battery life typically lasts about 1-4 weeks per charge ( actual use varies depending on settings, usage conditions and environmental factors. The camera will send you a low-battery notifcation when he battery level drops to 10%. ）
Solar Panel
For continuous power supply, you can connect your camera to a solar panel ( sold separately)

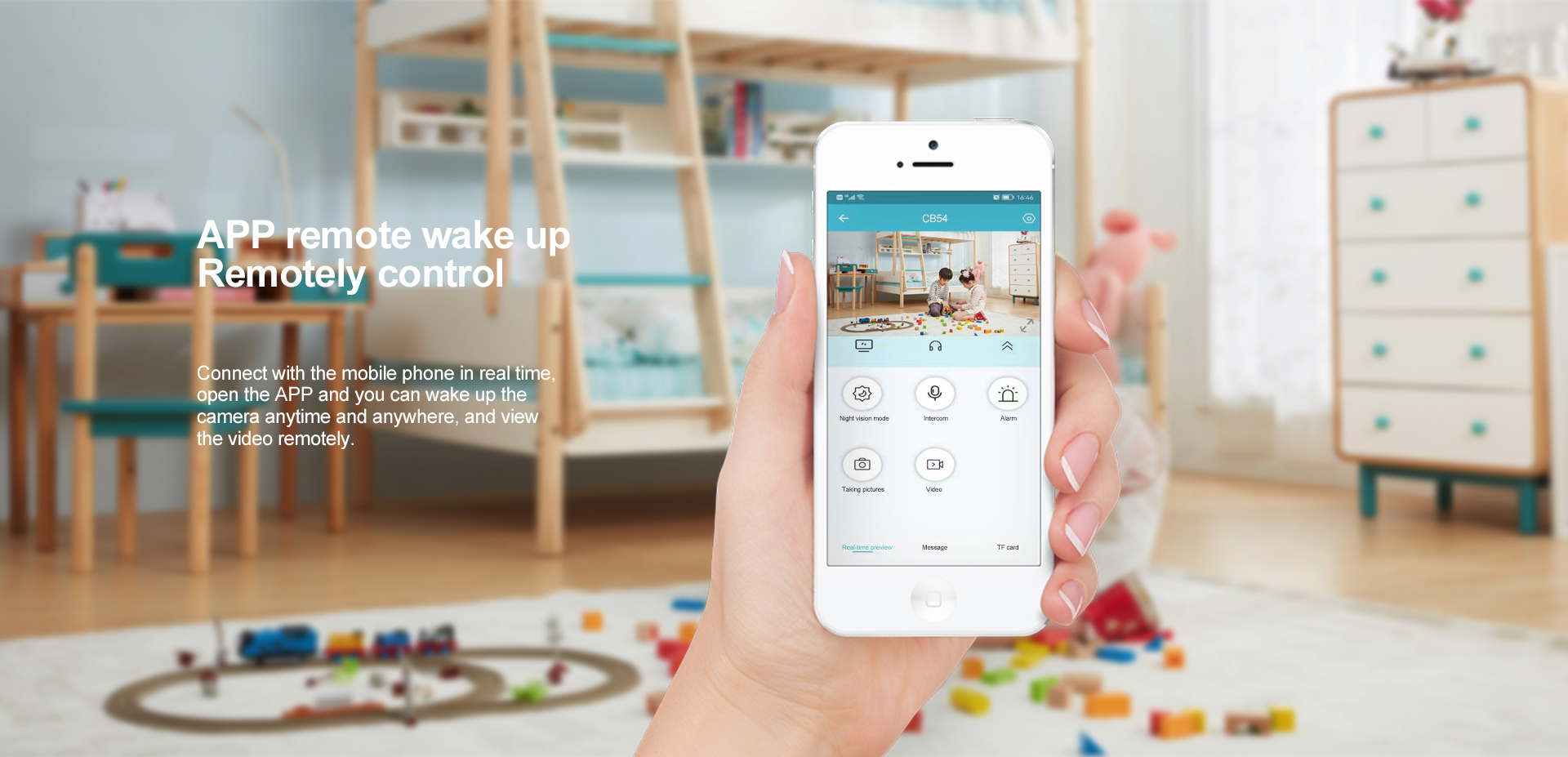

APP remote wake up
Remotely control
Connect with the mobile phone in real time, open the APP and you can wake up the camera anytime and anywhere, and view the video remotely.
Intelligent detection, security guard
PlR detection, real-time alamm, Once it senses infrared radia ation from the human body, the device will immediately trigger the alarm push the alarm message to the mobile phone APP.

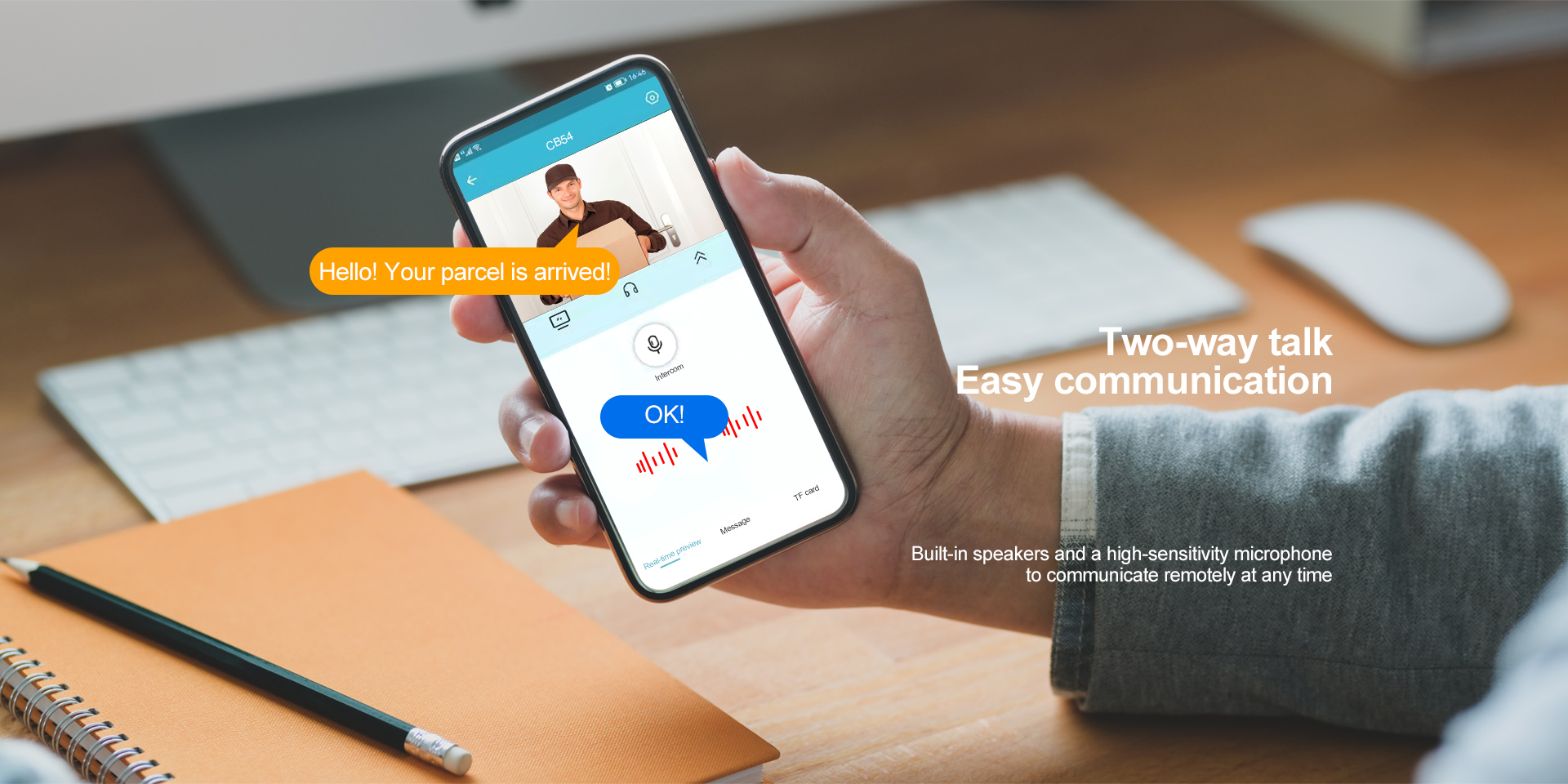

Two-way talk
Easy communication
Built-in speakers and a high-sensitivity microphone, to communicate remotely at any time.
HD image, 24 hours of protection
1080P HD lens, the picture is clearly presented,
110° wide viewing angle, capture more details.
Full color night vision, day and night protectionrithms
High efficiency infrared light, dual filter automatic switch, render clear picture all day.
Indoor & outdoor available
Waterproof & Dustproof
Easy to install, lP66 waterproof and dust-proof design
for use in multiple scenarios.

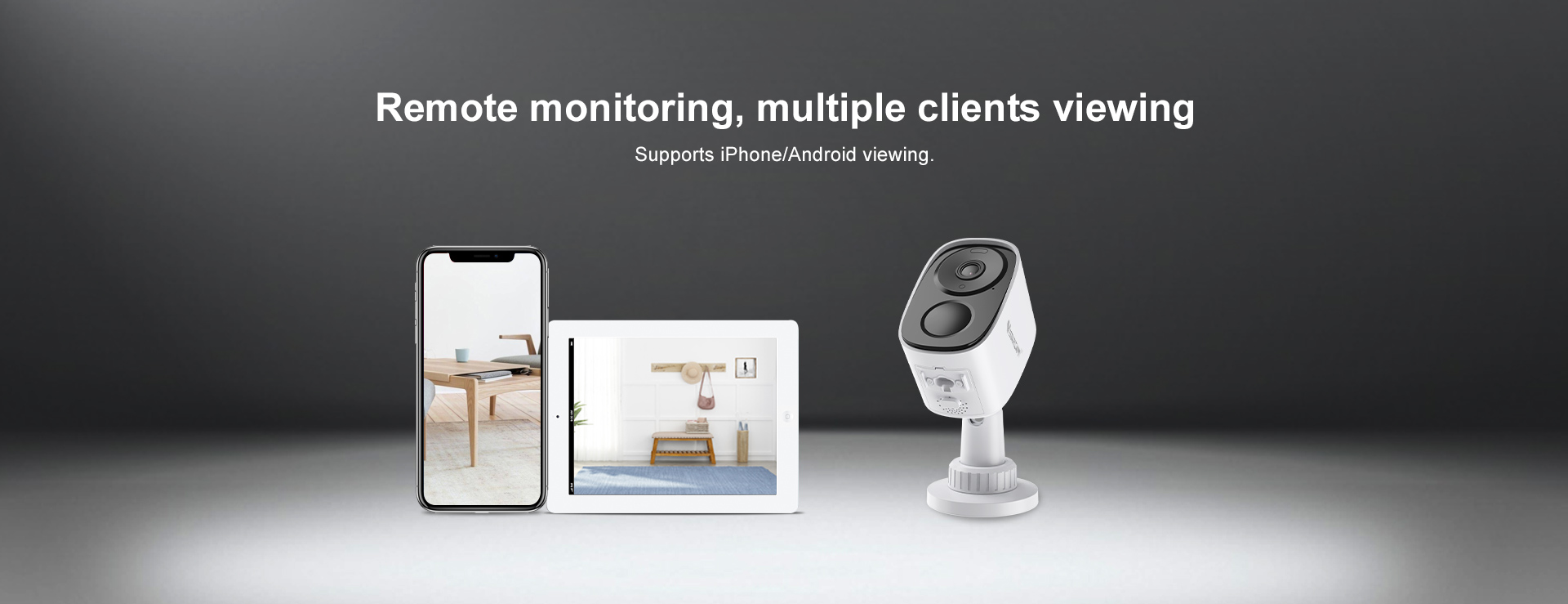

Remote monitoring, multiple clients viewing
Supports iPhone/Android viewing.
Record video in time, security storage
Support for a variety of storage paths: TF card, cloud storage etc., easy and fast
recording and playback, file storage is more secure.

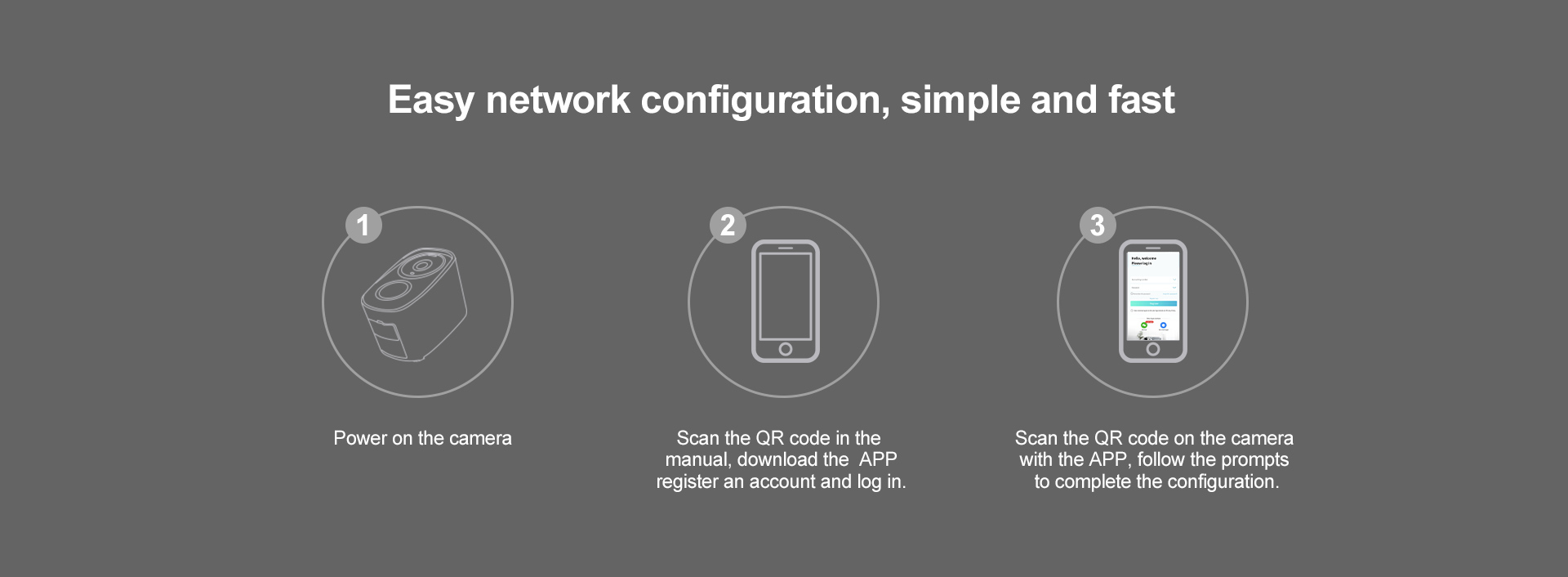

Easy network configuration, simple and fast
Place as you like, full time care
Widely used in a variety of occasions, easy to achieve real-time care.

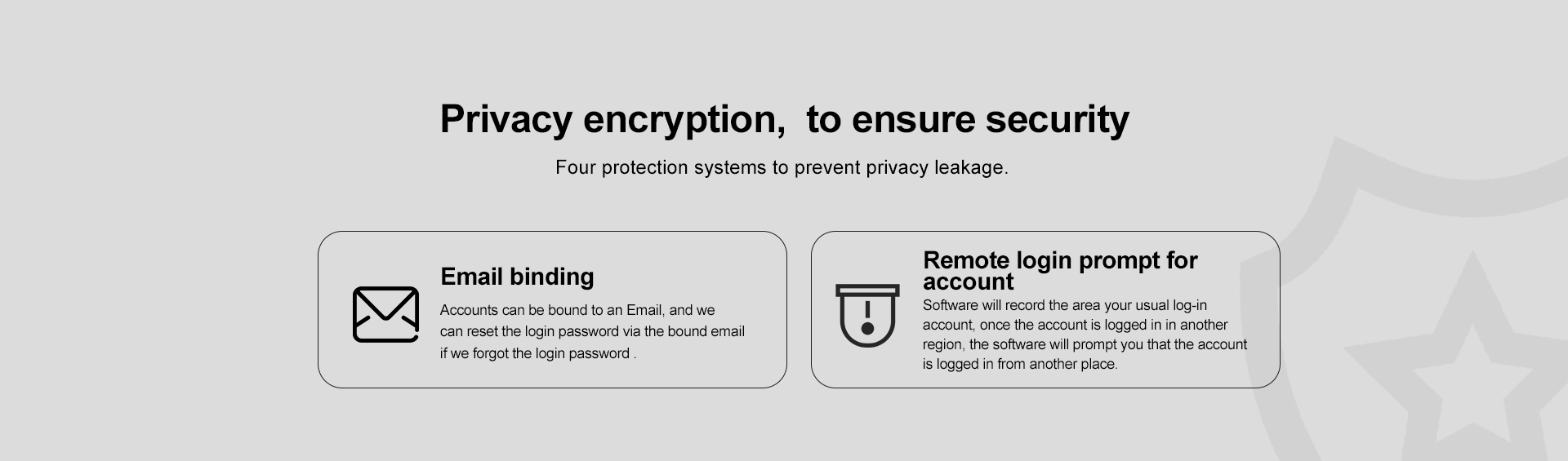

Privacy encryption, to ensure security
Four protection systems to prevent privacy leakage

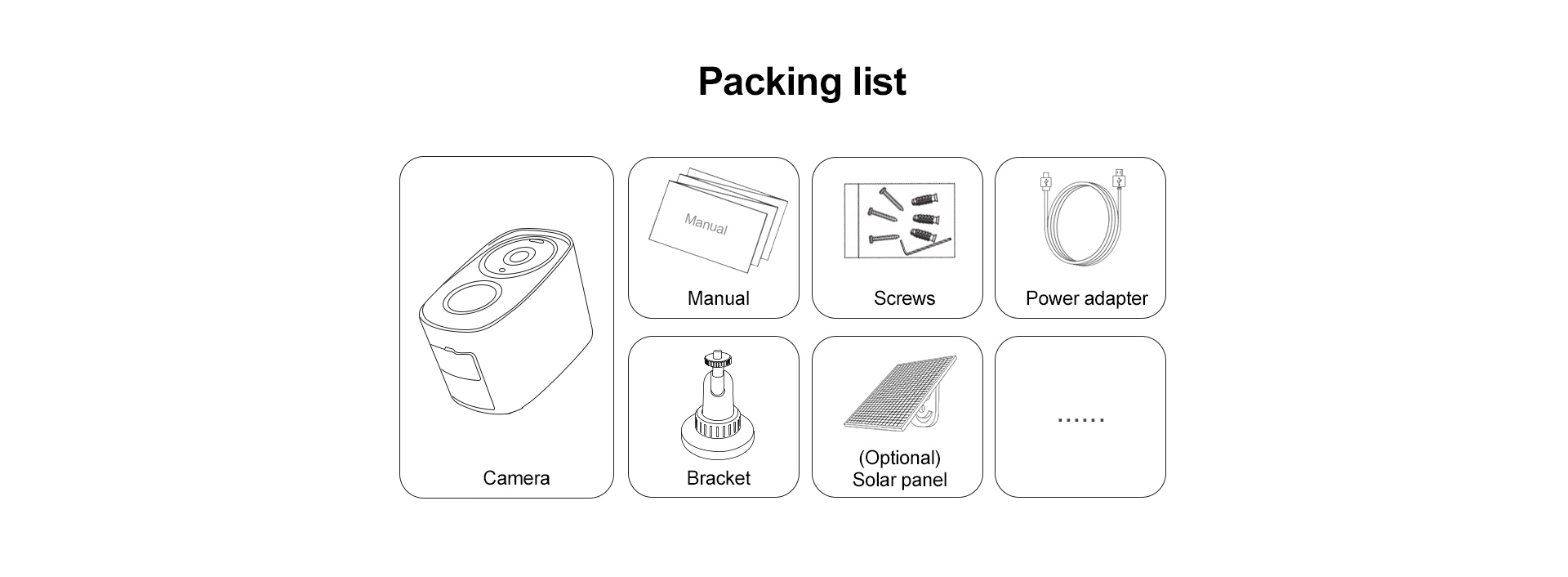

Packing list
| CB54 | ||
| ✮2.4G/5G dual-band wireless connection, support Bluetooth network configuration | ||
| ✮Remote active wake-up, two-way voice intercom | ||
| ✮Quick start, start recording within 400ms | ||
| ✮Intelligent detection of human movement, intelligent alarm push | ||
| ✮5200mAh battery power supply, low power warning | ||
| ✮Ultra low power system optimization | ||
| ✮Free cloud storage alarm videos | ||
| ✮Support external solar panels to continuously power the camera. | ||
| Category | Type | Parameter |
| System | Operating system | Embedded Linux |
| Online visitor | Supports 4 visitors at the same time | |
| APP | O-KAM Pro | |
| Collection | CPU | T23 |
| Image sensor | OV 02N10 | |
| Lens | Focal length 4mm | |
| Viewing angle | Diagonal 110° | |
| Video | Night vision | Black and white night vision/full color night vision, 6pcs 850nm infrared lights, 2pcs white light lights |
| Compression standard | H.264 /JPEG | |
| Pixels | 2K, 3 MP, three levels optional Super HD 2304x1296@15fps 768kpbs HD 2304x1296@15fps 512kpbs SD 640x360@15fps 256kpbs | |
| Image adjustment | 180° rotation | |
| Audio | Input | Built-in－38dB microphone |
| Output | Built-in 8Ω1W speaker | |
| Sampling frequency/bit width | 8KHz/16bit | |
| Compression standard / Bit rate | G711A | |
| AI | Humanoid detection | Humanoid detection, filtering invalid alarms |
| Area detection | Free daub, only monitoring the areas concerned by users | |
| Smart notification sound | Different devices push different sounds, so that you can know exactly which device is triggered | |
| Intelligent alarm sound | Set different alarm sounds according to different scenarios | |
| Smart assistant | Support Alexa | |
| More AI functions (testing) | Pets, vehicles, parcels, etc | |
| Network | Wireless frequency | 2.4/5.8G |
| Connection | AP hotspot network configuration, QR code network configuration, bluetooth network configuration | |
| Key | Key 1 | On/Off key |
| Reset key | Long press to restore factory settings | |
| Storage | External TF card | Support TF card (up to 256GB) |
| Cloud storage | Free cloud storage | |
| Alarm | Alarm detection | PIR human detection |
| Working Mode | Power saving mode | PIR triggered recording |
| Smart sleep mode | 24-hour full-time recording (when battery level is above 40%) | |
| Super power saving mode | PIR triggered recording, camera cannot be woken up through App | |
| Physical Indicators | Charging voltage | 5V/2A TYPE-C |
| Power supply | 5200mAh battery, 2*18650, supports external 5V solar panel | |
| Consumption | Sleep current 260uA, working current: 230-360mA | |
| Operating condition | Temperature: -10～55℃; Humidity: ＜90% | |
| Weight | Net weight: 200g Gross weight: 363g | |
| Size | Camera: 89.5*56.5*59.5mm Packaging box: 152*119*79mm | |
| Packing list | Camera*1, bracket*1, charging cable*1, manual*1 | |
| BG54 | ||
| ✮4G connection | ||
| ✮Remote active wake-up, two-way voice intercom | ||
| ✮Quick start, start recording within 400ms | ||
| ✮Intelligent detection of human movement, intelligent alarm push | ||
| ✮5200mAh battery power supply, low power warning | ||
| ✮Support AOV mode (Chinese version only) | ||
| ✮Ultra low power system optimization | ||
| ✮Free cloud storage alarm videos | ||
| ✮Support external solar panels to continuously power the camera. | ||
| Category | Type | Parameter |
| System | Operating system | Embedded Linux |
| Online visitor | Supports 4 visitors at the same time | |
| APP | O-KAM Pro | |
| Collection | CPU | T23 |
| Image sensor | OV 02N10 | |
| Lens | Focal length 4mm | |
| Viewing angle | Diagonal 110° | |
| Video | Night vision | Black and white night vision/full color night vision, 6pcs 850nm infrared lights, 2pcs white light lights |
| Compression standard | H.264 /JPEG | |
| Pixels | 2K, 3 MP, three levels optional Super HD 2304x1296@15fps 768kpbs HD 2304x1296@15fps 512kpbs SD 640x360@15fps 256kpbs | |
| Image adjustment | 180° rotation | |
| Audio | Input | Built-in－38dB microphone |
| Output | Built-in 8Ω1W speaker | |
| Sampling frequency/bit width | 8KHz/16bit | |
| Compression standard / Bit rate | G711A | |
| AI | Human detection | Human detection, filtering invalid video contents |
| Area detection | Free daub, only monitoring the areas concerned by users | |
| Smart notification sound | Different devices push different sounds, so that you can know exactly which device is triggered(Not supported by some mobile phones, such as Huawei) | |
| Intelligent alarm sound | Set different equipment alarm sounds according to different scenarios | |
| More AI functions (testing) | Pets, vehicles, parcels, etc | |
| Network | Networking | Use APP to scan the QR code on device to add; Use the device to scan QR code on APP to add; |
| Chinese version | FDD:B1/B3/B5/B8 TDD:B34/B38/B39/B40/B41 | |
| American version | FDD：B2/4/5/12/13/25/26 | |
| European version | FDD：B1/B3/B7/B8/B20/B28 | |
| Key | On/Off | Turn on/off |
| Reset key | Long press to restore factory settings | |
| Storage | External TF card | Support TF card (up to 256GB) |
| Cloud storage | Free loop cloud storage | |
| Alarm | Alarm detection | Support PIR human detection |
| Working Mode | Power saving mode | PIR triggered recording |
| AOV mode | 24-hour time-lapse recording, when human figure is recognized or PIR triggered recording | |
| Smart sleep mode | 24-hour full-time recording (when battery level is above 40%) | |
| Super power saving mode | PIR triggered recording, camera cannot be woken up through App | |
| Physical Indicators | Charging voltage | 5V/2A TYPE-C |
| Power supply | 5200mAh battery | |
| Consumption | Sleep standby current 5mA, working current: 400-600mA | |
| Operating condition | Temperature: -10～55℃; Humidity: ＜90% | |
| Weight | Net weight: 200g Gross weight: 363g | |
| Size | Camera：89.5*56.5*59.5mm Pacakging box：152*119*79mm | |
| Packing list | Camera*1, bracket*1, charging cable*1, manual*1 | |
