4G Low Power Trail Camera
3MP
HD
4G
Network
Full Color
Night Vision
IP66
Waterproof
110 ° View
Angle
PIR
Detection
Large Capacity
Battery
4G
Network
3 MP
HD
Low Power
Consumption
Two-Way
Voice
Full Color
Night Vision
IP66
Waterproof
Free Cloud
Storage
4G Network
Connect via 4G network, no network cable required. You
can easily access the trail camera anytime, anywhere.

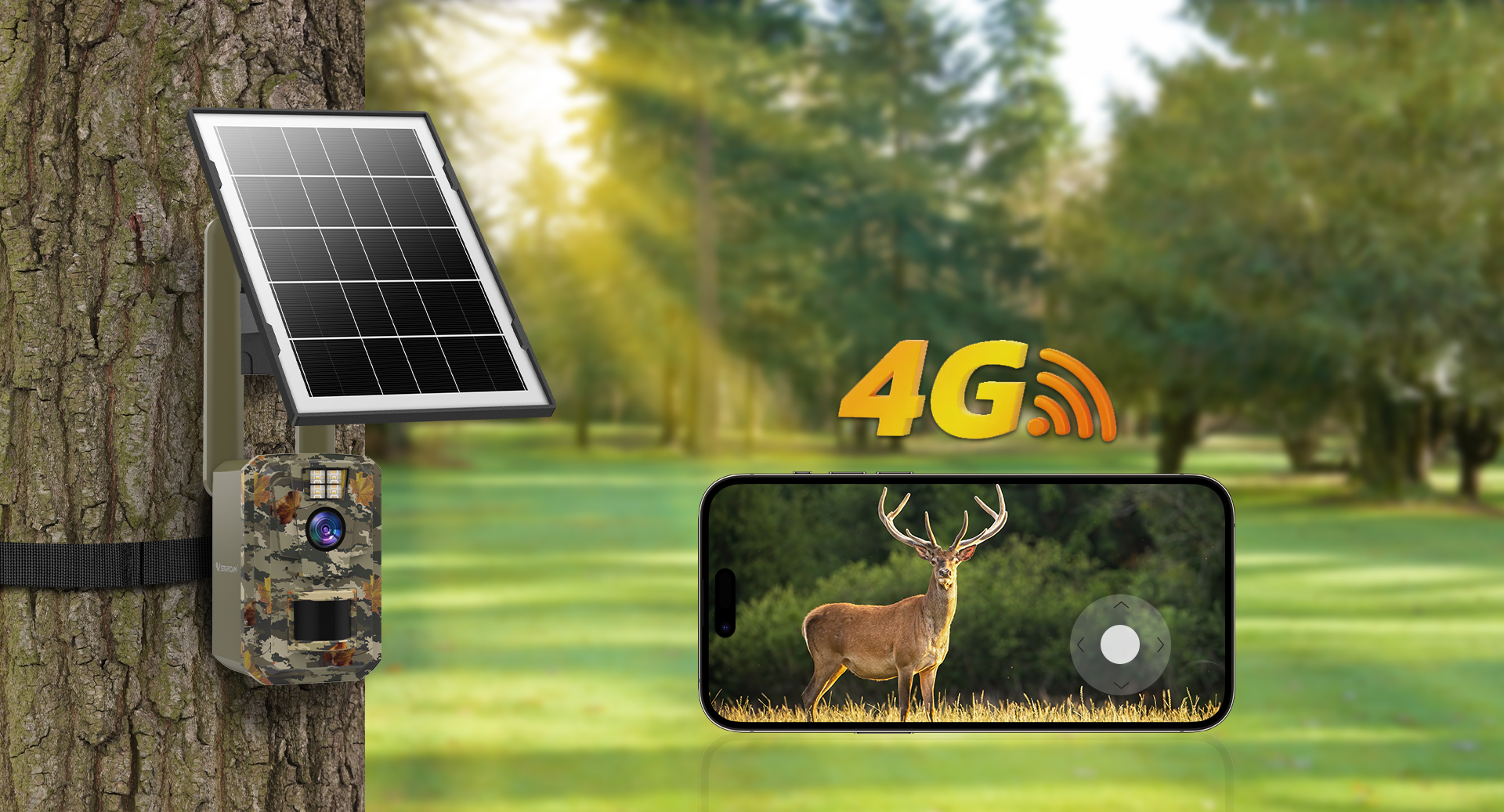

Solar Powered
The camera has a built-in large-capacity rechargeable battery. With external solar panel and ultra-low power consumption system, it can achieve long-term standby even without plugging in a power source.
Solar
Powered
Battery
Powered
Low Power
Consumption
Wide View
This trail camera has a 110° detection angle and
field of view, allowing it to capture a wider area.
PIR Motion Detection
Once human motion is detected, it will record video and immediately push an alarm message to the mobile phone.
App Remote
Wakeup
When no motion is detected, the camera will go into sleep mode. You can wake up the camera at any time through the App to view the live feed.
3 MP High Quality Imaging
1296p, also known as 3MP, provides clearer images with more details, which can be displayed clearly on mobile phones, tablets and computers, easily meeting daily monitoring needs.

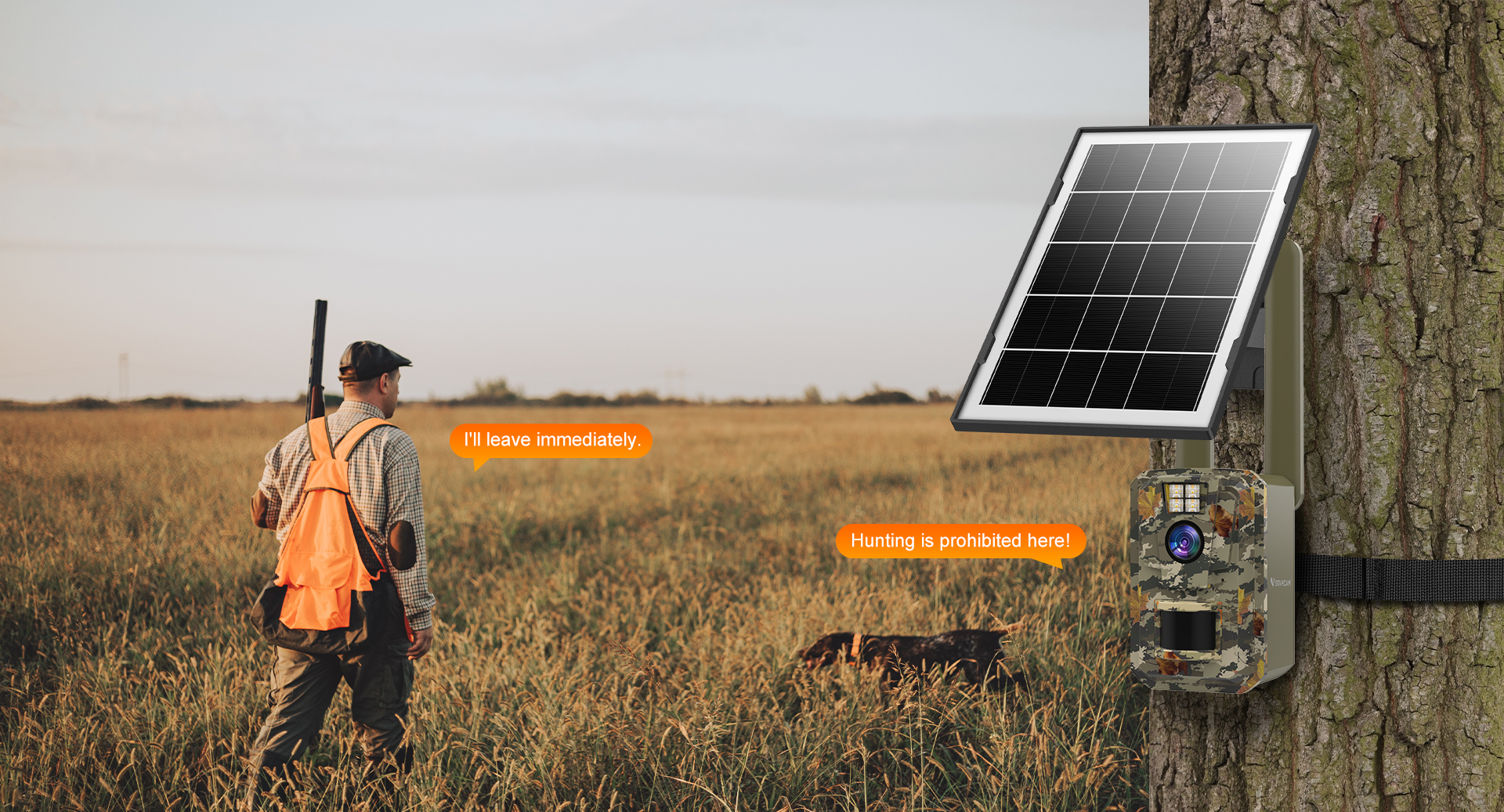

Two Way Communication
With the microphone and speaker,
you can communicate
With the person
at the scene in real time.
Vivid Night Vision
With the white and infrared LEDs, the camera ensures
clear and sharp imagery around the clock.
Secure Local or Cloud Storage
It supports TF card storage and cloud storage, making video storage more convenient, and you can view and playback videos by time and date easily.
IP66 Waterproof Design
Mobile Remote Access
You can remotely view the camera from your
Android or iOS phone and Windows PC.
Quick and Easy Installation
Simple and Fast Networking
What in the Box?
Qualification Certificate
ISO 9001/PSE Certification/CQC Product Certification/CE/ROSH/FCC
UN38.3 Certification/Integrity Enterprise Certification
| ✮Stable 4G connection | ||
| ✮Full-duplex intercom | ||
| ✮Quick start, start recording within 400ms | ||
| ✮PIR detection, intelligent alarm push | ||
| ✮5200mAh battery powered, low battery reminder | ||
| ✮Free cloud storage | ||
| ✮Support external 5V solar panel to continuously supply power | ||
| ✮Smart AI | ||
| Category | Type | Parameter |
| System | Operating system | Embedded Linux |
| Online visitor | Supports 4 visitors at the same time | |
| APP | O-KAM Pro | |
| Collection | CPU | T23 |
| Memory | 512Mb | |
| Image sensor | OV 02N10 | |
| Lens | Focal length 4mm | |
| Viewing angle | D110° | |
| Video | Night vision | Black and white night vision, dual filter automatic switching, 4pcs 850nm infrared lights, 4pcs white lights, night vision range 5-10 meters Full color night vision Starlight night vision |
| Compression standard | H.264 /JPEG | |
| Multi stream | Main stream: 1296P/15fps Sub stream: 360P/15fps | |
| IR control | When the IR night vision function is enabled, IR and ICR are automatically detected; when the IR night vision function is disabled, IR is off and ICR is fixed in the day vision mode. | |
| Audio | Input | Built-in-38dB microphone |
| Output | Built-in 8Ω1W speaker | |
| Sampling frequency/bit width | 8KHz/16bit | |
| Compression standard/Bit Rate | G711A | |
| AI | Human detection | Human detection, filtering invalid video contents |
| Area detection | Free daub, only monitoring the areas concerned by users | |
| Smart notification sound | Different devices push different sounds, so that you can know exactly which device is triggered(Not supported by some mobile phones, such as Huawei) | |
| Intelligent alarm sound | Set different equipment alarm sounds according to different scenarios | |
| More AI functions (testing) | Pets, vehicles, parcels, etc | |
| Network | Networking | Use APP to scan the QR code on device to add; Use the device to scan QR code on APP to add;Bluetooth network configuration |
| Chinese version | FDD:B1/B3/B5/B8 TDD:B34/B38/B39/B40/B41 | |
| American version | FDD:B2/4/5/12/13/25/26 | |
| European version | FDD:B1/B3/B7/B8/B20/B28 | |
| Key | On/Off | Short press to turn on, long press to turn off |
| Reset key | Long press to restore factory settings | |
| Storage | External TF card | Support TF card (up to 256GB) |
| Cloud storage | Free loop cloud storage | |
| Alarm | Alarm detection | Support PIR human detection |
| Physical Indicators | Charging voltage | DC5V±5% |
| Power supply | Built-in 5200mAh battery power supply, 2*18650, supports external solar panels(supports up to 2*21700) | |
| Consumption | Sleep standby current 5mA, working: 400-600mA | |
| Operating condition | Temperature: -10～55℃; Humidity: ＜90% | |
| Weight | Net weight: 235g | |

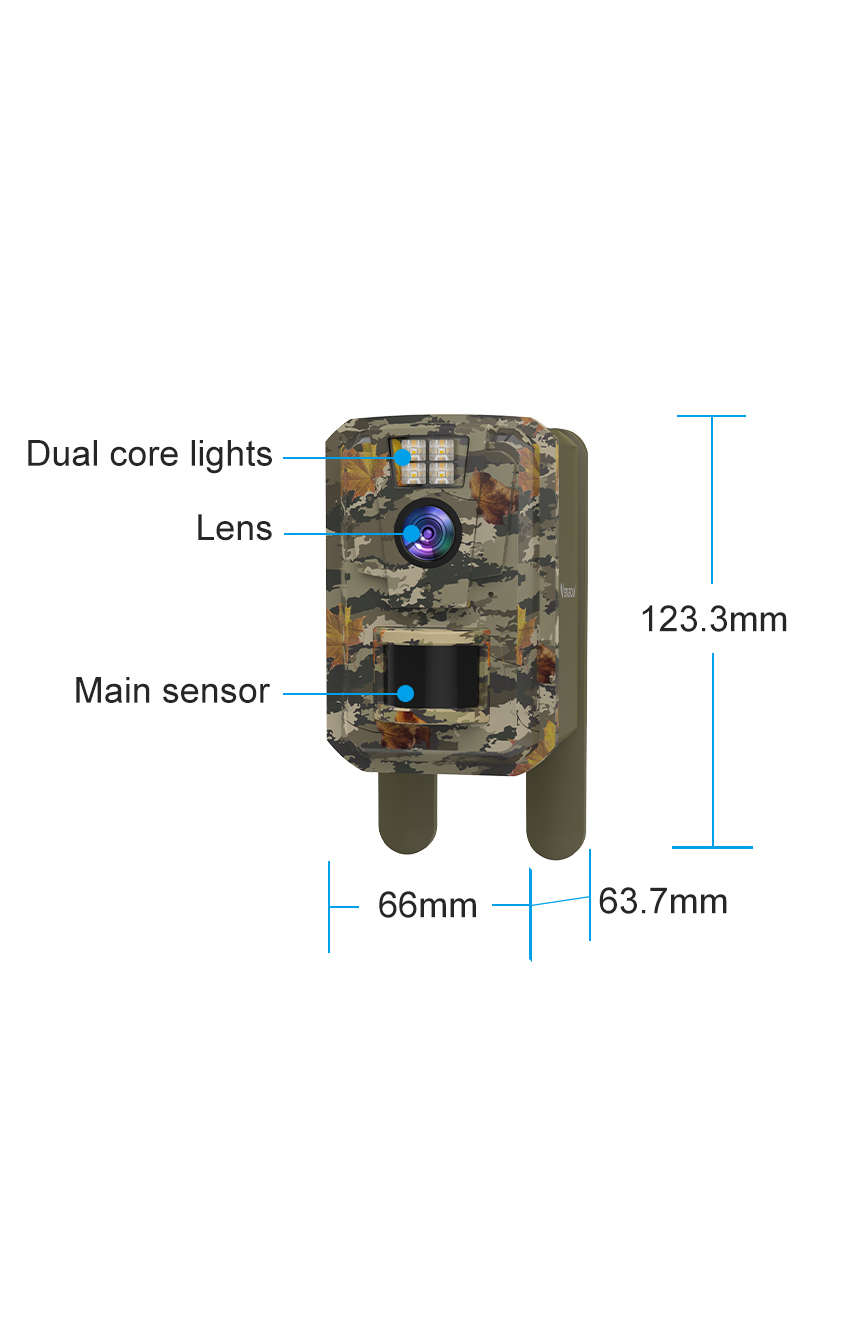

| Size | Camera：66*63.7*123mm | |
| Packing list | Camera*1, bracket*1, screw package*1, manual*1, strao*1 (optional: Type-C charging cable*1, solar panel*1, solar panel bracket*1) | |
