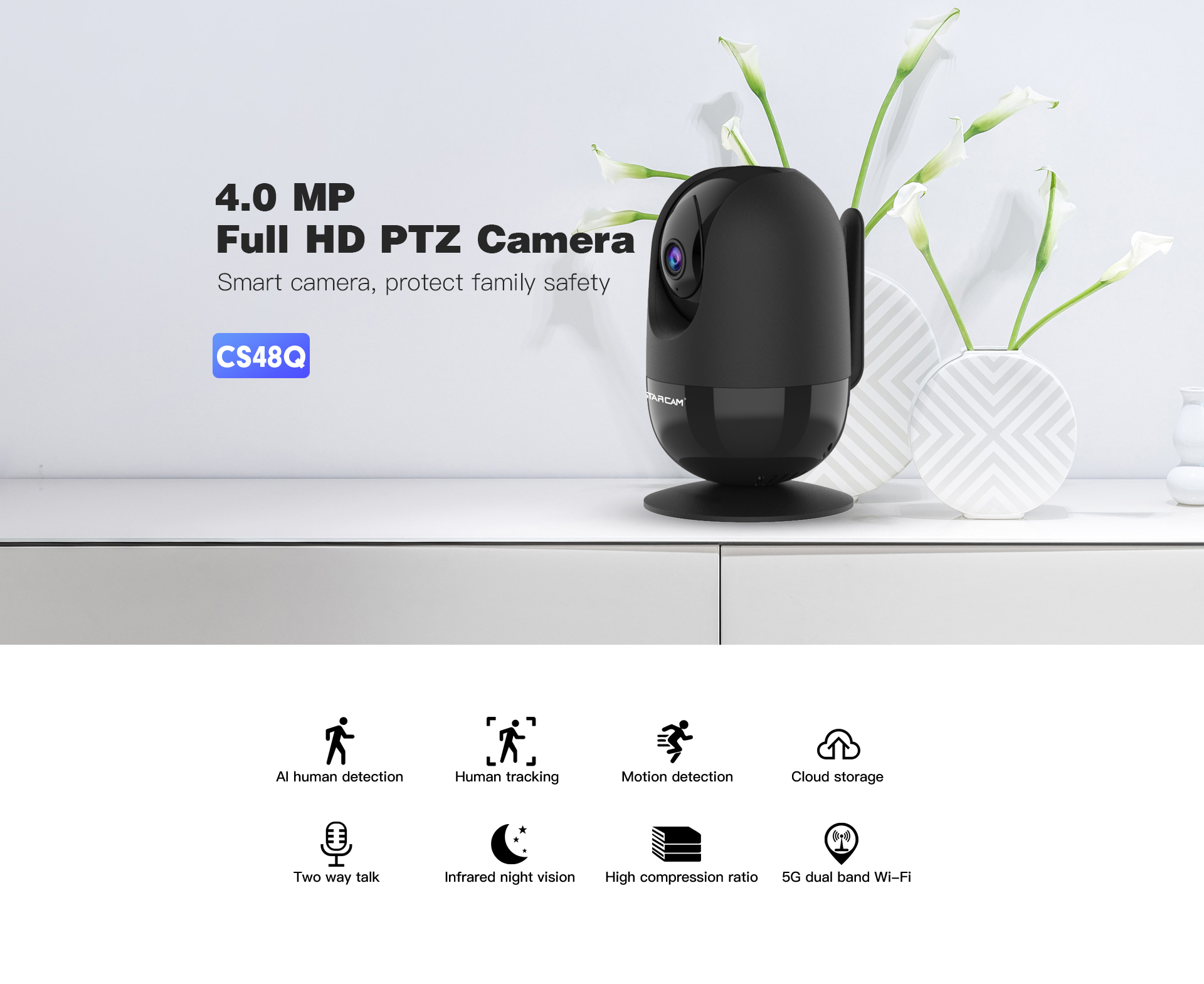

CS48Q

Detail Specs Videos
  • Support
  • SystemOperation systemEmbedded Linux OS
    Online visitorSupport 4 visitors at the same time
    Image CaptureImage sensor1 / 3 inch Progressive Scan CMOS
    Minimum Illumination0.5Lux(Color mode),0.1Lux(B&W Mode)
    Lens4.0mm @ F2.1
    View Angle101°(diagonal)
    Night visiontDual Filter,IR-Cut,2pcs 28mil SMD IR LED
    IR irradiation distance:5~10m
    VideoEncode formaH.264 main profile/H.264+ main profile/Motion-JPEG/JPEG
    Resolution2560x1440@30pfs/640*360@15pfs
    Bit Rate/FPS/Frequency128~4096kbps/1~30pfs/60Hz、50Hz
    Image adjustmentAdjustable brightness and contrast
    AudioInputBuilt-in -38 dB microphone
    OutputBuilt-in speaker(8Ω1W)
    Sampling frequency / width8KHz/16bit
    Compression standardADPCM/32kbps
    NetworkEthernet10Base-T / 100Base-TX, RJ45 connector
    ProtocolsTCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P etc

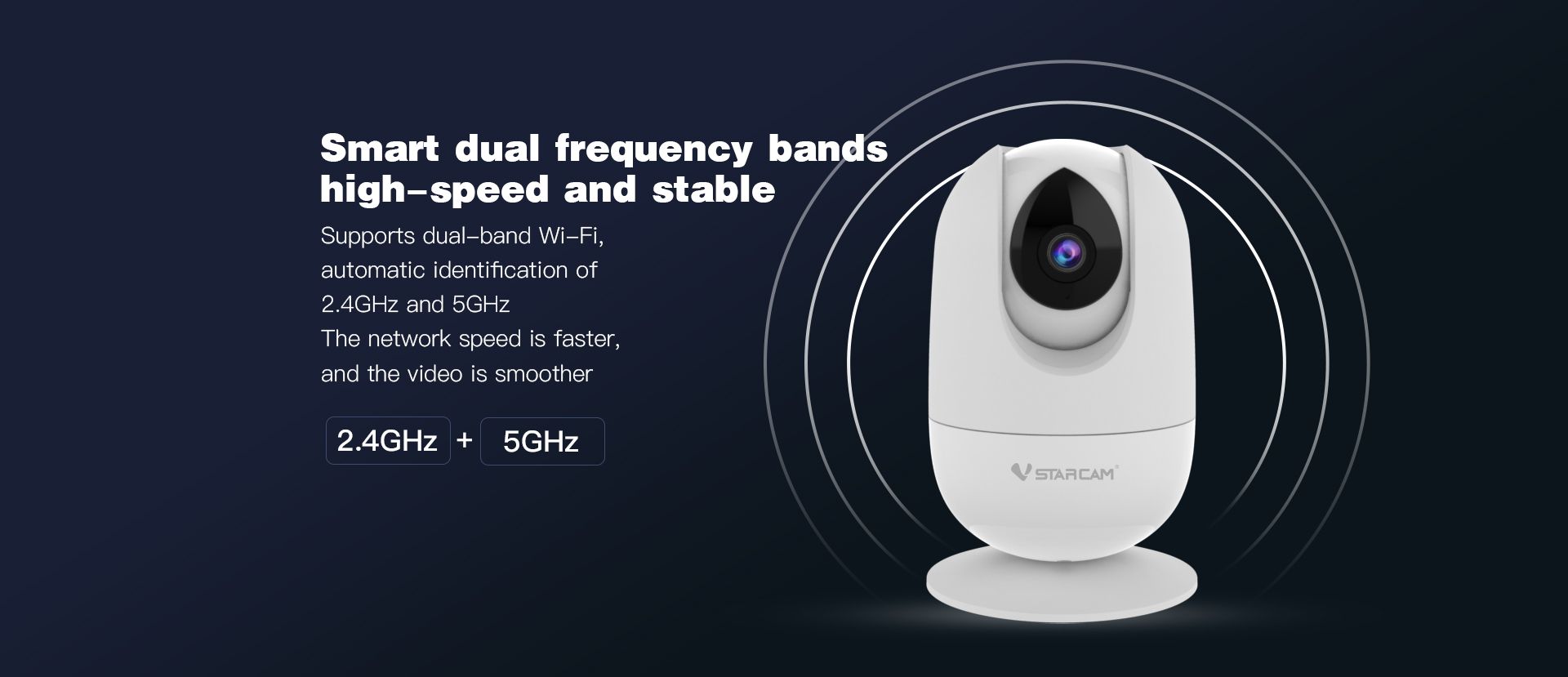

    Wireless LANIEEE802.11b/g/n
    Wireless LAN Frequency2.4GHz、5 GHz
    Wireless LAN security64/128-bit WEP/WPA-PSK /WPA2-PSK data encryption
    Pan-tiltPan-tiltPan:350°,Tilt:110°
    Preset positionPC client  :support 16 positions, phone APP:support 5 positions
    MemorySocketTF Push-push socket,Maximum support 256GB
    AlarmAlarm TriggerMotion detection, Humanoid detection, Humanoid tracking, Cry detection, Smoke siren alarm, Off-duty monitoring,
    Physical EnvironmentalRated voltageDC 5V±5%
    Power consumptionRelated power:2.3W(IR LED on), Maximum Power: 5.2W(Pan&Tilt on)
    Operating conditionTemperature:-10~50℃,humidity:<90%
    WeightNet weight: 185g Gross weight: 450g(Note: in kind prevail)
    Package size185x125x92 mm(L×W×H)
