Sorts | Type | Parameters |
System | Operating system | Embedded Linux |
Online visitor | Supports 4 visitors at the same time | |
CPU/Image sensor | 1/2.9 inch 1080p progressive scan CMOS sensor | |
Minimum illumination | 0.5 Lux(Color mode), 0.1 Lux(B&W mode) | |
Lens/Viewing angle | 3.6mm@F2.0/101° Diagonal | |
Night vision | IR-CUT with auto-switching,4 pcs dual light sources(LED lights+ IR LED lights); Irradiation distance: 5~10 m | |
Compression standard | H.264 main profile/Motion-JPEG/JPEG | |
Data rate | Main stream: 1080p(1920×1080)@30fps/1296p(2304×1296)@15fps Substream:360p(640×360)@15fps | |
Bit rate/maximum frame rate | 128~4096kbps/30fps | |
Image adjustment | Brightness and contrast are adjustable | |

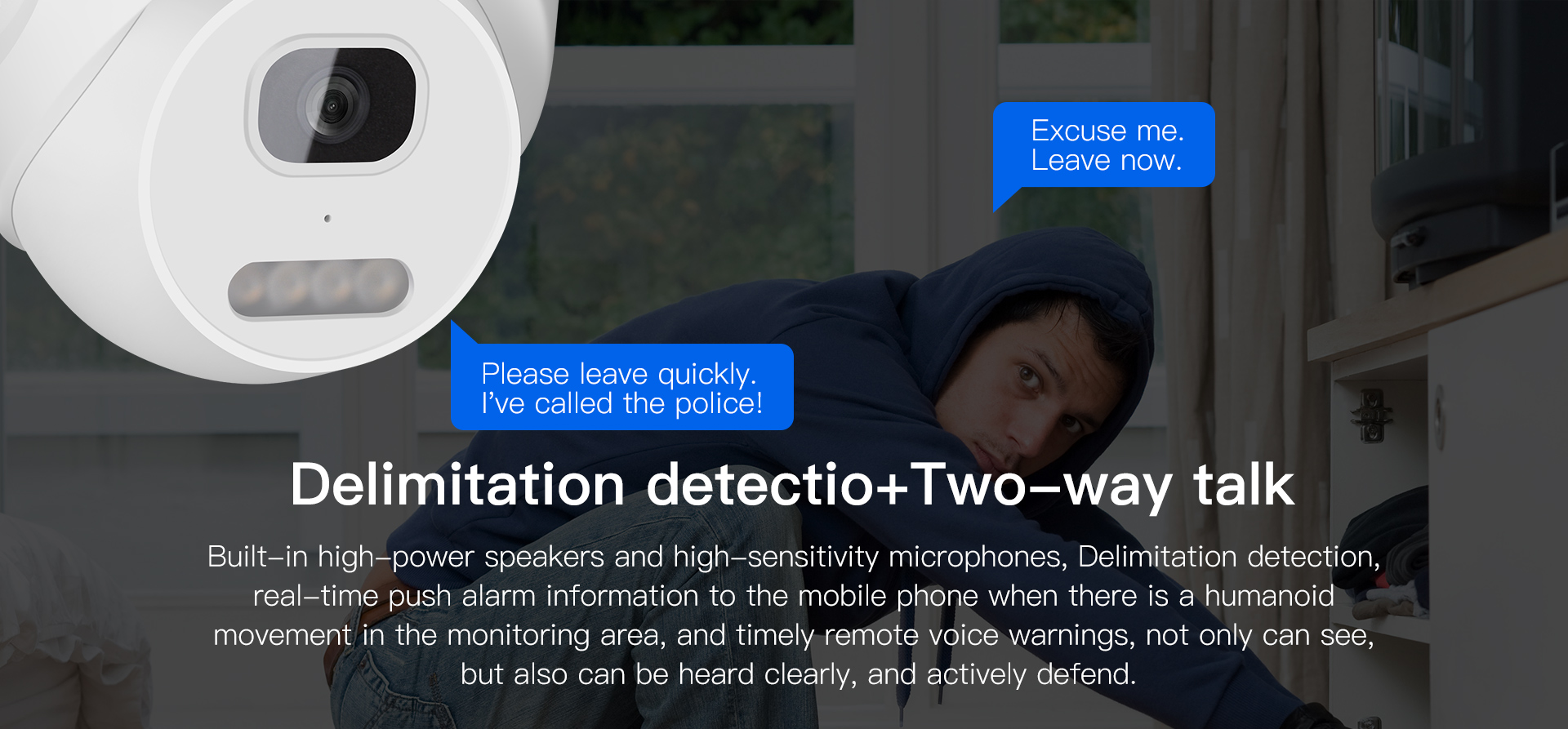

Audio | Input | Built-in -28dB microphone |
Output | Built-in 8Ω2W speaker | |
Sampling frequency/bit width | 8KHz/16bit | |
Compression standard/Bit Rate | G.711/64kbps | |
Network | Network interface | 10Mbps/100Mbps adaptive /RJ45 interface |
Network protocol | TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P,ONVIF etc. | |
Storage | Storage functions | Supports T-Flash card(max supports 256GB); Cloud Storage;NVR;NAS |
Alarm | Alarm detection | Supports Motion detection; Humanoid detection; Humanoid framing; Absence detection; LED light Timing ON/OFF |
Physical Indicators | Rated voltage | DC12V±5% |
Power consumption | Rated power: TBD W (with IR LED lights ON) | |
Operating condition | Temperature: -10~50℃; Humidity: <90% | |
Weight | (Note: in kind prevail) |
