| Sorts | Type | Parameters |
| System | Operating system | Embedded Linux |
| Online visitor | Supports 4 visitors at the same time | |
| CPU/Image sensor | 1/3 inch 1080p progressive scan CMOS sensor | |
| Minimum illumination | 0.5 Lux（Color mode）, 0.1 Lux（B&W mode） | |
| Lens/Viewing angle | 3.6mm@F2.0/101° Diagonal | |

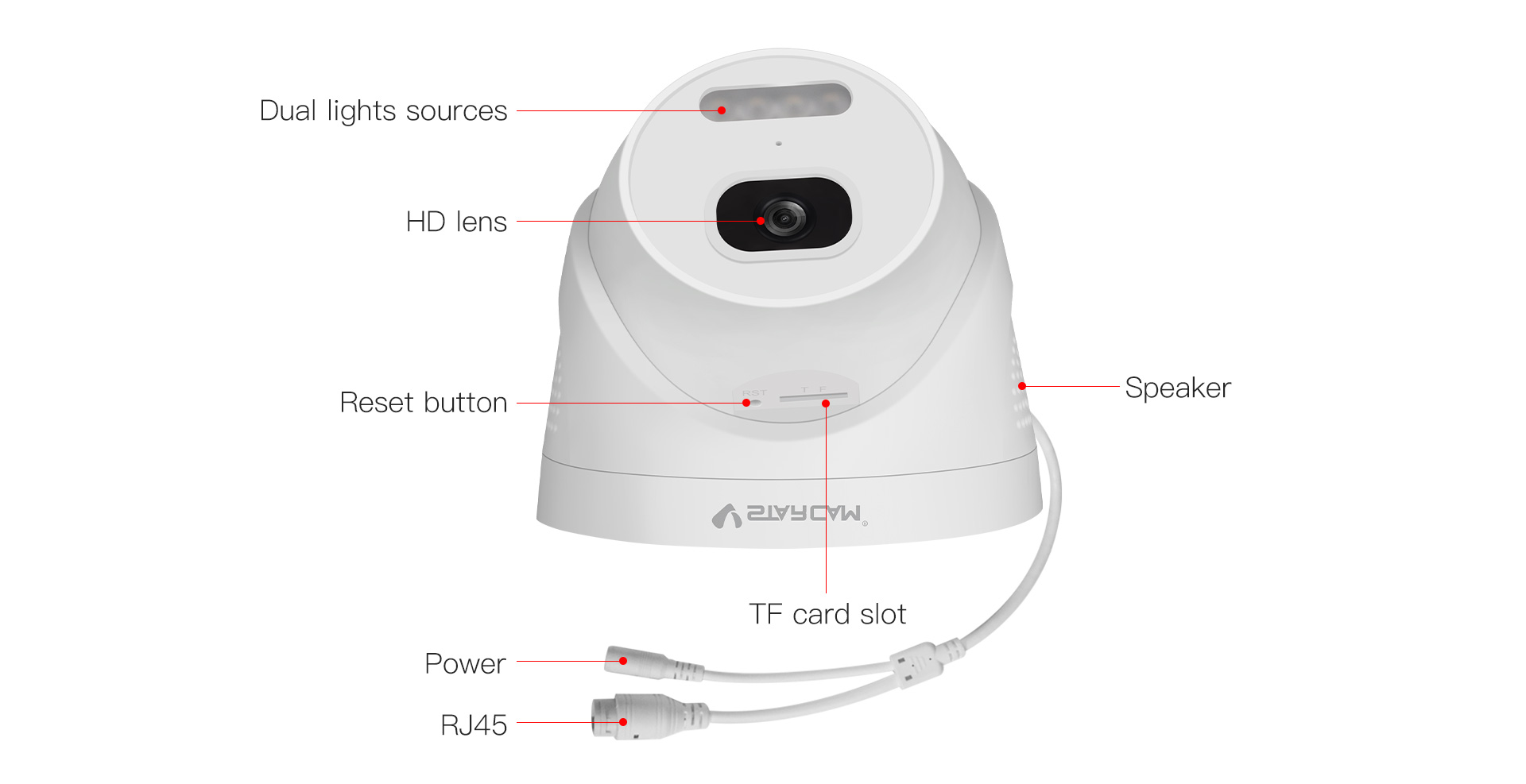

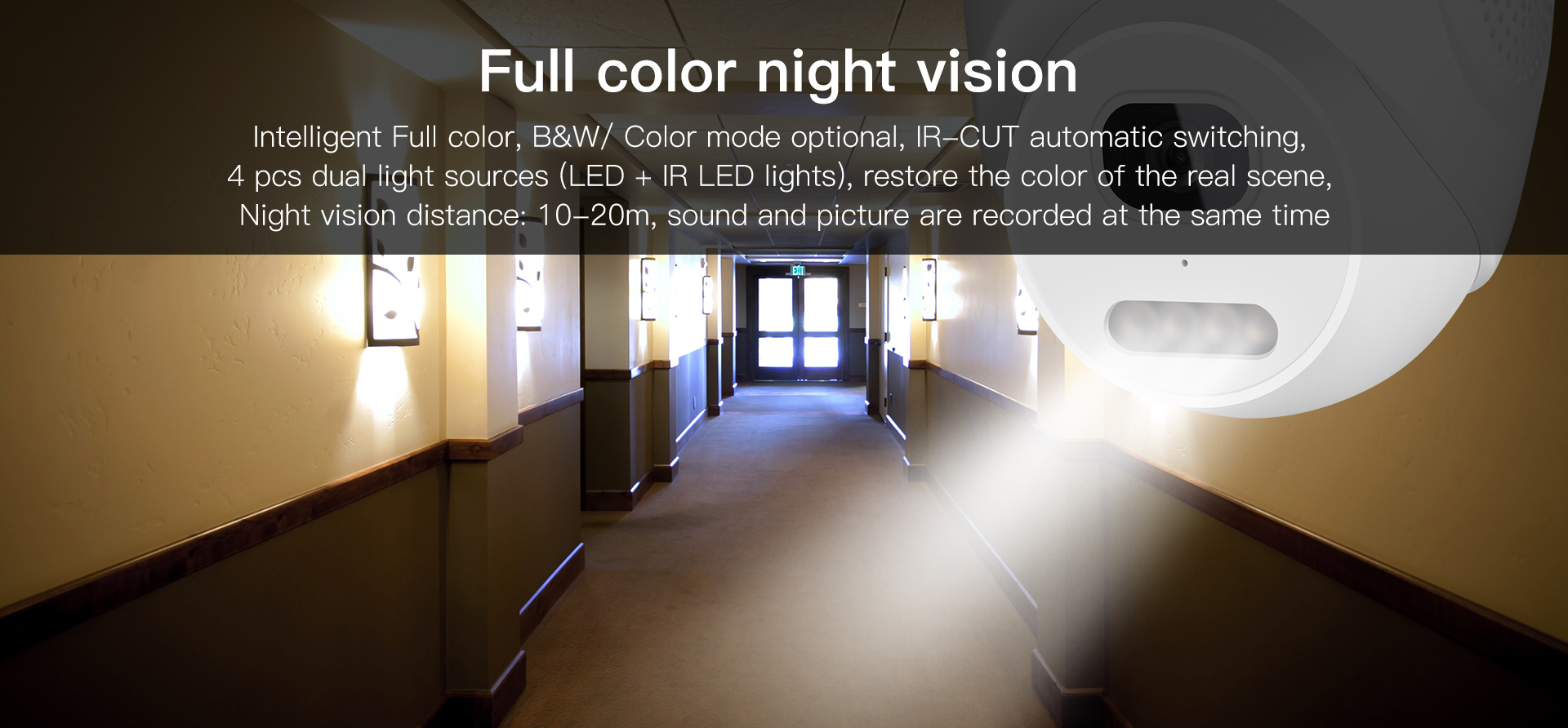

| Night vision | IR-CUT with auto-switching，4PCS dual light sources(LED lights+ IR LED lights); Irradiation distance: 10~20 m | |
| Compression standard | H.264 main profile/H.264+ main profile/Motion-JPEG/JPEG | |
| Data rate | Main stream:1080p(1920×1080)@30fps/1296p(2304×1296)@15fps， Substream：360p(640×360)@15fps | |
| Bit rate/maximum frame rate | 128～4096kbps/30fps | |
| Image adjustment | Brightness and contrast are adjustable | |
| Audio | Input | Built-in -38dB microphone |
| Output | Built-in 8Ω2W speaker | |
| Sampling frequency/bit width | 8KHz/16bit | |
| Compression standard/Bit Rate | G.711/64kbps | |

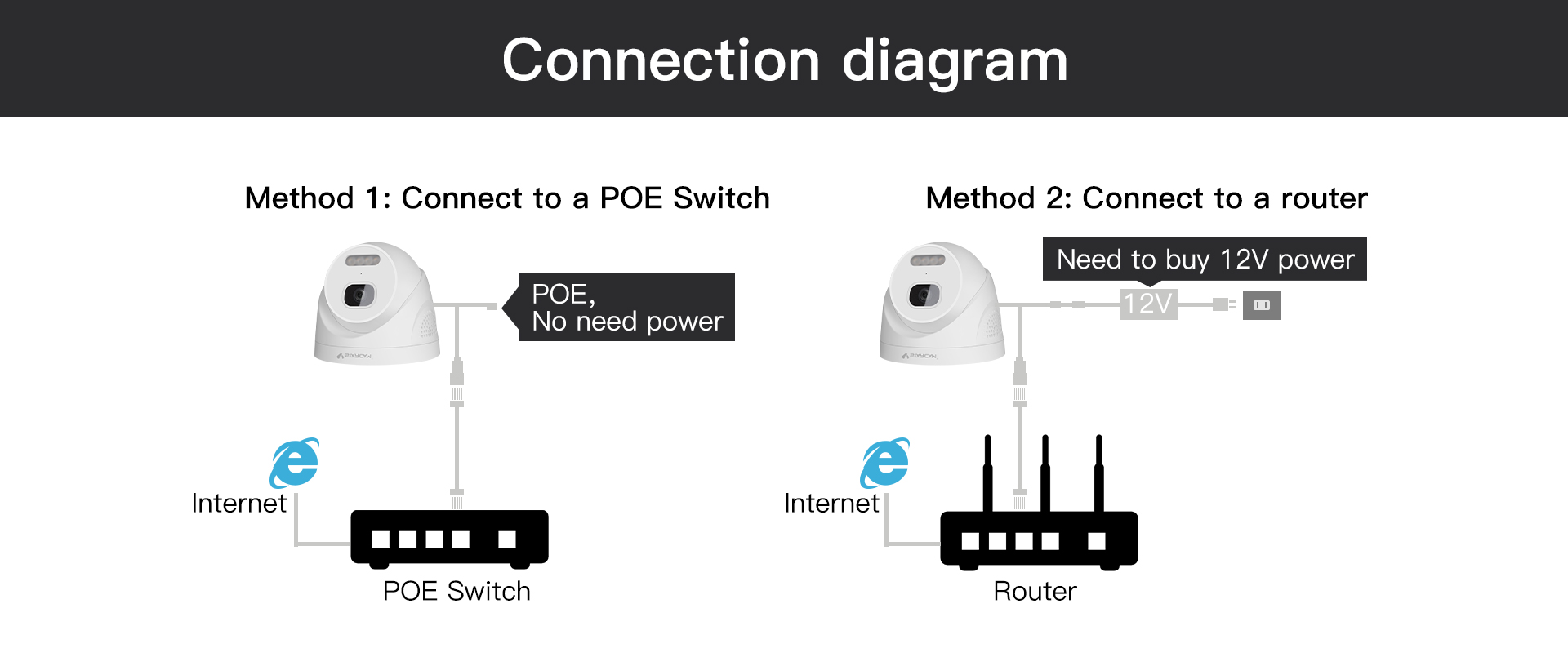

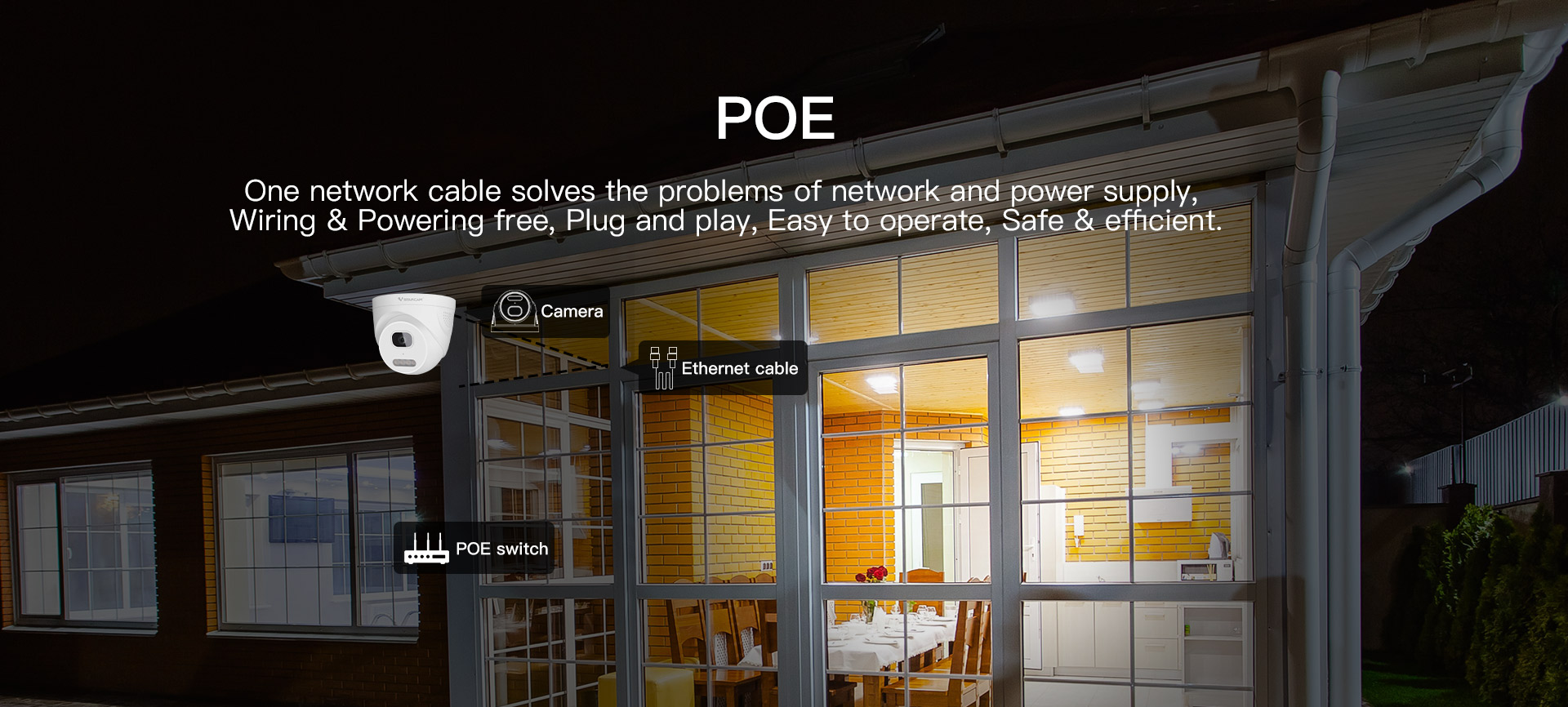

| Network | Network interface | 10Mbps/100Mbps adaptive /RJ45 interface support POE |
| Network protocol | TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P etc. | |
| Storage | Storage functions | Supports T-Flash card(max supports 256GB); Cloud Storage；NVR；NAS |
| Alarm | Alarm detection | Supports Motion detection; Humanoid detection; Humanoid tracking, Absence detection; LED light Timing ON/OFF |
| Physical Indicator | Rated voltage | DC12V±5% |
| Operating condition | Temperature: -10～50℃; Humidity: ＜90% | |
| Weight | Net weight: 216g （Note: in kind prevail） | |

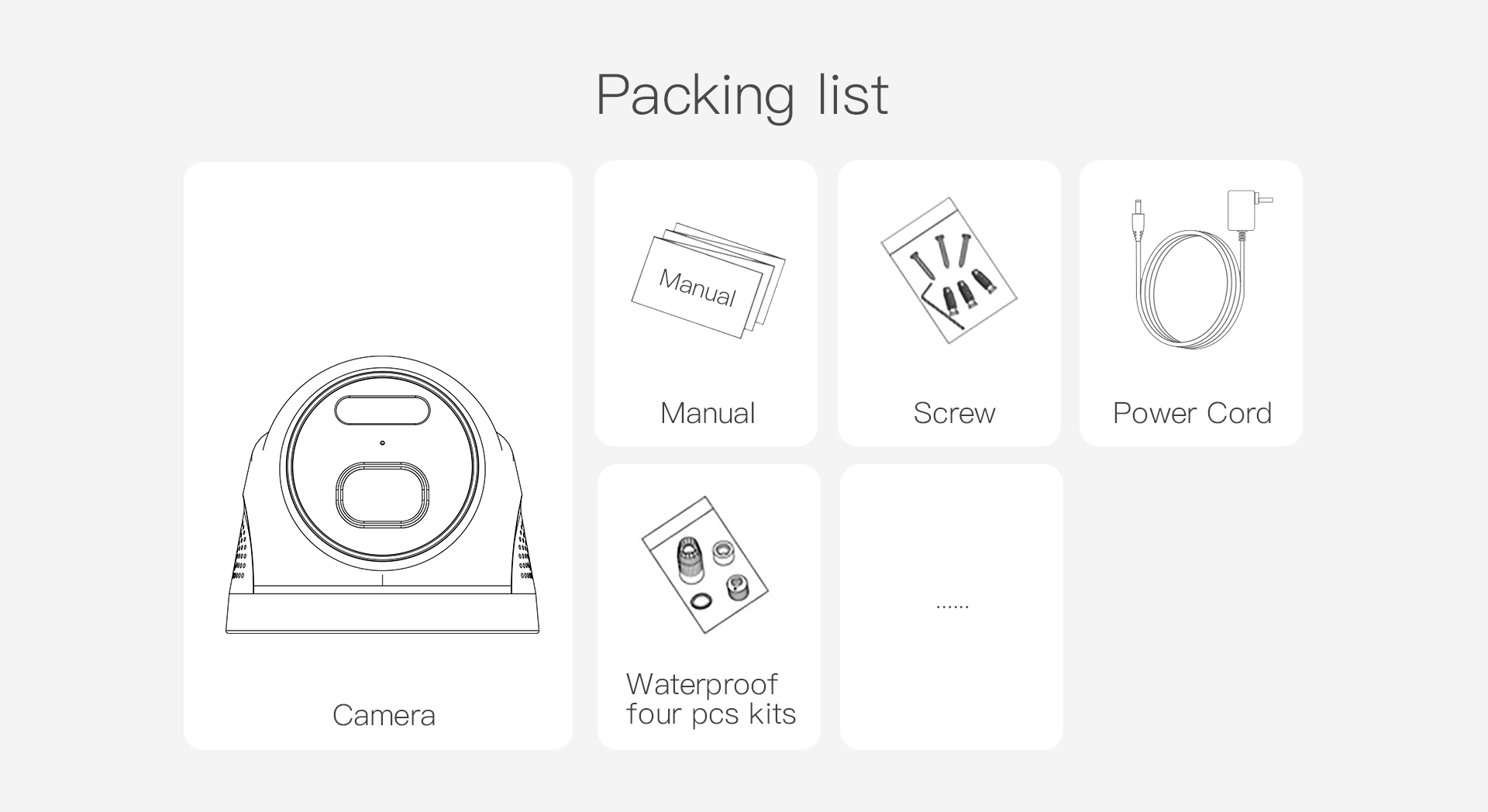

| Package size | 165*160*125mm (LxWxH)（Note: in kind prevail） |
