  • VStarcam CS49D
    Sorts Type Parameters
    System Operating system Embedded Linux
    Online visitor Supports 4 visitors at the same time
    Image sensor 1/3 inch CMOS sensor
    Minimum illumination 0.5 Lux(Color mode), 0.1 Lux(B&W mode)

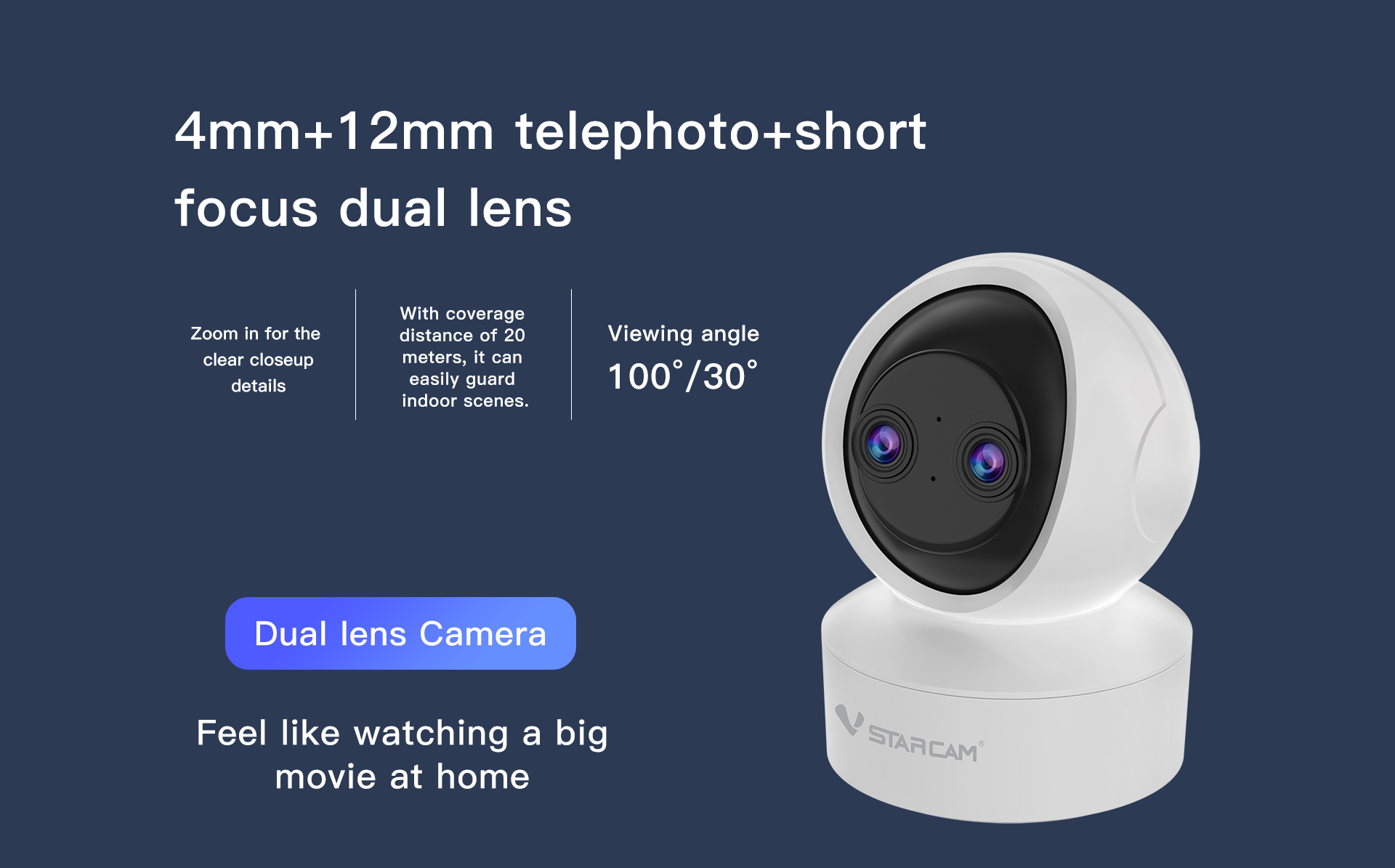

    Lens 4mm short focus lens+ 12mm long focus lens, angle of view100°/30°
    Night vision Automatic switch dual filters, 8 IR lights, night vision range 5-10 meters
    Compression standard H.264 main profile/Motion-JPEG/JPEG
    Data rate Mainstream:1296p(2304×1296)@25fps; Substream:360p(640×360)@25fps
    Bit rate/maximum frame rate 128~4096kbps/25fps
    Image adjustment Adjustable brightness and contrast
    Audio Input Built-in -38dB microphone
    Output Built-in 8 Ω 1W speaker
    Sampling frequency/bit width 8KHz/16bit
    Compression standard/bit Rate G.711/64kbps
    Network Network interface 10Mbps/100Mbps adaptive/RJ45 interface
    Network protocol TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P etc.
    Wireless network IEEE802.11b/g/n;Support AP mode.
    Wireless frequency 2.4GHz
    Wireless security encryption 64/128-bit WEP/WPA-PSK/WPA2-PSK data encryption

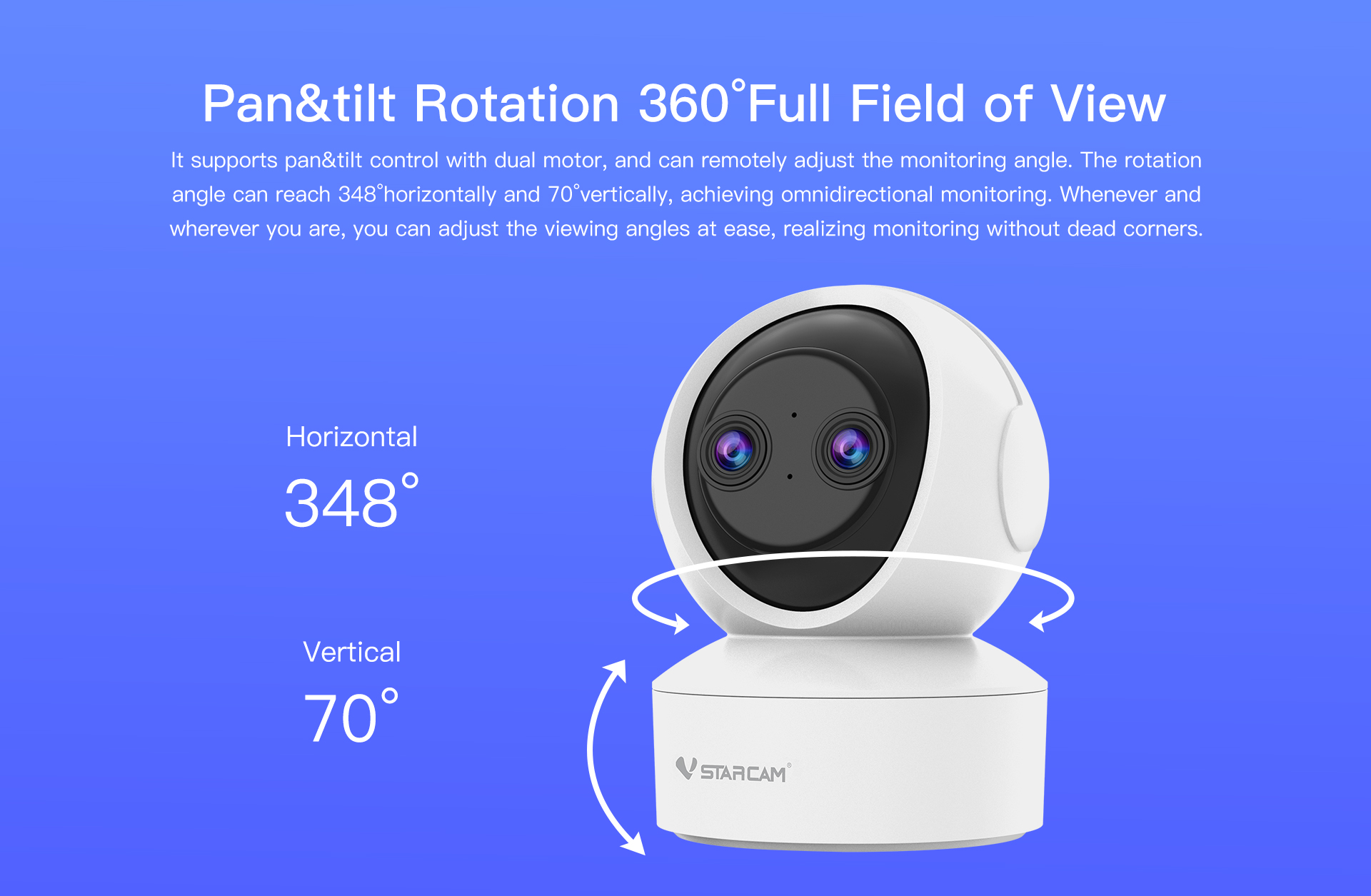

    Pan&Tilt Rotation angle Horizontal 348 °/Vertical 70 ° (visible angle 360 °)
    Preset position Supports 16 presets (mobile app only supports 5)

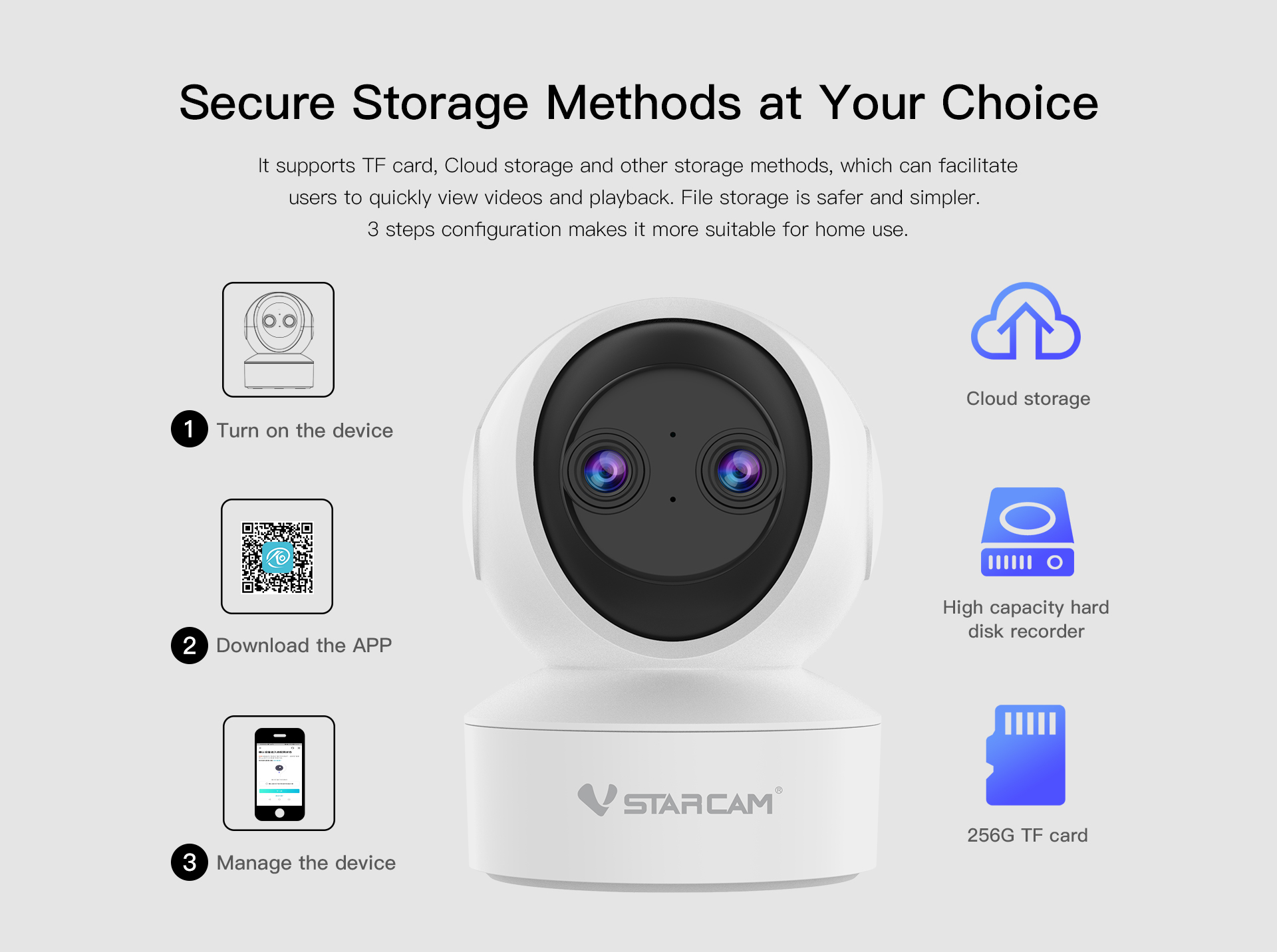

    Storage Storage Supports TF card(max 256GB); Cloud Storage;NVR;NAS;
    Alarm Alarm detection Support for motion detection, human detection, humanoid framing,human tracking
    Physical Indicators Rated voltage DC 5V±5%
    Power consumption Rated power: 2.9W (infrared light on)/maximum power: 6.6W (pan &tilt on)
    Operating condition Temperature: -10~50℃; Humidity: <90%
    Weight N.W.:200 g, G.W.:360 g (Note: in kind prevail)
    Package size 170x150x108mm(LxWxH)
