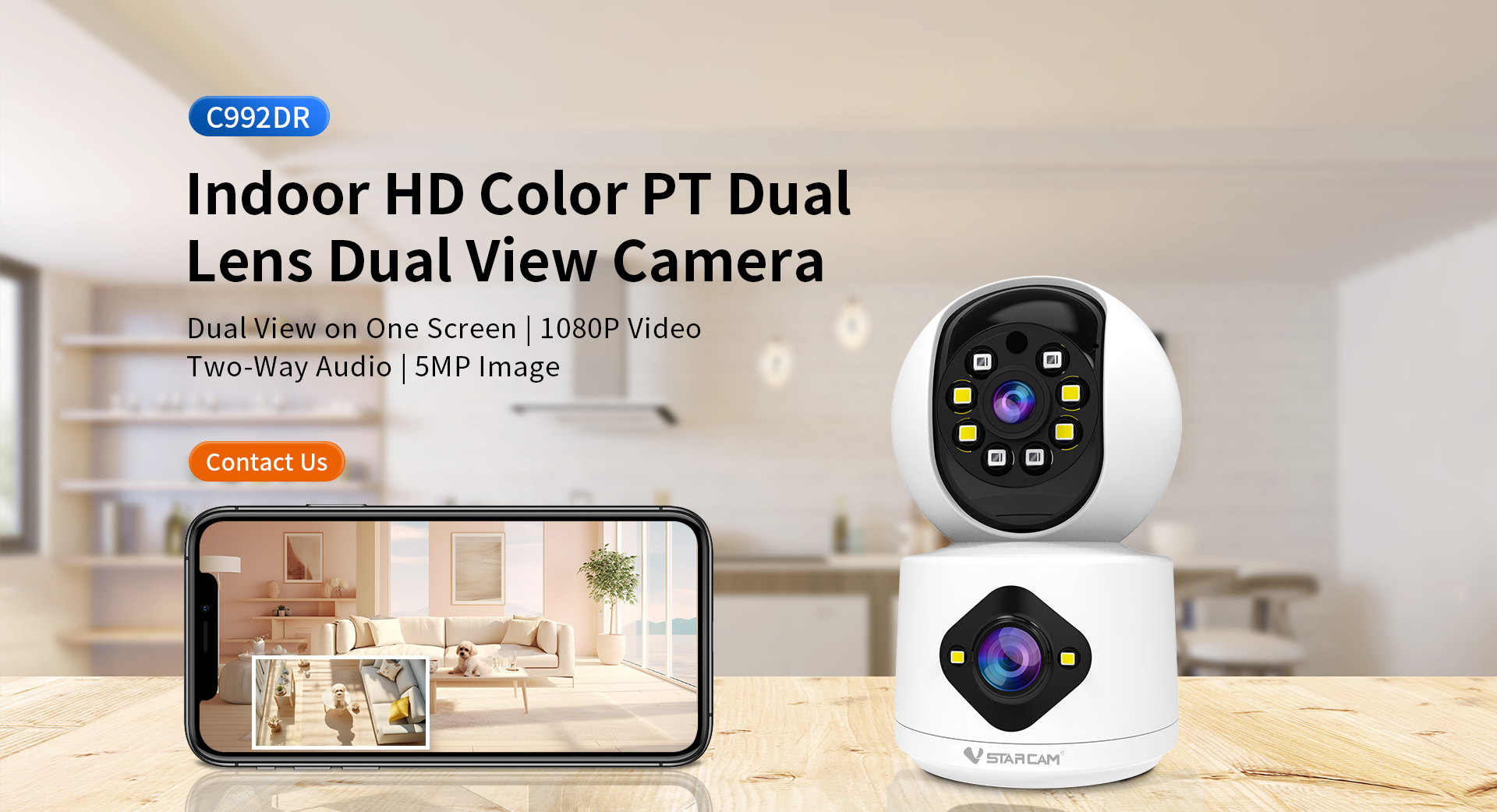

C992DR |
|
CG992DR |
✮1 MP HD |
|
✮2 MP HD |

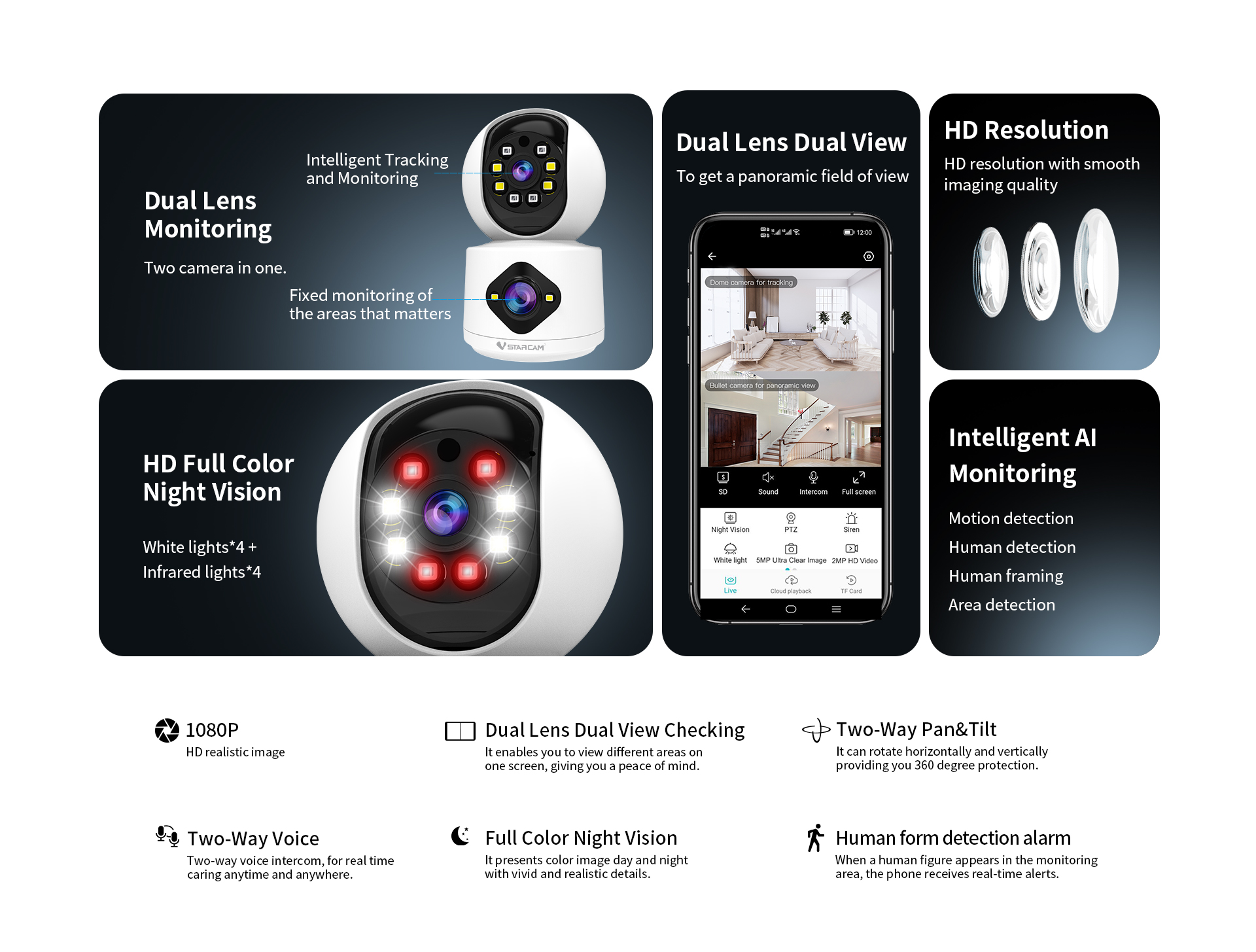

✮Dual lens dual views, monitor with no blind spots |
|
✮Dual lens dual views, monitor with no blind spots |
✮F1.0 large aperture, more light intake, clearer night vision |
|
✮Dual core light panel, full-color night vision |
✮ISP image processing technology, preserving true colors |
|
✮ISP image processing technology, preserving true colors |
✮Human detection, real time alerts |
|
✮Human detection, real time alerts |
Sorts |
Type |
Parameters |
|
Sorts |
Type |
Parameters |
System |
Operating system |
Linux |
|
System |
Operating system |
Linux |
Online visitor |
Supports 4 visitors at the same time |
|
Online visitor |
Supports 4 visitors at the same time |
APP |
O-KAM Pro |
|
APP |
O-KAM Pro |
Collection |
CPU |
Ingenic |
|
Collection |
CPU |
Ingenic |
Memory |
512Mb |
|
Memory |
512Mb |
Lens |
4mm |
|
Lens |
4mm |
Image sensor |
1/3 inch CMOS sensor |
|
Image sensor |
1/3 inch CMOS sensor |
Min. Illumination |
0.5Lux (color mode), 0.1Lux (b&w mode) |
|
Min. Illumination |
0.5Lux (color mode), 0.1Lux (b&w mode) |
Sensor performance |
Support automatic white balance, automatic gain control and automatic backlight compensation |
|
Sensor performance |
Support automatic white balance, automatic gain control and automatic backlight compensation |
Night vision |
Black and white night vision, full-color night vision |
|
Night vision |
Black and white night vision, full-color night vision |
Lens/Viewing angle |
Diagonal 58..7 ° |
|
Lens/Viewing angle |
4mm/Diagonal 91 ° |
Video |
Resolution |
2960*1665P/15FPS/500W |
|
Video |
Resolution |
2960*1665P/15FPS/500W |
Night vision |
Black and white night vision, full-color night vision |
|
Night vision |
Black and white night vision, full-color night vision |
Compression standard |
H.264 main profile/Motion-JPEG/JPEG |
|
Compression standard |
H.264 main profile/Motion-JPEG/JPEG |
IR control |
IR-CUT, soft photosensitive control |
|
IR control |
IR-CUT, soft photosensitive control |
Bit rate |
128~4096kbps |
|
Bit rate |
128~4096kbps |
Image adjustment |
Brightness, contrast, OSD display |
|
Image adjustment |
Brightness, contrast, OSD display |
Audio |
Input |
Built-in -38dB microphone |
|
Audio |
Input |
Built-in -38dB microphone |
Output |
Built-in 8Ω1W speaker |
|
Output |
Built-in 8Ω1W speaker |
Sampling frequency/bit width |
8KHz/16bit |
|
Sampling frequency/bit width |
8KHz/16bit |
Compression standard/Bit Rate |
G711A |
|
Compression standard/Bit Rate |
G711A |
Pan/Tilt |
Rotation angle |
Horizontal: 320 ° Vertical: 65 ° |
|
Pan/Tilt |
Rotation angle |
Horizontal: 320 ° Vertical: 65 ° |
Network |
Network interface |
10Mbps/100Mbps |
|
Network |
Network interface |
10Mbps/100Mbps |
Network protocol |
TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P |
|
Network protocol |
TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P |
Wireless network |
IEEE802.11b/g/n |
|
4G(China) |
FDD:B1/B3/B5/B8 TDD:B34/B38/B39/B40/B41 WCDMA:B1/B5/B8 |
Wireless frequency |
2.4G |
|
Wireless security encryption |
64/128-bit WEP/WPA-PSK/WPA2-PSK data encryption |
|
Storage |
External TF card |
Supports T-Flash cards (up to 256GB) |
|
Storage |
External TF card |
Supports T-Flash cards (up to 256GB) |
Cloud storage |
Support cloud storage, users can purchase according to their needs. |
|
Cloud storage |
Support cloud storage, users can purchase according to their needs. |
Alarm |
Alarm detection |
Motion detection, human detection, human framing, person tracking, and area detection |
|
Alarm |
Alarm detection |
Motion detection, human detection, human framing, person tracking, and area detection |
Physical Indicators |
Rated voltage |
DC5V±5% |
|
Physical Indicators |
Rated voltage |
DC5V±5% |
Power consumption |
Rated:2.6W |
|
Power consumption |
Rated:2.6W |
Operating condition |
Working temperature: -10~55 ℃, working humidity<90% |
|
Operating condition |
Working temperature: -10~55 ℃, working humidity<90% |
Weight |
Net weight: 181g, Gross weight: 300g |
|
Weight |
Net weight: 181g, Gross weight: 300g |
Camera size |
75x76x127mm |
|
Camera size |
75x76x127mm |
Packaging size |
90x90x185mm |
|
Packaging size |
90x90x185mm |
