C7824WIP

Detail Specs
  • Support
  • Indoor Security Camera Indoor Security Camera Indoor Security Camera Indoor Security Camera Indoor Security Camera Indoor Security Camera Indoor Security Camera Indoor Security Camera Indoor Security Camera Indoor Security Camera Indoor Security Camera Indoor Security Camera Indoor Security Camera Indoor Security Camera Indoor Security Camera Indoor Security Camera

    • [ HD 720P resolution ] -1280×720p resolution provide more clarity. Support Android or IOS mobile phone / Windows PC. Max 4 devices can view at the same time. One device can add Max 64 cameras. Support 2.4Ghz wifi (does not support 5Ghz wifi currently), IEEE802.22b/g/n.

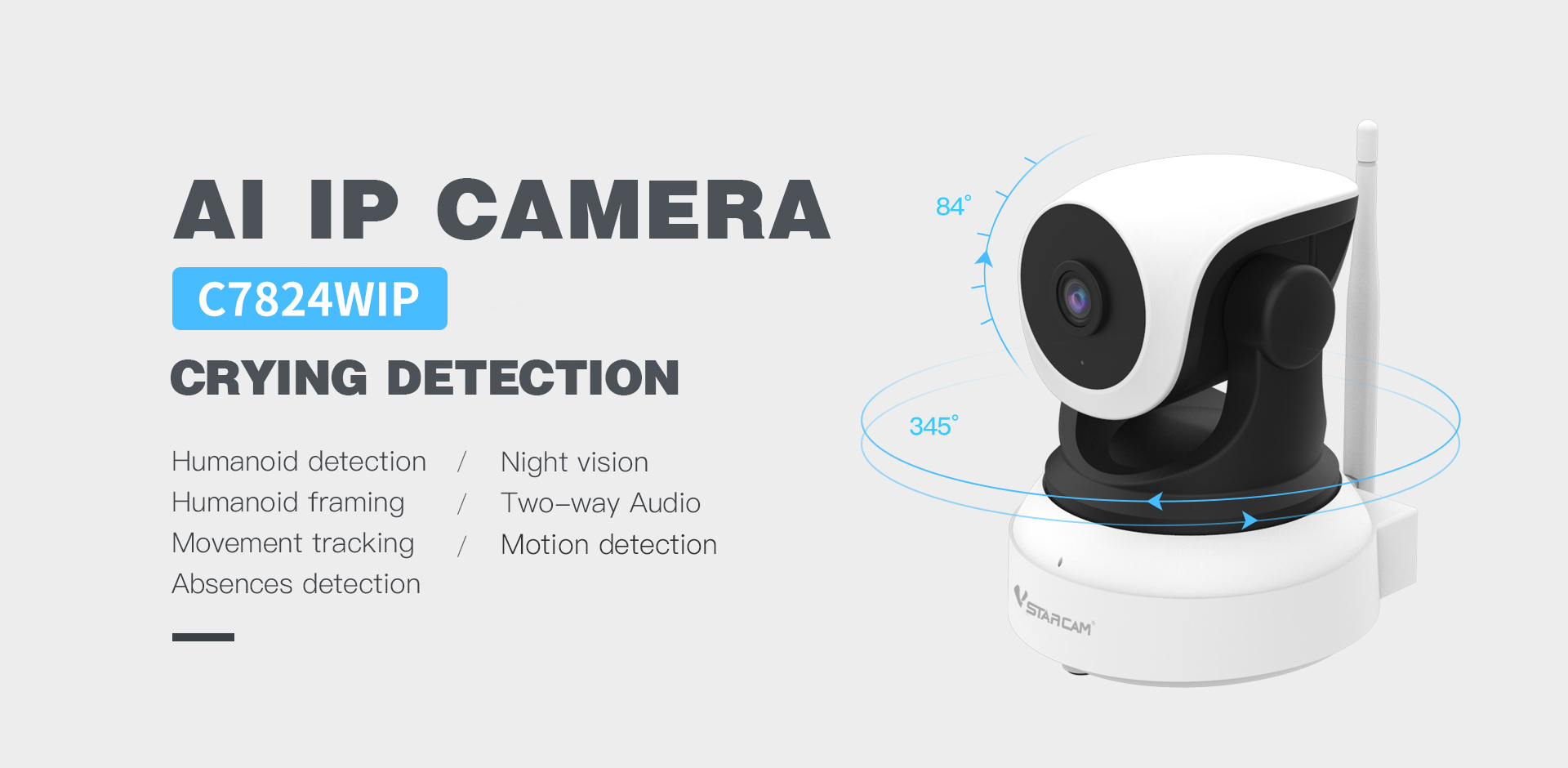

    • [ Pan / Tilt / Zoom Camera ] - 85(diagonal)°wide viewing angle lens combine with 345° horizontal & 84° vertical rotation range, give your house 360°surveillance protection. You can slide the screen to rotate the camera or make it cruise automatically via tap “Horizontal Cruise” or “Vertical Cruise”.
    • [ Crying Motion Detection & Night Vision ] - Built-in 6pcs infrared LED lights, night vision up to 12-15m. Support motion detection alarm. Alert can be sent by App/Email.
    • [ Two- way audio ] - Built-in speaker and microphone, see, hear and speak to whom is standing in front of VStarcam home security camera directly,such as baby,pet,elderly,and thief.

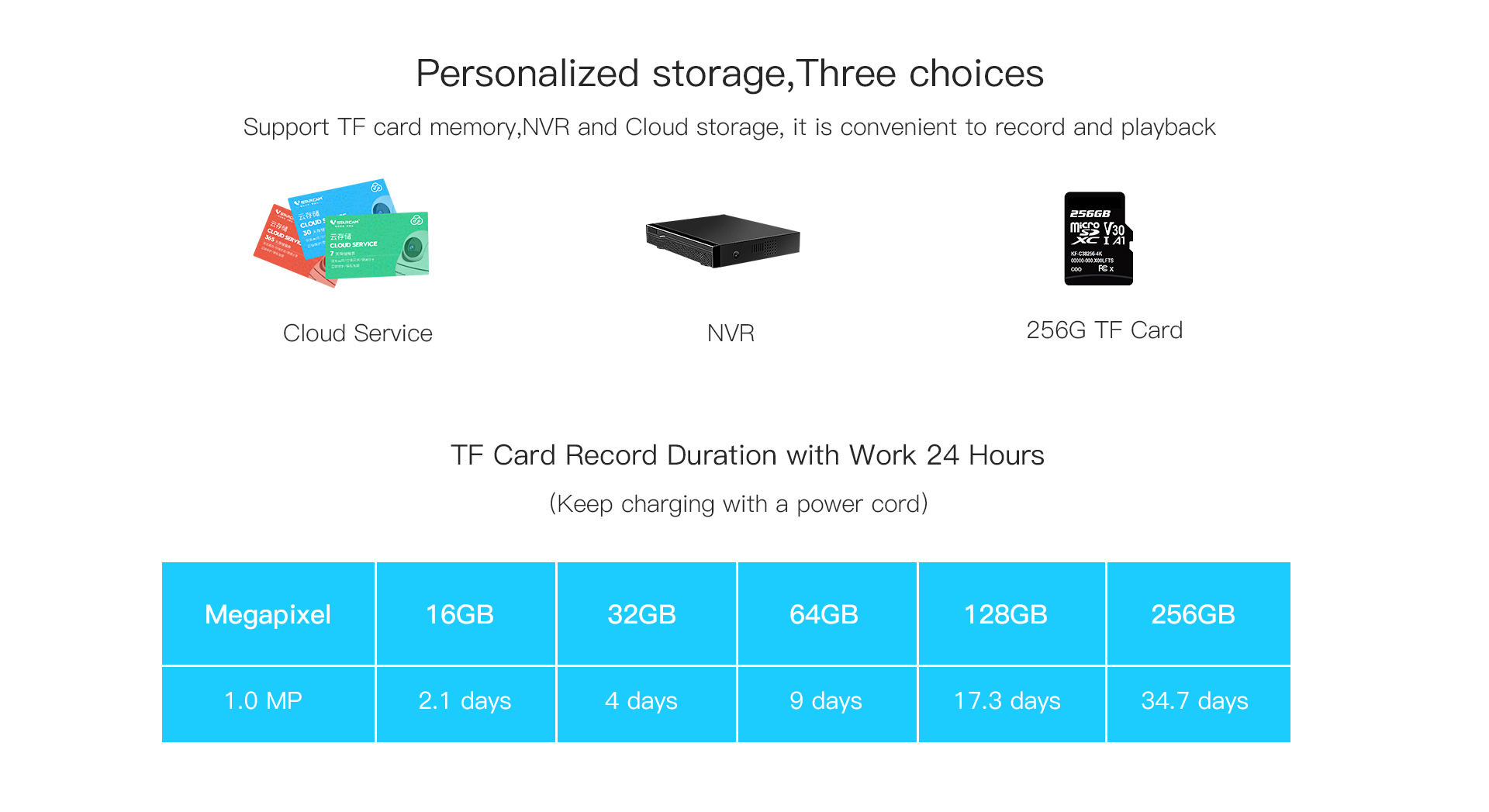

    • [TF card storage and Cloud service] - Support max 128G TF card (card not included) storage. The video loop record in TF card automatically. VStarcam cloud is also available. You can live-stream your footage or play back based on your preference. Timeline let you located the specific time’s video in few seconds.
    • [ Support Echo Show ]
    SystemOperation systemEmbedded Linux OS
    Online visitorSupport 4 visitors at the same time
    Image CaptureImage sensor1/4 inch 720p Progressive Scan CMOS
    Minimum illumination0.3~0.5Lux(Color mode),0 Lux(B&W mode)
    Lens4.0mm@F2.0
    Viewing angle85˚(diagonal)
    Night visionDual Filter,IR-Cut,6pcs 850nm patch IR LED IR irradiation distance:5~10m

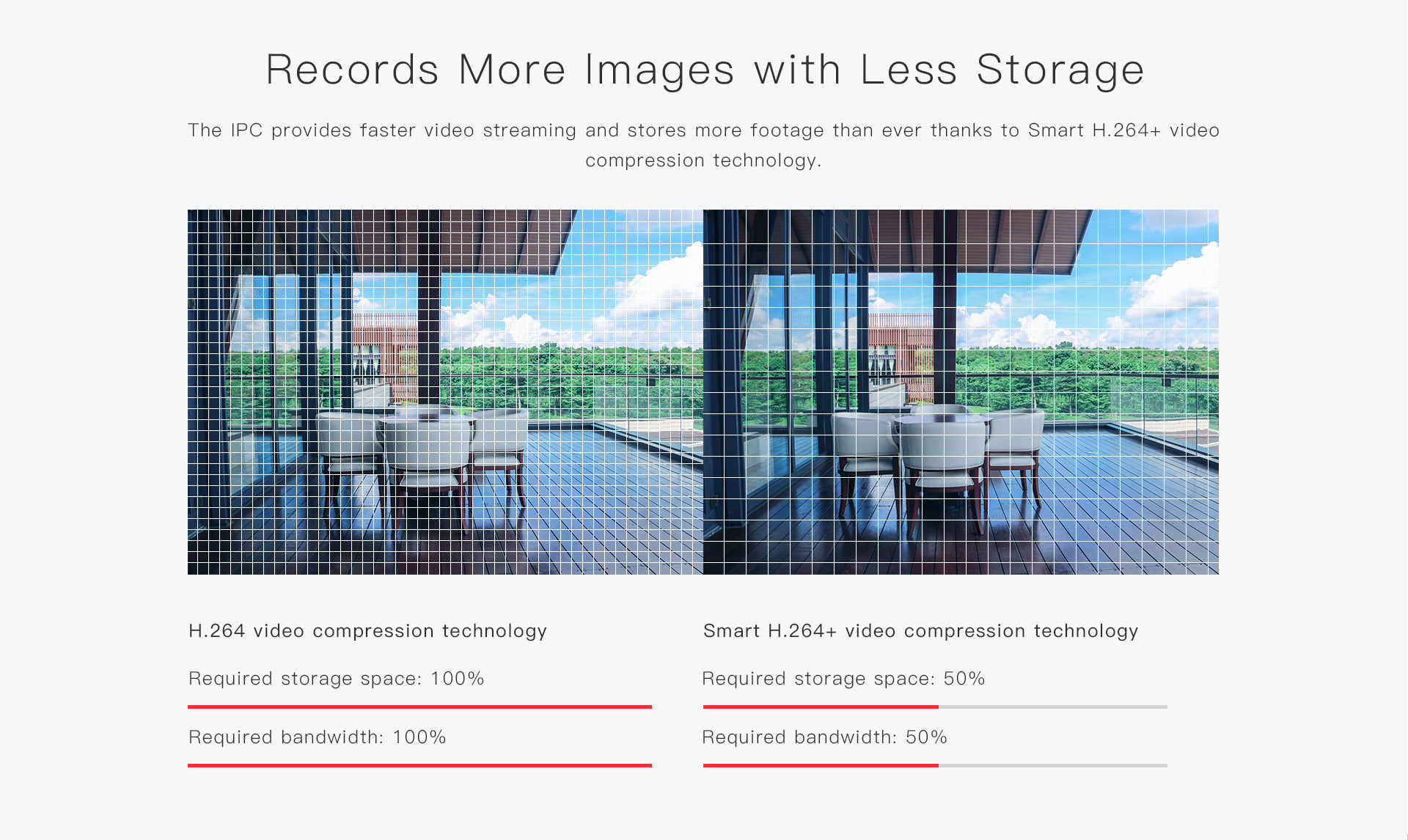

    VideoEncode formatH.264+/H.264 main profile@level:4.0/Motion-JPEG/JPEG
    Resolution720p(1280×720)   360p(640×360)
    Bit Rate/FPS/Frequency128~4096kbps/1~30pfs/60Hz、50Hz
    Image adjustmentBrightness and contrast can be adjusted
    AudioInputBuilt-in -38 dB microphone
    OutputBuilt-in speaker(8Ω1W)
    Sampling frequency / width8KHz/16bit
    Compression standardADPCM/32kbps
    NetworkEthernet10Base-T / 100Base-TX, RJ45 connector
    ProtocolsTCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P etc

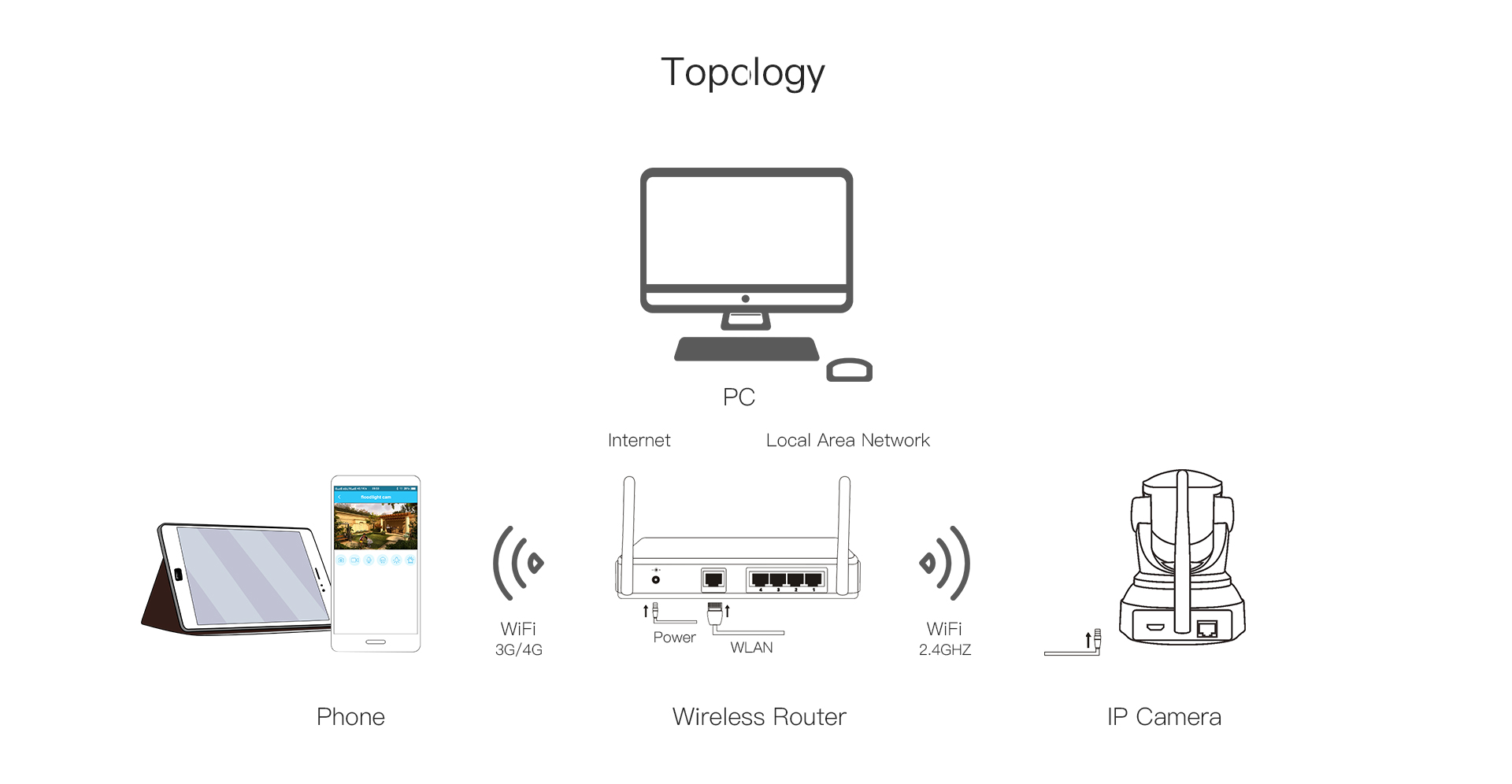

    Wireless LANIEEE802.11b/g/n, Supports AP mode
    Wireless LAN Frequency2.4~ 2.4835GHz
    Wireless LAN security64/128-bit WEP/WPA-PSK /WPA2-PSK data encryption
    Pan-tiltPan-tiltPan:345°,tilt:84°
    Preset positionPC App:support 16 positions,  phone App:support 5 positions
    MemorySocketTF Push-push socket,Maximum support 256GB; Cloud Storage;NVR;NAS
    AlarmAlarm TriggerMotion detection; Humanoid detection; Humanoid tracking;  Smoke detector alarm detection; Absence monitoring; Electronic fence
    Physical EnvironmentalRated voltageDC 5V±5%
    Power consumptionRelated power:2.5W(IR LED on), Maximum power:3.3W(Pan&Tilt on)
    Operating conditionTemperature:-10~50℃,humidity:<90%
    WeightNet:250g(Note: in kind prevail)
    Package size196*165*138mm (L×W×H)

    Certificate


    EMCREDRoHS
