| System | Operation system | Embedded Linux OS |
| Online visitor | Support 4 visitors at the same time | |
| Image Capture | Image sensor | 1/2.7 inch 1080p Progressive Scan CMOS |
| Minimum Illumination | 0.7Lux（Color mode）,0.3Lux（B&W mode） | |
| Lens | 4.0mm@F2.1 | |
| View Angle | 107°（diagonal） | |
| Night vision | Dual Filter,IR-Cut，6pcs 850nm SMD IR LED IR irradiation distance:5~10m | |
| Video | Encode format | H.264 main profile@level:4.0/Motion-JPEG/JPEG |
| Three Stream | Main Stream：1080p(1920×1080)@15fps Sub Stream：360p(640×360)@15fps Third Stream：180p(320×180)@10fps | |
| Bit Rate | 128～4096kbps | |
| Maximum frame rate | 15fps | |
| Image adjustment | Contrast、Brightness、Saturation、Hue | |
| Audio | Input | Built-in -48 dB microphone |
| Output | Built-in speaker(8Ω1W) | |
| Sampling frequency / width | 8KHz/16bit | |
| Compression standard | ADPCM/32kbps | |
| Network | Ethernet | RJ-45(10 / 100Base-T) |
| Protocols | TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P etc | |
| Wireless LAN | IEEE802.11b/g/n | |
| Wireless LAN Frequency | 2.4~ 2.4835GHz | |
| Wireless LAN security | 64/128-bit WEP/WPA-PSK /WPA2-PSK data encryption | |
| Pan-tilt | Pan-tilt | Pan：335°, tilt：110° |
| Preset position | PC APP：support 16 positions, Phone APP:support 5 positions | |
| Memory | Socket | TF Push-push socket,Maximum support 128GB; Cloud Storage |

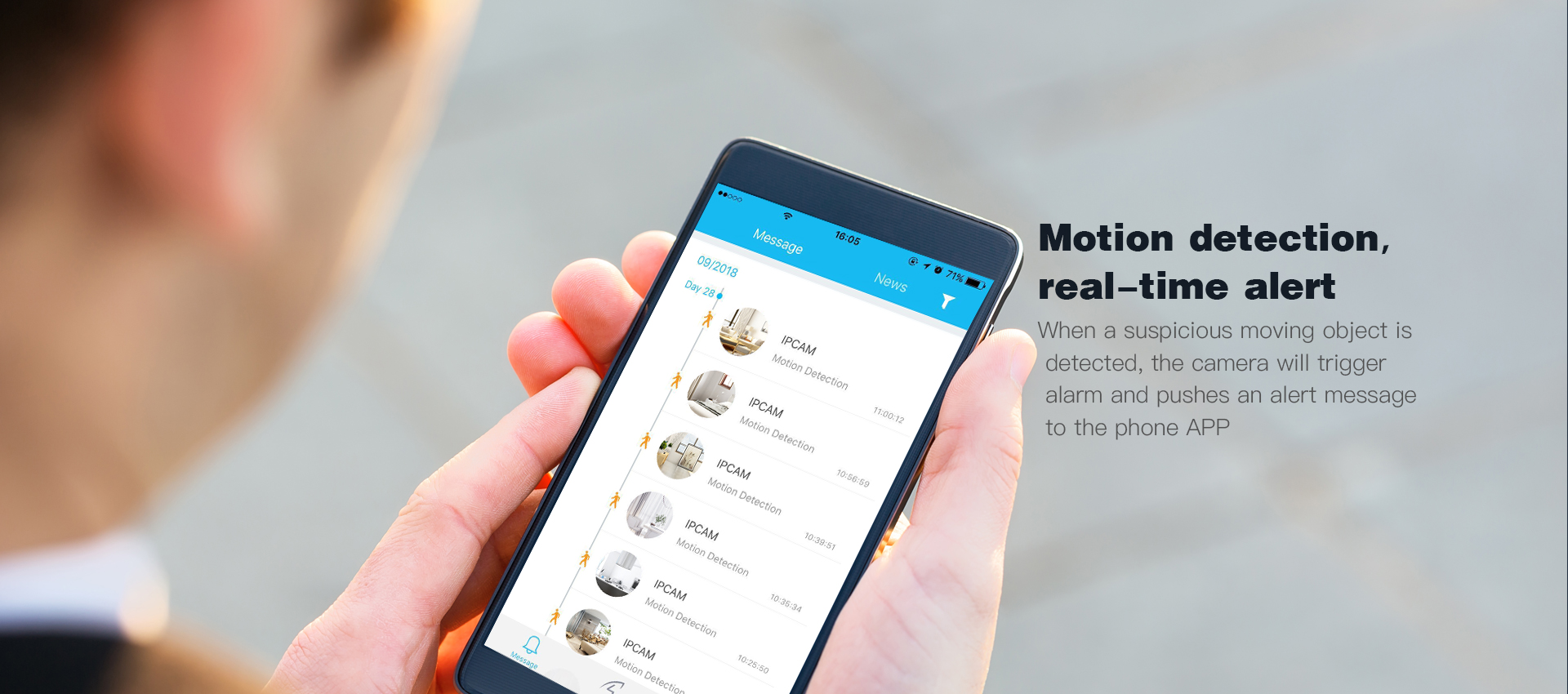

| Alarm | Alarm Trigger | Motion detection |
| Physical Environmental | Rated voltage | DC 5V±5% |
| Power consumption | Related power: 2.90W(IR LED on)，Maximum power：5.10W（Pan&Tilt on） | |
| Operating condition | Temperature:-10～50℃,humidity:＜90% | |
| Weight | Gross：422.5 g Net:217.5g(Note: in kind prevail) | |
| Package size | 184x114x102mm(L×W×H) | |
| Product size | 103X85X85mm (L×W×H) |
Certificate
 | | | |
| EMC | RED | RoHS |
