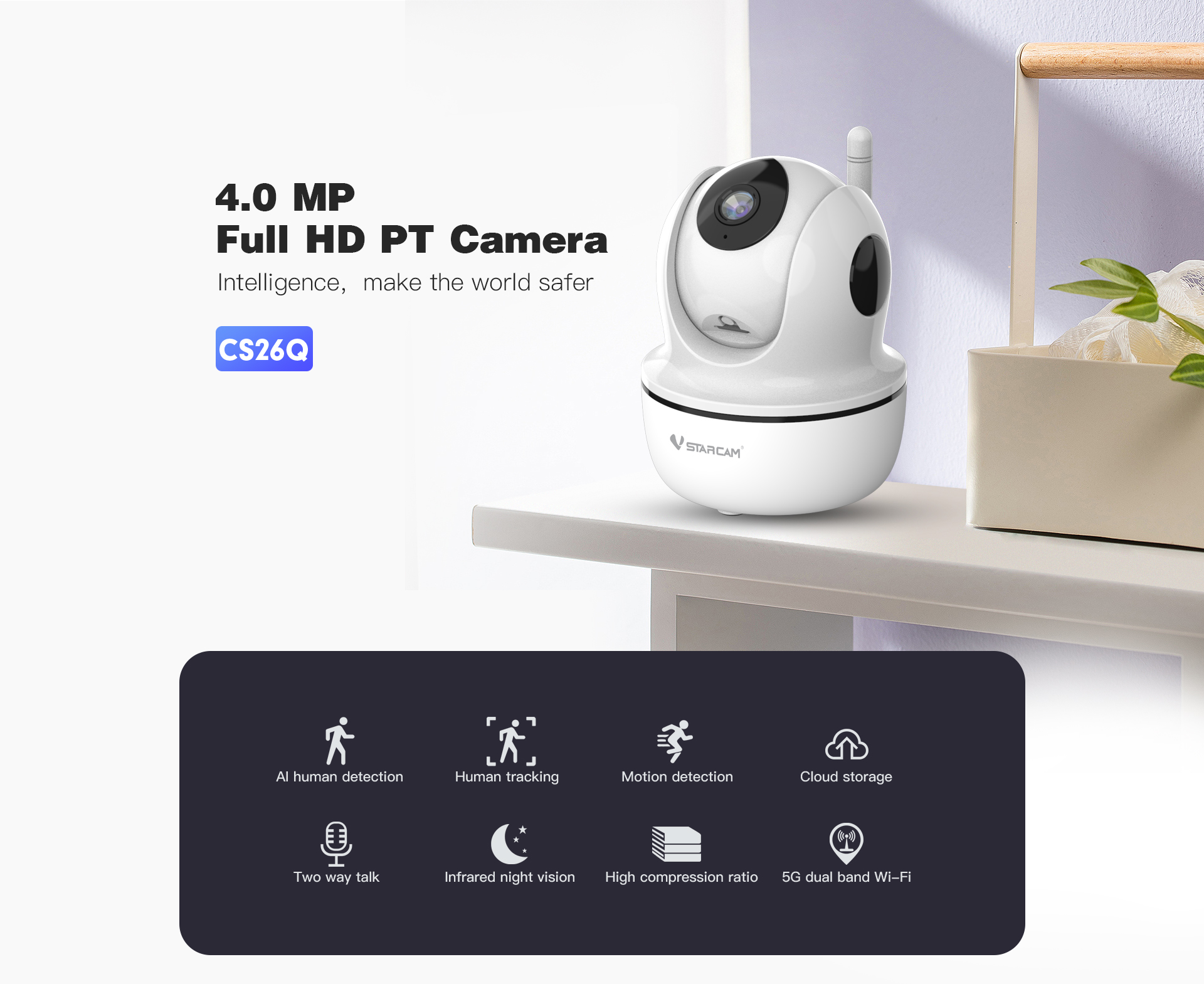

CS26Q

Detail Specs Videos
  • Support
  • AI IP Camera AI IP Camera AI IP Camera AI IP Camera AI IP Camera AI IP CameraAI IP Camera AI IP Camera AI IP Camera AI IP Camera AI IP Camera AI IP Camera AI IP Camera AI IP Camera

    SystemOperation systemEmbedded Linux OS
    Online visitorSupport 4 visitors at the same time
    Image CaptureImage sensor1/3 inch Progressive Scan CMOS
    Minimum Illumination0.5Lux(Color mode),0.1Lux(B&W mode)
    Lens4.0mm
    View Angle101°(diagonal)
    Night visionThe dual filter switches automatically,2pcs 28mil patch IR LED IR irradiation distance:5~10m
    VideoEncode formatH.264 main profile/H.264+ main profile/Motion-JPEG/JPEG
    Resolution2688x1520@30pfs/640*360@15pfs
    Bit rate/Frame rate/Display frequency128~4096kbps/1~30pfs/60Hz、50Hz
    Image adjustmentBrightness and contrast are adjustable
    AudioInputBuilt-in -38 dB microphone
    OutputBuilt-in speaker(8Ω1W)
    Sampling frequency / width8KHz/16bit
    Compression standardADPCM/32kbps
      NetworkEthernetRJ-45(10 / 100Base-T)
    ProtocolsTCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P etc

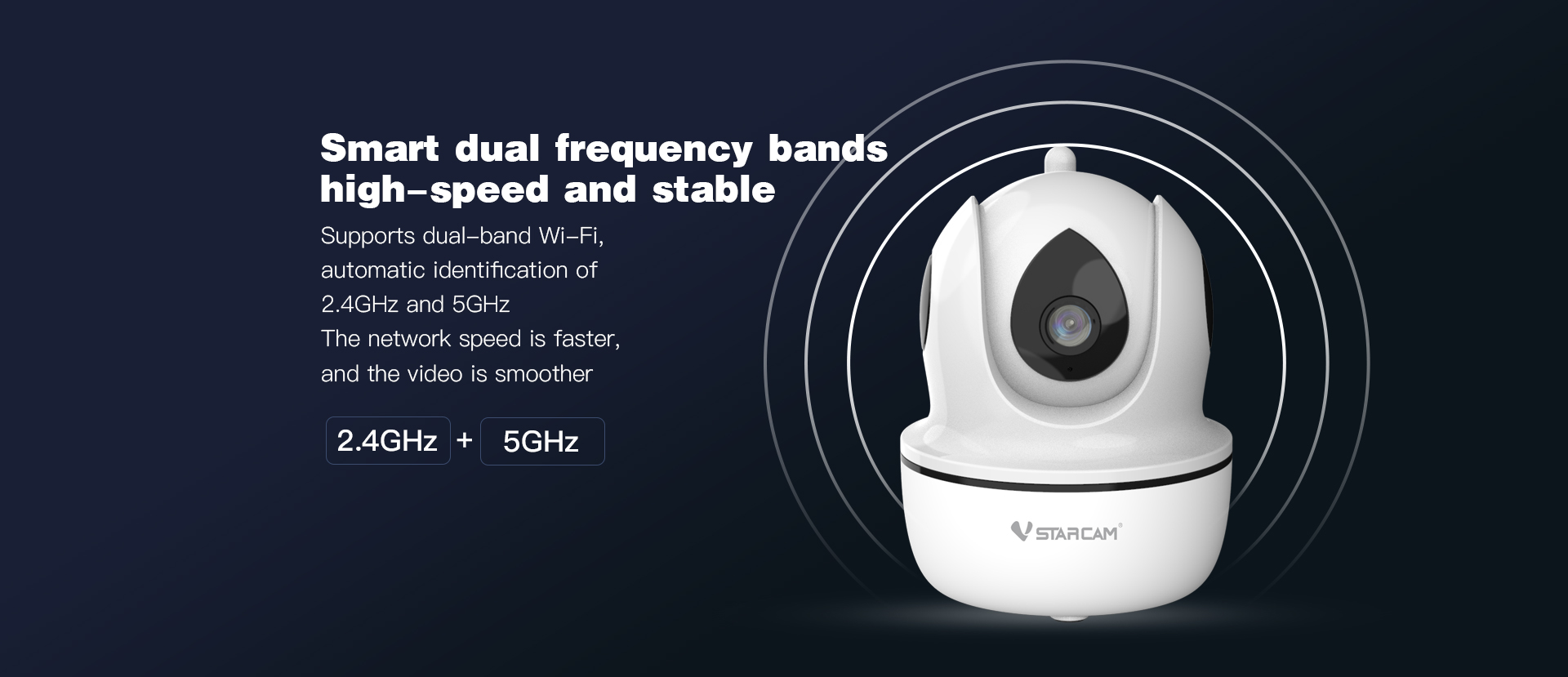

    Wireless LANIEEE802.11b/g/n
    Wireless LAN Frequency2.4~ 2.4835GHz; 5G
    Wireless LAN security64/128-bit WEP/WPA-PSK /WPA2-PSK data encryption
    Pan-tiltPan-tiltPan:355°, tilt:110°
    Preset positionPC APP:support 16 positions,  Phone APP:support 5 positions
    MemorySocketTF Push-push socket,Maximum support 256GB; Cloud Storage
    AlarmAlarm TriggerMotion detection, Humanoid detection, Humanoid tracking, Smoke detector alarm detection, absence monitoring
    Physical EnvironmentalRated voltageDC 5V±5%
    Power consumptionRelated power: 2.8W(IR LED on),Maximum power:4.3W(Pan&Tilt on)
    Operating conditionTemperature:-10~50℃,humidity:<90%
    WeightNet: 185 g  Gross:450 g(Note: in kind prevail)
    Package size185x125x92 mm(L×W×H)



    Certificate


    RoHSRED

    C26Q 5.0MP QUHD AI IP Camera
